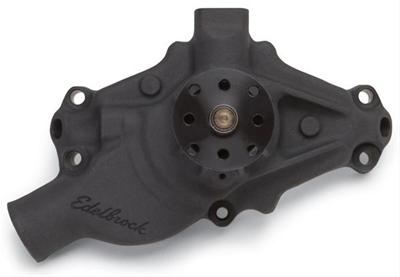

Edelbrock Water Pump Victor Circle Track Series Chevrolet 1955-95 262-400 CI V8 Engines

SKU: EDE8817

Water Pumps, Mechanical

EDE Water Pump...

Edelbrock

Edelbrock Water Pump Victor Circle Track Series Chevrolet 1955-95 262-400 CI V8 Engines

SKU: EDE8817

Water Pumps, Mechanical

EDE Water Pump...

IN STOCK! Est Ship 4-7 days. This item is IN STOCK at one of our warehouses or distribution centres, the ETA is the approximate time required to prepare your order for dispatch.

We accept

Description

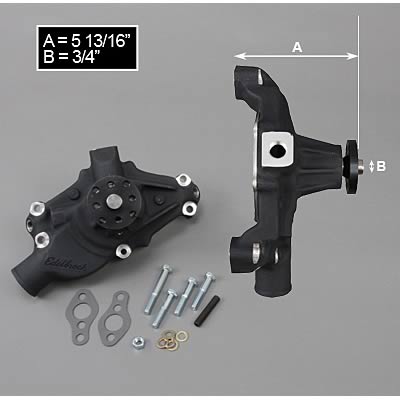

Victor Circle Track water pump #8817 is for high output racing Small-Block Chevy eninges used in circle track and dirt late model applications. This short style water pump features a revised impeller entry, a hard black anodized finish and .100" thicker rear cover for greater durability. Auxiliary 3/8" NPT water outlets ease fabrication of custom plumbing system. This water pump provide maximum cooling with equal distribution to both sides of the block within 1%. By eliminating hot spots, the engine produces optimum power from every cylinder without detonation and pre-ignition. Other features include billet steel hub and heavy-duty ball/roller bearings. Other features include an improved right-side outlet passage, aluminum back plate, marine seal, and a powdered metal impeller. Measures 5-13/16" from block surface to hub with a 1.84" inlet diameter and 3/4" pilot shaft.

Product Overview

Edelbrock #8817 Water Pump SBC Competition 3/8 npt outlet holes designed for circle track and endurance racing applications, they feature a revised impeller entry, a hard black anodized finish and .100" thicker rear cover for greater durability. Auxiliary water outlets ease fabrication of custom plumbing systems and auxiliary fittings are available as an or npt. These Water Pumps provide maximum cooling with equal distribution to both sides of the block within 1%. By eliminating hot spots, the engine produces optimum power from every cylinder without detonation and pre-ignition. Other features include billet steel hub and heavy-duty ball/roller bearings.

Features and Benefits

Only Flows In One Direction For Optimum Efficiency

Product Details

Casting Number:	8816
Description:	Victor Series Circle Track Water Pump
Engine Make/Size:	Chevy Small Block (262-400)
Fan Clutch Included:	No
Finish:	Black
Housing Material:	Aluminum
Hub Height:	5.813
Hub Hole Quantity:	6
Impeller Material:	Powdered Metal
Impeller Rotation:	Standard
Impeller Vane Quantity:	6
Includes Back Housing:	Yes
Installation Warnings:	Yes
Mounting Hardware Included:	No
Mounting Hole Quantity:	4
Outlet Quantity:	1
Part Number:	ede8817
Pulley Included:	No
RGL:	WARNING: This product can expose you to Lead, which is known to the State of California to cause cancer or birth defects or other reproductive harm. For more information, visit www.P65warnings.ca.gov.
Related Cooling Fan Components:	No
Style:	Competition
Thermostat And Housing Included:	No
Type:	Mechanical
WARNING CA Proposition 65 Message:	WARNING: This product can expose you to Lead; which is known to the State of California to cause cancer or birth defects or other reproductive harm. For more information; visit www.P65warnings.ca.gov.
WARNING CA Proposition 65:	Yes
Water Pump Drive Type:	V-Belt

Application Summary

Chevrolet:Small-Block:262 (4.3L)-400 (6.6L)

Part Type

Engine Water Pump

Data: v4.2 - Upd: 2026-10-13 23:11:32

Features

Auxiliary fittings are available as AN or NPT on specific models
Billet steel hub and heavy-duty bearings used for lasting performance
Durable black anodized finish
Only Flows In One Direction For Optimum Efficiency

Specifications

Product Attributes - Brand: Edelbrock
Product Attributes - Manufacturer's Part Number: 8817
Product Attributes - Part Type: Water Pumps, Mechanical
Product Attributes - Product Line: Edelbrock Victor Series Circle Track Mechanical Water Pumps
Product Attributes - UPC: 085347088171
Product Attributes - Pump Flow: High-volume
Product Attributes - Water Pump Rotation: Clockwise
Product Attributes - Pilot Diameter (in.): 0.750 in.
Product Attributes - Pump Material: Aluminum
Product Attributes - Pump Color: Black
Product Attributes - Water Pump Style: Short
Product Attributes - Water Pump Inlet Diameter (in.): 1.84
Product Attributes - Remanufactured: No
Product Attributes - Quantity: Sold individually.
Product Attributes - Notes: Gaskets included. Has 3/8 in. NPT auxiliary fittings at 45 degrees to the block.

Reference Information

Brand Name/s	Edelbrock
StreetFX SKU	ede8817
SFX Item ID	4237468
Supplier Item Code	4237468
Manufacturer SKU	8817
Manufacturer UPC	85347088171
Alternative References	EDB8817, EDL-8817
