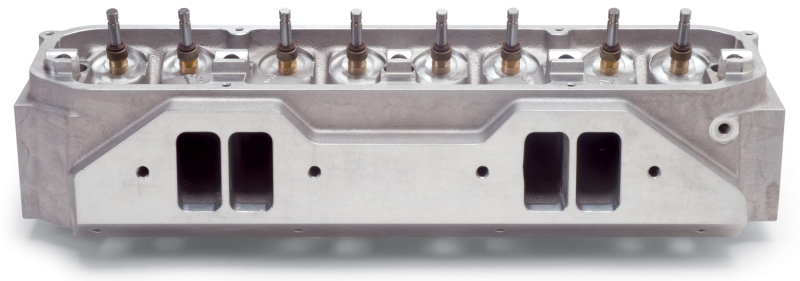

Edelbrock Big-Block Chrysler Victor B/Rb Heads w/ Valves
Edelbrock Big-Block Chrysler Victor B/Rb Heads w/ Valves
A$2,673.00
Available from MFR.
This item is available from the manufacturer's distribution centre. The dispatch timeframe shown is an estimate based on historical order processing and release times for this part. This item is not held in our own warehouse, and actual dispatch timing may vary depending on manufacturer workload and logistics at the time of ordering.
We accept
Description
IMPORTANT NOTICE: Images are supplied by the manufacturer and may be generic. While all efforts are made to provide accurate pictures, there may be differences in the actual product, such as colour, quantity, version, or included components. Please carefully review the description and specifications for details on inclusions or any variations. Some items may be sold individually or in sets, and images may occasionally depict additional products or quantities not included in your purchase. For assistance or clarification, please contact customer support.Reference Information Reference Data (Provide these details to our support team) Brand Name/s Edelbrock StreetFX SKU ede77929 SFX Item ID 4237324 Accounting SKU ede-77929 Manufacturer SKU 77929 Manufacturer UPC 85347779291 Alternative References 77929, EDB77929, EDL-77929
Cylinder Head - Victor - Bare - 2.200 / 1.810 in Valves - 280 cc Intake - 72 cc Chamber - Angle Plug - Aluminum - Valves - Mopar B / RB-Series - Each
Edelbrock Big-Block Chrysler Victor B/Rb Heads w/ Valves
use recommended springs to match your camshaft. Exhaust flange is extended .300" from stock (same as Mopar Stage 6) featuring dry exhaust bolt holes with Heli-Coil thread inserts. 72cc combustion chamber volume. Cylinder head part #77939 comes bare with valves only.
Additional Information
Victor RB/B Big-Block Chrysler Cylinder Head W/Valves
Part Type
Engine Cylinder Head
Features and Benefits
- Can Be Machined To Match Max Wedge Ports
Product Details
| CNC Ported: | No |
| Combustion Chamber Volume: | 72 |
| Construction Type: | Bare With Valves |
| Cylinder Head Type: | Standard |
| Deck Thickness: | 0.625 |
| Description: | Victor Series Cylinder Head |
| EGR Port: | No |
| Emission: | Non-Emissions |
| Engine Make/Size: | Mopar 383-440 |
| Exhaust Port Location: | +.250 |
| Exhaust Runner Volume: | 100 |
| Exhaust Valve Diameter: | 1.81 |
| Family: | Victor |
| Finish: | Satin |
| Grade Type: | Performance |
| Guide Material: | Manganese Bronze |
| Guide Plates Included: | No |
| Intake Runner Volume: | 280 |
| Intake Valve Diameter: | 2.20 |
| Material: | Aluminum |
| Part Number: | ede77929 |
| Quantity: | Sold Individually |
| Retainer Included: | No |
| Seat Angle: | Exhaust 45 deg/Intake 45 |
| Seat Material: | Ductile Iron |
| Series: | Victor |
| Type: | Valves Only |
| Usage: | Racing |
| Valve Angle: | 15 |
| Valve Included: | Yes |
| Valve Springs Included: | No |
| Valve Stem Diameter: | 0.3438 |
Product Overview
The Edelbrock part #77929 Big Block Chrysler Victor Series cylinder head is used by many of the best racers in the country and are the best choice for all-out competition. Edelbrock engineers work with leading racers like Billy Glidden, John Urist and Pat Musi to produce the ultimate components for racing. The end results is a competition ready cylinder head that features a cylinder head which is compatible with OE valve train and pistons for bolt-on convenience while Victor cylinder head features raised runners, revised chambers and relocated valves for all-out competition.VICTOR B/B CHRYSLER FEATURES:- The best standard port location cylinder head available for competition big-block Chryslers- Intake ports are raised .650", exhaust ports are raised .250" for improved flow- The intake flange is extended .950" to eliminate the need for intake spacer plates- Cylinder head will fit Edelbrock Victor manifolds for both high and low deck engines- Sold without springs or retainers; use recommended springs to match your camshaft- Exhaust flange is extended .300" from stock (same as Mopar Stage 6) featuring dry exhaust bolt holes with Heli-Coil thread inserts- 72cc combustion chamber volume- Cylinder head part #77939 comes bare with valves only
Product Downloads
| # | Document Type | Download |
|---|---|---|
| 1. | Installation Instructions |
|
Installation guides, warranty details, and other supporting documents are provided by the supplier. In some cases, these files may originate from regions outside your locale, meaning instructions, warranty procedures, and images may not fully align with your specific vehicle or region (e.g., LHD vs. RHD differences, return policies, etc.). If you need clarification, please contact a StreetFX support agent.
Product Overview
The Edelbrock part #77929 Big Block Chrysler Victor Series cylinder head is used by many of the best racers in the country and are the best choice for all-out competition. Edelbrock engineers work with leading racers like Billy Glidden, John Urist and Pat Musi to produce the ultimate components for racing. The end results is a competition ready cylinder head that features a cylinder head which is compatible with OE valve train and pistons for bolt-on convenience while Victor cylinder head features raised runners, revised chambers and relocated valves for all-out competition.VICTOR B/B CHRYSLER FEATURES:- The best standard port location cylinder head available for competition big-block Chryslers- Intake ports are raised .650", exhaust ports are raised .250" for improved flow- The intake flange is extended .950" to eliminate the need for intake spacer plates- Cylinder head will fit Edelbrock Victor manifolds for both high and low deck engines- Sold without springs or retainers; use recommended springs to match your camshaft- Exhaust flange is extended .300" from stock (same as Mopar Stage 6) featuring dry exhaust bolt holes with Heli-Coil thread inserts- 72cc combustion chamber volume- Cylinder head part #77939 comes bare with valves only
Features and Benefits
- Can Be Machined To Match Max Wedge Ports
Product Details
| CNC Ported: | No |
|---|---|
| Combustion Chamber Volume: | 72 |
| Construction Type: | Bare With Valves |
| Cylinder Head Type: | Standard |
| Deck Thickness: | 0.625 |
| Description: | Victor Series Cylinder Head |
| EGR Port: | No |
| Emission: | Non-Emissions |
| Engine Make/Size: | Mopar 383-440 |
| Exhaust Port Location: | +.250 |
| Exhaust Runner Volume: | 100 |
| Exhaust Valve Diameter: | 1.81 |
| Family: | Victor |
| Finish: | Satin |
| Grade Type: | Performance |
| Guide Material: | Manganese Bronze |
| Guide Plates Included: | No |
| Head Casting Number: | N/A |
| Intake Runner Volume: | 280 |
| Intake Valve Diameter: | 2.20 |
| Material: | Aluminum |
| Part Number: | ede77929 |
| Preparation: | Bolt On (Not Required) |
| Quantity: | Sold Individually |
| RGL: | WARNING: This product can expose you to Lead, which is known to the State of California to cause cancer or birth defects or other reproductive harm. For more information, visit www.P65warnings.ca.gov. |
| Retainer Included: | No |
| Seat Angle: | Exhaust 45 deg/Intake 45 |
| Seat Material: | Ductile Iron |
| Series: | Victor |
| Type: | Valves Only |
| Usage: | Racing |
| Valve Angle: | 15 |
| Valve Included: | Yes |
| Valve Springs Included: | No |
| Valve Stem Diameter: | 0.3438 |
| WARNING CA Proposition 65 Message: | WARNING: This product can expose you to Lead; which is known to the State of California to cause cancer or birth defects or other reproductive harm. For more information; visit www.P65warnings.ca.gov. |
| WARNING CA Proposition 65: | Yes |
Part Type
Engine Cylinder Head
Features
- Can Be Machined To Match Max Wedge Ports
Specifications
Cylinder Head, Victor, Aluminum, Bare with Valves, 75cc Chamber, 280cc Intake Runner, Mopar, Big Block, Each
These Edelbrock Victor big block Chrysler cylinder heads are designed for the serious race enthusiast. They are made of aluminum and feature raised intake and exhaust ports for improved flow characteristics. The heads will fit both tall and low-deck engine blocks using Victor intake manifolds. The raised valve cover rails get rid of any chance of leaking gaskets. Available with or without valves, these heads have reamed and semi-finished valve stem guides and no valve job. They require final guide sizing, valve seat finishing before installation, and special offset rocker arms for the intake side.
| Product Attributes | |
|---|---|
| Brand | Edelbrock |
| Manufacturer's Part Number | 77929 |
| Part Type | Cylinder Heads |
| Product Line | Edelbrock Victor Big Block Chrysler Cylinder Heads |
| UPC | 085347779291 |
| Combustion Chamber Volume (cc) | 75 |
| Intake Runner Volume (cc) | 280cc |
| Exhaust Runner Volume (cc) | 100cc |
| Cylinder Head Style | Bare |
| Cylinder Head Material | Cast aluminum |
| Intake Port Shape | Rectangular |
| Intake Valve Diameter (in.) | 2.200 in. |
| CNC-Machined Combustion Chamber | No |
| CNC-Machined Intake Runner | No |
| CNC-Machined Exhaust Runner | No |
| Intake Port Location | Raised |
| Exhaust Port Shape | Rectangular |
| Exhaust Port Location | Raised |
| Intake Valves Included | Yes |
| Exhaust Valves Included | Yes |
| Exhaust Valve Diameter (in.) | 1.810 in. |
| Valve Springs Included | No |
| Damper Spring Included | No |
| Retainers Included | No |
| Locks Included | No |
| Valve Stem Seals Included | No |
| Rocker Arm Studs Included | No |
| Rocker Arms Included | No |
| Rocker Arm Nuts Included | No |
| Guideplates Included | No |
| Valve Cover Mounting Style | Perimeter bolt |
| Accessory Bolt Holes Drilled | Yes |
| Intake Valve Angle | 15 |
| Valve Guides Included | Yes |
| Valve Guide Material | Manganese bronze |
| Valve Seats Machined | No |
| Valve Seat Material | Ductile iron |
| Cylinder Head Color | Natural |
| Steam Holes Drilled | No |
| Oiling Style | Through head |
| Machined for O-Ring | No |
| Heat Crossover | No |
| Remanufactured | No |
| Quantity | Sold individually. |
| Manufacturer Attributes | |
|---|---|
| Material | Aluminum |
| Valve Angle | 15 |
| Family | Victor |
| Valve Stem Diameter | 0.3438 |
| Retainer Included | No |
| Deck Thickness | 0.625 |
| Exhaust Port Location | +.250 |
| Exhaust Runner Volume | 100 |
| Grade Type | Performance |
| Construction Type | Bare With Valves |
| Intake Valve Diameter | 2.20 |
| CNC Ported | No |
| Guide Material | Manganese Bronze |
| Seat Angle | Exhaust 45 deg/Intake 45 |
| Quantity | Sold Individually |
| Valve Included | Yes |
| Combustion Chamber Volume | 72 |
| Valve Springs Included | No |
| Series | Victor |
| Seat Material | Ductile Iron |
| Guide Plates Included | No |
| Intake Runner Volume | 280 |
| Exhaust Valve Diameter | 1.81 |
| EGR Port | No |
| Product Class | Engine Cylinder Head |
| Construction/Type | Edelbrock part #77929 Big Block Chrysler Victor Series cylinder heads are used by many of the best racers in the country and are the best choice for all-out competition. |
| Vehicle Brief | Edelbrock BB Chrysler Cylinder Head |
| Market Description | The Edelbrock part #77929 Big Block Chrysler Victor Series cylinder head is used by many of the best racers in the country and are the best choice for all-out competition. Edelbrock engineers work with leading racers like Billy Glidden, John Urist and Pat Musi to produce the ultimate components for racing. The end results is a competition ready cylinder head that features a cylinder head which is compatible with OE valve train and pistons for bolt-on convenience while Victor cylinder head features raised runners, revised chambers and relocated valves for all-out competition. VICTOR B/B CHRYSLER FEATURES: The best standard port location cylinder head available for competition big-block Chryslers. Intake ports are raised .650", exhaust ports are raised .250" for improved flow. The intake flange is extended .950" to eliminate the need for intake spacer plates. Cylinder head will fit Edelbrock Victor manifolds for both high and low deck engines. Sold without springs or retainers use recommended springs to match your camshaft. Exhaust flange is extended .300" from stock (same as Mopar Stage 6) featuring dry exhaust bolt holes with Heli-Coil thread inserts. 72cc combustion chamber volume. Cylinder head part #77939 comes bare with valves only. |
Product Details
| CNC Ported: | No |
|---|---|
| Combustion Chamber Volume: | 72 |
| Construction Type: | Bare With Valves |
| Cylinder Head Type: | Standard |
| Deck Thickness: | 0.625 |
| Description: | Victor Series Cylinder Head |
| EGR Port: | No |
| Emission: | Non-Emissions |
| Engine Make/Size: | Mopar 383-440 |
| Exhaust Port Location: | +.250 |
| Exhaust Runner Volume: | 100 |
| Exhaust Valve Diameter: | 1.81 |
| Family: | Victor |
| Finish: | Satin |
| Grade Type: | Performance |
| Guide Material: | Manganese Bronze |
| Guide Plates Included: | No |
| Head Casting Number: | N/A |
| Intake Runner Volume: | 280 |
| Intake Valve Diameter: | 2.20 |
| Material: | Aluminum |
| Part Number: | ede77929 |
| Preparation: | Bolt On (Not Required) |
| Quantity: | Sold Individually |
| RGL: | WARNING: This product can expose you to Lead, which is known to the State of California to cause cancer or birth defects or other reproductive harm. For more information, visit www.P65warnings.ca.gov. |
| Retainer Included: | No |
| Seat Angle: | Exhaust 45 deg/Intake 45 |
| Seat Material: | Ductile Iron |
| Series: | Victor |
| Type: | Valves Only |
| Usage: | Racing |
| Valve Angle: | 15 |
| Valve Included: | Yes |
| Valve Springs Included: | No |
| Valve Stem Diameter: | 0.3438 |
| WARNING CA Proposition 65 Message: | WARNING: This product can expose you to Lead; which is known to the State of California to cause cancer or birth defects or other reproductive harm. For more information; visit www.P65warnings.ca.gov. |
| WARNING CA Proposition 65: | Yes |
Reference Information
| Brand Name/s | Edelbrock |
|---|---|
| StreetFX SKU | ede77929 |
| SFX Item ID | 4237324 |
| Supplier Item Code | 4237324 |
| Manufacturer SKU | 77929 |
| Manufacturer UPC | 85347779291 |
| Alternative References | a356;, v8;, EDB77929, EDL-77929 |
Brochures
Compatibility
No specific fitment data available for this part. For clarification, please contact us.
Detailed Compatibility
| Application Data | |
|---|---|
| Beginning Year | 1959 |
| Ending Year | 1965 |
| Engine Family | Mopar big block RB |
| Engine Size | 6.8L/413 |
| Engine Type | V8 |
| Make | CHRYSLER |
| Rocker Arm Mounting Style (application) | Shaft |
| Beginning Year | 1959 |
| Ending Year | 1971 |
| Engine Family | Mopar big block RB |
| Engine Size | 6.3L/383 |
| Engine Type | V8 |
| Make | CHRYSLER |
| Rocker Arm Mounting Style (application) | Shaft |
| Beginning Year | 1963 |
| Ending Year | 1963 |
| Engine Family | Mopar big block RB |
| Engine Size | 7.0L/426 |
| Engine Type | V8 |
| Make | CHRYSLER |
| Rocker Arm Mounting Style (application) | Shaft |
This may not be an exhaustive list of compatible vehicles. Please reach out to one of our representatives if you are unsure or do not see your vehicle here.
