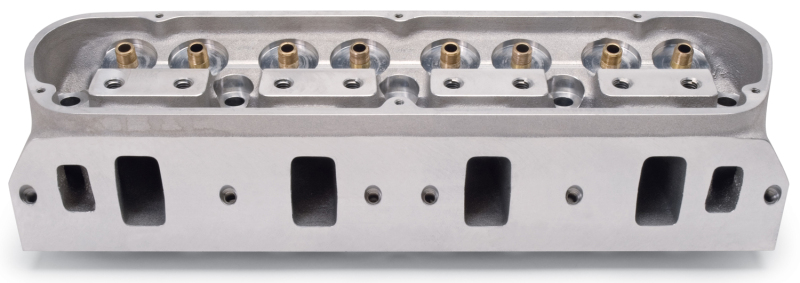

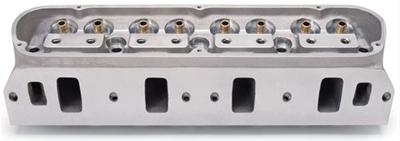

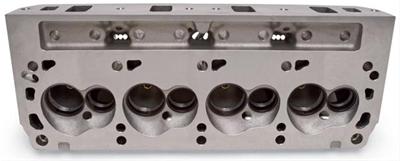

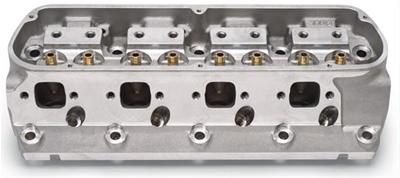

Edelbrock Single Victor SBF Head Bare

SKU: EDE77219

Cylinder Heads

EDE Victor Cylinder Head...

Edelbrock

Edelbrock Single Victor SBF Head Bare

SKU: EDE77219

Cylinder Heads

EDE Victor Cylinder Head...

Available from MFR. This item is available from the manufacturer's distribution centre. The dispatch timeframe shown is an estimate based on historical order processing and release times for this part. This item is not held in our own warehouse, and actual dispatch timing may vary depending on manufacturer workload and logistics at the time of ordering.

We accept

Description

The Edelbrock part #77219 Victor 15 Deg Small Block Ford 240cc cylinder head is designed for maximum effort competition racing on 289 - 351+ cubic inch based engines. The inline valve configuration features a 15 Deg valve angle and a modern combustion chamber design allows for high compression without large piston domes. The intake ports are raised .380"; however the intake flange has been extended to maintain proper port alignment with standard intake manifolds. The exhaust ports are patterned with a 2.50" spacing and raised .520" for high flow potential. This head requires shaft mounted rockers; please contact Jesel or T&D for details. Features include 47cc combustion chambers, ductile iron interlocking valve seats, manganese-bronze valve guides and requires professional preparation. Edelbrock recommends 2.125" intake valves and 1.625" exhaust valves with 5.45" overall length.

Product Overview

Features and Benefits

Max Valve Size is 2.125 in. Int. And 1.625 in. Exh.

Product Details

CNC Ported:	No
Combustion Chamber Volume:	47
Construction Type:	Bare
Cylinder Head Type:	Standard
Deck Thickness:	0.625
Description:	Victor Series Cylinder Head
Emission:	Non-Emissions
Engine Make/Size:	Ford 302-351W
Exhaust Port Location:	+.550
Exhaust Runner Volume:	80
Family:	Victor
Finish:	Cast Aluminum
Grade Type:	Performance
Guide Material:	Manganese Bronze
Guide Plates Included:	No
Head Casting Number:	N/A
Horsepower:	400-1000
Intake Runner Volume:	240
Material:	Aluminum
Part Number:	ede77219
Preparation:	Requires Professional Preparation (Bare)
Quantity:	Sold Individually
RGL:	WARNING: This product can expose you to Lead, which is known to the State of California to cause cancer or birth defects or other reproductive harm. For more information, visit www.P65warnings.ca.gov.
Retainer Included:	No
Seat Material:	Ductile Iron
Series:	Victor
Type:	Bare
Usage:	Racing
Valve Included:	No
Valve Springs Included:	No
WARNING CA Proposition 65 Message:	WARNING: This product can expose you to Lead; which is known to the State of California to cause cancer or birth defects or other reproductive harm. For more information; visit www.P65warnings.ca.gov.
WARNING CA Proposition 65:	Yes

Application Summary

Ford:Small-Block:289 (4.7L)-351W (5.8L)

Part Type

Engine Cylinder Head

Data: v4.2 - Upd: 2026-10-13 23:11:33

Features

Max Valve Size is 2.125 in. Int. And 1.625 in. Exh.

Specifications

Product Attributes - Brand: Edelbrock
Product Attributes - Manufacturer's Part Number: 77219
Product Attributes - Part Type: Cylinder Heads
Product Attributes - Product Line: Edelbrock Victor Series Race Cylinder Heads
Product Attributes - UPC: 085347772193
Product Attributes - Combustion Chamber Volume (cc): 47
Product Attributes - Intake Runner Volume (cc): 240cc
Product Attributes - Exhaust Runner Volume (cc): 80cc
Product Attributes - Cylinder Head Style: Bare
Product Attributes - Cylinder Head Material: Cast aluminum
Product Attributes - Intake Port Shape: Rectangular
Product Attributes - Intake Valve Diameter (in.): 2.125 in.
Product Attributes - CNC-Machined Combustion Chamber: No
Product Attributes - CNC-Machined Intake Runner: No
Product Attributes - CNC-Machined Exhaust Runner: No
Product Attributes - Intake Port Location: Raised
Product Attributes - Exhaust Port Shape: Square
Product Attributes - Exhaust Port Location: Raised
Product Attributes - Intake Valves Included: No
Product Attributes - Exhaust Valves Included: No
Product Attributes - Exhaust Valve Diameter (in.): 1.625 in.
Product Attributes - Valve Springs Included: No
Product Attributes - Damper Spring Included: No
Product Attributes - Retainers Included: No
Product Attributes - Locks Included: No
Product Attributes - Valve Stem Seals Included: No
Product Attributes - Rocker Arm Studs Included: No
Product Attributes - Rocker Arms Included: No
Product Attributes - Rocker Arm Nuts Included: No
Product Attributes - Guideplates Included: No
Product Attributes - Valve Cover Mounting Style: Perimeter bolt
Product Attributes - Accessory Bolt Holes Drilled: Yes
Product Attributes - Intake Valve Angle: 15
Product Attributes - Valve Guides Included: Yes
Product Attributes - Valve Guide Material: Manganese bronze
Product Attributes - Valve Seats Machined: No
Product Attributes - Valve Seat Material: Ductile iron
Product Attributes - Cylinder Head Color: Natural
Product Attributes - Steam Holes Drilled: No
Product Attributes - Oiling Style: Through pushrod
Product Attributes - Machined for O-Ring: No
Product Attributes - Heat Crossover: No
Product Attributes - Remanufactured: No
Product Attributes - Quantity: Sold individually.
Product Attributes - Notes: In line 15 degree valve configuration. Intake ports raised .380" with extended flange to maintain proper alignment with standard intakes. Requires shaft mount rockers which are available through T&D or Jesel, special header flanges, custom length pushrods and special aftermarket pistons. Bare heads will have valve guides and seats installed, but will require final sizing and a valve job to match the valves you will be using.

Reference Information

Brand Name/s	Edelbrock
StreetFX SKU	ede77219
SFX Item ID	4237331
Supplier Item Code	4237331
Manufacturer SKU	77219
Manufacturer UPC	85347772193
Alternative References	lt-4;, EDB77219, EDL-77219
