Edelbrock Chrysler Magnum 5 2/5 9 Air Gap Performer RPM Manifold

SKU: EDE7577

Intake Manifolds, Carbureted

EDE RPM Air-Gap Intk Manifold...

Edelbrock

Edelbrock Chrysler Magnum 5 2/5 9 Air Gap Performer RPM Manifold

SKU: EDE7577

Intake Manifolds, Carbureted

EDE RPM Air-Gap Intk Manifold...

IN STOCK! Est Ship 4-7 days. This item is IN STOCK at one of our warehouses or distribution centres, the ETA is the approximate time required to prepare your order for dispatch.

We accept

Description

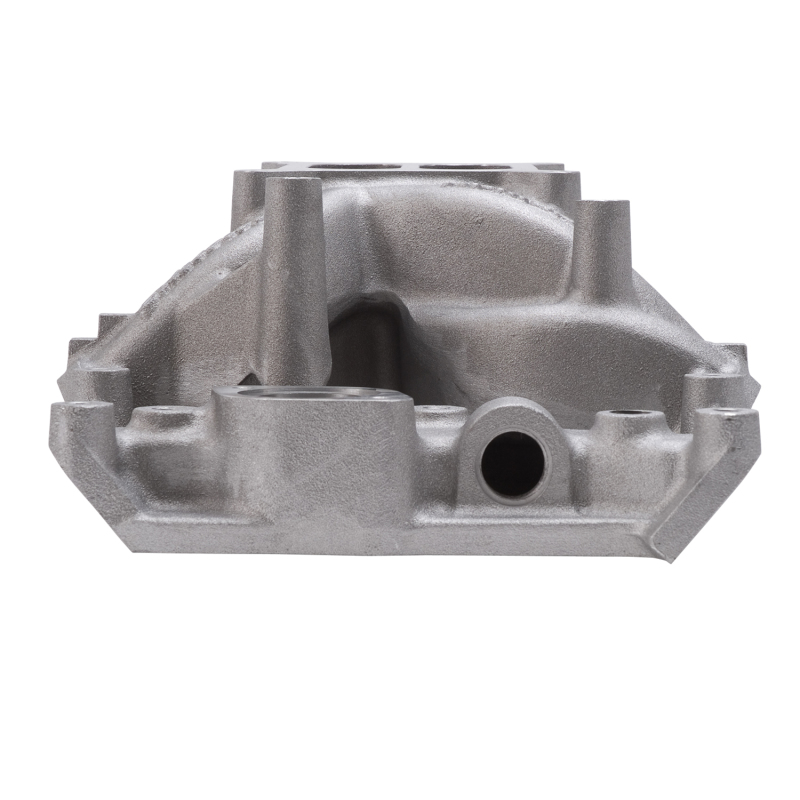

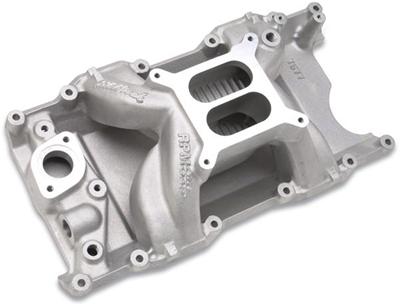

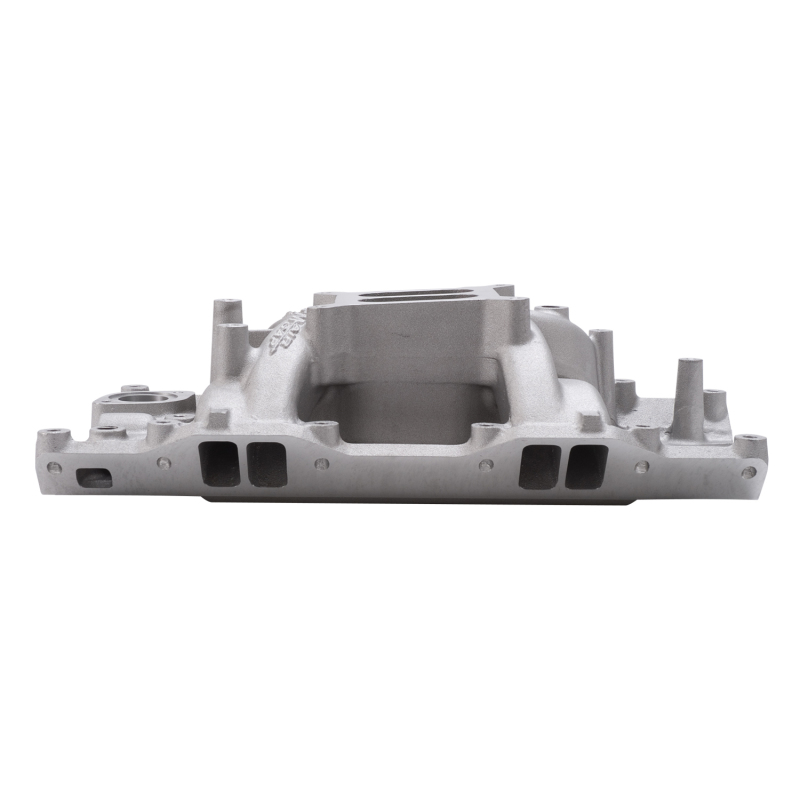

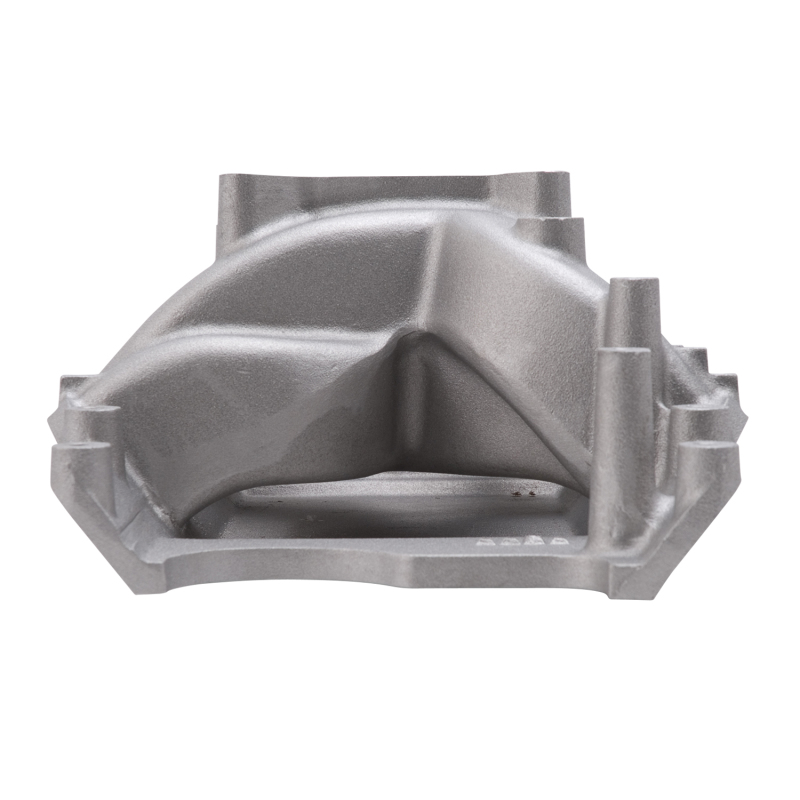

Edelbrock part #7577 RPM Air-Gap Magnum intake manifold is designed for 1992 & later 5.2L (318 c.i.d.) and 1993 & later 5.9L (360 c.i.d.) Chrysler Magnum V8 applications. The RPM Air-Gap manifold allows the use of a carburetor for engine swaps in early muscle cars and street rods. This dual-plane manifold design incorporates the same race-winning Air-Gap technology that's been used on our Victor Series competition intakes for decades for outstanding performance in the 1500 to 6500 rpm range. The Air-Gap design features an open air space that separates the runners from the hot engine oil resulting in a cooler, denser charge for more power. Match with Performer RPM Magnum cylinder heads #61779 for maximum performance.

Product Overview

Features and Benefits

Outstanding Performance

Product Details

Basic Operating RPM Range:	1500-6500
CNC Ported:	No
Center Maximum Height:	5.270
Cylinder Head Type:	Standard
Description:	RPM Air-Gap Magnum Intake Manifold
EGR Port:	No
Emission:	Without EGR
Engine Make/Size:	Mopar 318/360 Magnum
Finish:	Satin
Flange Type:	4150
Front Maximum Height:	4.750
Gasket Or Seal Included:	No
Grade Type:	Performance
Material:	Aluminum
Number of Carbs:	One
Part Number:	ede7577
Position:	N/A
RGL:	WARNING: This product can expose you to Lead, which is known to the State of California to cause cancer or birth defects or other reproductive harm. For more information, visit www.P65warnings.ca.gov.
RPM Range:	1500-6500
Rear Maximum Height:	5.800
Series:	RPM Air-Gap
Single Or Dual Plane Type:	Dual
Usage:	Street/Hi-Performance
Vehicle Model:	Chrysler
WARNING CA Proposition 65 Message:	WARNING: This product can expose you to Lead; which is known to the State of California to cause cancer or birth defects or other reproductive harm. For more information; visit www.P65warnings.ca.gov.
WARNING CA Proposition 65:	Yes

Application Summary

Chrysler:Magnum:318 (5.2L)/360 (5.9L)

Part Type

Engine Intake Manifold

Data: v4.2 - Upd: 2026-10-13 23:12:18

Features

Outstanding Performance

Specifications

Product Attributes - Brand: Edelbrock
Product Attributes - Manufacturer's Part Number: 7577
Product Attributes - Part Type: Intake Manifolds, Carbureted
Product Attributes - Product Line: Edelbrock Performer RPM Air-Gap Intake Manifolds
Product Attributes - UPC: 085347075775
Product Attributes - Intake Section Included: Complete
Product Attributes - Engine Block Deck Height: Standard deck
Product Attributes - Carburetor Quantity: One
Product Attributes - Intake Style: Dual plane
Product Attributes - Basic Operating RPM Range: 1,500-6,500
Product Attributes - Intake Manifold Height: 5.270 in.
Product Attributes - Intake Color: Natural
Product Attributes - Intake Material: Aluminum
Product Attributes - EGR: No
Product Attributes - Quantity: Sold individually.
Product Attributes - Notes: For carbureted swap applications only. Not for applications with factory EFI.

Reference Information

Brand Name/s	Edelbrock
StreetFX SKU	ede7577
SFX Item ID	4236926
Supplier Item Code	4236926
Manufacturer SKU	7577
Manufacturer UPC	85347075775
Alternative References	EDB7577, EDL-7577
