Description

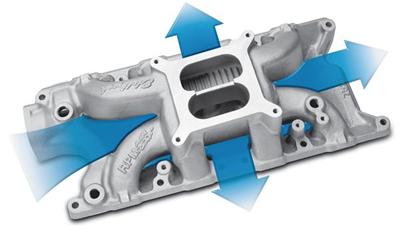

Edelbrock Part #7521 RPM Air-Gap intake manifold is designed for the small-block 302 CID Ford V8 or 331-347 stroker applications. The RPM Air-Gap incorporates the same race-winning technology that?s been used on our Victor Series competition intakes and is the perfect manifold for hot rodders, street machine enthusiasts, bracket racers or any builder looking for optimum performance in the 1,500-6,500 RPM range with a serious look of horsepower under the hood. The Air-Gap design features an open air space under the plenum that separates the runners from the hot engine resulting in a cooler, denser charge for more power. The 7521 RPM Air-Gap features larger runners (7% at the plenum entries) than the standard 7121 Performer RPM design that is beneficial to larger CID stroker engines. The 7521 includes nitrous bosses but no provision for exhaust heated chokes and no exhaust crossover. Edelbrock carbs will work with Ford automatic overdrive trans (AOD) when used with Lokar bracket SRK-4000. For more info go to www.lokar.com.
Product Overview
Edelbrock Part #7521 RPM Air-Gap intake manifold is designed for the small-block 302 CID Ford V8 or 331-347 stroker applications. The RPM Air-Gap incorporates the same race-winning technology that?s been used on our Victor Series competition intakes and is the perfect manifold for hot rodders, street machine enthusiasts, bracket racers or any builder looking for optimum performance in the 1,500-6,500 RPM range with a serious look of horsepower under the hood. The Air-Gap design features an open air space under the plenum that separates the runners from the hot engine resulting in a cooler, denser charge for more power. The 7521 RPM Air-Gap features larger runners (7% at the plenum entries) than the standard 7121 Performer RPM design that is beneficial to larger CID stroker engines. The 7521 includes nitrous bosses but no provision for exhaust heated chokes and no exhaust crossover. Edelbrock carbs will work with Ford automatic overdrive trans (AOD) when used with Lokar bracket SRK-4000. For more info go to www.lokar.com.
Features and Benefits
- Race-Winning Technology
- RPM Air-Gap for 302-331-347 Small-Block Ford V8
- Air-Gap design features an open air space under the plenum
- Separates fuel and air from engine heat
- Larger runners over standard 7121 manifold
- Includes nitrous bosses
Product Details
| Year | Make |
|---|---|
| Basic Operating RPM Range: | 1500-6500 |
| CNC Ported: | No |
| Center Maximum Height: | 4.900 |
| Color/Finish: | Natural/Satin |
| Color: | Silver |
| Cylinder Head Type: | Standard |
| Description: | Edelbrock RPM Air-Gap #7521 Intake Manifold for Small-Block Ford 302-331-347 V8 |
| EGR Port: | No |
| Emission: | Without EGR |
| Engine Make/Size: | Ford 289-302 |
| Finish: | Uncoated |
| Flange Type: | 4150 |
| Front Maximum Height: | 4.300 |
| Fuel Injectors Included: | No |
| Fuel Rail(s) Included: | No |
| Gasket Or Seal Included: | No |
| Grade Type: | Performance |
| Material: | Aluminum |
| Number of Carbs: | One |
| Part Number: | ede7521 |
| Position: | N/A |
| RGL: | WARNING: This product can expose you to Lead, which is known to the State of California to cause cancer or birth defects or other reproductive harm. For more information, visit www.P65warnings.ca.gov. |
| RPM Range: | 1500-6500 |
| Rear Maximum Height: | 5.500 |
| Series: | RPM Air-Gap |
| Single Or Dual Plane Type: | Dual Plane |
| Throttle Body Included: | No |
| Usage: | Street/Hi-Performance |
| Vehicle Model: | Ford |
| WARNING CA Proposition 65 Message: | WARNING: This product can expose you to Lead; which is known to the State of California to cause cancer or birth defects or other reproductive harm. For more information; visit www.P65warnings.ca.gov. |
| WARNING CA Proposition 65: | Yes |
Application Summary
Ford:Small-Block:289 (4.7L)-302 (5.0L)
Part Type
Engine Intake Manifold
Features
- Air-Gap design features an open air space under the plenum
- Includes nitrous bosses
- Larger runners over standard 7121 manifold
- Race-Winning Technology
- RPM Air-Gap for 302-331-347 Small-Block Ford V8
- Separates fuel and air from engine heat
Specifications
- Product Attributes - Brand
- Edelbrock
- Product Attributes - Manufacturer's Part Number
- 7521
- Product Attributes - Part Type
- Intake Manifolds, Carbureted
- Product Attributes - Product Line
- Edelbrock Performer RPM Air-Gap Intake Manifolds
- Product Attributes - UPC
- 085347075218
- Product Attributes - Intake Section Included
- Complete
- Product Attributes - Engine Block Deck Height
- Standard deck
- Product Attributes - Carburetor Quantity
- One
- Product Attributes - Intake Style
- Dual plane
- Product Attributes - Basic Operating RPM Range
- 1,500-6,500
- Product Attributes - Intake Manifold Height
- 4.900 in.
- Product Attributes - Intake Color
- Natural
- Product Attributes - Intake Material
- Aluminum
- Product Attributes - EGR
- No
- Product Attributes - Quantity
- Sold individually.
Reference Information
| Brand Name/s | Edelbrock |
|---|---|
| StreetFX SKU | ede7521 |
| SFX Item ID | 4236943 |
| Supplier Item Code | 4236943 |
| Manufacturer SKU | 7521 |
| Manufacturer UPC | 85347075218 |
| Alternative References | EDB7521, EDL-7521 |
Compatibility
Ford:Small-Block:289 (4.7L)-302 (5.0L)
