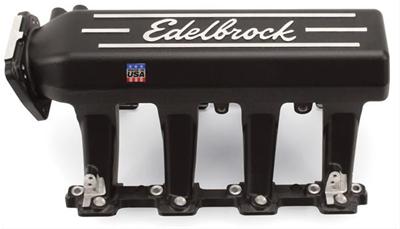

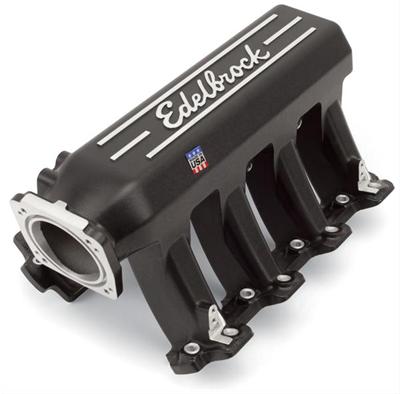

Edelbrock Manifold EFI Pro-Flo XT LS2 Black Powder Coated
Edelbrock Manifold EFI Pro-Flo XT LS2 Black Powder Coated
Sale ends in Calculating...
A$2,191.31
A$2,365.16
Available from MFR.
This item is available from the manufacturer's distribution centre. The dispatch timeframe shown is an estimate based on historical order processing and release times for this part. This item is not held in our own warehouse, and actual dispatch timing may vary depending on manufacturer workload and logistics at the time of ordering.
We accept
Description
Edelbrock part #71403 Pro-Flo XT LS2 EFI intake manifold is engineered with a large plenum and tapered runners to deliver maximum horsepower and broad torque band throughout the rpm range (1500-7000 rpm). Features include a 90mm throttle bore opening and 2.75" port exit height. This manifold produced 30 more horsepower over a stock LS6 manifold at 6500 rpm. Accepts GM OEM 90mm or Edelbrock #3869 throttle bodies. Compatible with LS1 Fuel Rail Kit #3629 (sold separately). This manifold offers a durable black power coated finish for long lasting protection and a distinctive look.
Product Overview
Edelbrock part #71403 Pro-Flo XT LS2 EFI intake manifold is engineered with a large plenum and tapered runners to deliver maximum horsepower and broad torque band throughout the rpm range (1500-7000 rpm). Features include a 90mm throttle bore opening and 2.75" port exit height. This manifold produced 30 more horsepower over a stock LS6 manifold at 6500 rpm. Accepts GM OEM 90mm or Edelbrock #3869 throttle bodies. Compatible with LS1 Fuel Rail Kit #3629 (sold separately). This manifold offers a durable black power coated finish for long lasting protection and a distinctive look.
Features and Benefits
- Black Powder-Coat Finish
Product Details
| Basic Operating RPM Range: | 1500-7000 |
|---|---|
| CNC Ported: | No |
| Center Maximum Height: | 10.200 |
| Cylinder Head Type: | Standard |
| Description: | Pro-Flo XT EFI Intake Manifold |
| EGR Port: | No |
| Emission: | Without EGR |
| Engine Make/Size: | Chevy LS2 |
| Finish: | Black Powder Coated |
| Flange Type: | Throttle Body XT |
| Front Maximum Height: | 10.200 |
| Gasket Or Seal Included: | No |
| Grade Type: | Performance |
| Material: | Aluminum |
| Number of Carbs: | One |
| Part Number: | ede71403 |
| Position: | N/A |
| RGL: | WARNING: This product can expose you to Lead, which is known to the State of California to cause cancer or birth defects or other reproductive harm. For more information, visit www.P65warnings.ca.gov. |
| RPM Range: | 1500-6500 |
| Rear Maximum Height: | 10.000 |
| Series: | Pro-Flo XT |
| Single Or Dual Plane Type: | Single |
| Usage: | Racing |
| Vehicle Model: | Chevrolet |
| WARNING CA Proposition 65 Message: | WARNING: This product can expose you to Lead; which is known to the State of California to cause cancer or birth defects or other reproductive harm. For more information; visit www.P65warnings.ca.gov. |
| WARNING CA Proposition 65: | Yes |
Application Summary
Chevrolet:Small-Block Corvette Gen IV LS2:364 (6.0L)
Part Type
Engine Intake Manifold
Features
- Black Powder-Coat Finish
Specifications
- Product Attributes - Brand
- Edelbrock
- Product Attributes - Manufacturer's Part Number
- 71403
- Product Attributes - Part Type
- Intake Manifolds, Fuel Injected
- Product Attributes - Product Line
- Edelbrock Pro-Flo XT EFI Intake Manifolds
- Product Attributes - UPC
- 085347714032
- Product Attributes - Cylinder Head Configuration
- Cathedral Port LS1/LS2/LS6
- Product Attributes - Fuel Injection Style
- Multi-port
- Product Attributes - Basic Operating RPM Range
- 1,500-7,000
- Product Attributes - Intake Section Included
- Complete
- Product Attributes - Throttle Body Bore Size
- 90mm
- Product Attributes - Engine Block Deck Height
- Standard deck
- Product Attributes - Injectors Included
- No
- Product Attributes - Multi-Port Fuel Rails Included
- No
- Product Attributes - EGR
- No
- Product Attributes - Aftermarket Fuel Rail Required
- Yes
- Product Attributes - Throttle Body Included
- No
- Product Attributes - Supplemental Bosses Cast-In
- Yes
- Product Attributes - Supplemental Bosses Machined
- Yes
- Product Attributes - Supplemental Boss Quantity
- Eight
- Product Attributes - Runners Included
- Yes
- Product Attributes - Runners Removable
- No
- Product Attributes - Plenum Material
- Aluminum
- Product Attributes - Plenum Finish
- Black powdercoated
- Product Attributes - Base Material
- Aluminum
- Product Attributes - Base Color
- Natural
- Product Attributes - Remanufactured
- No
- Product Attributes - Quantity
- Sold individually.
- Product Attributes - Notes
- Designed for LS2 with OE LS2 or equivalent throttle body.
Reference Information
| Brand Name/s | Edelbrock |
|---|---|
| StreetFX SKU | ede71403 |
| SFX Item ID | 4236849 |
| Supplier Item Code | 4236849 |
| Manufacturer SKU | 71403 |
| Manufacturer UPC | 85347714032 |
| Alternative References | ls3;, EDB71403, EDL-71403, LS2 |
Brochures
Compatibility
Chevrolet:Small-Block Corvette Gen IV LS2:364 (6.0L)
