Edelbrock Cylinder Head E-Cnc GM Gen IIi/IV LS3 Small Port Standard Block
Edelbrock Cylinder Head E-Cnc GM Gen IIi/IV LS3 Small Port Standard Block
A$3,534.14
Available from MFR.
This item is available from the manufacturer's distribution centre. The dispatch timeframe shown is an estimate based on historical order processing and release times for this part. This item is not held in our own warehouse, and actual dispatch timing may vary depending on manufacturer workload and logistics at the time of ordering.
We accept
Description
IMPORTANT NOTICE: Images are supplied by the manufacturer and may be generic. While all efforts are made to provide accurate pictures, there may be differences in the actual product, such as colour, quantity, version, or included components. Please carefully review the description and specifications for details on inclusions or any variations. Some items may be sold individually or in sets, and images may occasionally depict additional products or quantities not included in your purchase. For assistance or clarification, please contact customer support.Reference Information Reference Data (Provide these details to our support team) Brand Name/s Edelbrock StreetFX SKU ede61319 SFX Item ID 4235970 Accounting SKU ede-61319 Manufacturer SKU 61319 Manufacturer UPC 85347613199 Alternative References 61319, EDB61319, EDL-61319
Cylinder Head - E-CNC - Assembled - 2.135 / 1.550 in Valves - 230 cc Intake - 69 cc Chamber - 1.300 in Springs - Angle Plug - Aluminum - GM LS-Series - Each

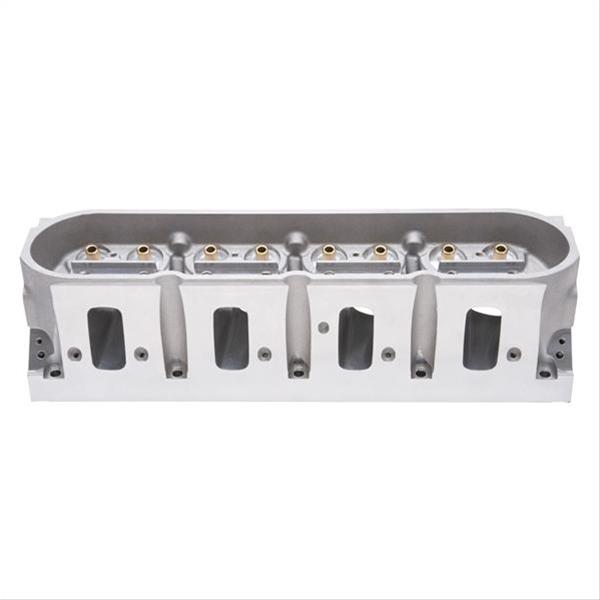

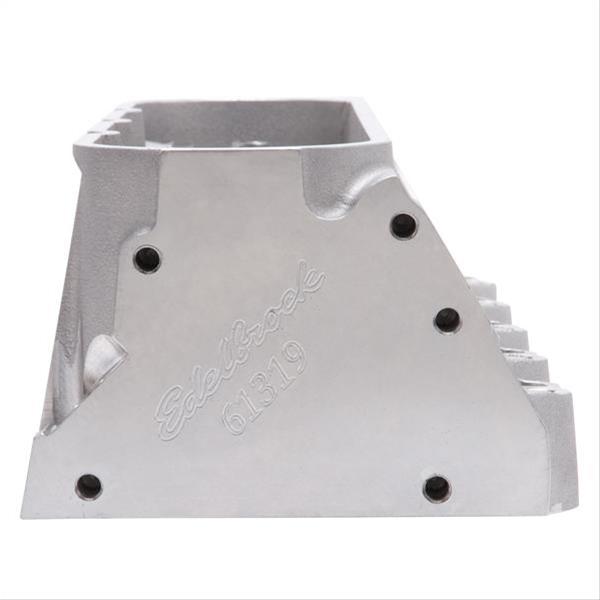

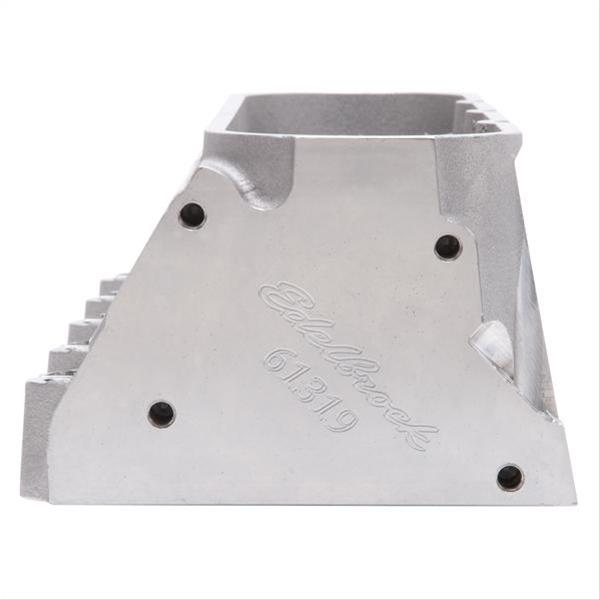

Edelbrock Cylinder Head E-Cnc GM Gen IIi/IV LS3 Small Port Standard Block
The Edelbrock #61319 E-CNC LS3 cylinder head is a great general-purpose high performance cylinder head for any street- strip LS engine. This cylinder head has a high velocity port compared to stock LS3 cylinder head, making them an ideal upgrade for any cathedral port or 3.89" bore LS application. They feature an improved design and casting that gives cylinder head porters more material to work with compared to another stock head. Like all of our other E-CNC cylinder head, these feature fully CNC'd intake ports, combustion chambers and exhaust ports for improved performance. Compatible with stock style rocker arms.
Additional Information
Edelbrock part #61319 E-CNC LS3 Cylinder Heads are a great general-purpose high performance cylinder head for any street- strip LS engine.
Application Summary
Chevrolet:Small-Block Gen IV L76:364 (6.0L);Chevrolet:Small-Block Gen IV L77:364 (6.0L);Chevrolet:Small-Block Gen IV L92:376 (6.2L);Chevrolet:Small-Block Gen IV L94:376 (6.2L);Chevrolet:Small-Block Gen IV L99:376 (6.2L);Chevrolet:Small-Block Gen IV L9H:37
Part Type
Engine Cylinder Head
Features and Benefits
- Engine Swaps
Product Details
| 9040: | D-215-98 |
| CNC Ported: | Yes |
| Camshaft Type: | Hydraulic Roller |
| Combustion Chamber Volume: | 69 |
| Construction Type: | Complete |
| Cylinder Head Type: | Standard |
| Deck Thickness: | 0.625 |
| Description: | E-CNC 230 Cylinder Head |
| EGR Port: | No |
| Engine Make/Size: | Chevy LS3 |
| Exhaust Port Location: | Standard |
| Exhaust Runner Volume: | 80 |
| Exhaust Valve Diameter: | 1.55 |
| Family: | E-CNC |
| Finish: | Cast Aluminum |
| Grade Type: | Performance |
| Guide Material: | Manganese Bronze |
| Guide Plates Included: | No |
| Horsepower: | 400-500 |
| Intake Runner Volume: | 230 |
| Intake Valve Diameter: | 2.135 |
| Material: | Aluminum |
| Part Number: | ede61319 |
| Quantity: | Sold Individually |
| Retainer Included: | Yes |
| Seat Angle: | Exhaust 39 deg/Intake 45 |
| Seat Material: | Ductile Iron |
| Series: | E-CNC |
| Type: | Complete |
| Usage: | Racing |
| Valve Angle: | 13.25 |
| Valve Included: | Yes |
| Valve Spring Diameter: | 1.30 |
| Valve Spring Maximum Lift: | 0.680 |
| Valve Springs Included: | Yes |
| Valve Stem Diameter: | 0.314961 |
Product Overview
Product Downloads
| # | Document Type | Download |
|---|---|---|
| 1. | Installation Instructions |
|
Installation guides, warranty details, and other supporting documents are provided by the supplier. In some cases, these files may originate from regions outside your locale, meaning instructions, warranty procedures, and images may not fully align with your specific vehicle or region (e.g., LHD vs. RHD differences, return policies, etc.). If you need clarification, please contact a StreetFX support agent.
Product Overview
The Edelbrock #61319 E-CNC LS3 cylinder head is a great general-purpose high performance cylinder head for any street- strip LS engine. This cylinder head has a high velocity port compared to stock LS3 cylinder head, making them an ideal upgrade for any cathedral port or 3.89" bore LS application. They feature an improved design and casting that gives cylinder head porters more material to work with compared to another stock head. Like all of our other E-CNC cylinder head, these feature fully CNC'd intake ports, combustion chambers and exhaust ports for improved performance. Compatible with stock style rocker arms.
Features and Benefits
- Engine Swaps
Product Details
| 9040: | D-215-98 |
|---|---|
| CNC Ported: | Yes |
| Camshaft Type: | Hydraulic Roller |
| Combustion Chamber Volume: | 69 |
| Construction Type: | Complete |
| Cylinder Head Type: | Standard |
| Deck Thickness: | 0.625 |
| Description: | E-CNC 230 Cylinder Head |
| EGR Port: | No |
| Emission: | N/A |
| Engine Make/Size: | Chevy LS3 |
| Exhaust Port Location: | Standard |
| Exhaust Runner Volume: | 80 |
| Exhaust Valve Diameter: | 1.55 |
| Family: | E-CNC |
| Finish: | Cast Aluminum |
| Grade Type: | Performance |
| Guide Material: | Manganese Bronze |
| Guide Plates Included: | No |
| Head Casting Number: | N/A |
| Horsepower: | 400-500 |
| Intake Runner Volume: | 230 |
| Intake Valve Diameter: | 2.135 |
| Material: | Aluminum |
| Part Number: | ede61319 |
| Preparation: | Bolt On (Not Required) |
| Quantity: | Sold Individually |
| RGL: | WARNING: This product can expose you to Lead, which is known to the State of California to cause cancer or birth defects or other reproductive harm. For more information, visit www.P65warnings.ca.gov. |
| Retainer Included: | Yes |
| Seat Angle: | Exhaust 39 deg/Intake 45 |
| Seat Material: | Ductile Iron |
| Series: | E-CNC |
| Type: | Complete |
| Usage: | Racing |
| Valve Angle: | 13.25 |
| Valve Included: | Yes |
| Valve Spring Diameter: | 1.30 |
| Valve Spring Maximum Lift: | 0.680 |
| Valve Springs Included: | Yes |
| Valve Stem Diameter: | 0.314961 |
| WARNING CA Proposition 65 Message: | WARNING: This product can expose you to Lead; which is known to the State of California to cause cancer or birth defects or other reproductive harm. For more information; visit www.P65warnings.ca.gov. |
| WARNING CA Proposition 65: | Yes |
Application Summary
Chevrolet:Small-Block Gen IV L76:364 (6.0L);Chevrolet:Small-Block Gen IV L77:364 (6.0L);Chevrolet:Small-Block Gen IV L92:376 (6.2L);Chevrolet:Small-Block Gen IV L94:376 (6.2L);Chevrolet:Small-Block Gen IV L99:376 (6.2L);Chevrolet:Small-Block Gen IV L9H:37
Part Type
Engine Cylinder Head
Features
- Engine Swaps
Specifications
Cylinder Head, E-CNC 230 LS3, Assembled, Aluminum, 69cc Chamber, 230cc Intake Runner, Chevy, 6.2L, Each
Edelbrock E-CNC 230 LS3 cylinder heads offer efficiency and state-of-the-art technology for high performance street and entry-level racing applications. These cylinder heads have full CNC-ported combustion chambers, intake, and exhaust runners--for improved airflow and an overall potential for increased performance. E-CNC 230 LS3 heads are equipped with high-quality valve springs, raised exhaust port locations, and spark plug angles that are modified to produce a smooth flame front for fuel efficiency and maximum power.
| Product Attributes | |
|---|---|
| Brand | Edelbrock |
| Manufacturer's Part Number | 61319 |
| Part Type | Cylinder Heads |
| Product Line | Edelbrock E-CNC 230 LS3 Cylinder Heads |
| UPC | 085347613199 |
| Combustion Chamber Volume (cc) | 69 |
| Intake Runner Volume (cc) | 230cc |
| Exhaust Runner Volume (cc) | 80cc |
| Cylinder Head Style | Assembled |
| Cylinder Head Material | Cast aluminum |
| Camshaft Style | Hydraulic roller |
| Intake Port Shape | Rectangular |
| Intake Valve Diameter (in.) | 2.135 in. |
| CNC-Machined Combustion Chamber | Yes |
| CNC-Machined Intake Runner | Yes |
| CNC-Machined Exhaust Runner | Yes |
| Intake Port Location | Standard |
| Exhaust Port Shape | Oval |
| Exhaust Port Location | Raised |
| Intake Valves Included | Yes |
| Exhaust Valves Included | Yes |
| Exhaust Valve Diameter (in.) | 1.550 in. |
| Valve Springs Included | Yes |
| Maximum Valve Lift (in.) | 0.680 in. |
| Outside Diameter of Outer Spring (in.) | 1.300 in. |
| Damper Spring Included | No |
| Retainers Included | Yes |
| Locks Included | Yes |
| Valve Stem Seals Included | Yes |
| Rocker Arm Studs Included | No |
| Rocker Arms Included | No |
| Rocker Arm Nuts Included | No |
| Guideplates Included | No |
| Valve Cover Mounting Style | Centerbolt |
| Accessory Bolt Holes Drilled | Yes |
| Intake Valve Angle | 13.25 |
| Exhaust Valve Angle | 13.25 |
| Valve Guides Included | Yes |
| Valve Guide Material | Manganese bronze |
| Valve Seats Machined | Yes |
| Valve Seat Machine Style | 3-angle |
| Valve Seat Material | Ductile iron |
| Cylinder Head Color | Natural |
| Steam Holes Drilled | No |
| Machined for O-Ring | No |
| Heat Crossover | No |
| Remanufactured | No |
| Quantity | Sold individually. |
| Notes | Fits engines with a minimum bore size of 3.890 in. |
| CARB EO Number(s) | D-215-98 |
| Manufacturer Attributes | |
|---|---|
| Exhaust Port Location | Standard |
| Series | E-CNC |
| Seat Material | Ductile Iron |
| Guide Plates Included | No |
| Guide Material | Manganese Bronze |
| Family | E-CNC |
| Valve Included | Yes |
| Valve Angle | 13.25 |
| CNC Ported | Yes |
| Quantity | Sold Individually |
| Valve Stem Diameter | 0.314961 |
| Retainer Included | Yes |
| Combustion Chamber Volume | 69 |
| Valve Spring Maximum Lift | 0.680 |
| EGR Port | No |
| Construction Type | Complete |
| Exhaust Valve Diameter | 1.55 |
| Valve Spring Diameter | 1.30 |
| Grade Type | Performance |
| Deck Thickness | 0.625 |
| Intake Runner Volume | 230 |
| Intake Valve Diameter | 2.135 |
| 9040 | D-215-98 |
| Material | Aluminum |
| Camshaft Type | Hydraulic Roller |
| Horsepower | 400-500 |
| Seat Angle | Exhaust 39 deg/Intake 45 |
| Valve Springs Included | Yes |
| Exhaust Runner Volume | 80 |
| Product Class | Engine Cylinder Head |
| Construction/Type | Edelbrock part #61319 E-CNC LS3 Cylinder Heads are a great general-purpose high performance cylinder head for any street- strip LS engine. |
| Vehicle Designations | Chevrolet:Small-Block Gen IV L76:364 (6.0L) Chevrolet:Small-Block Gen IV L77:364 (6.0L) Chevrolet:Small-Block Gen IV L92:376 (6.2L) Chevrolet:Small-Block Gen IV L94:376 (6.2L) Chevrolet:Small-Block Gen IV L99:376 (6.2L) Chevrolet:Small-Block Gen IV L9H:376 (6.2L) Chevrolet:Small-Block Gen IV LS3:376 (6.2L) |
| Vehicle Brief | Edelbrock SBC LS3 Cylinder Head |
| Market Description | The Edelbrock #61319 E-CNC LS3 cylinder head is a great general-purpose high performance cylinder head for any street- strip LS engine. This cylinder head has a high velocity port compared to stock LS3 cylinder head, making them an ideal upgrade for any cathedral port or 3.89" bore LS application. They feature an improved design and casting that gives cylinder head porters more material to work with compared to another stock head. Like all of our other E-CNC cylinder head, these feature fully CNC'd intake ports, combustion chambers and exhaust ports for improved performance. Compatible with stock style rocker arms. |
Product Details
| 9040: | D-215-98 |
|---|---|
| CNC Ported: | Yes |
| Camshaft Type: | Hydraulic Roller |
| Combustion Chamber Volume: | 69 |
| Construction Type: | Complete |
| Cylinder Head Type: | Standard |
| Deck Thickness: | 0.625 |
| Description: | E-CNC 230 Cylinder Head |
| EGR Port: | No |
| Emission: | N/A |
| Engine Make/Size: | Chevy LS3 |
| Exhaust Port Location: | Standard |
| Exhaust Runner Volume: | 80 |
| Exhaust Valve Diameter: | 1.55 |
| Family: | E-CNC |
| Finish: | Cast Aluminum |
| Grade Type: | Performance |
| Guide Material: | Manganese Bronze |
| Guide Plates Included: | No |
| Head Casting Number: | N/A |
| Horsepower: | 400-500 |
| Intake Runner Volume: | 230 |
| Intake Valve Diameter: | 2.135 |
| Material: | Aluminum |
| Part Number: | ede61319 |
| Preparation: | Bolt On (Not Required) |
| Quantity: | Sold Individually |
| RGL: | WARNING: This product can expose you to Lead, which is known to the State of California to cause cancer or birth defects or other reproductive harm. For more information, visit www.P65warnings.ca.gov. |
| Retainer Included: | Yes |
| Seat Angle: | Exhaust 39 deg/Intake 45 |
| Seat Material: | Ductile Iron |
| Series: | E-CNC |
| Type: | Complete |
| Usage: | Racing |
| Valve Angle: | 13.25 |
| Valve Included: | Yes |
| Valve Spring Diameter: | 1.30 |
| Valve Spring Maximum Lift: | 0.680 |
| Valve Springs Included: | Yes |
| Valve Stem Diameter: | 0.314961 |
| WARNING CA Proposition 65 Message: | WARNING: This product can expose you to Lead; which is known to the State of California to cause cancer or birth defects or other reproductive harm. For more information; visit www.P65warnings.ca.gov. |
| WARNING CA Proposition 65: | Yes |
Reference Information
| Brand Name/s | Edelbrock |
|---|---|
| StreetFX SKU | ede61319 |
| SFX Item ID | 4235970 |
| Supplier Item Code | 4235970 |
| Manufacturer SKU | 61319 |
| Manufacturer UPC | 85347613199 |
| Alternative References | LS3, v8;, EDB61319, EDL-61319 |
Brochures
Compatibility
No specific fitment data available for this part. For clarification, please contact us.
Detailed Compatibility
| Application Data | |
|---|---|
| Beginning Year | 2008 |
| Ending Year | 2017 |
| Engine Family | CHEVY SMALL BLOCK GEN III/IV LS V8 GAS |
| Engine Size | 6.2L/376 |
| Engine Type | V8 |
| Make | CHEVROLET |
| Rocker Arm Mounting Style (application) | Pedestal |
This may not be an exhaustive list of compatible vehicles. Please reach out to one of our representatives if you are unsure or do not see your vehicle here.
