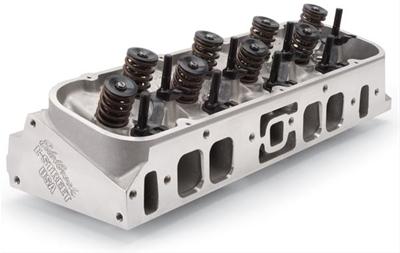

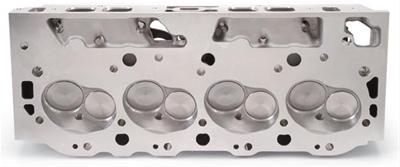

Edelbrock Cyl Head E-Street BB Chevy Oval Port Complete Single
Edelbrock Cyl Head E-Street BB Chevy Oval Port Complete Single
A$2,973.85
Available from MFR.
This item is available from the manufacturer's distribution centre. The dispatch timeframe shown is an estimate based on historical order processing and release times for this part. This item is not held in our own warehouse, and actual dispatch timing may vary depending on manufacturer workload and logistics at the time of ordering.
We accept
Description
The Edelbrock #50459 E-Street cylinder 290 Oval Port head is designed for Big-Block applications. The Edelbrock E-Street cylinder head offers American made quality and affordable performance. E-Street cylinder head features as-cast ports and are designed for entry-level street performance applications operating in the idle-to-5500 rpm range. The modern combustion chamber designs improve the combustion process and larger than stock intake and exhaust ports move more air through your engine for improve efficiency. For use on pre-pollution controlled vehicles only.
Product Overview
The Edelbrock #50459 E-Street cylinder 290 Oval Port head is designed for Big-Block applications. The Edelbrock E-Street cylinder head offers American made quality and affordable performance. E-Street cylinder head features as-cast ports and are designed for entry-level street performance applications operating in the idle-to-5500 rpm range. The modern combustion chamber designs improve the combustion process and larger than stock intake and exhaust ports move more air through your engine for improve efficiency. For use on pre-pollution controlled vehicles only.
Features and Benefits
- Made In The U.S.A.
Product Details
| CNC Ported: | Yes |
|---|---|
| Camshaft Type: | Flat Tappet |
| Combustion Chamber Volume: | 110 |
| Construction Type: | Complete |
| Cylinder Head Type: | Oval Port- Standard |
| Deck Thickness: | 0.5625 |
| Description: | E-Street 290 Cylinder Head |
| EGR Port: | No |
| Emission: | Non-Emissions |
| Engine Make/Size: | Chevy Big Block (396-502) |
| Exhaust Port Location: | Standard |
| Exhaust Runner Volume: | 110 |
| Exhaust Valve Diameter: | 1.88 |
| Family: | E-Street |
| Finish: | Satin |
| Grade Type: | Performance |
| Guide Material: | Manganese Bronze |
| Guide Plate Material: | Hardened Steel |
| Guide Plates Included: | Yes |
| Head Casting Number: | N/A |
| Horsepower: | 400-500 |
| Intake Runner Volume: | 290 |
| Intake Valve Diameter: | 2.19 |
| Material: | Aluminum |
| Part Number: | ede50459 |
| Preparation: | Bolt On (Not Required) |
| Push Rod Diameter: | (Suggested) 0.4375 |
| Quantity: | Sold Individually |
| RGL: | WARNING: This product can expose you to Lead, which is known to the State of California to cause cancer or birth defects or other reproductive harm. For more information, visit www.P65warnings.ca.gov. |
| Retainer Included: | Yes |
| Rocker Arm Stud Diameter: | 0.4375 |
| Seat Angle: | Exhaust 45 deg/Intake 45 |
| Seat Material: | Ductile Iron |
| Series: | E-Street |
| Type: | Complete |
| Usage: | Street/Performance |
| Valve Angle: | 26 |
| Valve Included: | Yes |
| Valve Spring Diameter: | 1.50 |
| Valve Spring Maximum Lift: | 0.700 |
| Valve Springs Included: | Yes |
| Valve Stem Diameter: | 0.3438 |
| WARNING CA Proposition 65 Message: | WARNING: This product can expose you to Lead; which is known to the State of California to cause cancer or birth defects or other reproductive harm. For more information; visit www.P65warnings.ca.gov. |
| WARNING CA Proposition 65: | Yes |
Application Summary
Chevrolet:Big-Block Mark IV:396 (6.6L)/402 (6.6L)/427 (7.0L)/454 (7.4L)/502 (8.2L)
Part Type
Engine Cylinder Head
Features
- Made In The U.S.A.
Specifications
- Product Attributes - Brand
- Edelbrock
- Product Attributes - Manufacturer's Part Number
- 50459
- Product Attributes - Part Type
- Cylinder Heads
- Product Attributes - Product Line
- Edelbrock E-Street Cylinder Heads
- Product Attributes - UPC
- 085347504596
- Product Attributes - Combustion Chamber Volume (cc)
- 110
- Product Attributes - Intake Runner Volume (cc)
- 290cc
- Product Attributes - Exhaust Runner Volume (cc)
- 110cc
- Product Attributes - Cylinder Head Style
- Assembled
- Product Attributes - Cylinder Head Material
- Cast aluminum
- Product Attributes - Camshaft Style
- Hydraulic flat tappet
- Product Attributes - Intake Port Shape
- Oval
- Product Attributes - Intake Valve Diameter (in.)
- 2.190 in.
- Product Attributes - CNC-Machined Combustion Chamber
- No
- Product Attributes - CNC-Machined Intake Runner
- No
- Product Attributes - CNC-Machined Exhaust Runner
- No
- Product Attributes - Intake Port Location
- Standard
- Product Attributes - Exhaust Port Shape
- D-port
- Product Attributes - Exhaust Port Location
- Standard
- Product Attributes - Spark Plug Style
- Angle
- Product Attributes - Intake Valves Included
- Yes
- Product Attributes - Exhaust Valves Included
- Yes
- Product Attributes - Exhaust Valve Diameter (in.)
- 1.880 in.
- Product Attributes - Valve Springs Included
- Yes
- Product Attributes - Maximum Valve Lift (in.)
- 0.700 in.
- Product Attributes - Outside Diameter of Outer Spring (in.)
- 1.540 in.
- Product Attributes - Damper Spring Included
- No
- Product Attributes - Number of Springs Per Valve
- Dual
- Product Attributes - Retainers Included
- Yes
- Product Attributes - Retainer Material
- Steel
- Product Attributes - Locks Included
- Yes
- Product Attributes - Lock Style
- 7 degree
- Product Attributes - Valve Stem Seals Included
- Yes
- Product Attributes - Valve Stem Seal Style
- Umbrella
- Product Attributes - Rocker Arm Studs Included
- Yes
- Product Attributes - Rocker Arm Nut Thread Size
- 7/16 in.-20
- Product Attributes - Rocker Arms Included
- No
- Product Attributes - Rocker Arm Nuts Included
- No
- Product Attributes - Guideplates Included
- Yes
- Product Attributes - Guideplate Pushrod Size
- 3/8 in.
- Product Attributes - Valve Cover Mounting Style
- Perimeter bolt
- Product Attributes - Accessory Bolt Holes Drilled
- Yes
- Product Attributes - Intake Valve Angle
- 26
- Product Attributes - Exhaust Valve Angle
- 26
- Product Attributes - Valve Guides Included
- Yes
- Product Attributes - Valve Guide Material
- Manganese bronze
- Product Attributes - Valve Seats Machined
- Yes
- Product Attributes - Valve Seat Machine Style
- 3-angle
- Product Attributes - Valve Seat Material
- Powdered metal
- Product Attributes - Cylinder Head Color
- Natural
- Product Attributes - Steam Holes Drilled
- No
- Product Attributes - Oiling Style
- Through pushrod
- Product Attributes - Machined for O-Ring
- No
- Product Attributes - Heat Crossover
- No
- Product Attributes - Remanufactured
- No
- Product Attributes - Quantity
- Sold individually.
- Product Attributes - Notes
- Designed for use with hydraulic flat tappet camshafts. The valve and seat combination, used in these heads, is not recommended for use with a hydraulic or mechanical roller camshaft.
Reference Information
| Brand Name/s | Edelbrock |
|---|---|
| StreetFX SKU | ede50459 |
| SFX Item ID | 4235977 |
| Supplier Item Code | 4235977 |
| Manufacturer SKU | 50459 |
| Manufacturer UPC | 85347504596 |
| Alternative References | EDB50459, EDL-50459 |
Brochures
Compatibility
Chevrolet:Big-Block Mark IV:396 (6.6L)/402 (6.6L)/427 (7.0L)/454 (7.4L)/502 (8.2L)
