Edelbrock Crate Engine Eforce Supercharged Ls 416 CI w/ Complete EFI and Calibration
Edelbrock Crate Engine Eforce Supercharged Ls 416 CI w/ Complete EFI and Calibration
A$62,137.39
Special Order. Contact for ETA.
This item is out of stock in our warehouse and partner distribution centres. In some cases, this may be due to not having live inventory feeds available for all suppliers. Please contact us before ordering if you need to meet a specific deadline.
We accept
Description
Warranty: 2-year / Unlimited mileage
Product Overview

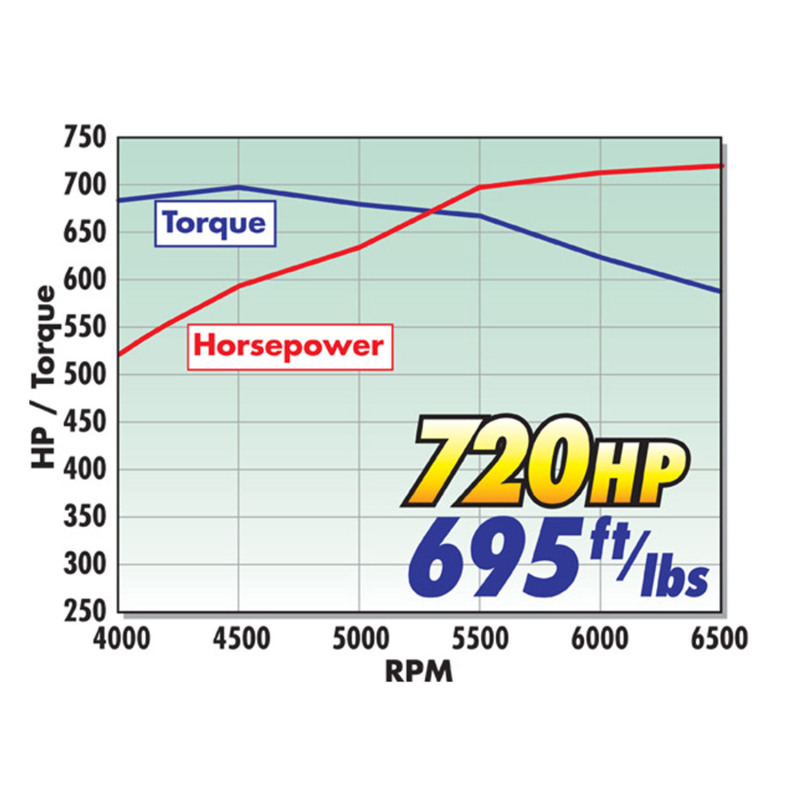

Edelbrock part #46750 Supercharged LS 416 crate engine produces an astounding 720 horsepower and 695 ft-lbs. of torque. The foundation of this engine is a brand new, aluminum LS3 block with a forged and balanced Manley crankshaft, forged Manley H-Beam connecting rods and Manley forged aluminum pistons.This engine features an Edelbrock E-Force supercharger with Eaton TVS 2300cc/rev rotors. Also included are the essential supercharger kit components, such as the electric intercooler water pump, intercooler plumbing and intercooler recovery tank, as well as fuel rails, 60 lb./hr. fuel injectors, mass air flow sensor (MAFS) housing and re-usable air filter. The supercharger equipped on this engine features a driver's side throttle body orientation for ease of intake routing and a Corvette belt offset. Pair with universal heat exchangers for a complete installation.Engine Specifications: - Displacement: 416 c.i.d.- Bore: 4.065"- Stroke: 4.000"- Horsepower: 720 hp- Torque: 695 ft-lbs.- Compression: 9.5:1- Block: LS3 Aluminum- Crankshaft: Forged 4340- Pistons: Forged Aluminum - 18cc- Rods: Forged H-Beam- Camshafts: 215 Deg /247 Deg , .629/.656, 121 LSA- Rocker Arms: LS3, 1.7 ratio- Induction: E-Force Supercharger System #1540- Cylinder Heads: GM with Edelbrock Valve Springs #5768- Finish: Black powder coated- Warranty: 2-year / Unlimited mileage- Suggested Fuel: 91 octane pump gas.
Features and Benefits
- Black Powder-Coat Finish
Product Details
| Air Cleaner Type: | Conical |
|---|---|
| Alternator Included: | Yes |
| Calibration: | Yes |
| Camshaft Type: | 215deg/247deg, .629/.656, 121 LSA |
| Carburetor Choke Type: | N/A |
| Carburetor Type: | Not Included |
| Compression Ratio: | 9.5:1 |
| Construction Type: | Assembled |
| Crankshaft Material: | Forged Steel |
| Cylinder Head Material: | Aluminum |
| Cylinder Head Type: | GM LSA With Edelbrock Valve Springs #5768 |
| Description: | Supercharged LS 416 Crate Engine and Electronics |
| Displacement: | 416 |
| Distributor Included: | No |
| ECU Included: | Yes |
| Emission: | Legal |
| Engine Block Material: | Cast Iron |
| Engine Make/Size: | Chevy Small Block LS Series |
| Finish: | Natural |
| Flywheel Included: | No |
| Fuel Delivery: | Fuel Injection |
| Fuel Injectors Included: | Yes |
| Grade Type: | Performance |
| Hardware Included: | Yes |
| Harmonic Balancer Included: | Yes |
| Horsepower Rating: | 723 |
| Horsepower: | 720 |
| Idler Pulley Included: | Yes |
| Induction Type: | Supercharged |
| Intake Manifold Type: | EFI |
| Main Bearing Cap Bolt Quantity: | 4-Bolt |
| Manifold Material: | Aluminum |
| Oil Filter Included: | Yes |
| Oil Pan Included: | Yes |
| Outside Pulley Diameter: | Stock |
| Part Number: | ede46750 |
| Piston Type: | Forged Aluminum |
| Plug Wire and Boot Included: | Yes |
| Power Steering Pump Included: | Yes |
| Pulley Belt Width: | Stock |
| Quantity: | Sold Individually |
| RGL: | WARNING: This product can expose you to Chromium, Lead, and Zinc which is known to the State of California to cause cancer or birth defects or other reproductive harm. For more information, visit www.P65warnings.ca.gov. |
| RPM Power Range: | 1500 - 6500 |
| Rear Main Seal Type: | 1-Piece |
| Rocker Arm Ratio: | 1.7:1 |
| Rocker Arm Type: | LS3 |
| Rotor Type: | Eaton TVS 2300, Black Powder Coated |
| Spark Plugs Included: | No |
| Throttle Body Included: | Yes |
| Timing Cover Included: | Yes |
| Torque: | 695 |
| Type: | GM LS3 Gen V |
| Universal Or Specific Fit: | Specific Fit |
| Valve Cover Included: | Yes |
| Valve Cover Material: | Cast Aluminum |
| Valve Cover Type: | OEM, Black Powder Coated |
| WARNING CA Proposition 65 Message: | WARNING: This product can expose you to Lead; which is known to the State of California to cause cancer or birth defects or other reproductive harm. For more information; visit www.P65warnings.ca.gov. |
| WARNING CA Proposition 65: | Yes |
| Water Pump Included: | Yes, Standard |
| Wire Harness Included: | Yes |
Application Summary
Chevrolet:Small-Block Gen IV LS3:416 (6.8L)
Part Type
Engine Complete Assembly
Features
- Black Powder-Coat Finish
Specifications
- Product Attributes - Brand
- Edelbrock
- Product Attributes - Manufacturer's Part Number
- 46750
- Product Attributes - Part Type
- Crate Engines
- Product Attributes - Product Line
- Edelbrock 416 C.I.D. E-Force Supercharged Long Block Crate Engines for GM LS
- Product Attributes - UPC
- 085347467501
- Product Attributes - Crate Engine Family
- Chevy LS
- Product Attributes - Actual Engine Displacement
- 6.8L/416
- Product Attributes - Crate Engine Cylinder Head Material
- Aluminum
- Product Attributes - Engine Block Material
- Aluminum
- Product Attributes - Assembled
- Yes
- Product Attributes - Engine Balance
- Internal
- Product Attributes - Cam Style
- Hydraulic roller, OE roller
- Product Attributes - Rear Main Seal Style
- 1-piece
- Product Attributes - Intake Manifold Included
- Yes
- Product Attributes - Intake Manifold Style
- Fuel Injection
- Product Attributes - Cylinder Heads Included
- Yes
- Product Attributes - Carburetor Included
- No
- Product Attributes - Throttle Body Included
- Yes
- Product Attributes - Distributor Included
- No
- Product Attributes - Oil Pan Included
- Yes
- Product Attributes - Valve Covers Included
- Yes
- Product Attributes - Timing Cover Included
- Yes
- Product Attributes - Water Pump Included
- Yes
- Product Attributes - Harmonic Balancer Included
- Yes
- Product Attributes - Flexplate Included
- No
- Product Attributes - Flywheel Included
- No
- Product Attributes - Air Cleaner Included
- Yes
- Product Attributes - Spark Plugs Included
- No
- Product Attributes - Spark Plug Wires Included
- Yes
- Product Attributes - Computer Included
- Yes
- Product Attributes - Wiring Harness Included
- Yes
- Product Attributes - Supercharger Included
- Yes
- Product Attributes - Supercharger Model
- Eaton TVS 2300
- Product Attributes - Remanufactured
- No
- Product Attributes - Quantity
- Sold individually.
- Product Attributes - Notes

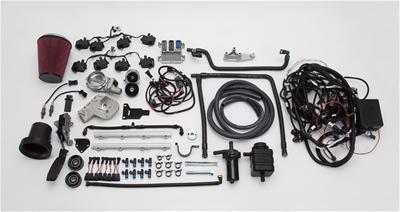

- Includes electronic throttle pedal, mass airflow sensor, ignition coil packs, heated oxygen sensors, electric intercooler pump, intercooling plumbing, intercooler recovery tank, fuel rails, 60 lb/hr. fuel injectors, mass airflow sensor housing and re-usable air filter.
Reference Information
| Brand Name/s | Edelbrock |
|---|---|
| StreetFX SKU | ede46750 |
| SFX Item ID | 4235920 |
| Supplier Item Code | 4235920 |
| Manufacturer SKU | 46750 |
| Manufacturer UPC | 85347467501 |
| Alternative References | EDB46750, EDL-46750 |
Compatibility
Chevrolet:Small-Block Gen IV LS3:416 (6.8L)
