Edelbrock Manifold SBC Victor E-Tec EFI Satin

SKU: EDE29145

Intake Manifolds, Fuel Injected

EDE Victor Intake Manifold...

Edelbrock

Edelbrock Manifold SBC Victor E-Tec EFI Satin

SKU: EDE29145

Intake Manifolds, Fuel Injected

EDE Victor Intake Manifold...

LOW STOCK! Est Ship 4-7 days. HURRY! LOW STOCK. This item is in limited stock at one of our distribution centres. The ETA is the approximate time required to prepare your order for dispatch.

We accept

Description

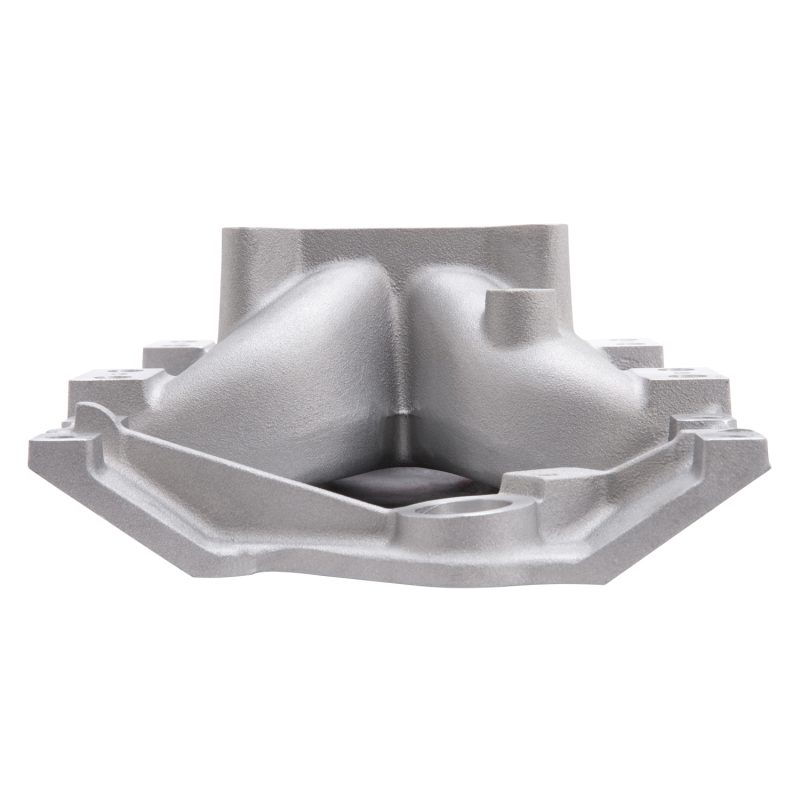

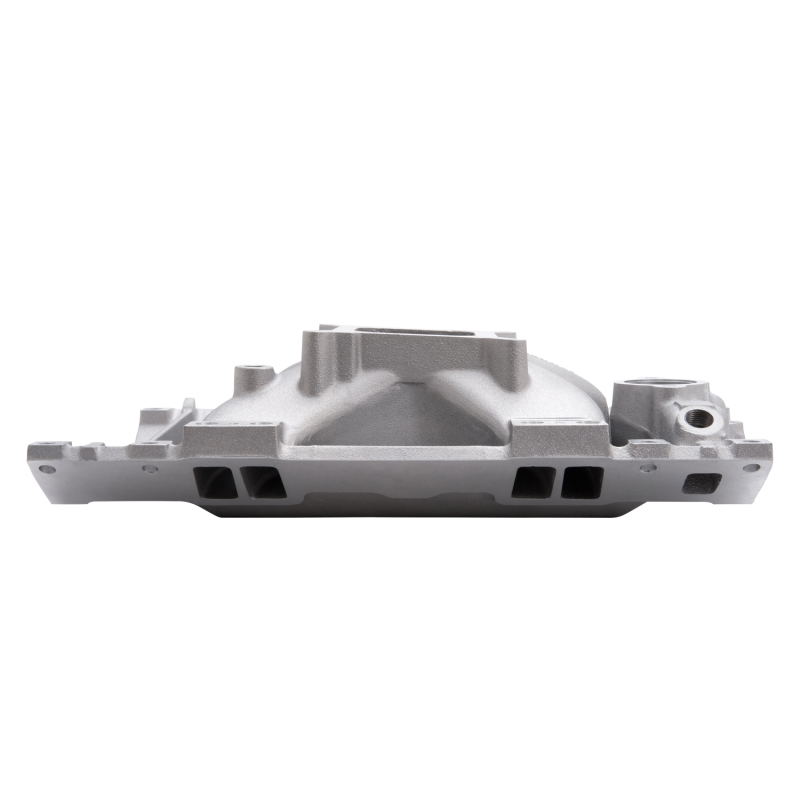

Edelbrock part #29145 Victor E-Tec EFI intake manifold is a Vortec/E-Tec version of our popular Victor E 23 degree EFI intake manifold. This manifold features a similar deep plenum and tapered cross-sections like the Victor E 23 degree and is compatible with square-bore throttle bodies. This intake manifold is one inch shorter than the existing Super Victor E-Tec EFI #29135. It also has provisions for water bypass so it can be used on Vortec engine blocks and accepts OEM alternator brackets.

Product Overview

Features and Benefits

One Inch Shorter Than Standard

Product Details

Basic Operating RPM Range:	2500-8000
CNC Ported:	No
Center Maximum Height:	4.580
Color:	Silver
Cylinder Head Type:	Standard
Description:	Victor E-Tec EFI Intake Manifold
EGR Port:	No
Emission:	With EGR
Engine Make/Size:	Universal Engine
Finish:	Satin
Flange Type:	4150
Front Maximum Height:	4.580
Gasket Or Seal Included:	No
Grade Type:	Performance
Material:	Aluminum
New Or Remanufactured:	New
Number of Carbs:	One
Part Number:	ede29145
Position:	N/A
RGL:	WARNING: This product can expose you to Lead, which is known to the State of California to cause cancer or birth defects or other reproductive harm. For more information, visit www.P65warnings.ca.gov.
RPM Range:	2500-8500
Rear Maximum Height:	4.580
Series:	Victor
Single Or Dual Plane Type:	Single
Usage:	Racing
Vehicle Model:	Chevrolet
WARNING CA Proposition 65 Message:	WARNING: This product can expose you to Lead; which is known to the State of California to cause cancer or birth defects or other reproductive harm. For more information; visit www.P65warnings.ca.gov.
WARNING CA Proposition 65:	Yes

Application Summary

Chevrolet:Small-Block Gen I Vortec

Part Type

Engine Intake Manifold

Data: v4.2 - Upd: 2026-10-13 23:11:33

Features

One Inch Shorter Than Standard

Specifications

Product Attributes - Brand: Edelbrock
Product Attributes - Manufacturer's Part Number: 29145
Product Attributes - Part Type: Intake Manifolds, Fuel Injected
Product Attributes - Product Line: Edelbrock Victor EFI Intake Manifolds
Product Attributes - UPC: 085347291458
Product Attributes - Cylinder Head Configuration: Edelbrock E-tec/Vortec
Product Attributes - Fuel Injection Style: Multi-port
Product Attributes - Basic Operating RPM Range: 4,000-8,000
Product Attributes - Intake Section Included: Complete
Product Attributes - Engine Block Deck Height: Standard deck
Product Attributes - Injectors Included: No
Product Attributes - Multi-Port Fuel Rails Included: No
Product Attributes - EGR: No
Product Attributes - Aftermarket Fuel Rail Required: Yes
Product Attributes - Throttle Body Included: No
Product Attributes - Supplemental Bosses Cast-In: Yes
Product Attributes - Supplemental Bosses Machined: Yes
Product Attributes - Supplemental Boss Quantity: Eight
Product Attributes - Runners Included: Yes
Product Attributes - Runners Removable: No
Product Attributes - Plenum Material: Aluminum
Product Attributes - Plenum Finish: Natural
Product Attributes - Remanufactured: No
Product Attributes - Quantity: Sold individually.
Product Attributes - Notes: Requires EDL-3631 Fuel rails which are compatible with standard injectors.

Reference Information

Brand Name/s	Edelbrock
StreetFX SKU	ede29145
SFX Item ID	4237382
Supplier Item Code	4237382
Manufacturer SKU	29145
Manufacturer UPC	85347291458
Alternative References	EDB29145, EDL-29145
