Edelbrock Victor EFI Intake Manifold for SB Chrysler 340/360

SKU: EDE28155

Intake Manifolds, Fuel Injected

EDE Victor Intake Manifold...

Available from MFR. This item is available from the manufacturer's distribution centre. The dispatch timeframe shown is an estimate based on historical order processing and release times for this part. This item is not held in our own warehouse, and actual dispatch timing may vary depending on manufacturer workload and logistics at the time of ordering.

We accept

Description

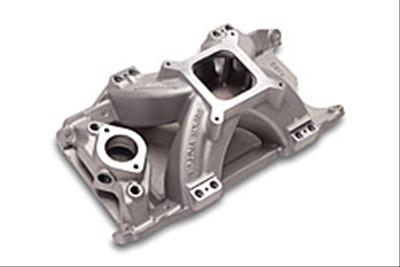

Edelbrock part #29155 Victor 340 EFI intake manifold is designed for 340-360 c.i.d. Chryslers using standard rectangular-port heads. For oval track and drag race engines operating from 3500-8000 rpm. Can be used on 318 c.i.d. engines with 340-360 heads. Will not fit 1992 and later Magnum engines. Accepts 1975 and earlier waterneck only.

Product Overview

Features and Benefits

Direct Line of Sight Flow Path Maximizes Flow

Product Details

Basic Operating RPM Range:	3500-8000
CNC Ported:	No
Center Maximum Height:	6.300
Cylinder Head Type:	Standard
Description:	Super Victor Series Intake Manifold
EGR Port:	No
Emission:	Without EGR
Engine Make/Size:	Mopar 318-360
Finish:	Satin
Flange Type:	4150
Front Maximum Height:	6.300
Gasket Or Seal Included:	No
Grade Type:	Performance
Material:	Aluminum
Number of Carbs:	None; For Fuel Injection
Part Number:	ede28155
Position:	N/A
RGL:	WARNING: This product can expose you to Lead, which is known to the State of California to cause cancer or birth defects or other reproductive harm. For more information, visit www.P65warnings.ca.gov.
RPM Range:	3500-8500
Rear Maximum Height:	6.300
Series:	Victor
Single Or Dual Plane Type:	Single
Usage:	Racing
Vehicle Model:	Chrysler
WARNING CA Proposition 65 Message:	WARNING: This product can expose you to Lead; which is known to the State of California to cause cancer or birth defects or other reproductive harm. For more information; visit www.P65warnings.ca.gov.
WARNING CA Proposition 65:	Yes

Application Summary

Chrysler:Small-Block LA-Series:340 (5.6L)/360 (5.9L)

Part Type

Engine Intake Manifold

Data: v4.2 - Upd: 2026-10-13 23:11:33

Features

Direct Line of Sight Flow Path Maximizes Flow

Specifications

Product Attributes - Brand: Edelbrock
Product Attributes - Manufacturer's Part Number: 28155
Product Attributes - Part Type: Intake Manifolds, Fuel Injected
Product Attributes - Product Line: Edelbrock Super Victor EFI Intake Manifolds
Product Attributes - UPC: 085347281558
Product Attributes - Cylinder Head Configuration: Stock
Product Attributes - Fuel Injection Style: Multi-port
Product Attributes - Basic Operating RPM Range: 3,500-8,500
Product Attributes - Intake Section Included: Complete
Product Attributes - Engine Block Deck Height: Standard deck
Product Attributes - Injectors Included: No
Product Attributes - Multi-Port Fuel Rails Included: No
Product Attributes - EGR: No
Product Attributes - Aftermarket Fuel Rail Required: Yes
Product Attributes - Throttle Body Included: No
Product Attributes - Supplemental Bosses Cast-In: No
Product Attributes - Supplemental Bosses Machined: Yes
Product Attributes - Runners Included: No
Product Attributes - Runners Removable: No
Product Attributes - Base Material: Aluminum
Product Attributes - Base Color: Natural
Product Attributes - Remanufactured: No
Product Attributes - Quantity: Sold individually.

Reference Information

Brand Name/s	Edelbrock
StreetFX SKU	ede28155
SFX Item ID	4237364
Supplier Item Code	4237364
Manufacturer SKU	28155
Manufacturer UPC	85347281558
Alternative References	EDB28155, EDL-28155
