Description

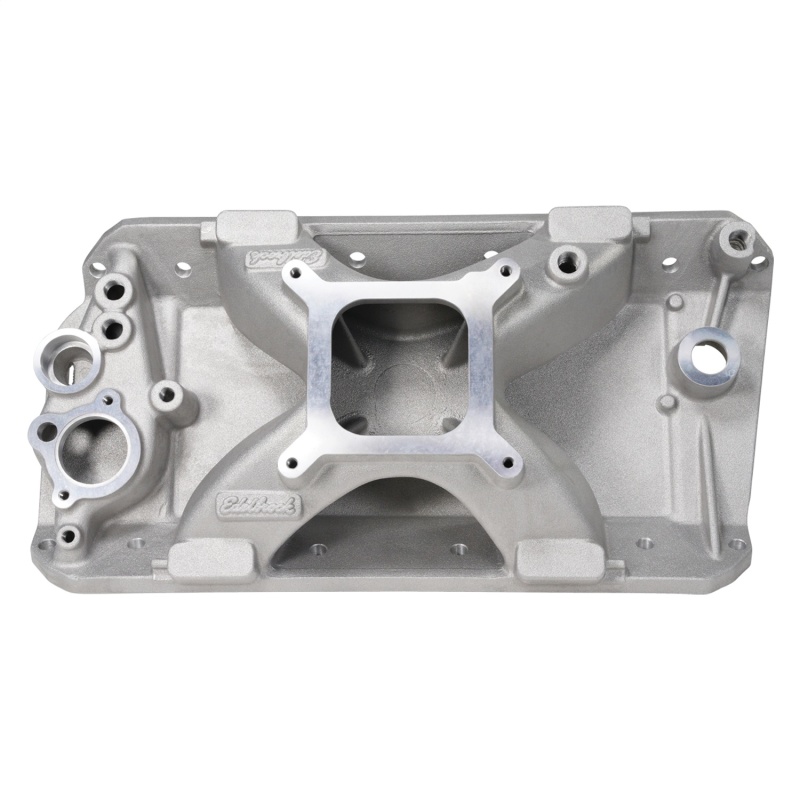

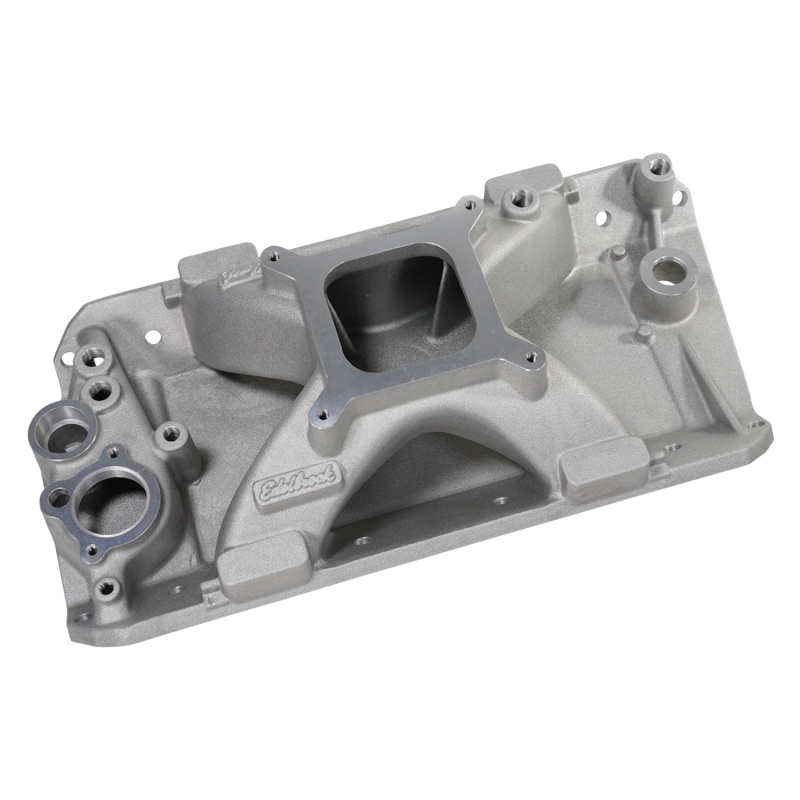

Edelbrock part #28110 Victor Jr. AMC intake manifold is designed for 1970-91 AMC 304-401 c.i.d. V8 engines in Carbureted applications.

Product Overview

Designed for competition 351 Windsor Ford V8's from 1969 and later with the following heads: Edelbrock Performer RPM heads #60259, Victor Jr. heads #77169, Victor heads #77219 or similar heads. Two versions available: #2980 fits SVO blocks with a 9.2" deck height and #2981 fits standard 351W blocks with a 9.5" deck height. Ideal for both oval track and drag racing engines operating between 3500 and 7500 rpm. Runners have a 2.70 square-inch cross sectional area. Carburetor Recommendations: Any size or type of carburetor class allows. Installation Notes: Recommended intake gasket: Edelbrock #7220 or Fel-Pro #1262. Manifold height: #2980 A-5.59", B-5.59"; #2981 A-5.75", B-5.75".

Features and Benefits

Use PN[29025] When EFI Bosses Are Needed

Product Details

Angle:	(Carb) 0
Basic Operating RPM Range:	3500-7500
Bolt Hole Centerline To Port Floor:	0.97
Bolt Hole Centerline To Port Roof:	1.16
CNC Ported:	No
Center Maximum Height:	5.74
Cylinder Head Type:	AMC 1970-91 304-401 CID
Description:	Victor Jr. Series Intake Manifold
EGR Port:	No
Emission:	N/A
Finish:	Satin
Flange Type:	4150
Front Maximum Height:	(A) 5.74
Gasket Or Seal Included:	No
Grade Type:	Performance
Material:	Aluminum
Mounting Hole Diameter:	(Carb Bolt) 5/16-18 UNC
Mounting Hole Quantity:	(Carb Bolt) 4
Number of Carbs:	One
Part Number:	ede28110
Port Exit Dimensions:	1.06 x 2.13
Position:	N/A
Quantity:	Sold Individually
RGL:	WARNING: This product can expose you to Lead, which is known to the State of California to cause cancer or birth defects or other reproductive harm. For more information, visit www.P65warnings.ca.gov.
RPM Range:	3500-7500
Rear Maximum Height:	(B) (Measured To Engine Block) 5.74
Recommended Use:	Carbureted Applications
Series:	Victor
Single Or Dual Plane Type:	Single Plane
Usage:	Racing
Vehicle Model:	AMC
WARNING CA Proposition 65 Message:	WARNING: This product can expose you to Lead; which is known to the State of California to cause cancer or birth defects or other reproductive harm. For more information; visit www.P65warnings.ca.gov.
WARNING CA Proposition 65:	Yes

Application Summary

AMC:Small-Block:304 (5.0L)/343 (5.6)/360 (5.9L)/390 (6.4)/401 (6.6L)

Part Type

Engine Intake Manifold

Data: v4.2 - Upd: 2026-10-13 23:11:24

Features

Use PN[29025] When EFI Bosses Are Needed

Specifications

Product Attributes - Brand: Edelbrock
Product Attributes - Manufacturer's Part Number: 28110
Product Attributes - Part Type: Intake Manifolds, Carbureted
Product Attributes - Product Line: Edelbrock Victor Jr. Intake Manifolds
Product Attributes - UPC: 085347281107
Product Attributes - Intake Section Included: Complete
Product Attributes - Engine Block Deck Height: Standard deck
Product Attributes - Carburetor Quantity: One
Product Attributes - Intake Style: Single plane
Product Attributes - Basic Operating RPM Range: 3,500-7,500
Product Attributes - Intake Manifold Height: 5.740 in.
Product Attributes - Intake Color: Natural
Product Attributes - Intake Material: Aluminum
Product Attributes - EGR: No
Product Attributes - Quantity: Sold individually.
Product Attributes - Notes: Includes standard oil fill and a raised PCV boss for better oil control. PCV grommet included in the kit.

Reference Information

Brand Name/s	Edelbrock
StreetFX SKU	ede28110
SFX Item ID	4237623
Supplier Item Code	4237623
Manufacturer SKU	28110
Manufacturer UPC	85347281107
Alternative References	EDB28110, EDL-28110
