Edelbrock Manifold Torker Holden 308 CI V8 Satin

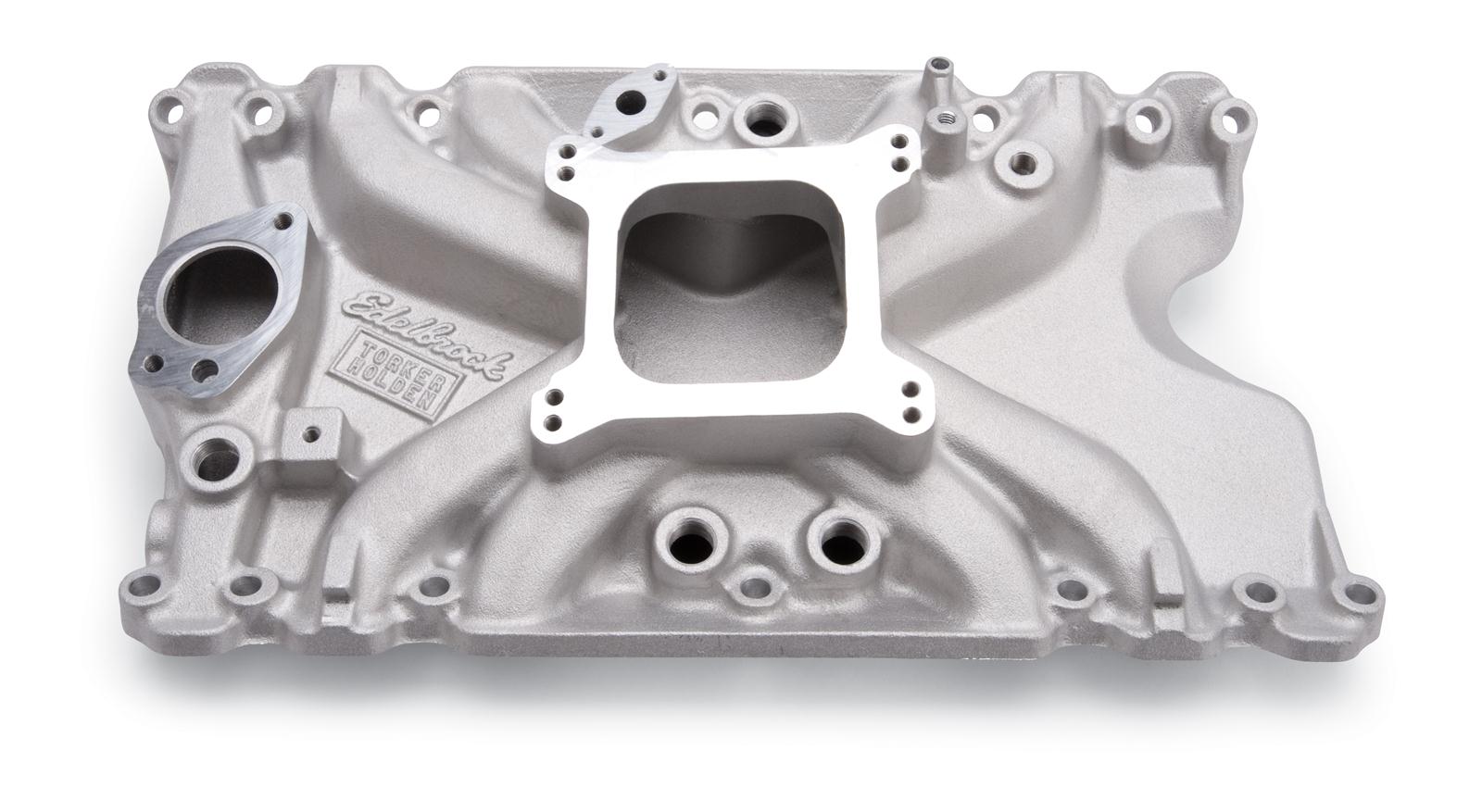

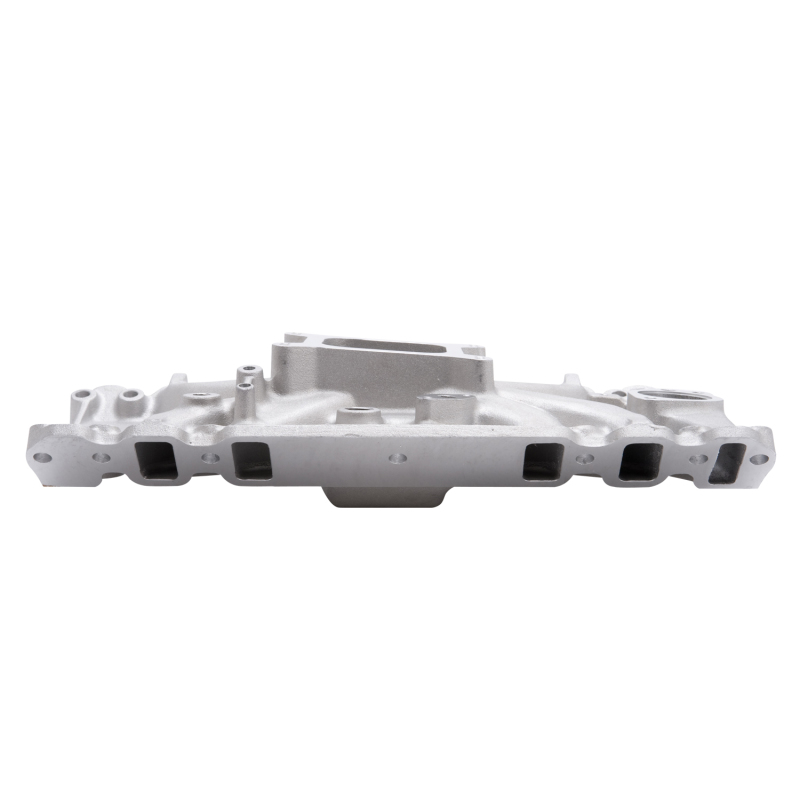

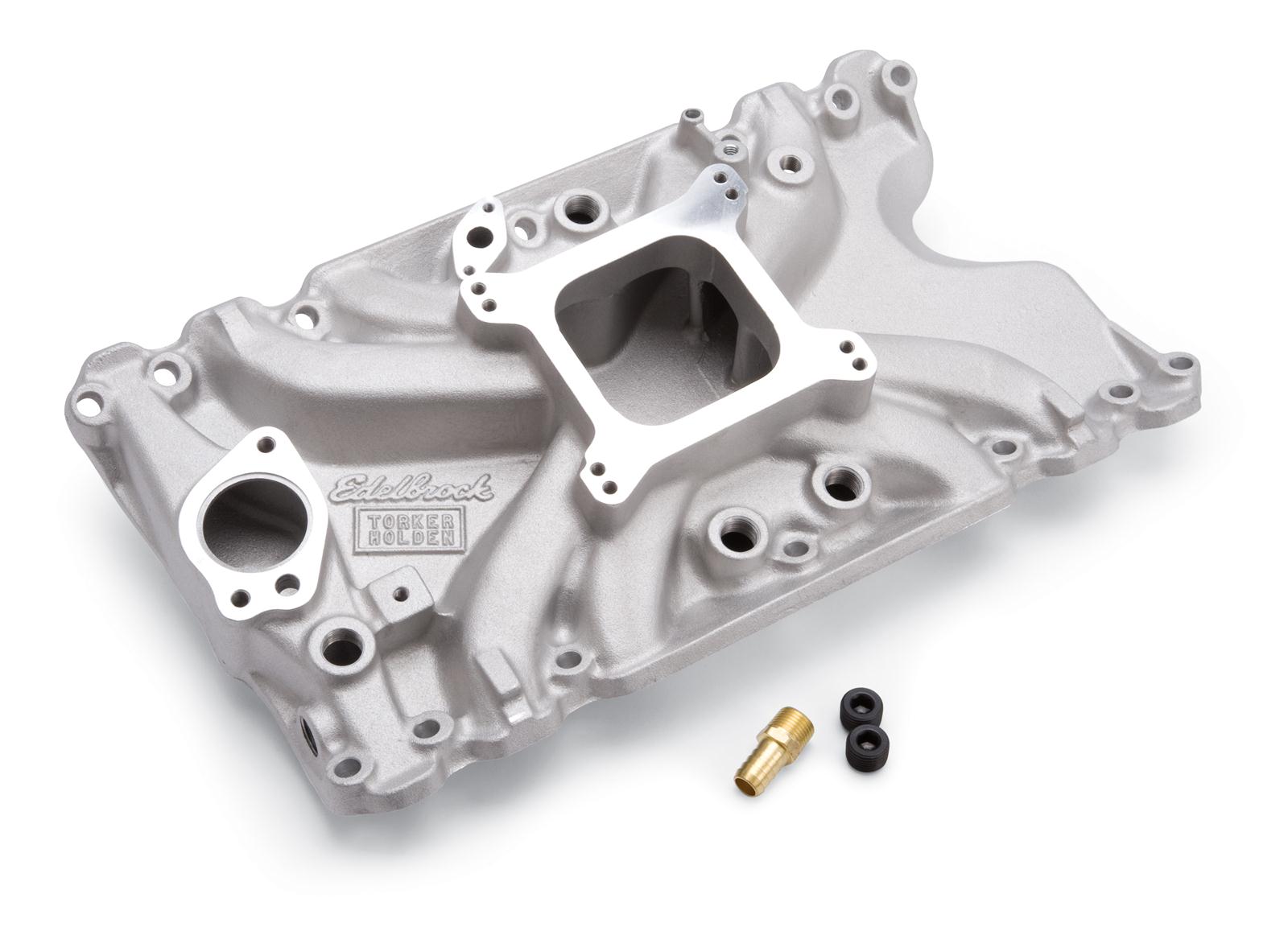

Edelbrock Manifold Torker Holden 308 CI V8 Satin
Sale ends in Calculating...
A$1,119.99
A$1,301.28
Available from MFR.
This item is available from the manufacturer's distribution centre. The dispatch timeframe shown is an estimate based on historical order processing and release times for this part. This item is not held in our own warehouse, and actual dispatch timing may vary depending on manufacturer workload and logistics at the time of ordering.
We accept
Description
IMPORTANT NOTICE: Fits 253, 304, or 308 c.i.d. Holden V8 engines with Red motor cylinder heads only (with single bolt in center of manifold), will not fit on Blue/Black cylinder head engines. Do not use high performance or competition intake gaskets. Accepts square-bore carbs only.
Edelbrock part #2790 Torker 308 intake manifold is designed for Holden 253-304-308 c.i.d. V8 engines with Red motor cylinder heads only (with single bolt in center of manifold), will not fit on Blue/Black cylinder head engines. The Torker 308 intake manifold is a single-plane design and is recommended for street high performance and race engines operating between the 2500 to 6500 rpm range where low-end torque is not required. Accepts square-bore carbs only.
Product Overview
Edelbrock part #2790 Torker 308 intake manifold is designed for Holden 253-304-308 c.i.d. V8 engines with Red motor cylinder heads only (with single bolt in center of manifold), will not fit on Blue/Black cylinder head engines. The Torker 308 intake manifold is a single-plane design and is recommended for street high performance and race engines operating between the 2500 to 6500 rpm range where low-end torque is not required. Accepts square-bore carbs only.
Features and Benefits
- Manifold Not Equipped with EGR
Product Details
| Basic Operating RPM Range: | 2500-6500 |
|---|---|
| CNC Ported: | No |
| Center Maximum Height: | 3.730 |
| Cylinder Head Type: | Standard |
| Description: | Torker Series Intake Manifold |
| EGR Port: | No |
| Emission: | Without EGR |
| Engine Make/Size: | Universal Engine |
| Finish: | Satin |
| Flange Type: | 4150 |
| Front Maximum Height: | 2.950 |
| Gasket Or Seal Included: | No |
| Grade Type: | Performance |
| Material: | Aluminum |
| Number of Carbs: | One |
| Part Number: | ede2790 |
| Position: | N/A |
| RGL: | WARNING: This product can expose you to Lead, which is known to the State of California to cause cancer or birth defects or other reproductive harm. For more information, visit www.P65warnings.ca.gov. |
| RPM Range: | Idle-6500 |
| Rear Maximum Height: | 4.500 |
| Series: | Torker/Torker II |
| Single Or Dual Plane Type: | Single |
| Usage: | Street/Hi-Performance |
| Vehicle Model: | Holden |
| WARNING CA Proposition 65 Message: | WARNING: This product can expose you to Lead; which is known to the State of California to cause cancer or birth defects or other reproductive harm. For more information; visit www.P65warnings.ca.gov. |
| WARNING CA Proposition 65: | Yes |
Application Summary
Holden:Small-Block VN:308 (5.0L)/355 (5.7)/383 (6.3L)
Part Type
Engine Intake Manifold
Features
- Manifold Not Equipped with EGR
Specifications
- Product Attributes - Brand
- Edelbrock
- Product Attributes - Manufacturer's Part Number
- 2790
- Product Attributes - Part Type
- Intake Manifolds, Carbureted
- Product Attributes - Product Line
- Edelbrock Torker Intake Manifolds
- Product Attributes - UPC
- 085347027903
- Product Attributes - Intake Section Included
- Complete
- Product Attributes - Engine Block Deck Height
- Standard deck
- Product Attributes - Carburetor Quantity
- One
- Product Attributes - Intake Style
- Single plane
- Product Attributes - Basic Operating RPM Range
- 2,500-6,500
- Product Attributes - Intake Manifold Height
- 3.730 in.
- Product Attributes - Intake Color
- Natural
- Product Attributes - Intake Material
- Aluminum
- Product Attributes - EGR
- Yes
- Product Attributes - Quantity
- Sold individually.
- Product Attributes - Notes
- Fits 253, 304, or 308 c.i.d. Holden V8 engines with Red motor cylinder heads only (with single bolt in center of manifold), will not fit on Blue/Black cylinder head engines. Do not use high performance or competition intake gaskets. Accepts square-bore carbs only.
- Product Attributes - Special Attention
- Manifold height: A-2.95 in., B-4.50 in.; Carb pad height: 3.73 in. Port exit dimensions: 1.03 in. x 1.88 in.
Reference Information
| Brand Name/s | Edelbrock |
|---|---|
| StreetFX SKU | ede2790 |
| SFX Item ID | 4237101 |
| Supplier Item Code | 4237101 |
| Manufacturer SKU | 2790 |
| Manufacturer UPC | 85347027903 |
| Alternative References | EDB2790, EDL-2790 |
Brochures
Compatibility
Holden:Small-Block VN:308 (5.0L)/355 (5.7)/383 (6.3L)
