Edelbrock
Edelbrock Carburetor Performer Series 4-Barrel 600 CFM Electric Choke Satin Finish
ede1406
A$1,054.71
Edelbrock Rollin Thunder Camshaft Hydraulic Roller Gen Vi B/B Chevy 500+ CI
Edelbrock Rollin Thunder Camshaft Hydraulic Roller Gen Vi B/B Chevy 500+ CI
Sale ends in Calculating...
A$1,067.93
A$1,196.80
Available from MFR.
This item is available from the manufacturer's distribution centre. The dispatch timeframe shown is an estimate based on historical order processing and release times for this part. This item is not held in our own warehouse, and actual dispatch timing may vary depending on manufacturer workload and logistics at the time of ordering.
We accept
Description

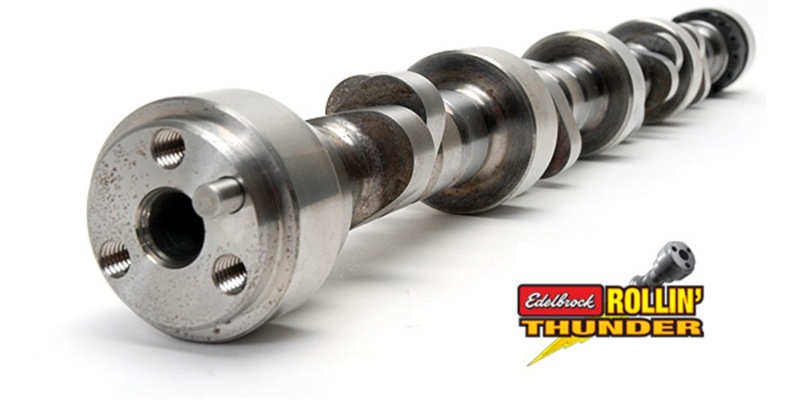

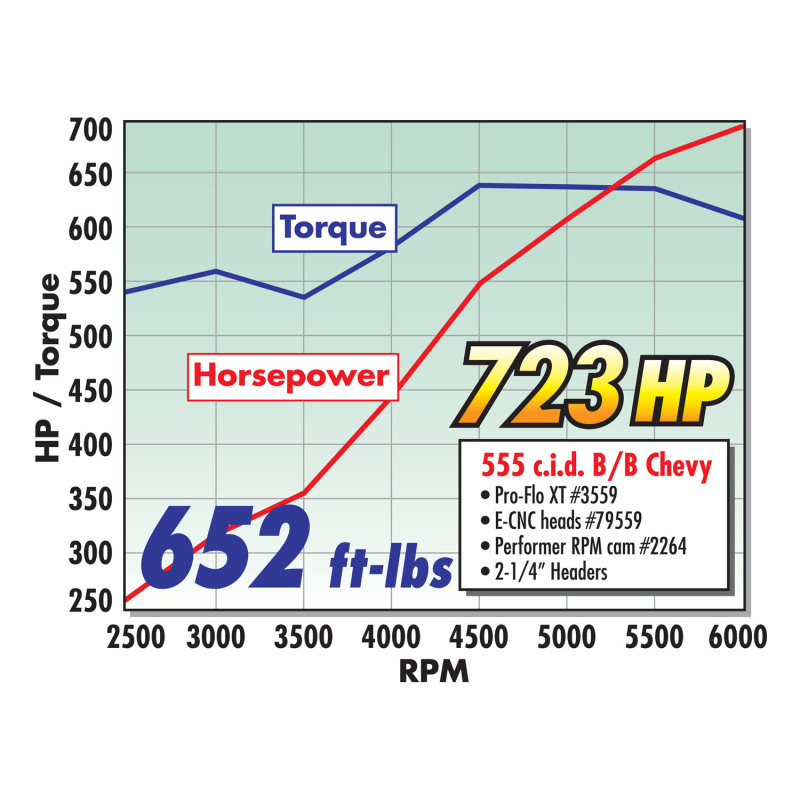

Edelbrock Rollin' Thunder Camshaft #2264 is designed for 500+ Gen VI engines from 1996-Later and produce optimum torque from the low-end to the mid-range. Rollin' Thunder camshafts match with Performer manifolds for vehicles operating from off-idle to 5500 rpm. They are smooth idling cams for daily drivers, trucks, vans, RVs and 4x4s. You can expect a major improvement in throttle response and torque. In the manifold section you'll find torque graphs showing the power gains from Performer manifolds and Performer-Plus cams. All camshafts include flat tappet lifters (except for cams designed for use with stock roller lifters), assembly lube and instructions. This cam produced 723HP and 652 Ft Lbs of Torque when paired with Pro-Flo XT EFI system #3558 and E-CNC cylinder heads #79555. Must use a high stall torque converter.Camshaft specifications:- Intake duration: 248 Degrees- Exhaust duration: 256 Degrees- Intake lift: .632"- Exhaust lift: .648"- Lobe separation: 112 Degree- Intake Center Line: N/A- Vacuum: 11"
Product Overview
Edelbrock Rollin' Thunder Camshaft #2264 is designed for 500+ Gen VI engines from 1996-Later and produce optimum torque from the low-end to the mid-range. Rollin' Thunder camshafts match with Performer manifolds for vehicles operating from off-idle to 5500 rpm. They are smooth idling cams for daily drivers, trucks, vans, RVs and 4x4s. You can expect a major improvement in throttle response and torque. In the manifold section you'll find torque graphs showing the power gains from Performer manifolds and Performer-Plus cams. All camshafts include flat tappet lifters (except for cams designed for use with stock roller lifters), assembly lube and instructions. This cam produced 723HP and 652 Ft Lbs of Torque when paired with Pro-Flo XT EFI system #3558 and E-CNC cylinder heads #79555. Must use a high stall torque converter. Camshaft specifications: - Intake duration: 248 Degrees - Exhaust duration: 256 Degrees - Intake lift: .632" - Exhaust lift: .648" - Lobe separation: 112 Degree - Intake Center Line: N/A - Vacuum: 11"
Features and Benefits
- Increased Performance
Product Details
| Advertised Exhaust Duration: | 315 |
|---|---|
| Advertised Intake Duration: | 308 |
| Cam Type: | Roller |
| Computer Controlled Compatible: | No |
| Description: | Rollin Thunder Camshaft |
| Engine Make/Size: | Chevy Big Block Mark IV |
| Exh. Duration @ .050 in. (Deg): | 256 |
| Exh. Duration Advertised (Deg): | 315 |
| Exhaust Duration at .050 inch Lift: | 256 |
| Exhaust Valve Lift (in.): | 0.643 |
| Exhaust Valve Lift with Factory Rocker Arm Ratio: | 0.648 |
| Exhaust Valve Lift: | 0.381 |
| Int. Duration @ .050 in. (Deg): | 248 |
| Int. Duration Advertised (Deg): | 308 |
| Intake Duration @ 0.050 in.: | 248 Degree |
| Intake Duration Advertised: | 308 |
| Intake Duration at .050 Inch Lift: | 248 |
| Intake Valve Lift (in.): | 0.629 |
| Intake Valve Lift with Factory Rocker Arm Ratio: | 0.632 |
| Intake Valve Lift: | 0.368 |
| Lifter Type: | Roller |
| Lobe Separation: | 112 |
| Part Number: | ede2264 |
| RGL: | WARNING: This product can expose you to Chromium, which is known to the State of California to cause cancer or birth defects or other reproductive harm. For more information, visit www.P65warnings.ca.gov. |
| RPM Range: | 1500-6500 |
| Usage: | Street/Performance |
| WARNING CA Proposition 65 Message: | WARNING: This product can expose you to Chromium; which is known to the State of California to cause cancer or birth defects or other reproductive harm. For more information; visit www.P65warnings.ca.gov. |
| WARNING CA Proposition 65: | Yes |
Application Summary
Chevrolet:Big-Block Mark IV:454 (7.4L)/502 (8.2L)
Part Type
Engine Camshaft
Features
- Increased Performance
Specifications
- Product Attributes - Brand
- Edelbrock
- Product Attributes - Manufacturer's Part Number
- 2264
- Product Attributes - Part Type
- Camshafts
- Product Attributes - Product Line
- Edelbrock Rollin' Thunder Hydraulic Roller Camshafts
- Product Attributes - UPC
- 085347022649
- Product Attributes - Cam Style
- Hydraulic roller, OE roller
- Product Attributes - Camshaft Use
- Street/Strip
- Product Attributes - Basic Operating RPM Range
- 1,500-6,500
- Product Attributes - Intake Duration at 050 inch Lift
- 248
- Product Attributes - Exhaust Duration at 050 inch Lift
- 256
- Product Attributes - Duration at 050 inch Lift
- 248 int./256 exh.
- Product Attributes - Advertised Intake Duration
- 308
- Product Attributes - Advertised Exhaust Duration
- 315
- Product Attributes - Advertised Duration
- 308 int./315 exh.
- Product Attributes - Intake Valve Lift with Factory Rocker Arm Ratio
- 0.632 in.
- Product Attributes - Exhaust Valve Lift with Factory Rocker Arm Ratio
- 0.648 in.
- Product Attributes - Valve Lift with Factory Rocker Arm Ratio
- 0.632 int./0.648 exh.
- Product Attributes - Lobe Separation (degrees)
- 112
- Product Attributes - Remanufactured
- No
- Product Attributes - Computer-Controlled Compatible
- No
- Product Attributes - Valve Springs Required
- Yes
- Product Attributes - Quantity
- Sold individually.
Reference Information
| Brand Name/s | Edelbrock |
|---|---|
| StreetFX SKU | ede2264 |
| SFX Item ID | 4236902 |
| Supplier Item Code | 4236902 |
| Manufacturer SKU | 2264 |
| Manufacturer UPC | 85347022649 |
| Alternative References | 8.5mm;, EDB2264, EDL-2264 |
Compatibility
Chevrolet:Big-Block Mark IV:454 (7.4L)/502 (8.2L)
