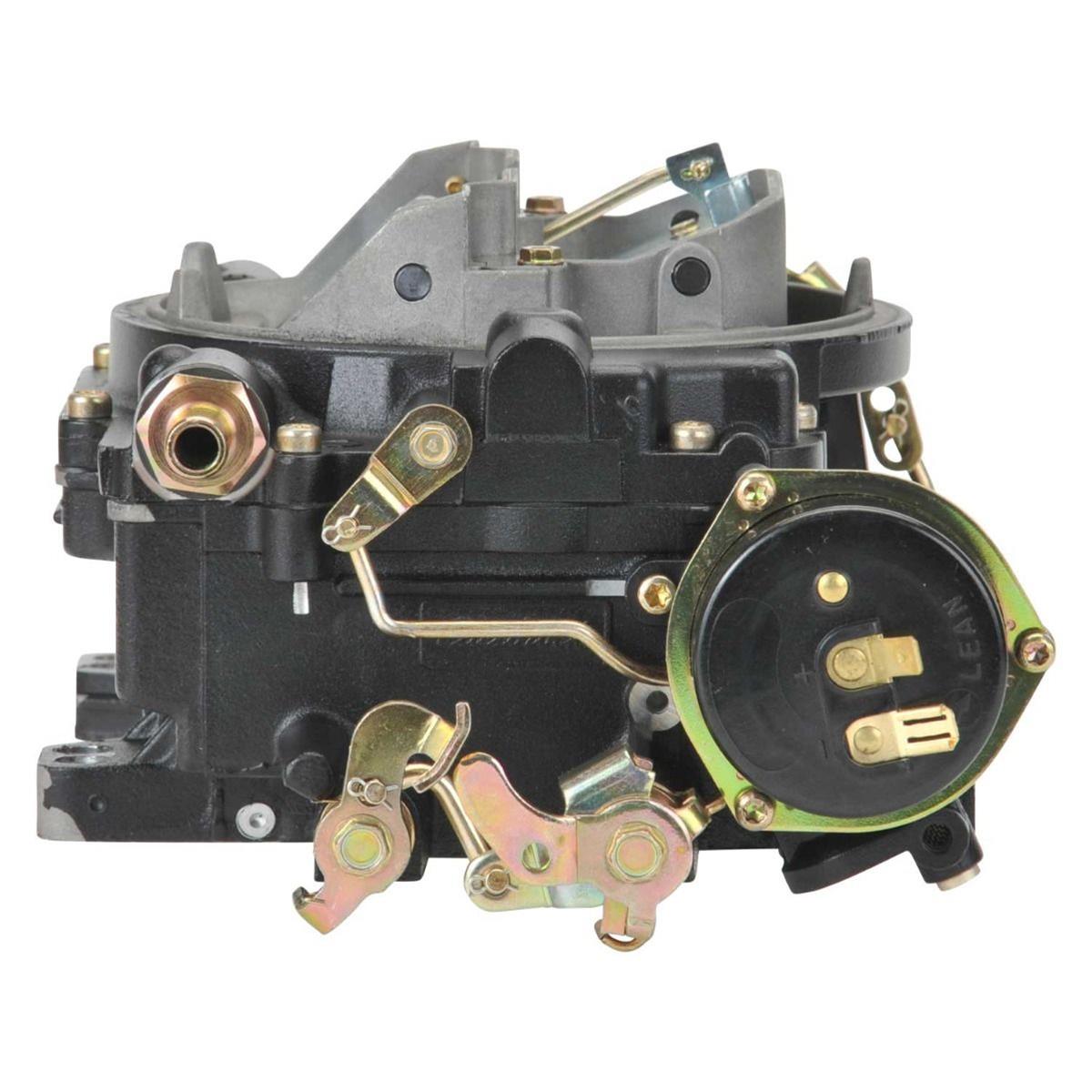

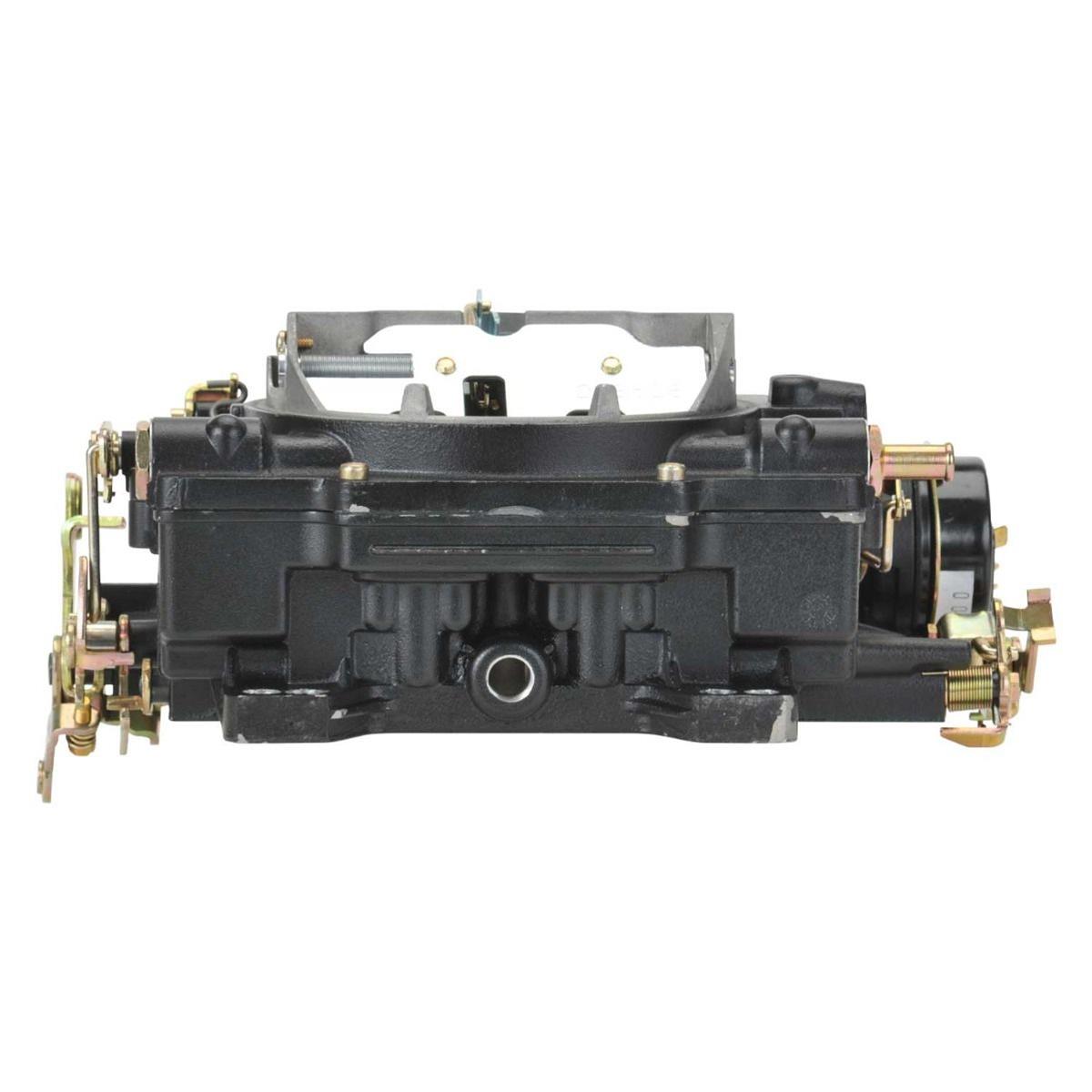

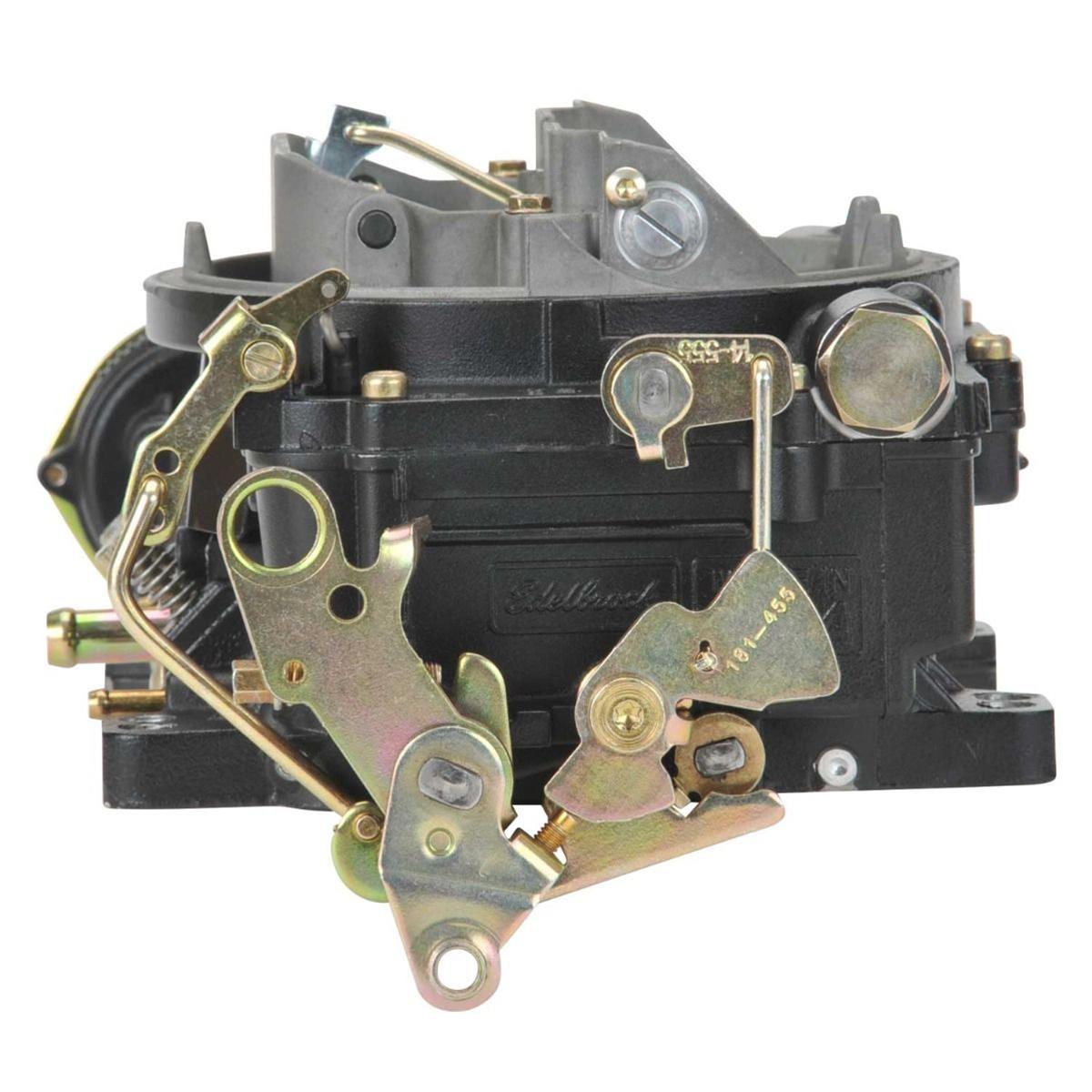

Edelbrock Carburetor Thunder AVS2 Series 650 CFM Electric Choke Black Powder Coated (Non-EGR)
Edelbrock Carburetor Thunder AVS2 Series 650 CFM Electric Choke Black Powder Coated (Non-EGR)
A$1,168.16
Available from MFR.
This item is available from the manufacturer's distribution centre. The dispatch timeframe shown is an estimate based on historical order processing and release times for this part. This item is not held in our own warehouse, and actual dispatch timing may vary depending on manufacturer workload and logistics at the time of ordering.
We accept
Description
The Edelbrock AVS2 Series #19063 is a black-finished carburetor with electric choke that is designed and calibrated for optimum street performance in engines that require 650 CFM of air-fuel flow. The AVS2 is a perfect replacement or upgrade that features annular flow primary boosters with a new calibration for improved off-idle and cruising performance. The annular flow booster design delivers improved fuel atomization to eliminate flat spots that may be encountered as the carburetor transitions from idle to full throttle. Each annular flow booster features eight equally spaced orifices to improve fuel metering from idle to the main circuit. The improved flow metering makes this carburetor ideal for use with a wide variety of small- and big-block engines with either dual- or single-plane intake manifolds. The Edelbrock AVS2 #19063 includes both timed and full vacuum ports for ignition advance. It comes with: .101 primary and.098 secondary metering jets
Product Overview
The Edelbrock AVS2 Series #19063 is a black-finished carburetor with electric choke that is designed and calibrated for optimum street performance in engines that require 650 CFM of air-fuel flow. The AVS2 is a perfect replacement or upgrade that features annular flow primary boosters with a new calibration for improved off-idle and cruising performance. The annular flow booster design delivers improved fuel atomization to eliminate flat spots that may be encountered as the carburetor transitions from idle to full throttle. Each annular flow booster features eight equally spaced orifices to improve fuel metering from idle to the main circuit. The improved flow metering makes this carburetor ideal for use with a wide variety of small- and big-block engines with either dual- or single-plane intake manifolds. The Edelbrock AVS2 #19063 includes both timed and full vacuum ports for ignition advance. It comes with: .101 primary and.098 secondary metering jets
Product Details
| Barrel Quantity: | 4 Barrel |
|---|---|
| Body Height: | 3.25 |
| Booster Type: | annular |
| Bore Diameter: | Primary Bore 1.44; Secondary Bore 1.75 |
| Choke Type: | Electric |
| Condition: | New |
| Description: | Edelbrock Carburetor Thunder AVS2 Series 650 CFM Electric Choke Black Powder Coated (Non-EGR) |
| EGR Port: | No |
| Finish: | Black Powder Coated |
| Flange Shape: | Square |
| Gasket Or Seal Included: | Yes |
| Main Venturi Diameter: | 1.19 |
| Material: | Aluminum |
| Maximum Flow Rating: | 650 |
| Metering Rod Size: | .070 x .037 |
| Part Number: | ede19063 |
| Primary Jet Diameter: | 0.101 |
| RGL: | WARNING: This product can expose you to Lead, which is known to the State of California to cause cancer or birth defects or other reproductive harm. For more information, visit www.P65warnings.ca.gov. |
| Secondary Jet Diameter: | 0.098 |
| Series: | AVS2 |
| Spring Force: | 5" Hg (Orange) |
Part Type
Carburetor
Specifications
- Product Attributes - Brand
- Edelbrock
- Product Attributes - Manufacturer's Part Number
- 19063
- Product Attributes - Part Type
- Carburetors
- Product Attributes - Product Line
- Edelbrock AVS2 Series Carburetors
- Product Attributes - UPC
- 85347190638
- Product Attributes - CFM
- 650
- Product Attributes - Fuel Category
- Gasoline
- Product Attributes - Remanufactured
- No
- Product Attributes - Number of Barrels
- 4
- Product Attributes - Carburetor Flange
- Square bore
- Product Attributes - Choke
- Electric
- Product Attributes - Secondary Type
- Mechanical
- Product Attributes - Fuel Inlet
- Dual
- Product Attributes - Primary Jet Size
- 101
- Product Attributes - Secondary Jet Size
- 98
- Product Attributes - Carburetor Color
- Black powdercoated
- Product Attributes - Ford Kickdown
- No
- Product Attributes - Booster Type
- Annular
- Product Attributes - Throttle Linkage Type
- Universal
- Product Attributes - Carburetor Height (in.)
- 3.250 in.
- Product Attributes - Quantity
- Sold individually.
Reference Information
| Brand Name/s | Edelbrock |
|---|---|
| StreetFX SKU | ede19063 |
| SFX Item ID | 4237626 |
| Supplier Item Code | 4237626 |
| Manufacturer SKU | 19063 |
| Manufacturer UPC | 85347190638 |
| Alternative References | avs2, EDB19063, EDL-19063 |
