Home / Shop / Edelbrock AVS2 Series 650 CFM 4-Barrel Carburetor 19059 Carburetor, Remanufactured, AVS 2, cfm, 4-Barrel, Square Bore, Manual Choke, Annular Boosters, Satin, Non-EGR, Each

Edelbrock AVS2 Series 650 CFM 4-Barrel Carburetor 19059 Carburetor, Remanufactured, AVS 2, cfm, 4-Barrel, Square Bore, Manual Choke, Annular Boosters, Satin, Non-EGR, Each

SKU: EDE19059

Carburetors

Edelbrock

Edelbrock AVS2 Series 650 CFM 4-Barrel Carburetor 19059 Carburetor, Remanufactured, AVS 2, cfm, 4-Barrel, Square Bore, Manual Choke, Annular Boosters, Satin, Non-EGR, Each

SKU: EDE19059

Carburetors

Available from MFR. This item is available from the manufacturer's distribution centre. The dispatch timeframe shown is an estimate based on historical order processing and release times for this part. This item is not held in our own warehouse, and actual dispatch timing may vary depending on manufacturer workload and logistics at the time of ordering.

We accept

Description

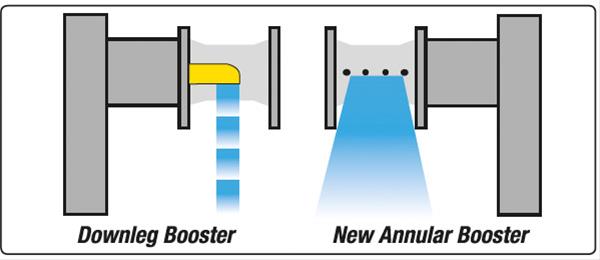

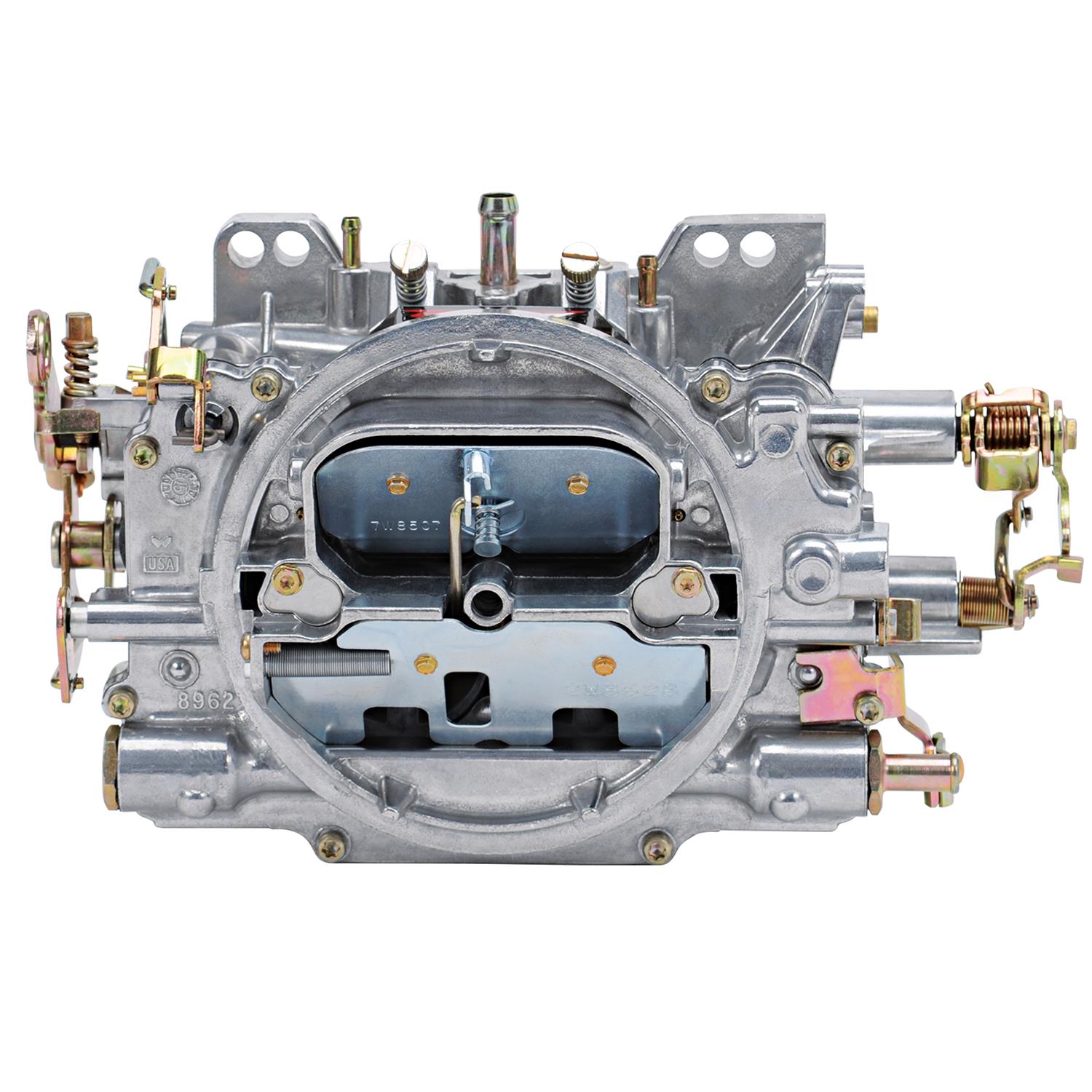

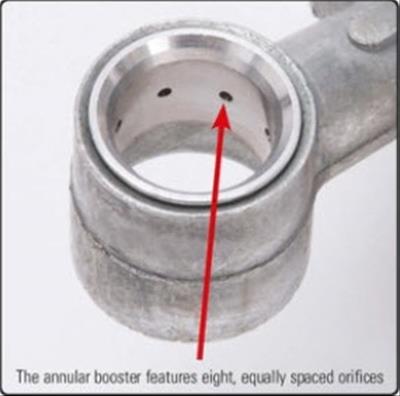

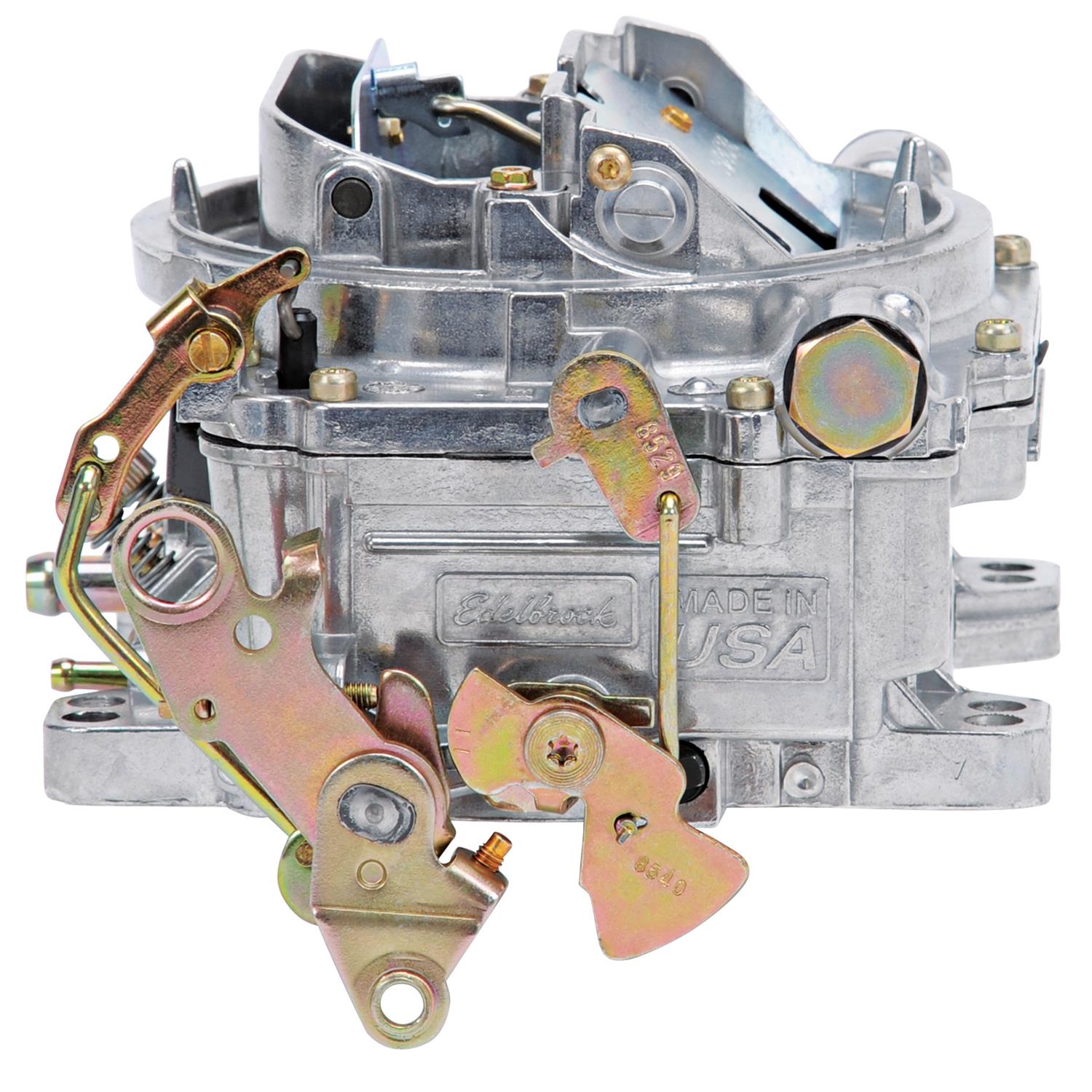

The Edelbrock #19059 Reconditioned AVS2 Series 650 cfm carburetor is the next generation in Edelbrock carburetors. Designed and calibrated for optimum street performance in small-block and some big-block engines. The AVS2 features annular flow primary boosters with a new calibration for improved off idle and cruising performance. The annular flow booster design delivers improved fuel atomization to eliminate flat spots that may be encountered when the carburetor transitions from idle to full throttle. Each annular flow booster features eight, equally spaced orifices to improve fuel metering from idle to the main circuit. The improved flow metering makes this carburetor ideal for use with a wide variety of small-block and big-block engines with either dual- or single-plane intake manifolds. The Edelbrock #19059 AVS2 includes both timed and full vacuum ports for ignition advance. It comes with: Metering Jets – Primary .101, Secondary .098; Metering Rods – .070 x .037; Step-Up Spring – orange (5" Hg). Use our Carburetor Stud Kits #8008 or #8024 if needed. Match with a variety of manifolds that include Edelbrock Performer, Performer EPS, RPM Air-Gap, Performer RPM, Torker II or other brands of similar design.

Part Type

Carburetors

Data: v4.2 - Upd: 2026-09-30 18:27:20

Features

For Single Or Dual Plane Intake Manifolds

Specifications

Product Attributes - Brand: Edelbrock
Product Attributes - Manufacturer's Part Number: 19059
Product Attributes - Part Type: Carburetors
Product Attributes - Product Line: Edelbrock AVS2 Series Carburetors
Product Attributes - UPC: 085347190591
Product Attributes - CFM: 650
Product Attributes - Fuel Category: Gasoline
Product Attributes - Remanufactured: Yes
Product Attributes - Number of Barrels: 4
Product Attributes - Carburetor Flange: Square bore
Product Attributes - Choke: Manual
Product Attributes - Secondary Type: Mechanical
Product Attributes - Fuel Inlet: Dual
Product Attributes - Primary Jet Size: 101
Product Attributes - Secondary Jet Size: 98
Product Attributes - Carburetor Color: Satin
Product Attributes - Ford Kickdown: No
Product Attributes - Booster Type: Annular
Product Attributes - Throttle Linkage Type: Universal
Product Attributes - Carburetor Height (in.): 3.250 in.
Product Attributes - Quantity: Sold individually.

Reference Information

Brand Name/s	Edelbrock
StreetFX SKU	ede19059
SFX Item ID	4809885
Supplier Item Code	4809885
Manufacturer SKU	19059
Manufacturer UPC	85347190591
Alternative References	EDB19059, EDL-19059, AVS2, 4-Barrel
