Home / Shop / Edelbrock E-Force Corvette C6 Stage 2 Track System Supercharger Kits 1594 System, E-Force, Serpentine, Black, 3.500 in. Diameter Pulley, Chevy, LS2, 6.0L, Kit

Edelbrock E-Force Corvette C6 Stage 2 Track System Supercharger Kits 1594 System, E-Force, Serpentine, Black, 3.500 in. Diameter Pulley, Chevy, LS2, 6.0L, Kit

SKU: EDE1594

Superchargers, Roots Style Kits

Edelbrock

Edelbrock E-Force Corvette C6 Stage 2 Track System Supercharger Kits 1594 System, E-Force, Serpentine, Black, 3.500 in. Diameter Pulley, Chevy, LS2, 6.0L, Kit

SKU: EDE1594

Superchargers, Roots Style Kits

Special Order. Contact for ETA. This item is out of stock in our warehouse and partner distribution centres. In some cases, this may be due to not having live inventory feeds available for all suppliers. Please contact us before ordering if you need to meet a specific deadline.

We accept

Description

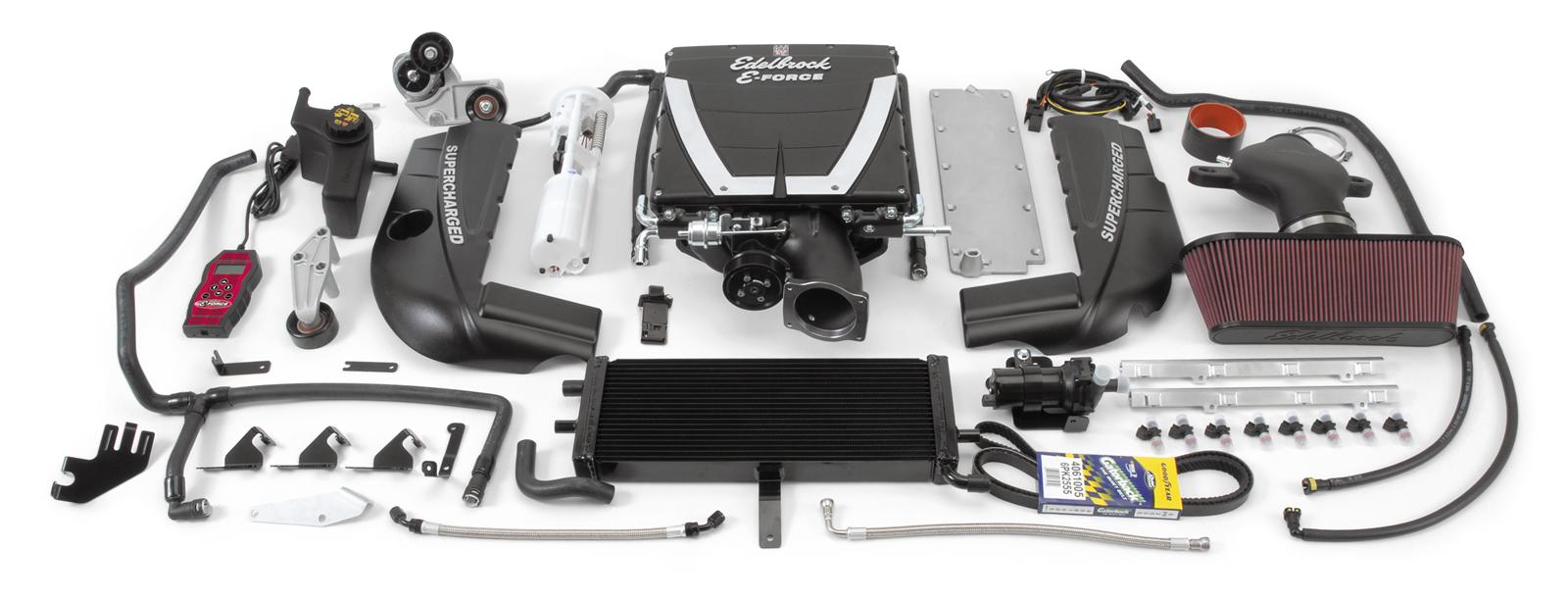

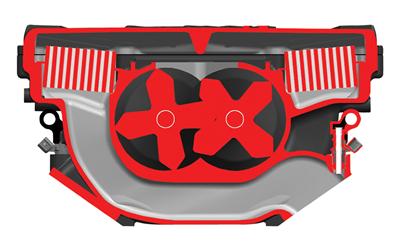

The Edelbrock supercharger stage 2 street/strip system part #1594 for 2005-07 Chevy Corvette increases the performance of your LS2 engine to 599 horsepower and 547 ft-lbs of torque at the crank. The core of this system is the Eaton Gen VI 2300 TVS rotating assembly with a four-lobe design with 160 degrees of twist for maximum flow, minimum temperature rise and quiet operation for excellent drivability. We also designed our superchargers with an integrated bypass valve to help eliminate parasitic loss under light throttle, improving mileage potential. Our unique and efficient inlet configuration results in a shorter, less restrictive intake path for improved airflow, without the need for a jack-shaft. Keeping the air cool is a high-capacity air-to-water intercooler and low-temp heat exchanger.The Edelbrock #1594 system is 50-state emissions legal. The supplied tune is intended for completely stock vehicles with the exception of a cat-back exhaust.

Product Overview

The Edelbrock supercharger stage 2 street/strip system part #1594 for 2005-07 Chevy Corvette increases the performance of your LS2 engine to 599 horsepower and 547 ft-lbs of torque at the crank. The core of this system is the Eaton Gen VI 2300 TVS rotating assembly with a four-lobe design with 160 degrees of twist for maximum flow, minimum temperature rise and quiet operation for excellent drivability. We also designed our superchargers with an integrated bypass valve to help eliminate parasitic loss under light throttle, improving mileage potential. Our unique and efficient inlet configuration results in a shorter, less restrictive intake path for improved airflow, without the need for a jack-shaft. Keeping the air cool is a high-capacity air-to-water intercooler and low-temp heat exchanger. The Edelbrock #1594 system is 50-state emissions legal. The supplied tune is intended for completely stock vehicles with the exception of a cat-back exhaust.

Features and Benefits

600 Flywheel HP

Product Details

9040:	D-215-89
Air Filter Included:	Yes
Calibration:	Yes
Center Housing Cooling Type:	Intercooler
Description:	E-Force Stage-2 Track Systems Supercharger System
Finish:	Black Powder Coated
Fuel Injector Type:	52
Gasket Or Seal Included:	Yes
Harmonic Balancer Diameter:	7.5
Hose Included:	Yes
Housing Material:	Cast Aluminum
Internal Step Up:	Yes
Maximum Boost Pressure:	7.5
Maximum Horsepower:	599
Maximum Pressure Reading:	7.5
Maximum Torque:	547
Mounting Bracket Included:	Yes
Mounting Hardware Included:	Yes
Oil Capacity:	150
Outside Pulley Diameter:	3.5
Part Number:	ede1594
Pulley Belt Width:	6-Rib
Quantity:	Kit
RGL:	WARNING: This product can expose you to Chromium, which is known to the State of California to cause cancer or birth defects or other reproductive harm. For more information, visit www.P65warnings.ca.gov.
Rotor Type:	Eaton TVS 2300
System Type:	Stage 2 - Street/Strip System
Tensioner Included:	Yes
Universal Or Specific Fit:	Specific
Vehicle Model:	Corvette
WARNING CA Proposition 65 Message:	WARNING: This product can expose you to Chromium; which is known to the State of California to cause cancer or birth defects or other reproductive harm. For more information; visit www.P65warnings.ca.gov.
WARNING CA Proposition 65:	Yes

Application Summary

Chevrolet:Small-Block Gen IV LS3:376 (6.2L)

Part Type

Supercharger Kit

Data: v4.2 - Upd: 2026-09-26 22:10:05

Features

600 Flywheel HP

Specifications

Product Attributes - Brand: Edelbrock
Product Attributes - Manufacturer's Part Number: 1594
Product Attributes - Part Type: Superchargers, Roots Style Kits
Product Attributes - Product Line: Edelbrock E-Force Corvette C6 Stage 2 Track System Supercharger Kits
Product Attributes - UPC: 085347015948
Product Attributes - Cylinder Head Configuration: Stock
Product Attributes - Supercharger Pulley Included: Yes
Product Attributes - Pulley Style: Serpentine
Product Attributes - Engine Block Deck Height: Standard deck
Product Attributes - Damper Included: No
Product Attributes - Crankshaft Pulley Grooves: 6-groove, serpentine
Product Attributes - Supercharger Finish: Black
Product Attributes - Computer Chip/Programmer Included: Yes
Product Attributes - Multi-Port Fuel Rails Included: Yes
Product Attributes - Fuel Injectors Included: Yes
Product Attributes - Fuel Pump Included: Yes
Product Attributes - Regulator Included: No
Product Attributes - Wiring Harness Included: Yes
Product Attributes - Linkage Included: No
Product Attributes - Intercooler Included: Yes
Product Attributes - PTFE Lined Rotors: No
Product Attributes - Supercharger Model: Eaton Gen VI
Product Attributes - Belt Tensioner Included: Yes
Product Attributes - Remanufactured: No
Product Attributes - Quantity: Sold as a kit.
Product Attributes - CARB EO Number(s): D-215-89
Product Attributes - Emissions: California EO Approved

Reference Information

Brand Name/s	Edelbrock
StreetFX SKU	ede1594
SFX Item ID	4810105
Supplier Item Code	4810105
Manufacturer SKU	1594
Manufacturer UPC	85347015948
Alternative References	EDB1594, EDL-1594, LS2, 6.0L
