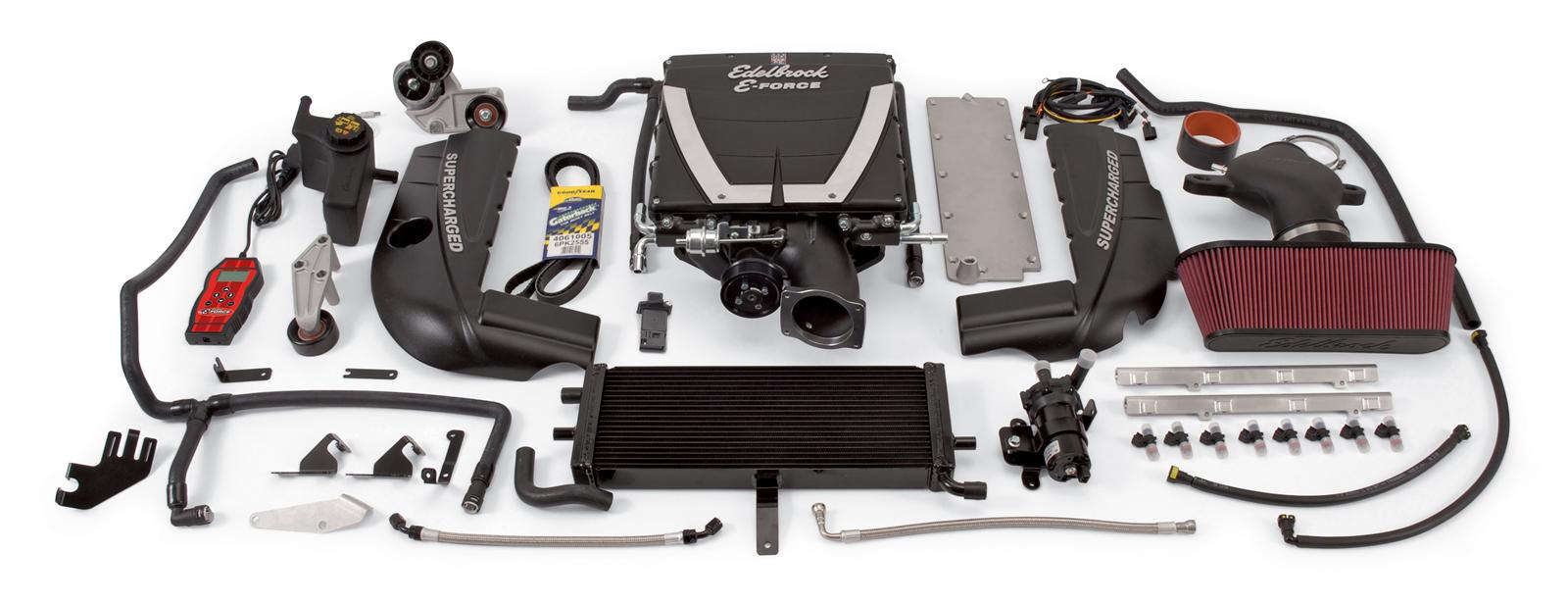

Edelbrock E-Force Corvette C6 Stage 1 Street Legal Supercharger Kits 1593 System, E-Force, Serpentine, Black, 3.875 in. Diameter Pulley, Chevy, LS2, 6.0L, Kit
Edelbrock E-Force Corvette C6 Stage 1 Street Legal Supercharger Kits 1593 System, E-Force, Serpentine, Black, 3.875 in. Diameter Pulley, Chevy, LS2, 6.0L, Kit
A$20,347.54
Special Order. Contact for ETA.
This item is out of stock in our warehouse and partner distribution centres. In some cases, this may be due to not having live inventory feeds available for all suppliers. Please contact us before ordering if you need to meet a specific deadline.
We accept
Description
IMPORTANT NOTICE: Images are supplied by the manufacturer and may be generic. While all efforts are made to provide accurate pictures, there may be differences in the actual product, such as colour, quantity, version, or included components. Please carefully review the description and specifications for details on inclusions or any variations. Some items may be sold individually or in sets, and images may occasionally depict additional products or quantities not included in your purchase. For assistance or clarification, please contact customer support.Reference Information Reference Data (Provide these details to our support team) Brand Name/s Edelbrock StreetFX SKU ede1593 SFX Item ID 4810143 Accounting SKU ede-1593 Manufacturer SKU 1593 Manufacturer UPC 085347015931 Alternative References 1593, EDB1593, EDL-1593
SUPERCHARGER
The Edelbrock supercharger Stage 1 Street system part #1593 for 2005-07 Chevy Corvette increases the performance of your LS2 engine to 554 horsepower and 515 ft-lbs of torque at the crank. The core of this system is the Eaton Gen VI 2300 TVS rotating assembly with a four-lobe design with 160 degrees of twist for maximum flow, minimum temperature rise and quiet operation for excellent drivability. We also designed our superchargers with an integrated bypass valve to help eliminate parasitic loss under light throttle, improving mileage potential. Our unique and efficient inlet configuration results in a shorter, less restrictive intake path for improved airflow, without the need for a jack-shaft. Keeping the air cool is a high-capacity air-to-water intercooler and low-temp heat exchanger.The Edelbrock #1593 system is 50-state emissions legal. The supplied tune is intended for completely stock vehicles with the exception of a cat-back exhaust.
Additional Information
The Edelbrock Supercharger System part #1593 is for the 2005-07 LS2 base model corvette. This kit produces 554 horsepower and 515 ft-lbs of torque.
Application Summary
Chevrolet:Small-Block Gen IV LS3:376 (6.2L)
Part Type
Supercharger Kit
Features and Benefits
- 550 Flywheel HP
Product Details
| 9040: | D-215-89 |
| Air Filter Included: | Yes |
| Calibration: | Yes |
| Center Housing Cooling Type: | Intercooler |
| Description: | E-Force Stage-1 Street Systems Supercharger |
| Finish: | Black Powder Coated |
| Fuel Injector Type: | 52 |
| Gasket Or Seal Included: | Yes |
| Harmonic Balancer Diameter: | 7.5 |
| Hose Included: | Yes |
| Housing Material: | Cast Aluminum |
| Internal Step Up: | Yes |
| Maximum Boost Pressure: | 5.5 |
| Maximum Horsepower: | 554 |
| Maximum Pressure Reading: | 5.5 |
| Maximum Torque: | 515 |
| Mounting Bracket Included: | Yes |
| Mounting Hardware Included: | Yes |
| Oil Capacity: | 150 |
| Outside Pulley Diameter: | 3.875 |
| Part Number: | ede1593 |
| Pulley Belt Width: | 6-Rib |
| Quantity: | Kit |
| Rotor Type: | Eaton TVS 2300 |
| System Type: | Stage 1 - Street System |
| Tensioner Included: | Yes |
| Universal Or Specific Fit: | Specific |
| Vehicle Model: | Corvette |
Product Overview
The Edelbrock supercharger Stage 1 Street system part #1593 for 2005-07 Chevy Corvette increases the performance of your LS2 engine to 554 horsepower and 515 ft-lbs of torque at the crank. The core of this system is the Eaton Gen VI 2300 TVS rotating assembly with a four-lobe design with 160 degrees of twist for maximum flow, minimum temperature rise and quiet operation for excellent drivability. We also designed our superchargers with an integrated bypass valve to help eliminate parasitic loss under light throttle, improving mileage potential. Our unique and efficient inlet configuration results in a shorter, less restrictive intake path for improved airflow, without the need for a jack-shaft. Keeping the air cool is a high-capacity air-to-water intercooler and low-temp heat exchanger. The Edelbrock #1593 system is 50-state emissions legal. The supplied tune is intended for completely stock vehicles with the exception of a cat-back exhaust.
| Additional Application Notes | |
|---|---|
| • Incl. SCT X4 Programmer w/SCT7416E2 Tune~ 50 State Legal 2300 TVS; 554 HP/515 ft/lbs Torque; Incl. Supercharger/Manifold/3.875 in. 6 Rib Drive Pulleys/103 in. Belt; 52 lb/hr Injector;CARB E.O. D-215-85 | |
| • Incl. SCT X4 Programmer w/SCT7416E2 Tune~ 50 State Legal 50 State Legal~Incl. SCT X4 Programmer w/SCT7416E2 Tune 2300 TVS; 554 HP/515 ft/lbs Torque; Incl. Supercharger/Manifold/3.875 in. 6 Rib Drive Pulleys/103 in. Belt; 52 lb/hr Injector;CARB E.O. D-215-85 | |
| • TVS Series: 2300 Tune Torque (Ft.-lbs): 515 HP: 554 50 State Legal~Incl. SCT X4 Programmer w/SCT7416E2 Tune 2300 TVS; 554 HP/515 ft/lbs Torque; Incl. Supercharger/Manifold/3.875 in. 6 Rib Drive Pulleys/103 in. Belt; 52 lb/hr Injector;CARB E.O. D-215-85 | |
These additional application notes are supplied by the manufacturer and collated from multiple year ranges. Not all of these notes may apply to every year or every variant. Please contact a StreetFX agent for clarification if required.
Product Downloads
| # | Document Type | Download |
|---|---|---|
| 1. | Installation Instructions |
|
| 2. | Material Safety Data Sheet |
|
Installation guides, warranty details, and other supporting documents are provided by the supplier. In some cases, these files may originate from regions outside your locale, meaning instructions, warranty procedures, and images may not fully align with your specific vehicle or region (e.g., LHD vs. RHD differences, return policies, etc.). If you need clarification, please contact a StreetFX support agent.
Product Overview
The Edelbrock supercharger Stage 1 Street system part #1593 for 2005-07 Chevy Corvette increases the performance of your LS2 engine to 554 horsepower and 515 ft-lbs of torque at the crank. The core of this system is the Eaton Gen VI 2300 TVS rotating assembly with a four-lobe design with 160 degrees of twist for maximum flow, minimum temperature rise and quiet operation for excellent drivability. We also designed our superchargers with an integrated bypass valve to help eliminate parasitic loss under light throttle, improving mileage potential. Our unique and efficient inlet configuration results in a shorter, less restrictive intake path for improved airflow, without the need for a jack-shaft. Keeping the air cool is a high-capacity air-to-water intercooler and low-temp heat exchanger. The Edelbrock #1593 system is 50-state emissions legal. The supplied tune is intended for completely stock vehicles with the exception of a cat-back exhaust.
Features and Benefits
- 550 Flywheel HP
Product Details
| 9040: | D-215-89 |
|---|---|
| Air Filter Included: | Yes |
| Calibration: | Yes |
| Center Housing Cooling Type: | Intercooler |
| Description: | E-Force Stage-1 Street Systems Supercharger |
| Finish: | Black Powder Coated |
| Fuel Injector Type: | 52 |
| Gasket Or Seal Included: | Yes |
| Harmonic Balancer Diameter: | 7.5 |
| Hose Included: | Yes |
| Housing Material: | Cast Aluminum |
| Internal Step Up: | Yes |
| Maximum Boost Pressure: | 5.5 |
| Maximum Horsepower: | 554 |
| Maximum Pressure Reading: | 5.5 |
| Maximum Torque: | 515 |
| Mounting Bracket Included: | Yes |
| Mounting Hardware Included: | Yes |
| Oil Capacity: | 150 |
| Outside Pulley Diameter: | 3.875 |
| Part Number: | ede1593 |
| Pulley Belt Width: | 6-Rib |
| Quantity: | Kit |
| RGL: | WARNING: This product can expose you to Chromium, which is known to the State of California to cause cancer or birth defects or other reproductive harm. For more information, visit www.P65warnings.ca.gov. |
| Rotor Type: | Eaton TVS 2300 |
| System Type: | Stage 1 - Street System |
| Tensioner Included: | Yes |
| Universal Or Specific Fit: | Specific |
| Vehicle Model: | Corvette |
| WARNING CA Proposition 65 Message: | WARNING: This product can expose you to Chromium; which is known to the State of California to cause cancer or birth defects or other reproductive harm. For more information; visit www.P65warnings.ca.gov. |
| WARNING CA Proposition 65: | Yes |
Application Summary
Chevrolet:Small-Block Gen IV LS3:376 (6.2L)
Part Type
Supercharger Kit
Features
- 550 Flywheel HP
Specifications
Supercharger System, E-Force, Serpentine, Black, 3.875 in. Diameter Pulley, Chevy, LS2, 6.0L, Kit
Edelbrock E-Force Corvette C6 stage 1 street-legal supercharger kits are exclusively tailored to boost your performance. The unique features on these kits are 12 in. long intake runners that allow for maximum low-end torque. Plus, these Edelbrock E-Force street legal supercharger kits fit under the stock hood with no modifications.
| Product Attributes | |
|---|---|
| Brand | Edelbrock |
| Manufacturer's Part Number | 1593 |
| Part Type | Superchargers, Roots Style Kits |
| Product Line | Edelbrock E-Force Corvette C6 Stage 1 Street Legal Supercharger Kits |
| UPC | 085347015931 |
| Cylinder Head Configuration | Stock |
| Supercharger Pulley Included | Yes |
| Pulley Style | Serpentine |
| Engine Block Deck Height | Standard deck |
| Damper Included | No |
| Crankshaft Pulley Grooves | 6-groove, serpentine |
| Supercharger Finish | Black |
| Computer Chip/Programmer Included | Yes |
| Multi-Port Fuel Rails Included | Yes |
| Fuel Injectors Included | Yes |
| Fuel Pump Included | No |
| Regulator Included | No |
| Wiring Harness Included | Yes |
| Linkage Included | No |
| Intercooler Included | Yes |
| PTFE Lined Rotors | No |
| Supercharger Model | Eaton Gen VI |
| Belt Tensioner Included | Yes |
| Remanufactured | No |
| Quantity | Sold as a kit. |
| CARB EO Number(s) | D-215-89 |
Product Details
| 9040: | D-215-89 |
|---|---|
| Air Filter Included: | Yes |
| Calibration: | Yes |
| Center Housing Cooling Type: | Intercooler |
| Description: | E-Force Stage-1 Street Systems Supercharger |
| Finish: | Black Powder Coated |
| Fuel Injector Type: | 52 |
| Gasket Or Seal Included: | Yes |
| Harmonic Balancer Diameter: | 7.5 |
| Hose Included: | Yes |
| Housing Material: | Cast Aluminum |
| Internal Step Up: | Yes |
| Maximum Boost Pressure: | 5.5 |
| Maximum Horsepower: | 554 |
| Maximum Pressure Reading: | 5.5 |
| Maximum Torque: | 515 |
| Mounting Bracket Included: | Yes |
| Mounting Hardware Included: | Yes |
| Oil Capacity: | 150 |
| Outside Pulley Diameter: | 3.875 |
| Part Number: | ede1593 |
| Pulley Belt Width: | 6-Rib |
| Quantity: | Kit |
| RGL: | WARNING: This product can expose you to Chromium, which is known to the State of California to cause cancer or birth defects or other reproductive harm. For more information, visit www.P65warnings.ca.gov. |
| Rotor Type: | Eaton TVS 2300 |
| System Type: | Stage 1 - Street System |
| Tensioner Included: | Yes |
| Universal Or Specific Fit: | Specific |
| Vehicle Model: | Corvette |
| WARNING CA Proposition 65 Message: | WARNING: This product can expose you to Chromium; which is known to the State of California to cause cancer or birth defects or other reproductive harm. For more information; visit www.P65warnings.ca.gov. |
| WARNING CA Proposition 65: | Yes |
Reference Information
| Brand Name/s | Edelbrock |
|---|---|
| StreetFX SKU | ede1593 |
| SFX Item ID | 4810143 |
| Supplier Item Code | 4810143 |
| Manufacturer SKU | 1593 |
| Manufacturer UPC | 85347015931 |
| Alternative References | EDB1593, EDL-1593, LS2, 6.0L |
Brochures
Compatibility
No specific fitment data available for this part. For clarification, please contact us.
Detailed Compatibility
| Application Data | |
|---|---|
| Make | CHEVROLET |
| Model | CORVETTE |
| Submodel | BASE |
| Beginning Year | 2005 |
| Ending Year | 2007 |
| Engine Type | V8 |
| Engine Family | Chevy small block Gen III/IV (LS-based engines) |
| Engine Size | 6.0L/364 |
| Transmission | Automatic |
| Engine VIN Code | U |
| Make | CHEVROLET |
| Model | CORVETTE |
| Submodel | BASE |
| Beginning Year | 2005 |
| Ending Year | 2007 |
| Engine Type | V8 |
| Engine Family | Chevy small block Gen III/IV (LS-based engines) |
| Engine Size | 6.0L/364 |
| Transmission | Manual |
| Engine VIN Code | U |
This may not be an exhaustive list of compatible vehicles. Please reach out to one of our representatives if you are unsure or do not see your vehicle here.
