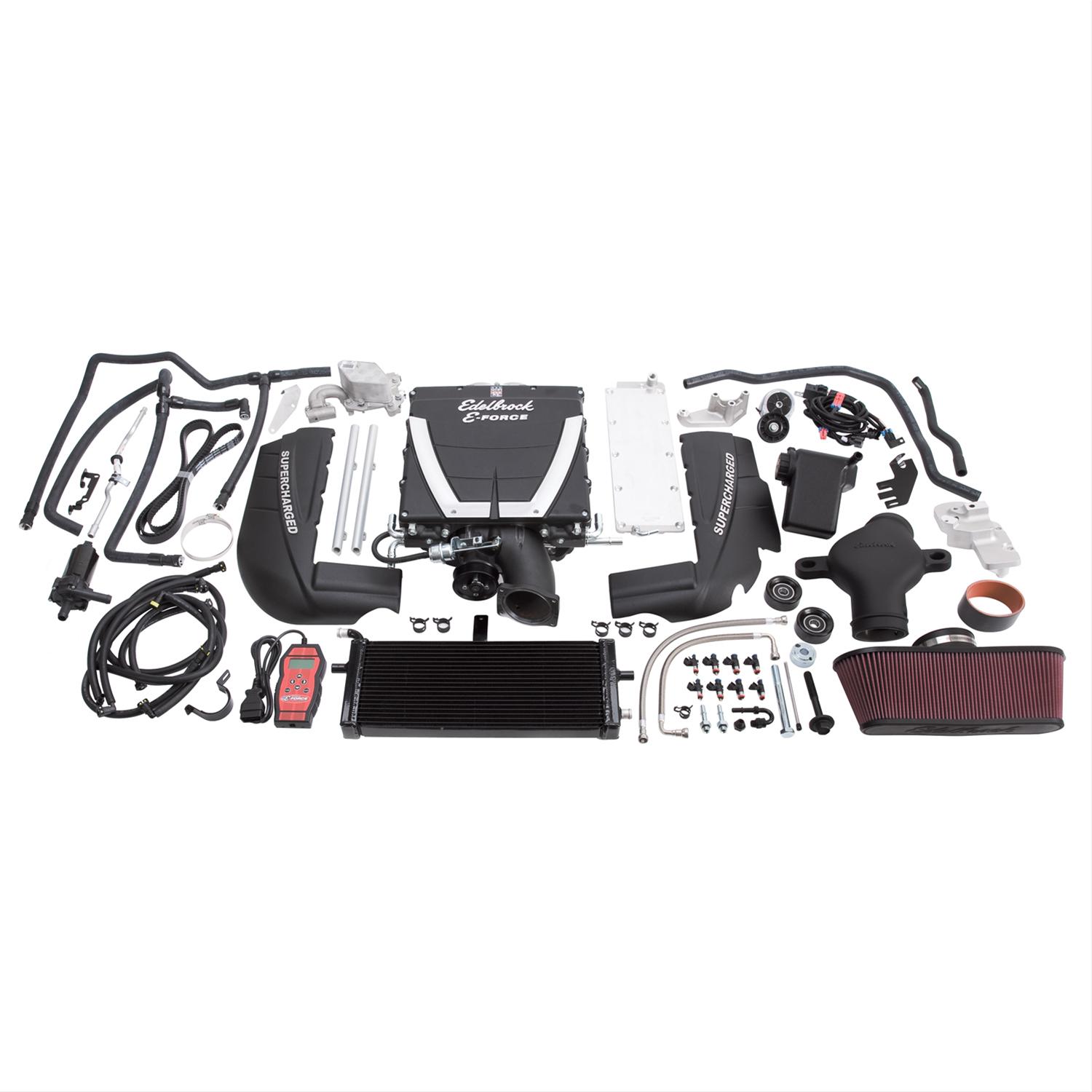

Edelbrock Supercharger Stage 1 - Street Kit 2010-2013 GM Corvette LS3 w/ Tuner
Edelbrock Supercharger Stage 1 - Street Kit 2010-2013 GM Corvette LS3 w/ Tuner
A$21,395.09
Last Available from MFR.
LAST ONE AVAILABLE from the manufacturer's distribution centre. Once sold, this item may not be immediately available again. The dispatch timeframe shown is an estimate based on historical orders for this part and is dependent on the manufacturer releasing the final available unit.
We accept
Description
The Edelbrock supercharger Stage 1 Street system part #1574 for 2010-13 Corvette Grand Sport with Dry sump increases the performance of your LS3 engine to 554 horsepower and 515 ft-lbs of torque to the flywheel. The core of this system is the Eaton Gen VI 2300 TVS rotating assembly with a four-lobe design with 160 degrees of twist for maximum flow, minimum temperature rise and quiet operation for excellent drivability. We also designed our superchargers with an integrated bypass valve to help eliminate parasitic loss under light throttle, improving mileage potential. Our unique and efficient inlet configuration results in a shorter, less restrictive intake path for improved airflow, without the need for a jack-shaft. Keeping the air cool is a high-capacity air-to-water intercooler and low-temp heat exchanger. The Edelbrock #1574 system is 50-state emissions legal. The supplied tune is intended for completely stock vehicles with the exception of a cat-back exhaust.
Product Overview
The Edelbrock supercharger Stage 1 Street system part #1574 for 2010-13 Corvette Grand Sport with Dry sump increases the performance of your LS3 engine to 554 horsepower and 515 ft-lbs of torque to the flywheel. The core of this system is the Eaton Gen VI 2300 TVS rotating assembly with a four-lobe design with 160 degrees of twist for maximum flow, minimum temperature rise and quiet operation for excellent drivability. We also designed our superchargers with an integrated bypass valve to help eliminate parasitic loss under light throttle, improving mileage potential. Our unique and efficient inlet configuration results in a shorter, less restrictive intake path for improved airflow, without the need for a jack-shaft. Keeping the air cool is a high-capacity air-to-water intercooler and low-temp heat exchanger. The Edelbrock #1574 system is 50-state emissions legal. The supplied tune is intended for completely stock vehicles with the exception of a cat-back exhaust.
Features and Benefits
- Little To No Decrease In Fuel Economy
Product Details
| 9040: | D-215-89 |
|---|---|
| Air Filter Included: | Yes |
| Calibration: | Yes |
| Center Housing Cooling Type: | Intercooler |
| Description: | E-Force Stage-1 Street Systems Supercharger |
| Finish: | Black Powder Coated |
| Fuel Injector Type: | 52 |
| Gasket Or Seal Included: | Yes |
| Harmonic Balancer Diameter: | 7.5 |
| Hose Included: | Yes |
| Housing Material: | Cast Aluminum |
| Internal Step Up: | Yes |
| Maximum Boost Pressure: | 5 |
| Maximum Horsepower: | 554 |
| Maximum Pressure Reading: | 5 |
| Maximum Torque: | 515 |
| Mounting Bracket Included: | Yes |
| Mounting Hardware Included: | Yes |
| Oil Capacity: | 150 |
| Outside Pulley Diameter: | 3.875 |
| Part Number: | ede1574 |
| Pulley Belt Width: | 6-Rib |
| Quantity: | Kit |
| RGL: | WARNING: This product can expose you to Chromium, which is known to the State of California to cause cancer or birth defects or other reproductive harm. For more information, visit www.P65warnings.ca.gov. |
| Rotor Type: | Eaton TVS 2300 |
| System Type: | Stage 1 - Street System |
| Tensioner Included: | Yes |
| Universal Or Specific Fit: | Specific |
| Vehicle Model: | Corvette |
| WARNING CA Proposition 65 Message: | WARNING: This product can expose you to Chromium; which is known to the State of California to cause cancer or birth defects or other reproductive harm. For more information; visit www.P65warnings.ca.gov. |
| WARNING CA Proposition 65: | Yes |
Application Summary
Chevrolet:Small-Block Gen IV LS3:376 (6.2L)
Part Type
Supercharger Kit
Features
- Little To No Decrease In Fuel Economy
Specifications
- Product Attributes - Brand
- Edelbrock
- Product Attributes - Manufacturer's Part Number
- 1574
- Product Attributes - Part Type
- Superchargers, Roots Style Kits
- Product Attributes - Product Line
- Edelbrock E-Force Corvette C6 Stage 1 Street Legal Supercharger Kits
- Product Attributes - UPC
- 085347015740
- Product Attributes - Cylinder Head Configuration
- Stock
- Product Attributes - Supercharger Pulley Included
- Yes
- Product Attributes - Pulley Style
- Serpentine
- Product Attributes - Engine Block Deck Height
- Standard deck
- Product Attributes - Damper Included
- No
- Product Attributes - Crankshaft Pulley Grooves
- 6-groove, serpentine
- Product Attributes - Supercharger Finish
- Black
- Product Attributes - Computer Chip/Programmer Included
- Yes
- Product Attributes - Multi-Port Fuel Rails Included
- Yes
- Product Attributes - Fuel Injectors Included
- Yes
- Product Attributes - Fuel Pump Included
- No
- Product Attributes - Regulator Included
- No
- Product Attributes - Wiring Harness Included
- Yes
- Product Attributes - Linkage Included
- No
- Product Attributes - Intercooler Included
- Yes
- Product Attributes - PTFE Lined Rotors
- No
- Product Attributes - Supercharger Model
- Eaton Gen VI
- Product Attributes - Belt Tensioner Included
- Yes
- Product Attributes - Remanufactured
- No
- Product Attributes - Quantity
- Sold as a kit.
- Product Attributes - Notes
- Fits vehicles with a dry sump engine. This supercharger kit will require custom tuning.
- Product Attributes - CARB EO Number(s)
- D-215-89
- Product Attributes - Emissions
- California EO Approved
Reference Information
| Brand Name/s | Edelbrock |
|---|---|
| StreetFX SKU | ede1574 |
| SFX Item ID | 4236979 |
| Supplier Item Code | 4236979 |
| Manufacturer SKU | 1574 |
| Manufacturer UPC | 85347015740 |
| Alternative References | lt1;, EDB1574, EDL-1574, LS3 |
Brochures
Compatibility
Chevrolet:Small-Block Gen IV LS3:376 (6.2L)
