Edelbrock Supercharger Stage 1 - Street Kit 2014-2015 Chevrolet Corvette Z51 6 2L LT1 w/ Tuner
Edelbrock Supercharger Stage 1 - Street Kit 2014-2015 Chevrolet Corvette Z51 6 2L LT1 w/ Tuner
A$20,554.09
Special Order. Contact for ETA.
This item is out of stock in our warehouse and partner distribution centres. In some cases, this may be due to not having live inventory feeds available for all suppliers. Please contact us before ordering if you need to meet a specific deadline.
We accept
Description

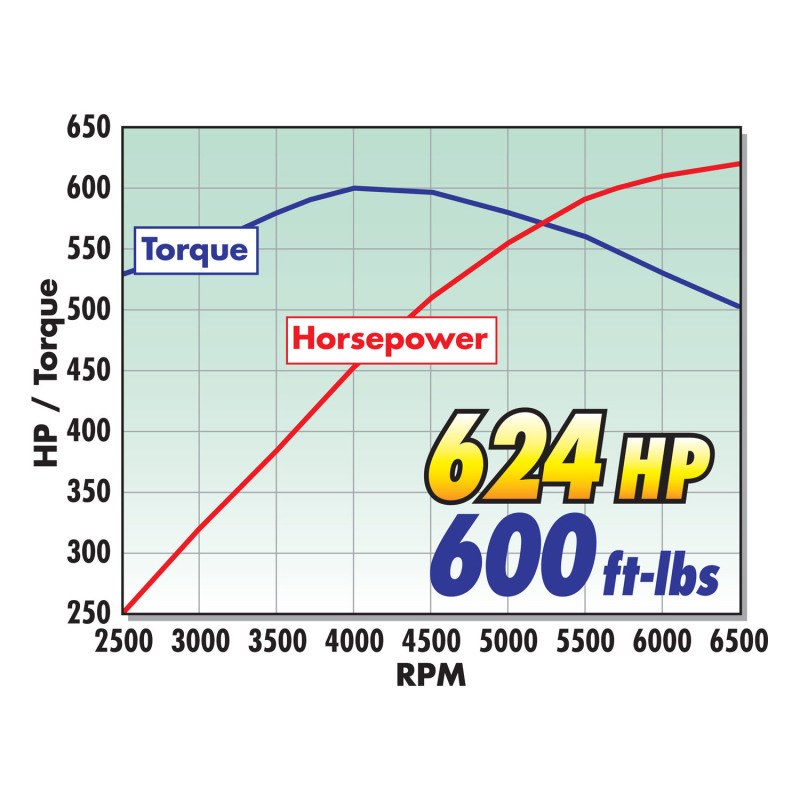

The Edelbrock supercharger Stage 1 Street System part #1570 for 2014-19 Corvette Stingray Z51 increases the performance of your LT1 engine to 624 horsepower and 600 ft-lbs of torque to the flywheel. The core of this system is the Eaton Gen VI 2300 TVS rotating assembly with a four-lobe design with 160 degrees of twist for maximum flow, minimum temperature rise and quiet operation for excellent drivability. We also designed our superchargers with an integrated bypass valve to help eliminate parasitic loss under light throttle, improving mileage potential. Our unique and efficient inlet configuration results in a shorter, less restrictive intake path for improved airflow, without the need for a jack-shaft. Keeping the air cool is a high-capacity air-to-water intercooler and low-temp heat exchanger. The Edelbrock #1570 system is 50-state emissions legal. The supplied tune is intended for completely stock vehicles with the exception of a cat-back exhaust.
Product Overview
The Edelbrock supercharger Stage 1 Street System part #1570 for 2014-19 Corvette Stingray Z51 increases the performance of your LT1 engine to 624 horsepower and 600 ft-lbs of torque to the flywheel. The core of this system is the Eaton Gen VI 2300 TVS rotating assembly with a four-lobe design with 160 degrees of twist for maximum flow, minimum temperature rise and quiet operation for excellent drivability. We also designed our superchargers with an integrated bypass valve to help eliminate parasitic loss under light throttle, improving mileage potential. Our unique and efficient inlet configuration results in a shorter, less restrictive intake path for improved airflow, without the need for a jack-shaft. Keeping the air cool is a high-capacity air-to-water intercooler and low-temp heat exchanger. The Edelbrock #1570 system is 50-state emissions legal. The supplied tune is intended for completely stock vehicles with the exception of a cat-back exhaust.
Features and Benefits
- Self-Contained Oil System
Product Details
| 9040: | D-215-103 |
|---|---|
| Air Filter Included: | Yes |
| Calibration: | Yes |
| Center Housing Cooling Type: | Intercooler |
| Description: | E-Force Stage-1 Street Systems Supercharger |
| Finish: | Black Powder Coated |
| Gasket Or Seal Included: | Yes |
| Harmonic Balancer Diameter: | 7.5 |
| Hose Included: | Yes |
| Housing Material: | Cast Aluminum |
| Internal Step Up: | Yes |
| Maximum Boost Pressure: | 5.5 |
| Maximum Horsepower: | 624 |
| Maximum Pressure Reading: | 5.5 |
| Maximum Torque: | 600 |
| Mounting Bracket Included: | Yes |
| Mounting Hardware Included: | Yes |
| Oil Capacity: | 150 |
| Outside Pulley Diameter: | 3.5 |
| Part Number: | ede1570 |
| Pulley Belt Width: | 10-Rib |
| Quantity: | Kit |
| RGL: | WARNING: This product can expose you to Chromium, which is known to the State of California to cause cancer or birth defects or other reproductive harm. For more information, visit www.P65warnings.ca.gov. |
| Rotor Type: | Eaton TVS 2300 |
| System Type: | Stage 1 - Street System |
| Tensioner Included: | Yes |
| Universal Or Specific Fit: | Specific |
| Vehicle Model: | Corvette |
| WARNING CA Proposition 65 Message: | WARNING: This product can expose you to Chromium; which is known to the State of California to cause cancer or birth defects or other reproductive harm. For more information; visit www.P65warnings.ca.gov. |
| WARNING CA Proposition 65: | Yes |
Application Summary
Chevrolet:Small-Block Gen V LT1:376 (6.2L)
Part Type
Supercharger Kit
Features
- Self-Contained Oil System
Specifications
- Product Attributes - Brand
- Edelbrock
- Product Attributes - Manufacturer's Part Number
- 1570
- Product Attributes - Part Type
- Superchargers, Roots Style Kits
- Product Attributes - Product Line
- Edelbrock E-Force Corvette C7 Stage 1 Street Legal Supercharger Kits
- Product Attributes - UPC
- 085347015702
- Product Attributes - Cylinder Head Configuration
- Stock
- Product Attributes - Supercharger Pulley Included
- Yes
- Product Attributes - Pulley Style
- Serpentine
- Product Attributes - Engine Block Deck Height
- Standard deck
- Product Attributes - Damper Included
- Yes
- Product Attributes - Crankshaft Pulley Grooves
- 10-groove, serpentine
- Product Attributes - Supercharger Finish
- Gray
- Product Attributes - Computer Chip/Programmer Included
- Yes
- Product Attributes - Multi-Port Fuel Rails Included
- No
- Product Attributes - Fuel Injectors Included
- No
- Product Attributes - Fuel Pump Included
- No
- Product Attributes - Regulator Included
- No
- Product Attributes - Wiring Harness Included
- Yes
- Product Attributes - Linkage Included
- No
- Product Attributes - Intercooler Included
- Yes
- Product Attributes - PTFE Lined Rotors
- No
- Product Attributes - Supercharger Model
- Eaton Gen VI
- Product Attributes - Belt Tensioner Included
- Yes
- Product Attributes - Remanufactured
- No
- Product Attributes - Quantity
- Sold as a kit.
- Product Attributes - Notes
- Fits Z51 models with dry sump oil systems only. Supercharger fits under factory hood.
- Product Attributes - CARB EO Number(s)
- D-215-89 D-215
- Product Attributes - Emissions
- California EO Approved
Reference Information
| Brand Name/s | Edelbrock |
|---|---|
| StreetFX SKU | ede1570 |
| SFX Item ID | 4236965 |
| Supplier Item Code | 4236965 |
| Manufacturer SKU | 1570 |
| Manufacturer UPC | 85347015702 |
| Alternative References | LT1, EDB1570, EDL-1570, Z51 |
Brochures
Compatibility
Chevrolet:Small-Block Gen V LT1:376 (6.2L)
