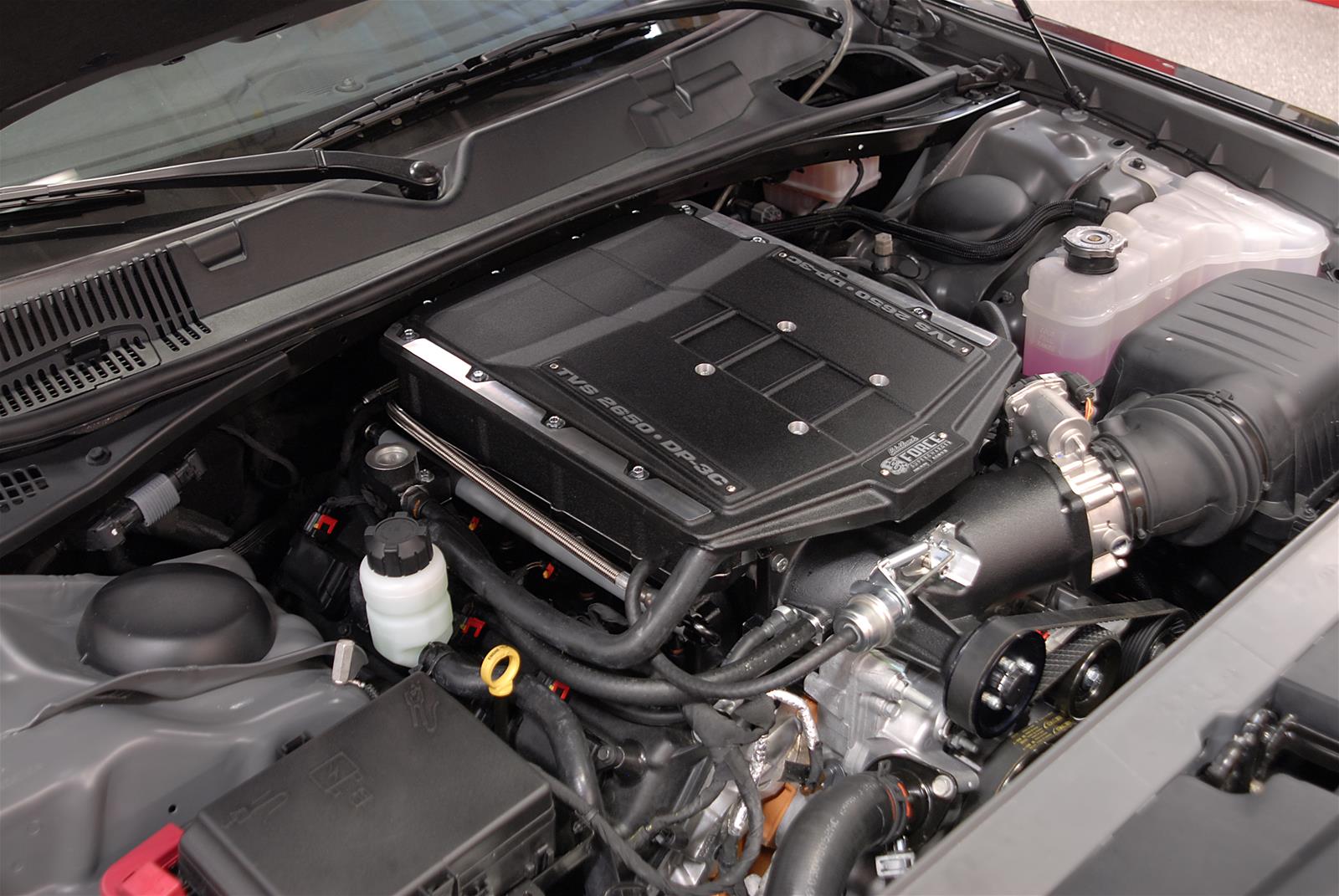

Edelbrock Supercharger Stage 1 System #1517 increases the performance of your 5.7L HEMI to 483 horsepower and 450 ft-lbs of torque to the rear wheels. The core of this system is the Eaton Gen VI R2650 TVS rotating assembly with a four-lobe design with 170 degrees of twist for maximum flow, minimum temperature rise and quiet operation for excellent drivability. We designed our superchargers with an integrated bypass valve to eliminate parasitic loss under light throttle, improving mileage potential. Our unique and efficient inlet configuration results in a shorter, less restrictive intake path for improved airflow, without the need for a jack-shaft. Keeping the air cool is a high-capacity air-to-water intercooler and low-temp heat exchanger. ALL 2015-Later Chrysler/Dodge Supercharger Systems will require the ECM to be sent in for modification. HANDHELD PROGRAMMER NOT INCLUDED. This is an 8-10 day process/waiting period from the time they are received. Every step of the process is handled with next-day shipping. Supercharger systems without tuners are not eligible for supplemental warranty. Supercharger systems sold without tuners are only emissions legal when used with the correct Edelbrock program.

Additional Information

SC; CHRYSLER 2015-18 R2650 DP3C 5.7L V8 HEMI LX/LC

Application Summary

Chrysler:Gen III HEMI:345 (5.7L)

Part Type

Supercharger Kit

Features and Benefits

• Available w/Free 3 Year 36000 Mile Powertrain Warranty

Product Downloads

#	Document Type	Download
1.	Installation Instructions
2.	Material Safety Data Sheet

Installation guides, warranty details, and other supporting documents are provided by the supplier. In some cases, these files may originate from regions outside your locale, meaning instructions, warranty procedures, and images may not fully align with your specific vehicle or region (e.g., LHD vs. RHD differences, return policies, etc.). If you need clarification, please contact a StreetFX support agent.

• Available w/Free 3 Year 36000 Mile Powertrain Warranty

Does your HEMI equipped Challenger, Charger, Magnum, 300, or RAM Truck need more power? Then equip your ride with an Edelbrock E-Force Chrysler Stage 1 street legal supercharger system—the most efficient supercharger on the market for the popular Chrysler 5.7L, 6.1L, and 6.4L HEMI engines. These complete supercharger systems provide maximum flow, minimum temperature rise, quiet operation and reliability only the Edelbrock name can guarantee. They feature minimum air restriction in and out of the supercharger for optimal flow; and they include individual 7 in. long intake runners that allow for maximum low-end torque and great drivability. These systems are also available in a Stage 3 Pro Tuner system based on the Stage 1 system, but paired down to the essential components for your custom race builds. Order the model recommended for your application. Optional supplemental warranties are available (Stage 1 only) to give you peace of mind when installing an Edelbrock supercharger system on your brand new vehicle.

No specific fitment data available for this part. For clarification, please contact us.

Detailed Compatibility

This may not be an exhaustive list of compatible vehicles. Please reach out to one of our representatives if you are unsure or do not see your vehicle here.
