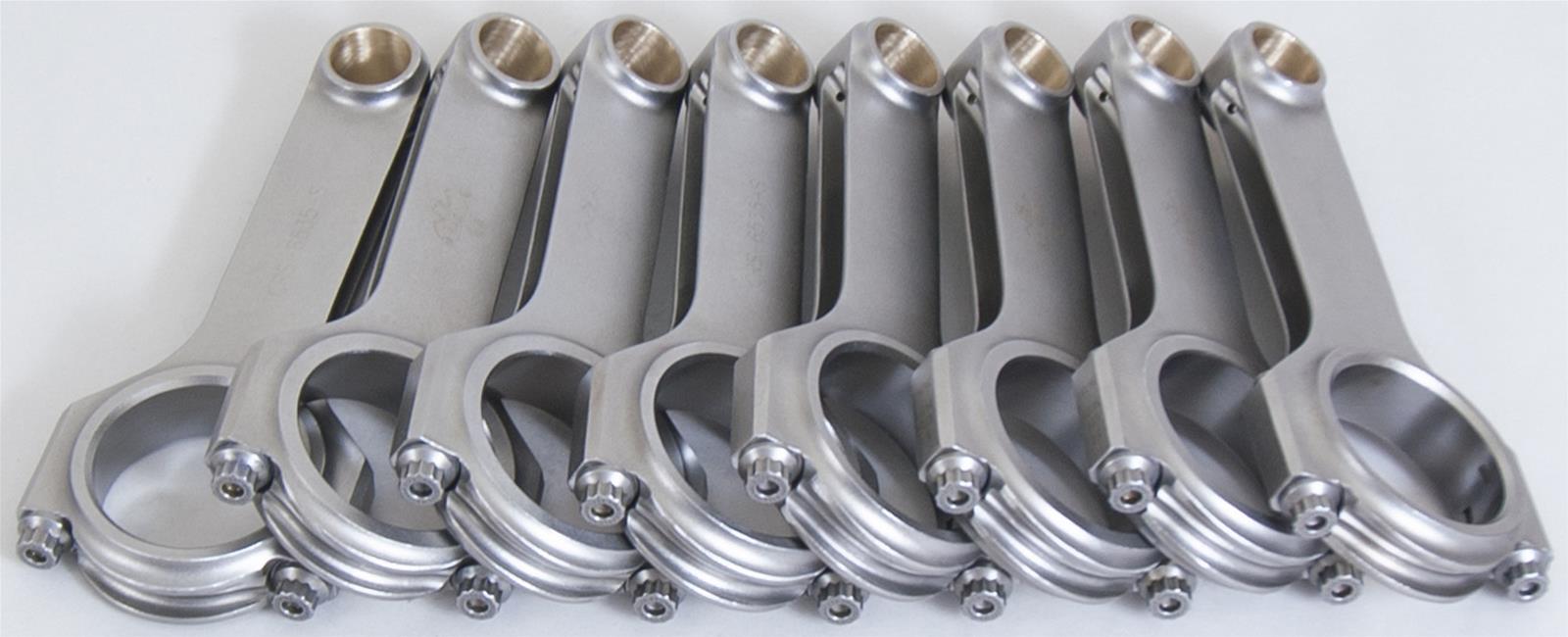

Eagle H-Beam Connecting Rods CRS65353D-1 4340 ROD BBC 6.535" ROD
Eagle H-Beam Connecting Rods CRS65353D-1 4340 ROD BBC 6.535" ROD
A$258.68
IN STOCK! Est Ship 4-7 days.
This item is IN STOCK at one of our warehouses or distribution centres, the ETA is the approximate time required to prepare your order for dispatch.
We accept
Description
Free your engine's horsepower on the wings of Eagle H-beam connecting rods. Their 2-piece, forged, vacuum-degassed, 4340-certified steel construction provides outstanding strength, while still weighing much less than stock rods. Each rod is multi-stage heat-treated, X-rayed, sonic-tested, magnafluxed, 100 percent machined, and then shot-peened to stress-relieve the metal.
The rods have precision cap alignment sleeves to positively locate each rod cap, silicon bronze bushings for floating pin models—and are available in stroker models that allow additional cam-to-rod clearance for large stroke combinations. They come standard with 190,000 psi rated ARP 8740 and 230,000 psi rated ARP 2000 rod bolts, or 265,000 psi rated ARP L-19 bolts as upgrades. Instructions and rod bolt lubrication are included. Order the model designed for your vehicle year/make and engine application.
Part Type
BBC 4340 Forged H-Beam Rod 6.535in
Specifications
- Product Attributes - Brand
- Eagle Specialty Products
- Product Attributes - Manufacturer's Part Number
- CRS65353D-1
- Product Attributes - Part Type
- Connecting Rods
- Product Attributes - Product Line
- Eagle H-Beam Connecting Rods
- Product Attributes - UPC
- 793348002477
- Product Attributes - Connecting Rod Length Center to Center (in.)
- 6.535 in.
- Product Attributes - Connecting Rod Beam Style
- H-beam
- Product Attributes - Connecting Rod Material
- Forged 4340 steel
- Product Attributes - Wrist Pin Style
- Floating
- Product Attributes - Pin End Bore Diameter
- 0.990 in.
- Product Attributes - Rod Journal Diameter (in.)
- 2.200
- Product Attributes - Big End Bore Diameter (in.)
- 2.3250
- Product Attributes - Quantity
- Sold individually.
- Product Attributes - Cap Retention Style
- Cap screw
- Product Attributes - Big End Width (in.)
- 0.990
- Product Attributes - Clearanced for Stroker
- No
- Product Attributes - Connecting Rod Bolt Brand
- ARP
- Product Attributes - Connecting Rod Bolt Diameter
- 7/16 in.
- Product Attributes - Connecting Rod Bolt Material
- 8740 chromoly steel
- Product Attributes - Fastener Tensile Strength (psi)
- 190,000 psi
- Product Attributes - Connecting Rod Bolt Head Style
- 12-point
- Product Attributes - Approximate Connecting Rod Weight (g)
- 805
- Product Attributes - Pin End Width (in.)
- 1.125 in.
- Product Attributes - Weight Matched Set
- Yes
- Product Attributes - Remanufactured
- No
- Product Attributes - Magnafluxed
- Yes
- Product Attributes - Connecting Rod Color
- Shot-peened
Reference Information
| Brand Name/s | Eagle |
|---|---|
| StreetFX SKU | eagCRS65353D-1 |
| SFX Item ID | 4777885 |
| Supplier Item Code | 4777885 |
| Manufacturer SKU | CRS65353D-1 |
| Manufacturer UPC | N/A |
| Alternative References | ESP-CRS65353D-1 |
Compatibility
| Application Data |
|
|---|
Loading compatibility information...
