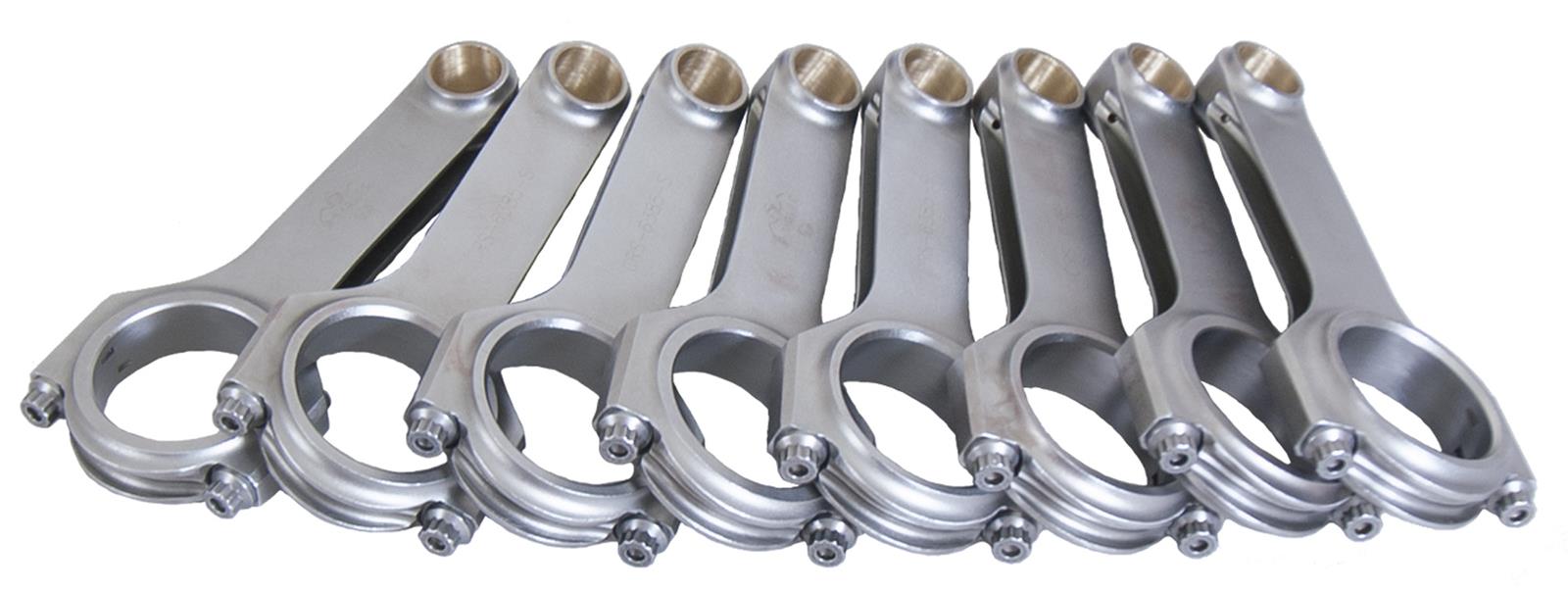

Eagle Chevrolet Big Block H-Beam Connecting Rod (One Rod)
Eagle Chevrolet Big Block H-Beam Connecting Rod (One Rod)
A$302.59
LOW STOCK! Est Ship 4-7 days.
HURRY! LOW STOCK. This item is in limited stock at one of our distribution centres. The ETA is the approximate time required to prepare your order for dispatch.
We accept
Description
Forged 4340 steel H-Beam connecting rods are forged from a two-piece forging and feature a fully machined and shot-peened surface. Sizing is held to exact tolerances. Specify weight required when ordering. Recommended for competition use.
Product Overview
Forged 4340 steel H-Beam connecting rods are forged from a two-piece forging and feature a fully machined and shot-peened surface. Sizing is held to exact tolerances. Specify weight required when ordering. Recommended for competition use.
Product Details
| Big End Width: | 0.99 in |
|---|---|
| Bolts: | 7/16 in ARP 8740 |
| Bushed for full-floating piston pin: | Yes |
| Center to Center Length: | 6.385 in |
| Description: | Eagle Chevrolet Big Block H-Beam Connecting Rod (One Rod) |
| Housing Bore: | 2.325 in |
| Length Center Bore To Center Bore: | 6.385 |
| Material: | Forged 4340 steel |
| Part Number: | eagCRS63853D-1 |
| Pin End Width: | 1.125 in |
| Pin Size: | 0.99 in |
| Prop 65 (C, R or CR): | C |
| Prop 65 - Long Label: | This product contains nickel, which is known to the State of California to cause cancer |
| Prop 65 - Short Label: | prop65_warning.jpg |
| Prop 65 Long: | This product contains nickel, which is known to the State of California to cause cancer. |
| Prop 65 Warning Chemical Listing: | Nickel |
| Prop 65 Yes/No: | Yes |
| Rod Journal: | 2.2 in. |
| Title: | ESP 4340 ROD BBC 6.385 in ROD |
Application Summary
CHEVROLET BIG BLOCK
Part Type
Engine Connecting Rod
Specifications
- Product Attributes - Brand
- Eagle Specialty Products
- Product Attributes - Manufacturer's Part Number
- CRS63853D-1
- Product Attributes - Part Type
- Connecting Rods
- Product Attributes - Product Line
- Eagle H-Beam Connecting Rods
- Product Attributes - UPC
- 793348002309
- Product Attributes - Connecting Rod Length Center to Center (in.)
- 6.385 in.
- Product Attributes - Connecting Rod Beam Style
- H-beam
- Product Attributes - Connecting Rod Material
- Forged 4340 steel
- Product Attributes - Wrist Pin Style
- Floating
- Product Attributes - Pin End Bore Diameter
- 0.990 in.
- Product Attributes - Rod Journal Diameter (in.)
- 2.200
- Product Attributes - Big End Bore Diameter (in.)
- 2.3250
- Product Attributes - Quantity
- Sold individually.
- Product Attributes - Cap Retention Style
- Cap screw
- Product Attributes - Big End Width (in.)
- 0.990
- Product Attributes - Clearanced for Stroker
- No
- Product Attributes - Connecting Rod Bolt Brand
- ARP
- Product Attributes - Connecting Rod Bolt Diameter
- 7/16 in.
- Product Attributes - Connecting Rod Bolt Material
- 8740 chromoly steel
- Product Attributes - Fastener Tensile Strength (psi)
- 190,000 psi
- Product Attributes - Connecting Rod Bolt Head Style
- 12-point
- Product Attributes - Approximate Connecting Rod Weight (g)
- 785
- Product Attributes - Pin End Width (in.)
- 1.125 in.
- Product Attributes - Weight Matched Set
- Yes
- Product Attributes - Remanufactured
- No
- Product Attributes - Magnafluxed
- Yes
- Product Attributes - Connecting Rod Color
- Shot-peened
Reference Information
| Brand Name/s | Eagle |
|---|---|
| StreetFX SKU | eagCRS63853D-1 |
| SFX Item ID | 4052813 |
| Supplier Item Code | 4052813 |
| Manufacturer SKU | CRS63853D-1 |
| Manufacturer UPC | 793348002309 |
| Alternative References | ESP-CRS63853D-1 |
Compatibility
CHEVROLET BIG BLOCK
