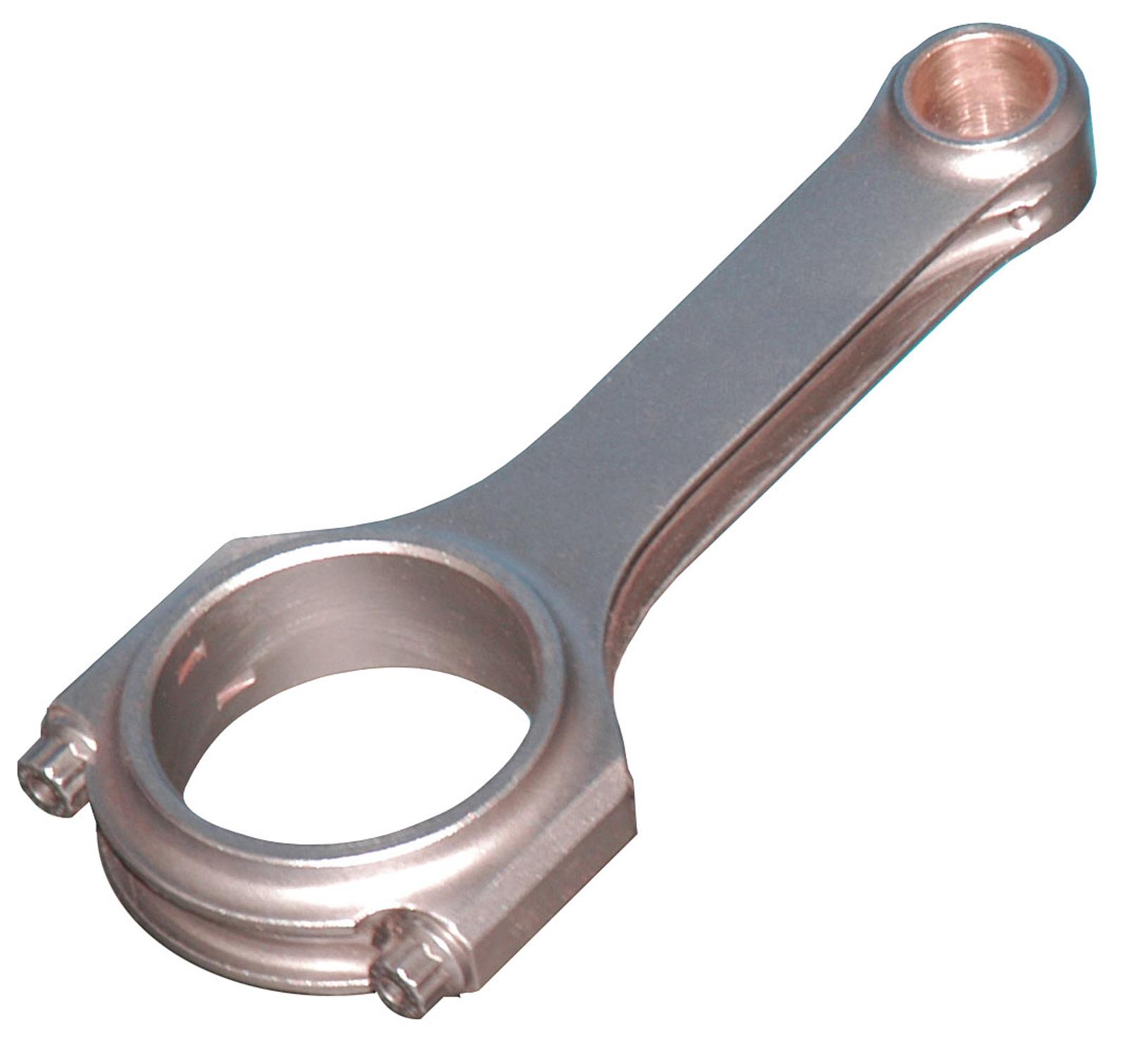

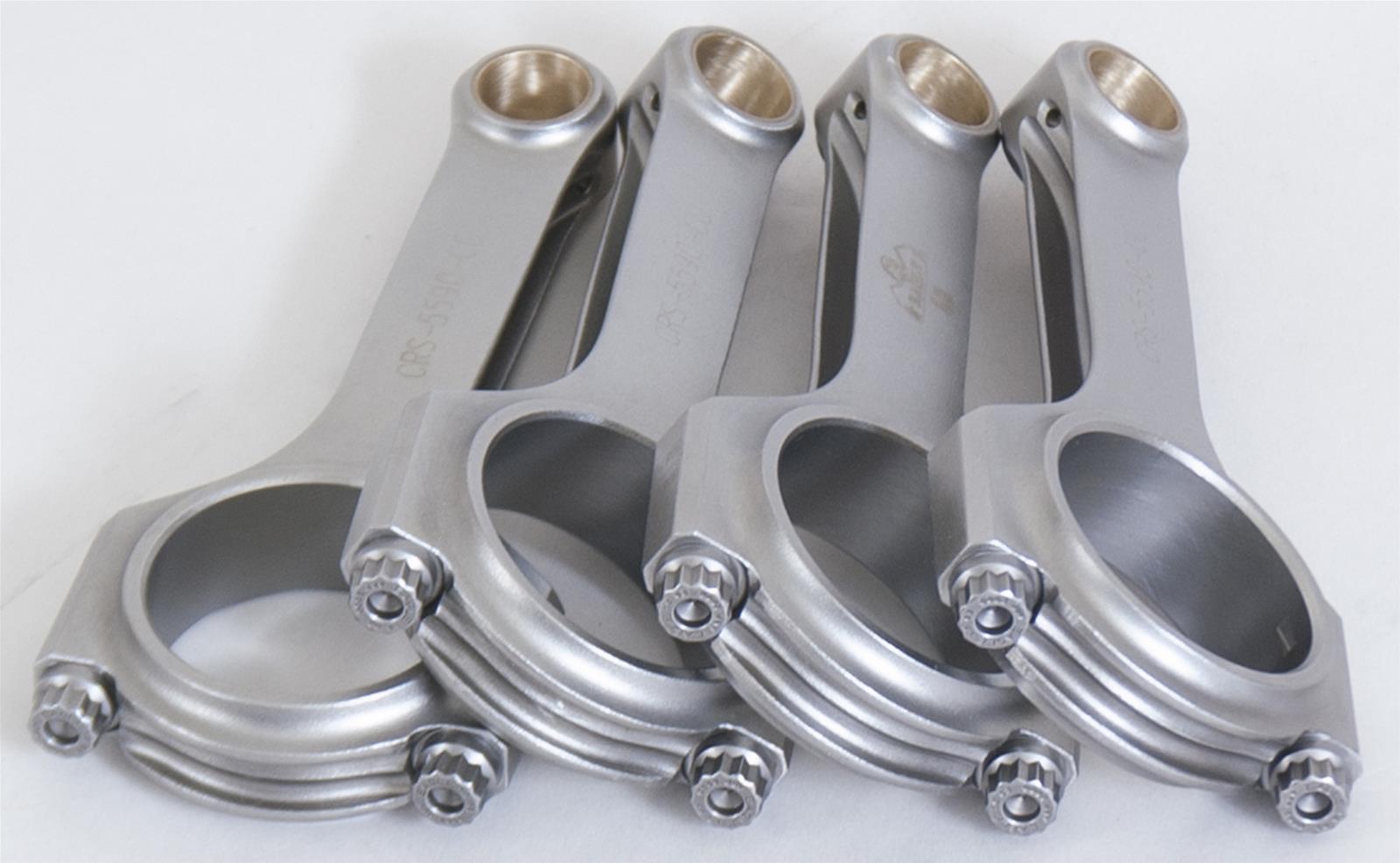

Eagle Chevy LN2 2.2L H-Beam Connecting Rods-Cap Screw-Bushed (Set of 4)

SKU: EAGCRS5590C3D

Connecting Rods

EAG Conrods H-Beam - 4 Cyl...

Eagle

Eagle Chevy LN2 2.2L H-Beam Connecting Rods-Cap Screw-Bushed (Set of 4)

SKU: EAGCRS5590C3D

Connecting Rods

EAG Conrods H-Beam - 4 Cyl...

LOW STOCK! Est Ship 4-7 days. HURRY! LOW STOCK. This item is in limited stock at one of our distribution centres. The ETA is the approximate time required to prepare your order for dispatch.

We accept

Description

Forged 4340 steel H-Beam connecting rods are forged from a two-piece forging and feature a fully machined and shot-peened surface. Sizing is held to exact tolerances. Sold as a weight-matched set. Equipped with ARP 2000 bolts for even more power-handling capability. Recommended for competition use.

Product Overview

Eagle's commitment to quality and service has resulted in customer loyalty and satisfaction. This, in turn, has fueled rapid growth over the years. Eagle added crankshafts to our lineup a few years later as well as expanding our offerings in connecting rods. Continuous design improvements and improvements in materials and manufacturing techniques have resulted in Eagle being the largest and most respected aftermarket connecting rod and crank manufacturer in the industry. We never stop researching ways to make our products lighter, stronger, more efficient to manufacture, and more diverse. When you stop moving forward, you get passed by the competition.

Product Details

Big End Width:	1.033"
Bolts:	ARP 2000
Bushed for full-floating piston pin:	Yes
Center to Center Length:	5.59"
Description:	Forged Steel H-Beam Connecting Rods; Set Of 4
Housing Bore:	2.125
Length Center Bore To Center Bore:	5.59
Length:	5.590"
Material:	Forged 4340 steel
Part Number:	eagCRS5590C3D
Pin End Width:	0.912"
Pin Size:	0.8
Prop 65 (C, R or CR):	C
Prop 65 - Long Label:	This product contains nickel, which is known to the State of California to cause cancer.
Prop 65 - Short Label:	Prop65 warning.jpg
Prop 65 Long:	This product contains nickel, which is known to the State of California to cause cancer.
Prop 65 Warning Chemical Listing:	Nickel
Prop 65 Yes/No:	Yes
Rod Journal:	2
Title:	Eagle Specialty Products - Forged 4340 Steel H-Beam Connecting Rods
Weight:	548g

Application Summary

LN2 2.2L

Part Type

Engine Connecting Rod

Data: v4.2 - Upd: 2026-10-13 18:08:58

Specifications

Product Attributes - Brand: Eagle Specialty Products
Product Attributes - Manufacturer's Part Number: CRS5590C3D
Product Attributes - Part Type: Connecting Rods
Product Attributes - Product Line: Eagle H-Beam Connecting Rods
Product Attributes - UPC: 793348030807
Product Attributes - Connecting Rod Length Center to Center (in.): 5.590 in.
Product Attributes - Connecting Rod Beam Style: H-beam
Product Attributes - Connecting Rod Material: Forged 4340 steel
Product Attributes - Wrist Pin Style: Floating
Product Attributes - Pin End Bore Diameter: 0.800 in.
Product Attributes - Rod Journal Diameter (in.): 2.000
Product Attributes - Big End Bore Diameter (in.): 2.1250
Product Attributes - Quantity: Sold as a set of 4.
Product Attributes - Cap Retention Style: Cap screw
Product Attributes - Big End Width (in.): 1.033
Product Attributes - Clearanced for Stroker: No
Product Attributes - Connecting Rod Bolt Brand: ARP
Product Attributes - Connecting Rod Bolt Diameter: 3/8 in.
Product Attributes - Connecting Rod Bolt Material: ARP2000 alloy
Product Attributes - Fastener Tensile Strength (psi): 220,000 psi
Product Attributes - Connecting Rod Bolt Head Style: 12-point
Product Attributes - Approximate Connecting Rod Weight (g): 577
Product Attributes - Pin End Width (in.): 0.912 in.
Product Attributes - Weight Matched Set: Yes
Product Attributes - Remanufactured: No
Product Attributes - Magnafluxed: Yes
Product Attributes - Connecting Rod Color: Shot-peened

Reference Information

Brand Name/s	Eagle
StreetFX SKU	eagCRS5590C3D
SFX Item ID	4052784
Supplier Item Code	4052784
Manufacturer SKU	CRS5590C3D
Manufacturer UPC	793348030807
Alternative References	ESP-CRS5590C3D, LN2, 2.2L
