Diamond Pistons

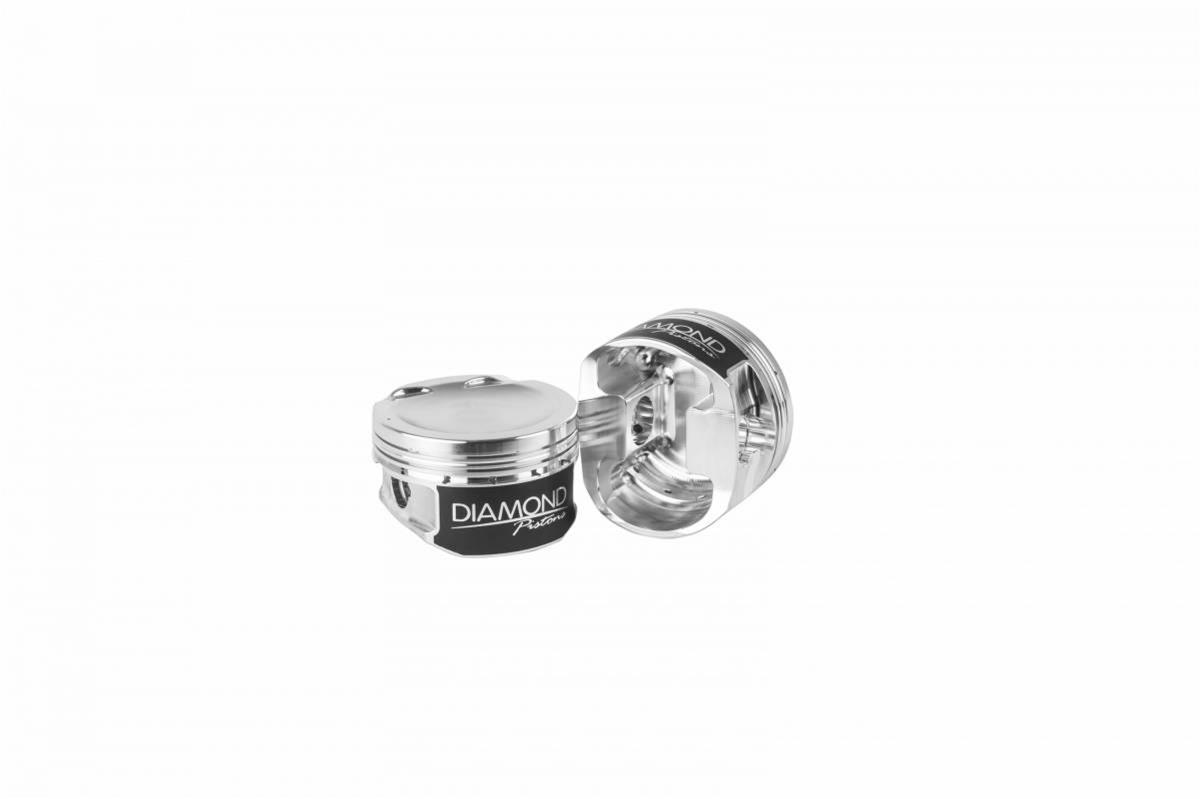

Diamond Pistons Sport Compact Series 30204-6 - 1200HP Rated - 2618 Material - Coated Skirts - Includes Pins and Rings

SKU: DPP30204-6

Pistons
Diamond Pistons Sport Compact Series 30204-6 - 1200HP Rated - 2618 Material - Coated Skirts - Includes Pins and Rings

Diamond Pistons

Diamond Pistons Sport Compact Series 30204-6 - 1200HP Rated - 2618 Material - Coated Skirts - Includes Pins and Rings

SKU: DPP30204-6

Pistons
A$2,849.20
Special Order. Contact for ETA. This item is out of stock in our warehouse and partner distribution centres. In some cases, this may be due to not having live inventory feeds available for all suppliers. Please contact us before ordering if you need to meet a specific deadline.
View cart
We accept
American Express
Mastercard
Visa
PayPal Checkout
Direct Deposit
Afterpay
Apple Pay
Google Pay
Zip Pay

Description

Diamond Pistons Sport Compact Series pistons are ideal for either the street or the drag strip. These forged aluminum pistons are significantly stronger than the factory pistons allowing your engine to handle that extra horsepower.

Diamond Pistons Sport Compact Series pistons feature:

* 3D milling on piston crowns for "ready to install" finish
* Side gas ports for better ring seal
* Moly skirt coating for friction-loss and skirt-wear protection
* Oversized valve pockets for "larger than stock" valve sizes
* Forged 2618 or 4032 aluminum alloy (where specified)
* Premium 8620 or H-13 steel wrist pins (where specified)

Part Type

Pistons

Data: v4.2 - Upd: 2026-10-14 08:49:29

Specifications

Product Attributes - Brand
Diamond Pistons
Product Attributes - Manufacturer's Part Number
30204-6
Product Attributes - Part Type
Pistons
Product Attributes - Product Line
Diamond Pistons Sport Compact Series Pistons
Product Attributes - UPC
686162210008
Product Attributes - Piston Rings Included
Yes
Product Attributes - Bore (in.)
3.642 in.
Product Attributes - Bore (mm)
92.507mm
Product Attributes - Stroke
3.910 in.
Product Attributes - Engine Stroke Type
Stock
Product Attributes - Rod Length
6.058 in.
Product Attributes - Piston Style
Dish, with two valve reliefs
Product Attributes - Piston Material
Forged aluminum
Product Attributes - Compression Height (in.)
1.215 in.
Product Attributes - Piston Head Volume (cc)
+9.00cc
Product Attributes - Wrist Pin Style
Floating
Product Attributes - Wrist Pin Retainers Included
Yes
Product Attributes - Wrist Pin Included
Yes
Product Attributes - Pin Diameter (in.)
0.866 in.
Product Attributes - Piston Ring Thickness
1.00mm x 1.20mm x 2.80mm
Product Attributes - File Fit
Yes
Product Attributes - Gapless
No
Product Attributes - Top Ring Thickness
1.0mm
Product Attributes - Top Ring Material
Ductile iron
Product Attributes - Top Ring Facing Material
Gas nitrided
Product Attributes - Second Ring Thickness
1.2mm
Product Attributes - Second Ring Material
Ductile iron
Product Attributes - Second Ring Facing Material
Ductile iron
Product Attributes - Oil Ring Thickness
2.8mm
Product Attributes - Oil Ring Material
Stainless steel
Product Attributes - Oil Ring Tension
Standard
Product Attributes - Remanufactured
No
Product Attributes - Quantity
Sold as a set of 6.
Product Attributes - Notes
Pistons are 2618 material.

Reference Information

Brand Name/s Diamond Pistons
StreetFX SKU dpp30204-6
SFX Item ID 5525518
Supplier Item Code 5525518
Manufacturer SKU 30204-6
Manufacturer UPC 686162210008
Alternative References 1200HP

Compatibility

Application Data
  • MakeFORD
    Engine TypeL6
    Engine FamilyFORD L6 GAS
    Engine Size4.0L/3984cc
    Application NotesFor use with Ford Barra engines.
