Home / Shop / Doug's Headers Engine Swap Oil Pans SKOP100 pan, Swap, Aluminum, Natural, 5.6 Quarts, Chevy, GMC, Pontiac, Small Block LS, Kit

Doug's Headers Engine Swap Oil Pans SKOP100 pan, Swap, Aluminum, Natural, 5.6 Quarts, Chevy, GMC, Pontiac, Small Block LS, Kit

SKU: DOUSKOP100

Oil Pans

Doug's Headers

Doug's Headers Engine Swap Oil Pans SKOP100 pan, Swap, Aluminum, Natural, 5.6 Quarts, Chevy, GMC, Pontiac, Small Block LS, Kit

SKU: DOUSKOP100

Oil Pans

LAST ONE! Est Ship 4-7 days. LAST ONE! This is the last unit at our distribution centre. Contact us if you need more. The ETA is the approximate time required to prepare your order for dispatch.

We accept

Description

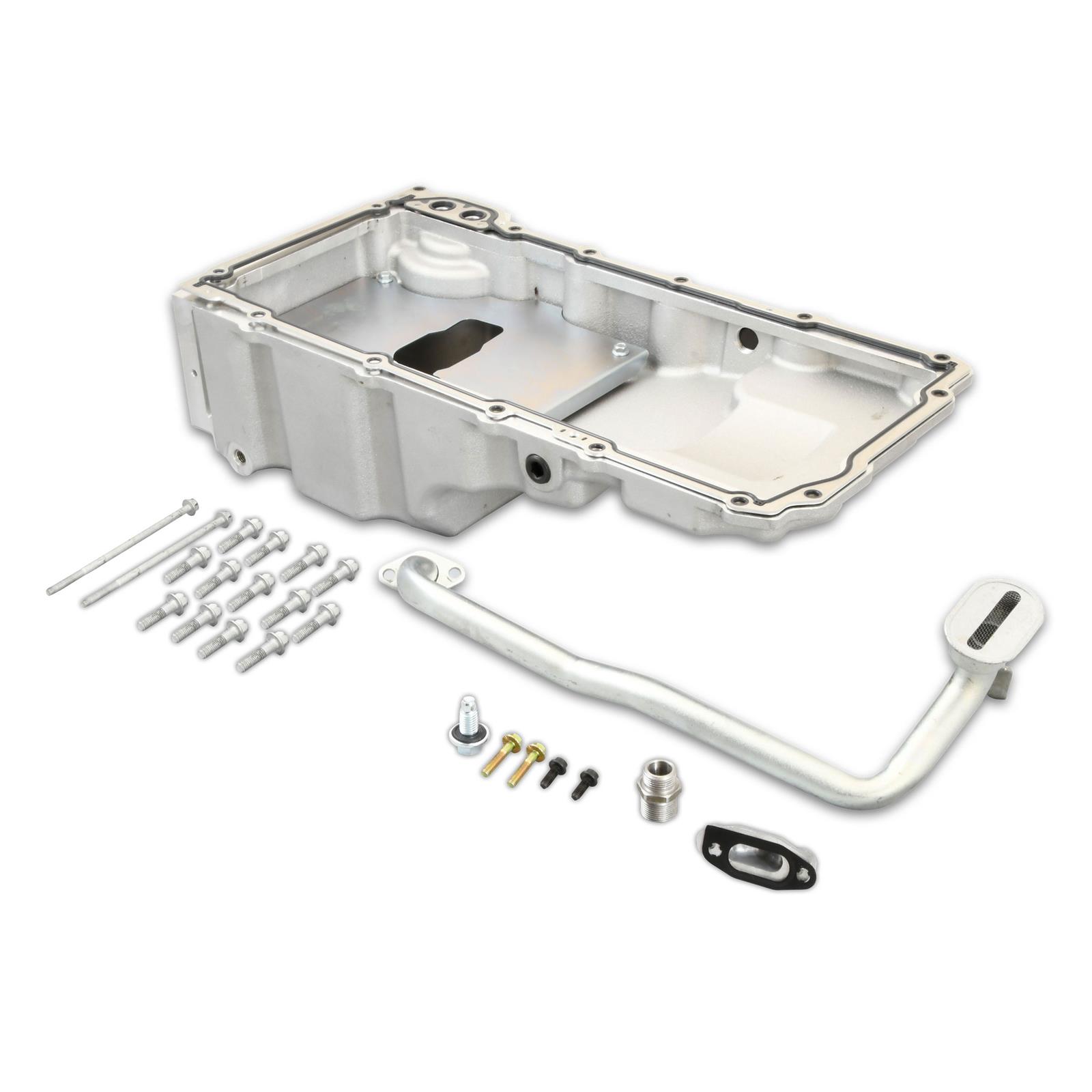

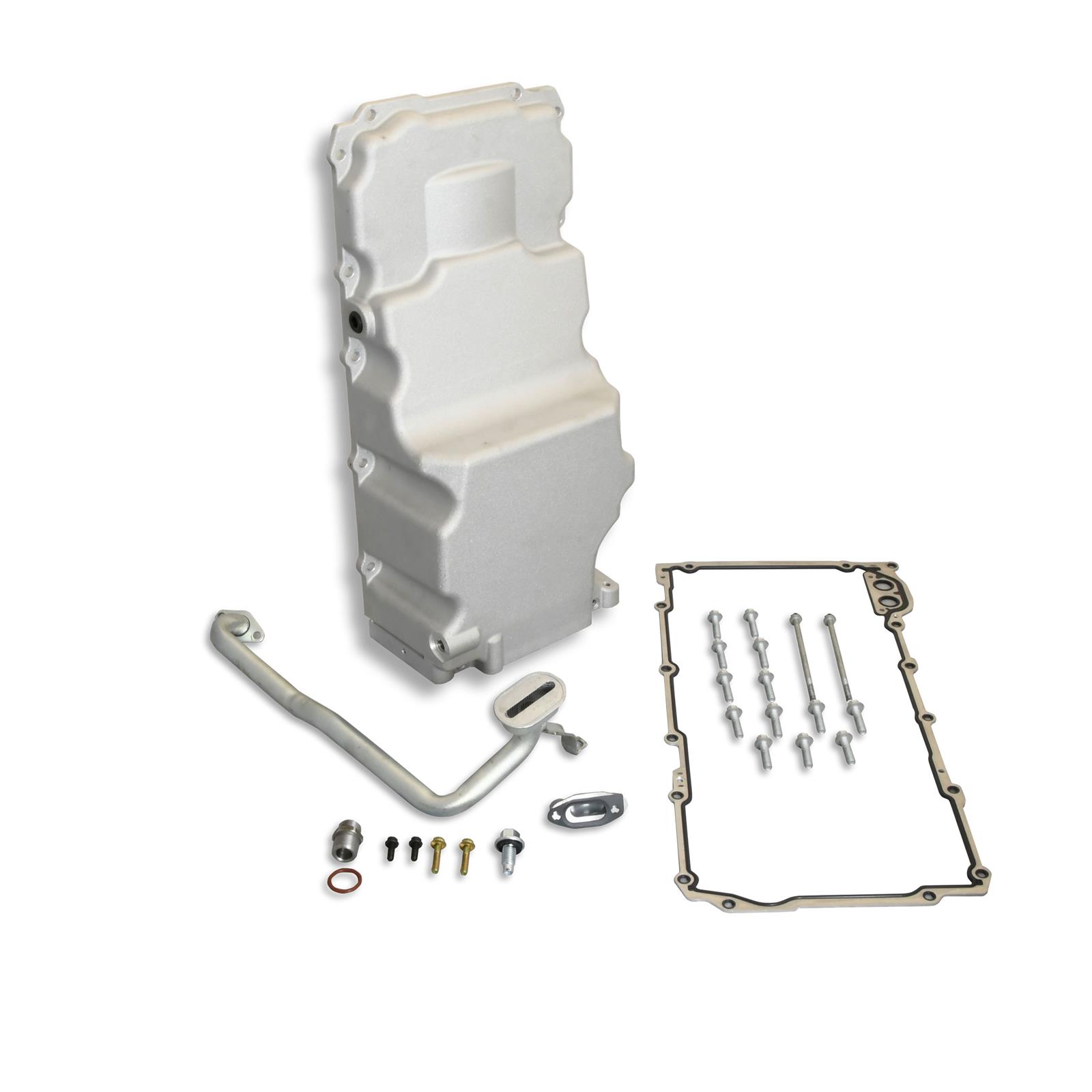

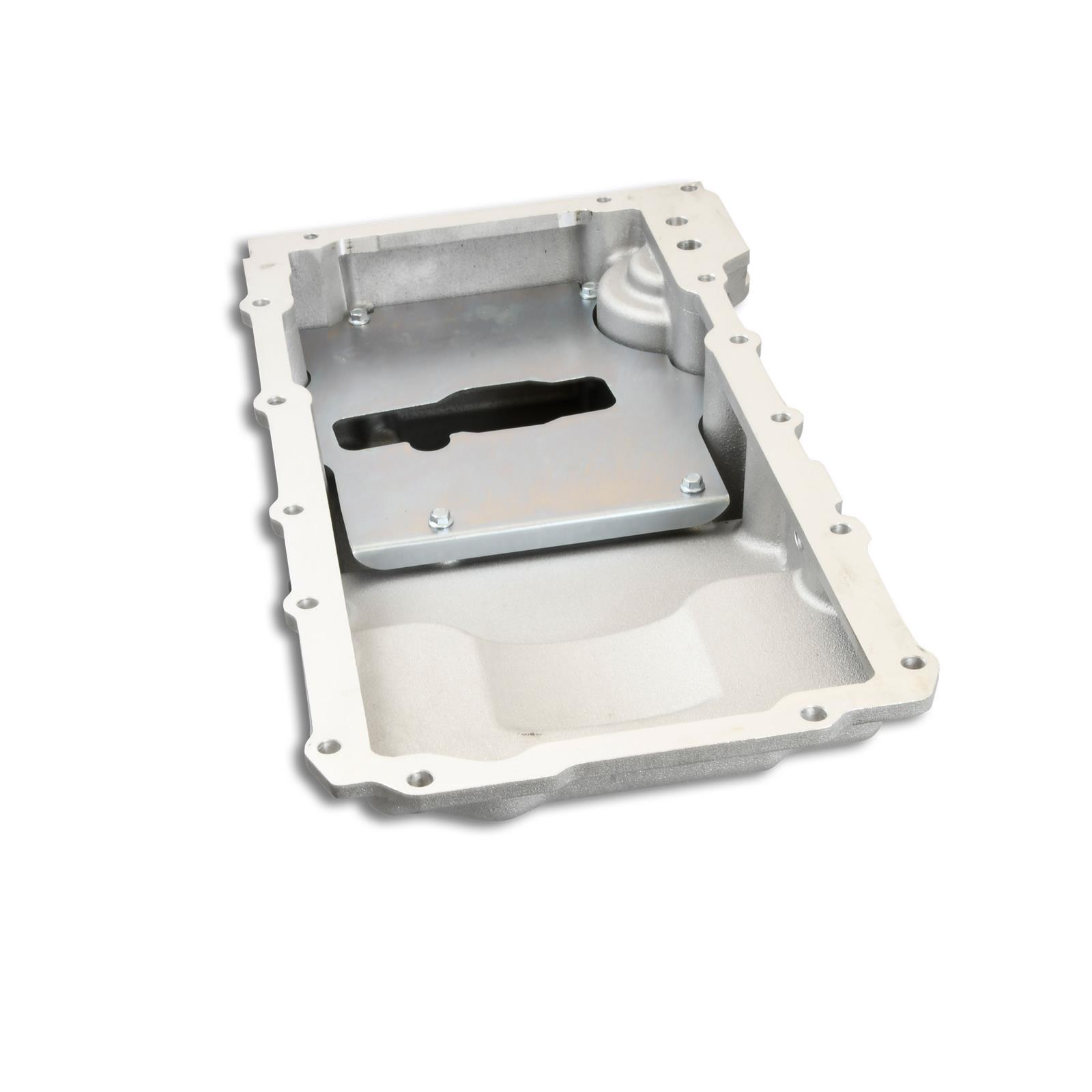

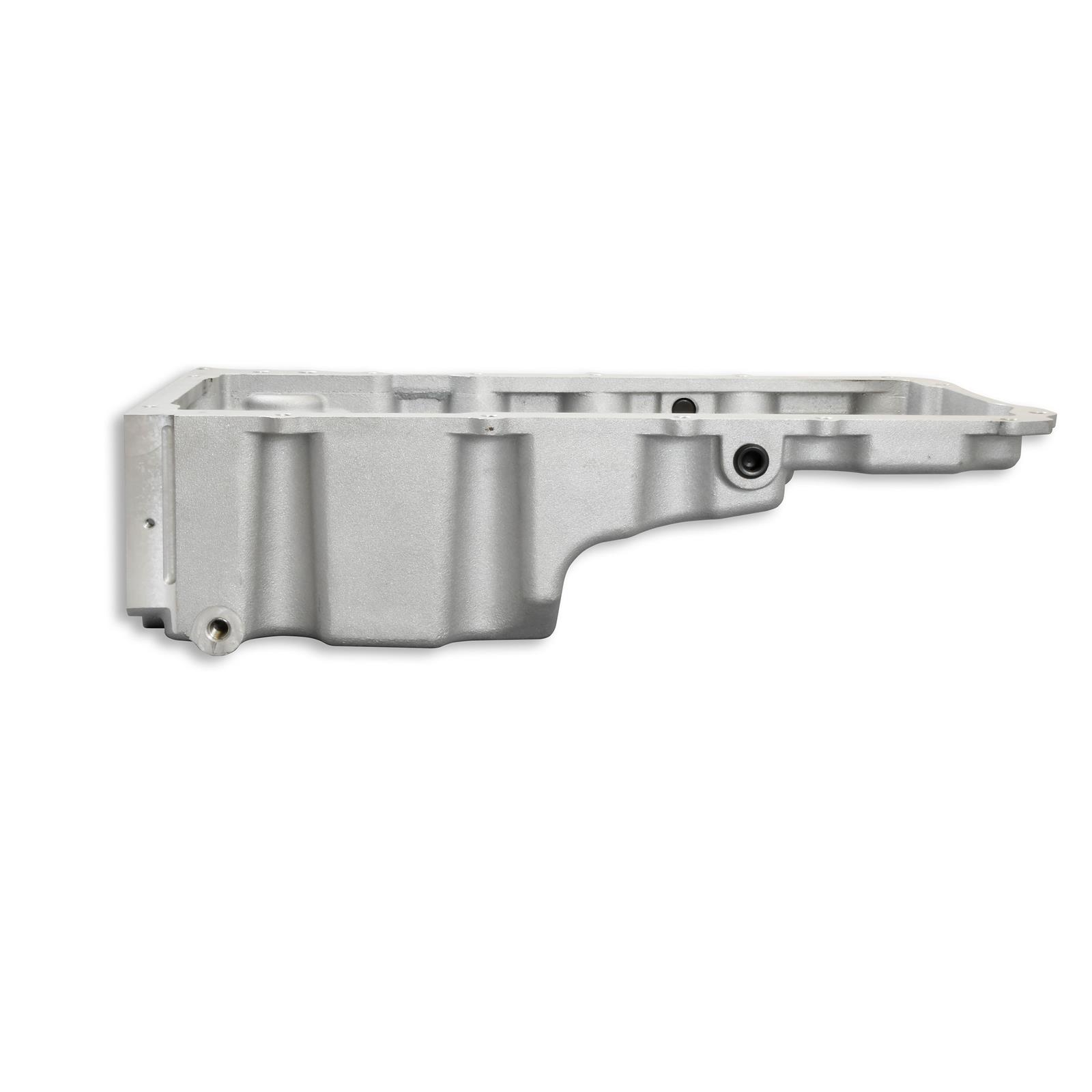

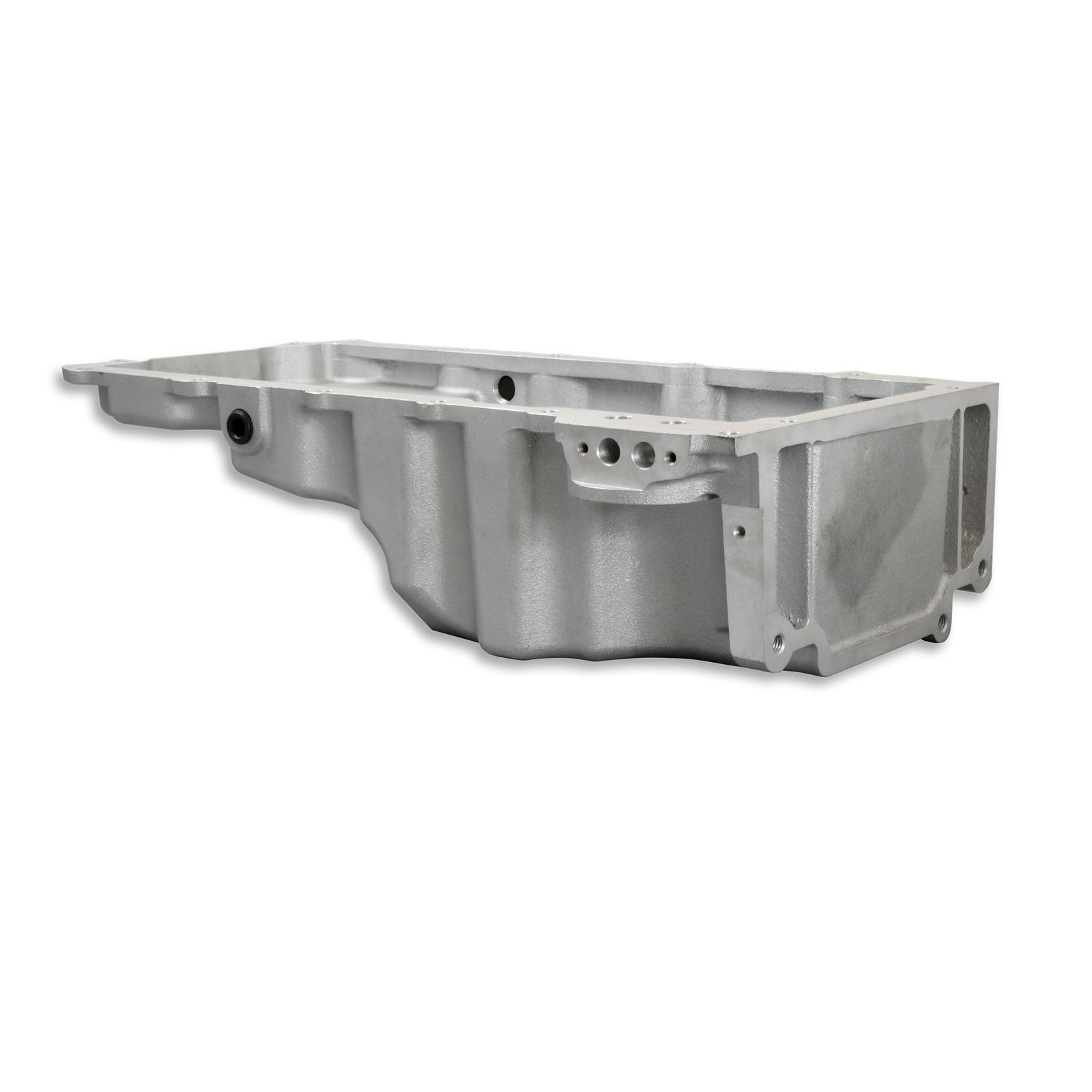

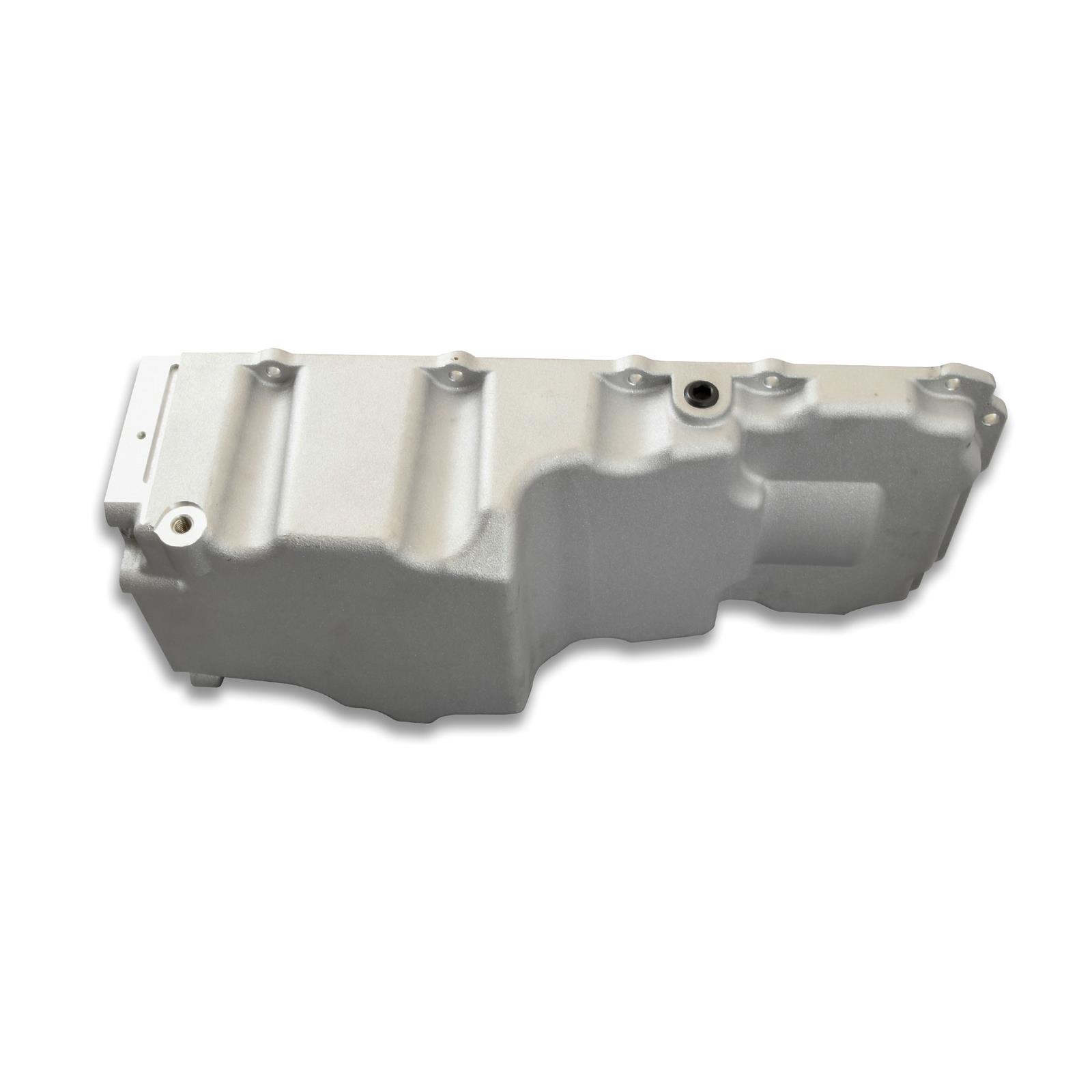

Doug's Headers offers a variety of engine swap products for many Chevrolet, GMC, and Pontiac cars and trucks from the 1960s, '70s, and '80s. These OEM-quality cast aluminum oil pans come with oil pickup, tube, gasket, and all hardware. They fit up to 4 in. stroker cranks and include oil drain ports for turbo applications. Order the model recommended for your vehicle.

Part Type

LS Engine Swap Oil Pan Kit - Low Profile

Data: v4.2 - Upd: 2026-10-14 08:51:57

Specifications

Product Attributes - Brand: Doug's Headers
Product Attributes - Manufacturer's Part Number: SKOP100
Product Attributes - Part Type: Oil Pans
Product Attributes - Product Line: Doug's Headers Engine Swap Oil Pans
Product Attributes - UPC: 694342555108
Product Attributes - Sump Style: Wet
Product Attributes - Oil Pan Style: Street/Strip
Product Attributes - Rear Main Seal Style: 1-piece
Product Attributes - Sump Location: Rear
Product Attributes - Oil Pan Capacity: 5.60 quarts
Product Attributes - Stroker Clearanced: Yes
Product Attributes - Maximum Stroke with OE Rod: 4.000 in.
Product Attributes - Dipstick Provision: No
Product Attributes - Dipstick Included: No
Product Attributes - Oil Pan Material: Aluminum
Product Attributes - Oil Pan Color: Natural
Product Attributes - Baffled: Yes
Product Attributes - Kicked Out: No
Product Attributes - Windage Tray Included: No
Product Attributes - Pickup Included: Yes
Product Attributes - Oil Pump Included: No
Product Attributes - Oil Pump Driveshaft Included: No
Product Attributes - Crank Scraper Included: No
Product Attributes - Gaskets Included: Yes
Product Attributes - Hardware Included: Yes
Product Attributes - Quantity: Sold as a kit.
Product Attributes - Notes: Pan requires a LS-3 style dipstick.

Reference Information

Brand Name/s	Doug's Headers
StreetFX SKU	douSKOP100
SFX Item ID	5519802
Supplier Item Code	5519802
Manufacturer SKU	SKOP100
Manufacturer UPC	694342555108
Alternative References	DGHSKOP100

Compatibility

Application Data

Make	CHEVROLET
Model	C10 PICKUP
Beginning Year	1967
Ending Year	1972
Engine Type	V8
Engine Size	4.8L/294
Drivetrain	RWD
Engine Family	Chevy small block Gen III/IV (LS-based engines)
Application Notes	Pan requires a LS-3 style dipstick.

Make	CHEVROLET
Model	C10 PICKUP
Beginning Year	1967
Ending Year	1972
Engine Type	V8
Engine Size	5.3L/325
Drivetrain	RWD
Engine Family	Chevy small block Gen III/IV (LS-based engines)
Application Notes	Pan requires a LS-3 style dipstick.

Make	CHEVROLET
Model	C10 PICKUP
Beginning Year	1967
Ending Year	1972
Engine Type	V8
Engine Size	5.7L/350
Drivetrain	RWD
Engine Family	Chevy small block Gen III/IV (LS-based engines)
Application Notes	Pan requires a LS-3 style dipstick.

Make	CHEVROLET
Model	C10 PICKUP
Beginning Year	1967
Ending Year	1972
Engine Type	V8
Engine Size	6.0L/364
Drivetrain	RWD
Engine Family	Chevy small block Gen III/IV (LS-based engines)
Application Notes	Pan requires a LS-3 style dipstick.

Make	CHEVROLET
Model	C10 PICKUP
Beginning Year	1967
Ending Year	1972
Engine Type	V8
Engine Size	6.2L/376
Drivetrain	RWD
Engine Family	Chevy small block Gen III/IV (LS-based engines)
Application Notes	Pan requires a LS-3 style dipstick.

Make	CHEVROLET
Model	CAMARO
Beginning Year	1970
Ending Year	1981
Engine Type	V8
Engine Size	4.8L/294
Drivetrain	RWD
Engine Family	Chevy small block Gen III/IV (LS-based engines)
Application Notes	Pan requires a LS-3 style dipstick.

Make	CHEVROLET
Model	CAMARO
Beginning Year	1970
Ending Year	1981
Engine Type	V8
Engine Size	5.3L/325
Drivetrain	RWD
Engine Family	Chevy small block Gen III/IV (LS-based engines)
Application Notes	Pan requires a LS-3 style dipstick.

Make	CHEVROLET
Model	CAMARO
Beginning Year	1970
Ending Year	1981
Engine Type	V8
Engine Size	5.7L/350
Drivetrain	RWD
Engine Family	Chevy small block Gen III/IV (LS-based engines)
Application Notes	Pan requires a LS-3 style dipstick.

Make	CHEVROLET
Model	CAMARO
Beginning Year	1970
Ending Year	1981
Engine Type	V8
Engine Size	6.0L/364
Drivetrain	RWD
Engine Family	Chevy small block Gen III/IV (LS-based engines)
Application Notes	Pan requires a LS-3 style dipstick.

Make	CHEVROLET
Model	CAMARO
Beginning Year	1970
Ending Year	1981
Engine Type	V8
Engine Size	6.2L/376
Drivetrain	RWD
Engine Family	Chevy small block Gen III/IV (LS-based engines)
Application Notes	Pan requires a LS-3 style dipstick.

Make	CHEVROLET
Model	CHEVELLE
Beginning Year	1964
Ending Year	1967
Engine Type	V8
Engine Size	4.8L/294
Drivetrain	RWD
Engine Family	Chevy small block Gen III/IV (LS-based engines)
Application Notes	Pan requires a LS-3 style dipstick.

Make	CHEVROLET
Model	CHEVELLE
Beginning Year	1964
Ending Year	1967
Engine Type	V8
Engine Size	5.3L/325
Drivetrain	RWD
Engine Family	Chevy small block Gen III/IV (LS-based engines)
Application Notes	Pan requires a LS-3 style dipstick.

Make	CHEVROLET
Model	CHEVELLE
Beginning Year	1964
Ending Year	1967
Engine Type	V8
Engine Size	5.7L/350
Drivetrain	RWD
Engine Family	Chevy small block Gen III/IV (LS-based engines)
Application Notes	Pan requires a LS-3 style dipstick.

Make	CHEVROLET
Model	CHEVELLE
Beginning Year	1964
Ending Year	1967
Engine Type	V8
Engine Size	6.0L/364
Drivetrain	RWD
Engine Family	Chevy small block Gen III/IV (LS-based engines)
Application Notes	Pan requires a LS-3 style dipstick.

Make	CHEVROLET
Model	CHEVELLE
Beginning Year	1964
Ending Year	1967
Engine Type	V8
Engine Size	6.2L/376
Drivetrain	RWD
Engine Family	Chevy small block Gen III/IV (LS-based engines)
Application Notes	Pan requires a LS-3 style dipstick.

Make	GMC
Model	C15/C1500 PICKUP
Beginning Year	1967
Ending Year	1972
Engine Type	V8
Engine Size	4.8L/294
Drivetrain	RWD
Engine Family	Chevy small block Gen III/IV (LS-based engines)
Application Notes	Pan requires a LS-3 style dipstick.

Make	GMC
Model	C15/C1500 PICKUP
Beginning Year	1967
Ending Year	1972
Engine Type	V8
Engine Size	5.3L/325
Drivetrain	RWD
Engine Family	Chevy small block Gen III/IV (LS-based engines)
Application Notes	Pan requires a LS-3 style dipstick.

Make	GMC
Model	C15/C1500 PICKUP
Beginning Year	1967
Ending Year	1972
Engine Type	V8
Engine Size	5.7L/350
Drivetrain	RWD
Engine Family	Chevy small block Gen III/IV (LS-based engines)
Application Notes	Pan requires a LS-3 style dipstick.

Make	GMC
Model	C15/C1500 PICKUP
Beginning Year	1967
Ending Year	1972
Engine Type	V8
Engine Size	6.0L/364
Drivetrain	RWD
Engine Family	Chevy small block Gen III/IV (LS-based engines)
Application Notes	Pan requires a LS-3 style dipstick.

Make	GMC
Model	C15/C1500 PICKUP
Beginning Year	1967
Ending Year	1972
Engine Type	V8
Engine Size	6.2L/376
Drivetrain	RWD
Engine Family	Chevy small block Gen III/IV (LS-based engines)
Application Notes	Pan requires a LS-3 style dipstick.

Make	PONTIAC
Model	FIREBIRD
Beginning Year	1970
Ending Year	1981
Engine Type	V8
Engine Size	4.8L/294
Drivetrain	RWD
Engine Family	Chevy small block Gen III/IV (LS-based engines)
Application Notes	Pan requires a LS-3 style dipstick.

Make	PONTIAC
Model	FIREBIRD
Beginning Year	1970
Ending Year	1981
Engine Type	V8
Engine Size	5.3L/325
Drivetrain	RWD
Engine Family	Chevy small block Gen III/IV (LS-based engines)
Application Notes	Pan requires a LS-3 style dipstick.

Make	PONTIAC
Model	FIREBIRD
Beginning Year	1970
Ending Year	1981
Engine Type	V8
Engine Size	5.7L/350
Drivetrain	RWD
Engine Family	Chevy small block Gen III/IV (LS-based engines)
Application Notes	Pan requires a LS-3 style dipstick.

Make	PONTIAC
Model	FIREBIRD
Beginning Year	1970
Ending Year	1981
Engine Type	V8
Engine Size	6.0L/364
Drivetrain	RWD
Engine Family	Chevy small block Gen III/IV (LS-based engines)
Application Notes	Pan requires a LS-3 style dipstick.

Make	PONTIAC
Model	FIREBIRD
Beginning Year	1970
Ending Year	1981
Engine Type	V8
Engine Size	6.2L/376
Drivetrain	RWD
Engine Family	Chevy small block Gen III/IV (LS-based engines)
Application Notes	Pan requires a LS-3 style dipstick.
