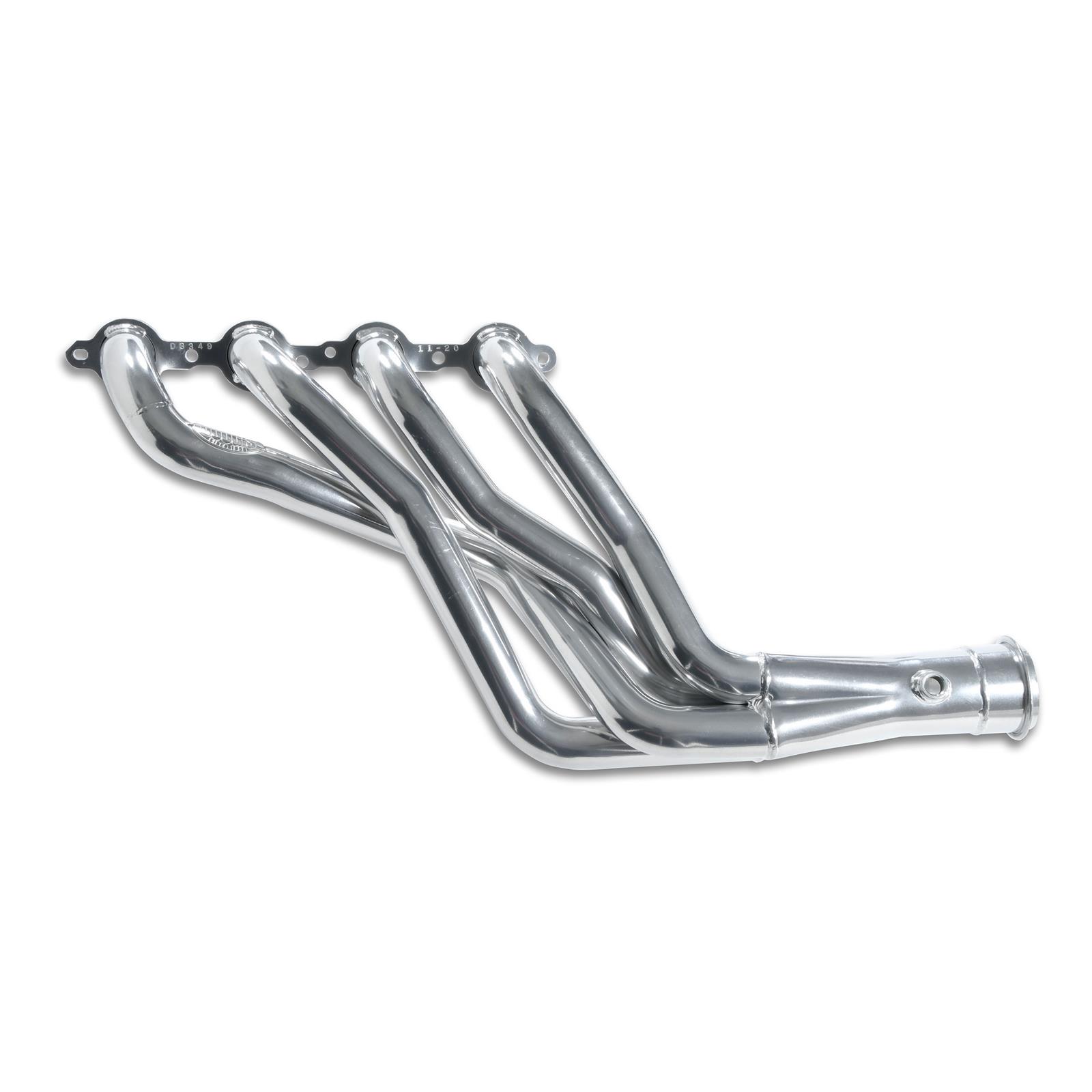

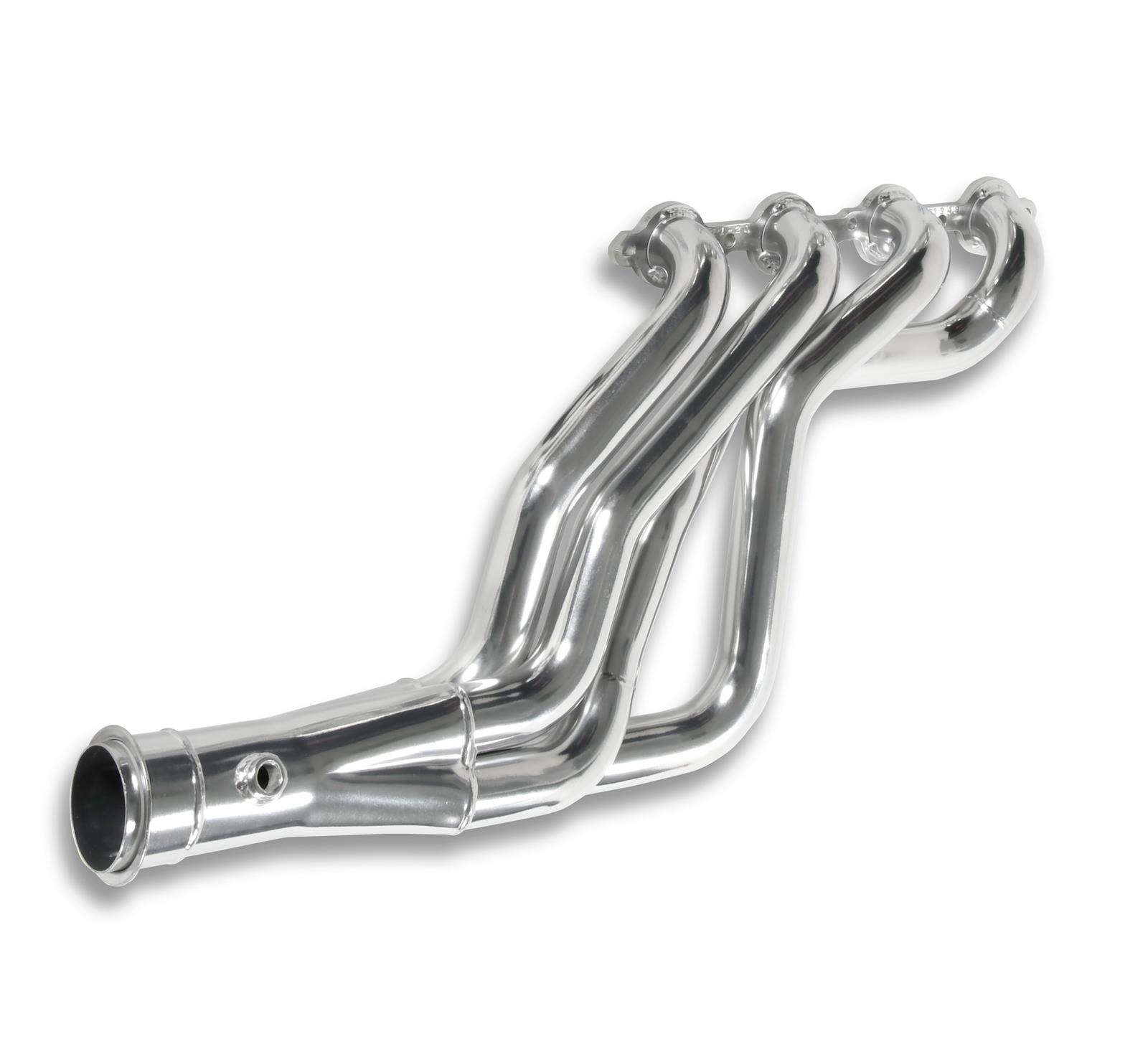

Doug's Headers D3349 Headers, Long Tube One-piece, Steel, Silver Ceramic Coated, Round Port, Buick, Chevrolet, Oldsmobile, Pontiac, Small Block LS, Pair
Doug's Headers D3349 Headers, Long Tube One-piece, Steel, Silver Ceramic Coated, Round Port, Buick, Chevrolet, Oldsmobile, Pontiac, Small Block LS, Pair
A$2,402.83
LAST ONE! Est Ship 4-7 days.
LAST ONE! This is the last unit at our distribution centre. Contact us if you need more. The ETA is the approximate time required to prepare your order for dispatch.
We accept
Description
Doug's Headers has long been recognized of as one of the premiere exhaust header manufacturers in the performance industry. Since1958, they have been producing high-quality, hand-built, mandrel-bent exhaust headers. Each and every header is tuned with the proper tube size and length to efficiently remove all of the exhaust from each cylinder, reducing pumping losses, and resulting in dramatic increases in horsepower and torque. Doug's headers are carefully developed on the vehicles that they are intended to fit and are re-checked numerous times during the design and manufacturing process. Their designs include mid-length headers, Tri-Y headers, and long tube headers, plus manifold replacement headers.
Their headers come with all the necessary mounting hardware, collector reducers or connector pipes, premium extra-thick gaskets, and detailed installation instruction sheets. The gaskets are rated up to 1100 degrees F, pressures to 3700 psig (255 bar), and are designed for an exact port match with their headers.
Doug's Headers offer a choice of finishes:
* Metallic Ceramic Thermal Barrier Coating (MCTBC), which is polished with a vibratory finishing process that not only produces a high-luster aluminum appearance, but also compresses and activates the coating, which increases the surface hardness. The finish is 60 percent more corrosion resistant than an unpolished surface, easy to maintain, and will last for years under normal operation conditions. MCTBC also protects and extends the life of headers by creating a thermal barrier that significantly lowers under hood temperatures and protects the substrate metal from thermal fatigue.
* Hi-Temp black coating is an affordably priced alternative to their MCTBC. This finish provides good corrosion and heat protection when compared to many of the "cheaper" header finishes being applied by our competitors.
* Raw steel is available for individual customizing
Unless otherwise noted, these headers are designed to fit the vehicle as it came from the manufacturer. This includes components like cylinder heads, chassis, steering, motor mounts, body mounts and bushings, etc. If your vehicle is using aftermarket components, parts from other applications, or custom altered parts, then it is the installer's responsibility to verify fitment.
Part Type
Exhaust Header Set - LS Swap GM A-Body 64-67
Specifications
- Product Attributes - Brand
- Doug's Headers
- Product Attributes - Manufacturer's Part Number
- D3349
- Product Attributes - Part Type
- Headers
- Product Attributes - Product Line
- Doug's Headers
- Product Attributes - UPC
- 694342555504
- Product Attributes - Header Style
- Long tube one-piece
- Product Attributes - Header Material
- Steel
- Product Attributes - Primary Tube Outside Diameter (in.)
- 1 7/8 in.
- Product Attributes - Header Color
- Silver ceramic coated
- Product Attributes - Flange Style
- Standard
- Product Attributes - Weld-Up
- No
- Product Attributes - Cylinder Head Port Shape
- Round
- Product Attributes - Collector Attachment
- V-band
- Product Attributes - Collector Diameter (in.)
- 3.00
- Product Attributes - Collector Reducers Included
- No
- Product Attributes - Tuned
- No
- Product Attributes - Primary Tube Gauge
- 16-gauge
- Product Attributes - Flange Thickness (in.)
- 0.38 in.
- Product Attributes - Bolts/Studs Included
- No
- Product Attributes - Gaskets Included
- Yes
- Product Attributes - Crossover Pipe Included
- No
- Product Attributes - Catalytic Converter(s) Included
- No
- Product Attributes - Motor Mounts Included
- No
- Product Attributes - Transmission Mount Included
- No
- Product Attributes - Quantity
- Sold as a pair.
Reference Information
| Brand Name/s | Doug's Headers |
|---|---|
| StreetFX SKU | douD3349 |
| SFX Item ID | 5519549 |
| Supplier Item Code | 5519549 |
| Manufacturer SKU | D3349 |
| Manufacturer UPC | 694342555504 |
| Alternative References | DGHD3349 |
Compatibility
| Application Data |
|
|---|
Loading compatibility information...
Keep shopping
More from Doug's Headers
Doug's Headers
Doug's Headers D568 Headers, Long Tube, Steel, Ceramic Coated, Pontiac, 326, 350, 400, V8, Pair
douD568
A$3,030.79
Doug's Headers

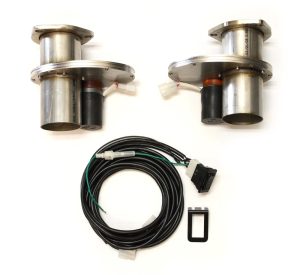

Doug's Headers Electric 2.5 Inch Exhaust Cutouts Kit DEC250A Cutouts, Electric, Stainless Steel, Bolt-On, 2.50 in. Diameter, Wiring Harness, Pair
