FeaturesModern TIR optics for the highest intensity on the marketDistinctive backlight featureDurable powdercoated aluminum constructionIntegrated Deutsch-style connectorPin-fin heatsink designDesigned torture tested and assembled in USAOverviewIntroducing the Stage Series 2in LED Pod! Featuring higher output intensity than any other 2in light on the market these LED pods have been designed for maximum functionality with custom-engineered TIR optics shining in highly useful beam patterns all in a durable package.Focused. Traditional optics like reflectors or simple lenses lose light internally and to glare so not all of the light shines on target. Instead the custom-engineered TIR optic in the Stage Series 2in collects all of the light from the LED and directs it only where you need it drastically reducing glare and improving total efficiency.Simple connections. All SSC2 LED pods feature a custom-molded DT type Deutsch-style connector on the back and come with a 6-inch pigtail with bare leads.Backlight Functionality The Stage Series 2in LED Pod includes a distinctive backlight feature as well. The SSC2's backlight fully illuminates the TIR optic providing a more unique and modern look than the small indicator LEDs found in other products.Proven Reliability. Stage Series LED lighting has been extensively tested for long-term operation from -40 to 185 degrees F along with vibration moisture intrusion and corrosion testing. All of these tests are completed to SAE standards just like factory components. They've also been put to the test on-road by racers and enthusiasts alike.

Additional Information

Featuring higher output intensity than any other 2in light on the market these LED pods have been designed for maximum functionality with custom-engineered TIR optics shining in highly useful beam patterns all in a durable package

Part Type

Auxiliary Light

Features and Benefits

• Durable powdercoated aluminum construction
• High-intensity automotive-type LEDs
• Integrated Deutsch-style connector
• Modern TIR optics for the highest intensity on the market
• Pin-fin heatsink design

Product Details

Product Downloads

#	Document Type	Download
1.	Installation Instructions

Installation guides, warranty details, and other supporting documents are provided by the supplier. In some cases, these files may originate from regions outside your locale, meaning instructions, warranty procedures, and images may not fully align with your specific vehicle or region (e.g., LHD vs. RHD differences, return policies, etc.). If you need clarification, please contact a StreetFX support agent.

• Durable powdercoated aluminum construction
• High-intensity automotive-type LEDs
• Integrated Deutsch-style connector
• Modern TIR optics for the highest intensity on the market
• Pin-fin heatsink design

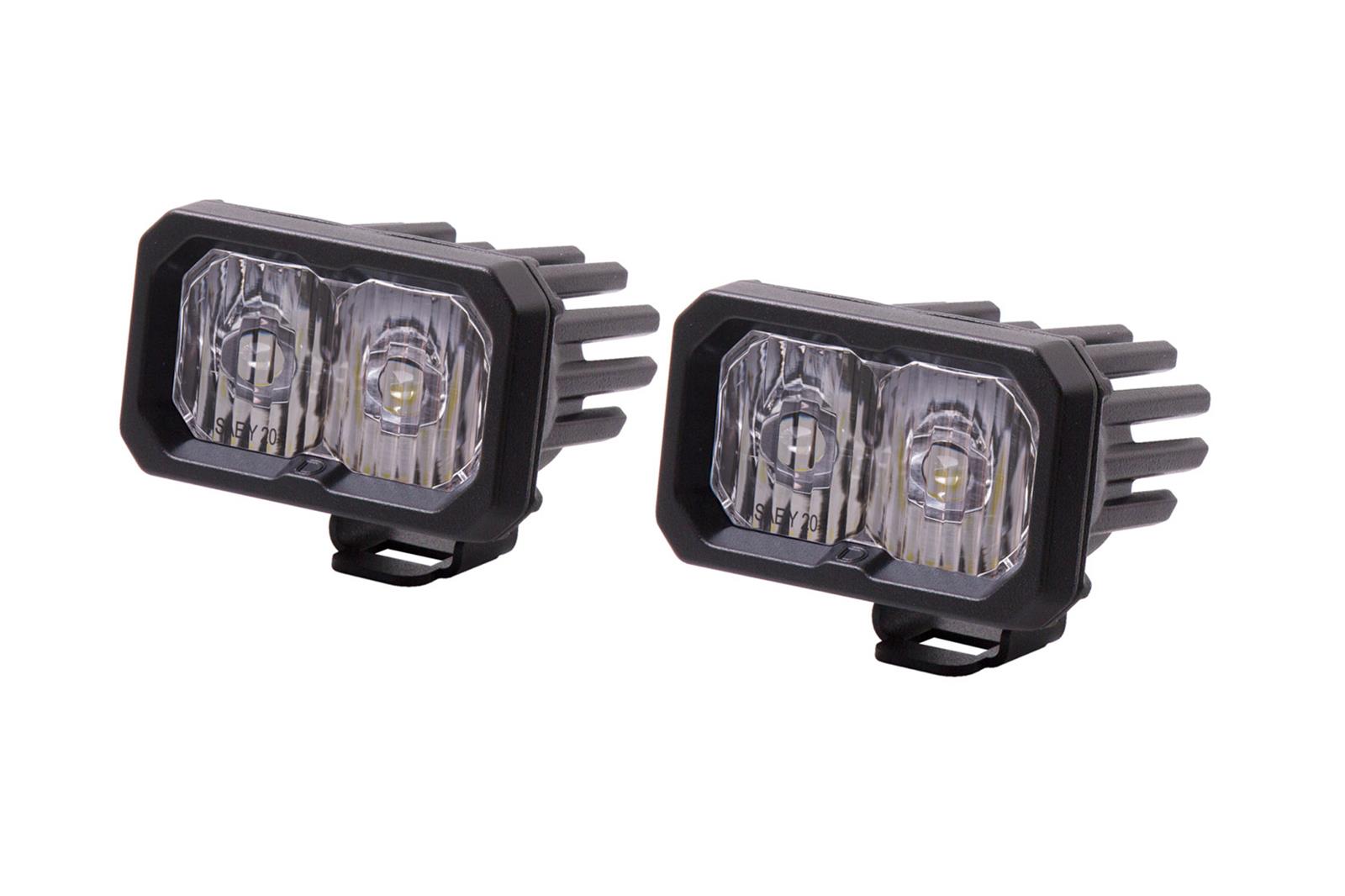

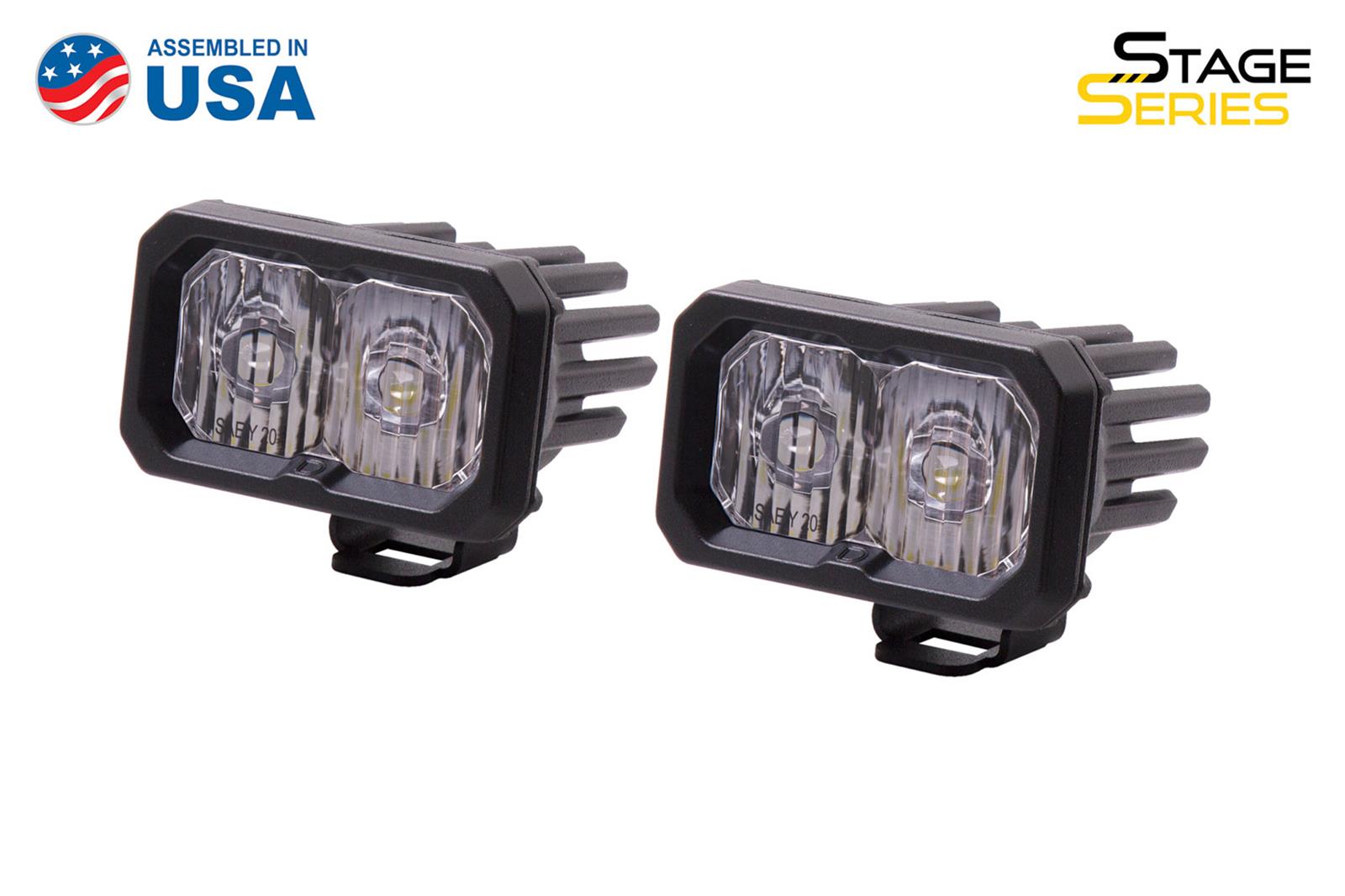

Introducing the Stage Series 2 light pods from Diode Dynamics! Featuring higher output intensity than any other 2 in. light on the market, these LED pods have been designed for maximum functionality, with custom engineered TIR optics shining in highly useful beam patterns, all in a durable package. While other options on the market lose as much as 10 percent of the light output shining through an outer lens, the custom-molded TIR optic in the Stage Series 2 light pods serves as both the optic and main lens for greater efficiency and light output. Thanks to this innovative feature, when coupled with high-intensity LED chips, the total intensity of the Diode Dynamics Stage Series 2 is much greater than other LED pods using basic optics or reflectors with standard outer lens.

Product features and details:
• Durable powdercoated aluminum construction
• Pin-fin heatsink design
• Modern TIR optics for the highest intensity on the market—custom-engineered to collect all of the light from the LED, and directs it only where you need it, drastically reducing glare and improving total efficiency
• Backlighting available in white, amber, red, and blue—the SSC2's backlight fully illuminates the TIR optic, providing a more unique and modern look than the small indicator LEDs found in other products
• LED pods are available at two different power levels—Sport or Pro—both options use high-intensity LED emitters, and TIR optics for unmatched focus and overall output, however, the Pro option is double the amount of total power
• Functional patterns—with optical simulation modeling, to shape the output in a highly-functional beam pattern
• SAE Driving is designed to supplement your high beams, but it's great for general illumination as well—rather than a traditional "spot" pattern, the Stage Series Driving pattern shines in an 18x8 degree spread, providing just enough width to fully illuminate the road ahead at high speeds
• SAE Fog provides an extremely wide field of view, with high-intensity output over an entire 80-degree spread—it serves as a great upgrade for any factory foglamp, and will fully illuminate the area in front of your vehicle
• Flood pattern was designed to provide uniform, even illumination with a full 60x60 degree spread of light—perfect to use as a backup light, for lighting up anything at low speeds, or for trailers and worksites
• Combo pattern combines both the Driving and Flood optics—shines light downrange in a focused, rectangular 40x20 degree pattern; the combo lens features a flood optic on one side and a driving optic on the other
• Spot is an unmodified pattern, shining light directly from the TIR optic—the result is a highly focused 6-degree beam of light, perfect for directing light far into the distance
• When installed as a pair and aimed in accordance with your state's regulations, the Driving White pattern meets SAE J581 standard as a Driving/Auxiliary High Beam Light, and the Fog pattern meets SAE J583 standard as a Foglamp, for legal on-road use
• Custom-molded DT type Deutsch-style connector on the back and comes with a 6 in. pigtail with bare leads—for installation, you can wire yourself, use an off-the-shelf Deutsch DT sized wire harness, or select an optional Diode Dynamics wire harness (sold separately)
• Proven reliability—Stage Series 2 LED lighting has been extensively tested for long-term operation from -40 to 185 degrees F, along with vibration, moisture intrusion, and corrosion testing
