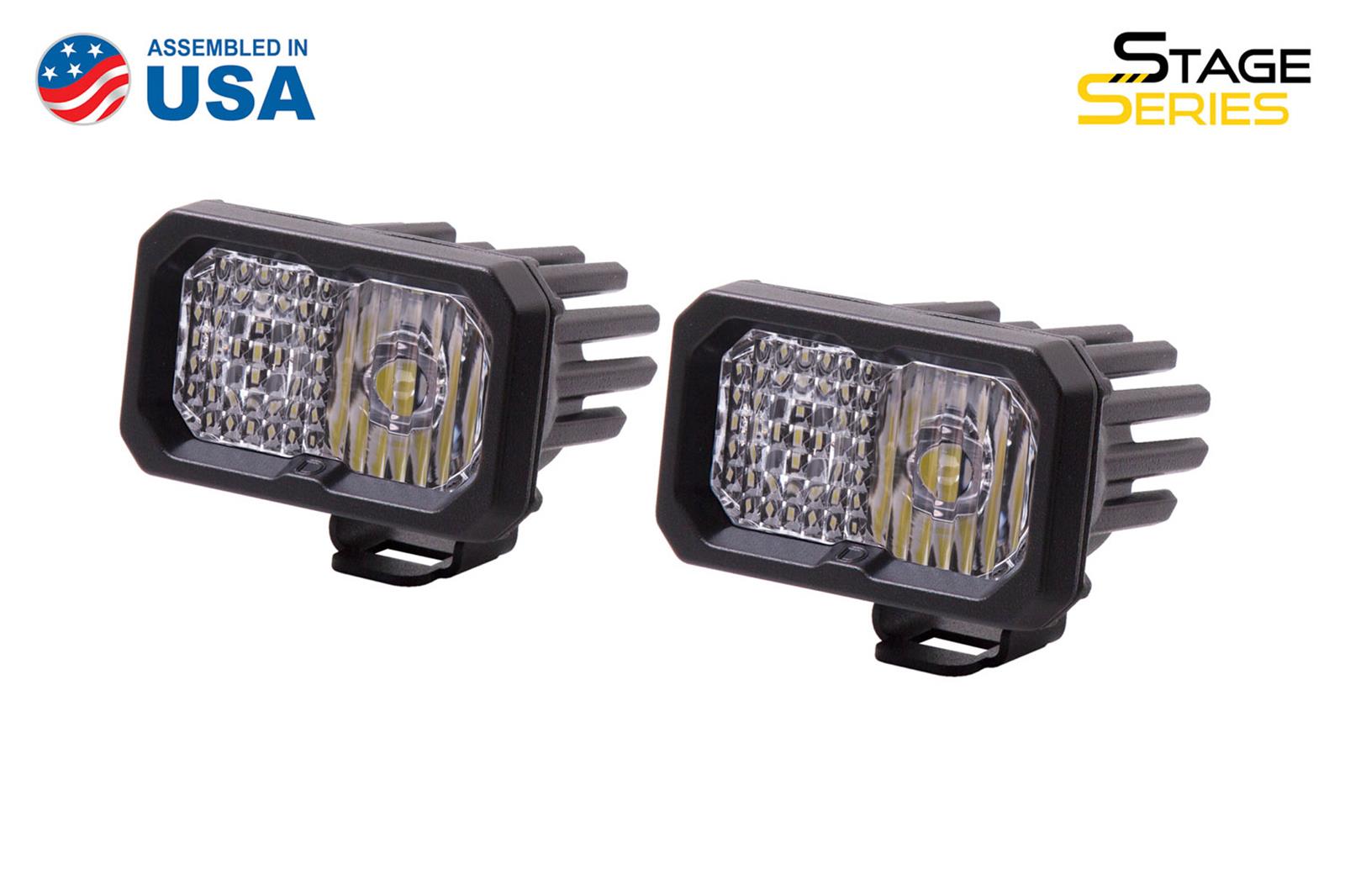

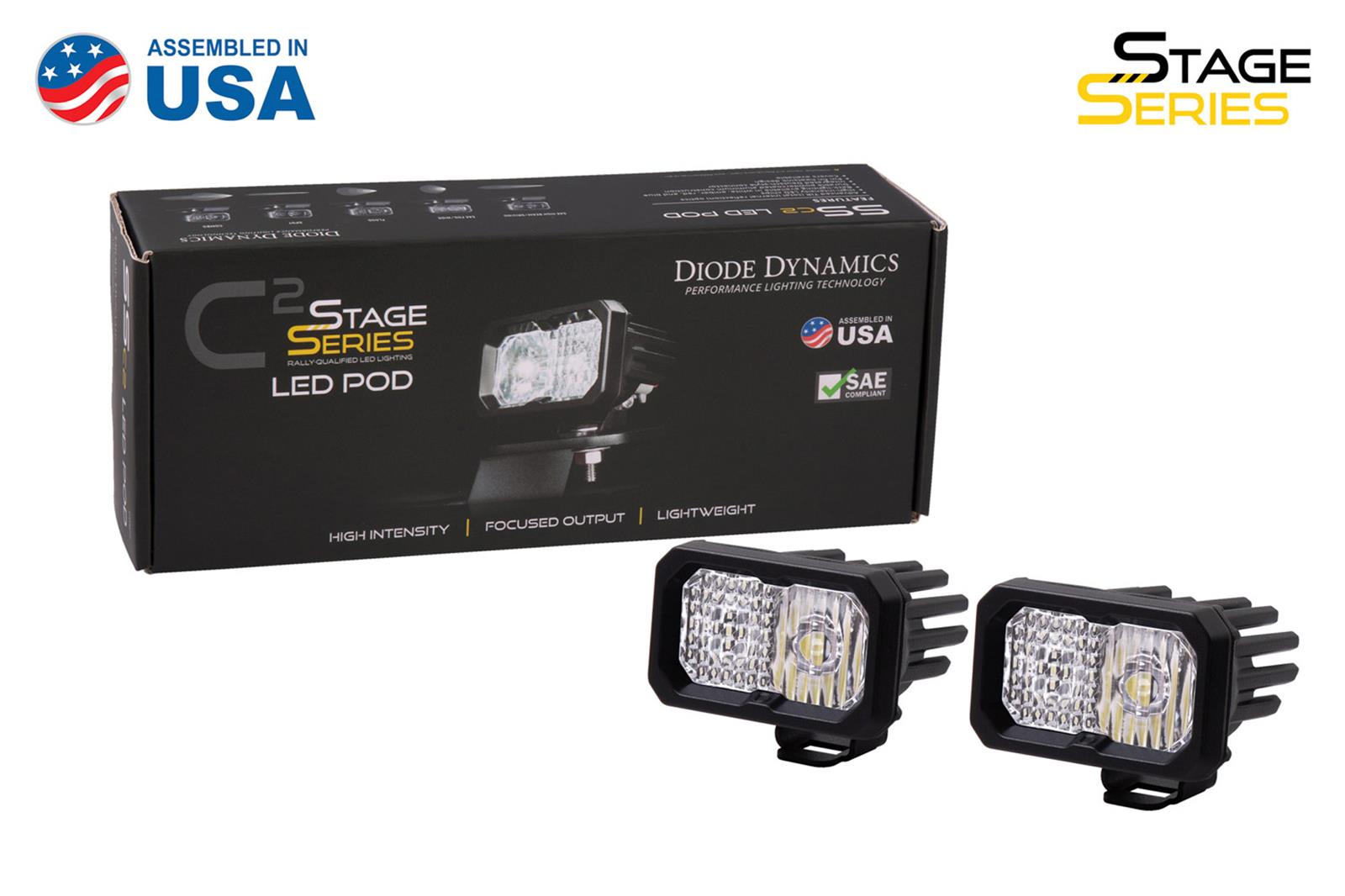

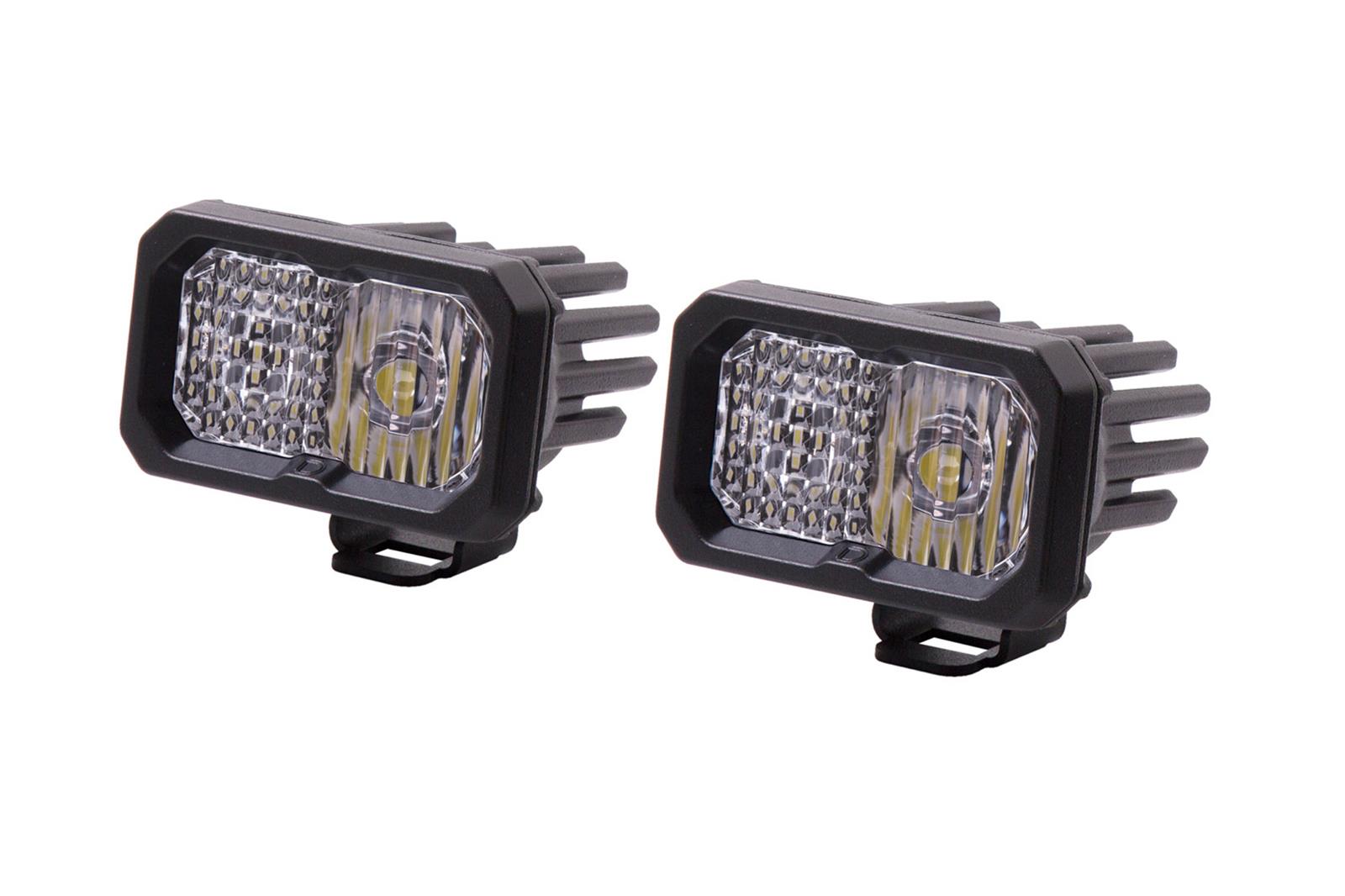

Diode Dynamics Stage Series 2 Light Pods DD6387P Auxiliary Light, LED Light, SSC2, Sport White, Driving/Fog, White Backlight, Clear Lens, 2.0 in. x 3.0 in., Rectangle, Aluminum Housing, Pair
Diode Dynamics Stage Series 2 Light Pods DD6387P Auxiliary Light, LED Light, SSC2, Sport White, Driving/Fog, White Backlight, Clear Lens, 2.0 in. x 3.0 in., Rectangle, Aluminum Housing, Pair
A$501.84
BACKORDER
This item will be special ordered in for you. Contact us prior to purchase if you require an ETA.
We accept
Description
Introducing the Stage Series 2 light pods from Diode Dynamics! Featuring higher output intensity than any other 2 in. light on the market, these LED pods have been designed for maximum functionality, with custom engineered TIR optics shining in highly useful beam patterns, all in a durable package. While other options on the market lose as much as 10 percent of the light output shining through an outer lens, the custom-molded TIR optic in the Stage Series 2 light pods serves as both the optic and main lens for greater efficiency and light output. Thanks to this innovative feature, when coupled with high-intensity LED chips, the total intensity of the Diode Dynamics Stage Series 2 is much greater than other LED pods using basic optics or reflectors with standard outer lens.
Product features and details:
* Durable powdercoated aluminum construction
* Pin-fin heatsink design
* Modern TIR optics for the highest intensity on the market—custom-engineered to collect all of the light from the LED, and directs it only where you need it, drastically reducing glare and improving total efficiency
* Backlighting available in white, amber, red, and blue—the SSC2's backlight fully illuminates the TIR optic, providing a more unique and modern look than the small indicator LEDs found in other products

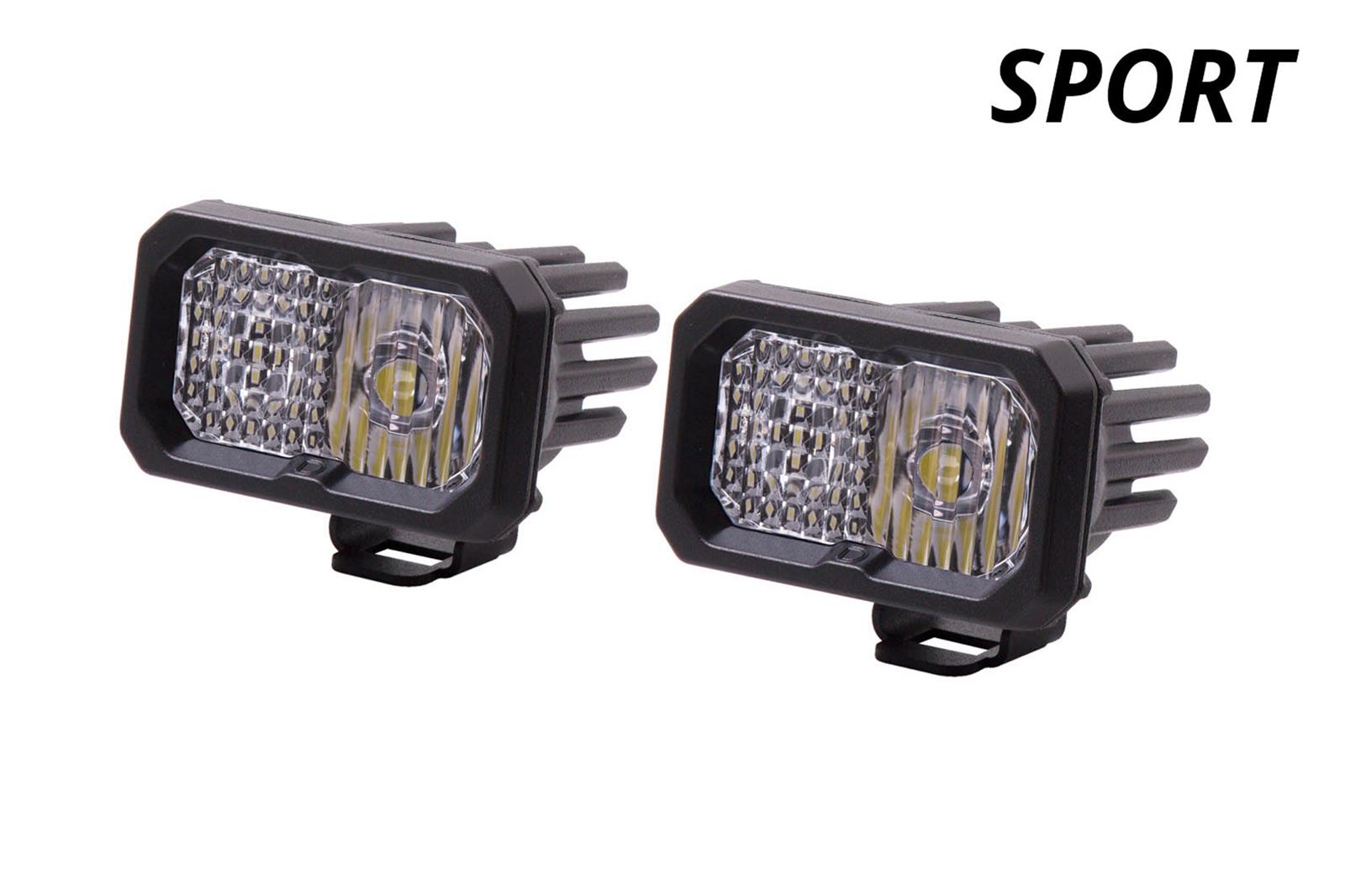

* LED pods are available at two different power levels—Sport or Pro—both options use high-intensity LED emitters, and TIR optics for unmatched focus and overall output, however, the Pro option is double the amount of total power
* Functional patterns—with optical simulation modeling, to shape the output in a highly-functional beam pattern
* SAE Driving is designed to supplement your high beams, but it's great for general illumination as well—rather than a traditional "spot" pattern, the Stage Series Driving pattern shines in an 18x8 degree spread, providing just enough width to fully illuminate the road ahead at high speeds
* SAE Fog provides an extremely wide field of view, with high-intensity output over an entire 80-degree spread—it serves as a great upgrade for any factory foglamp, and will fully illuminate the area in front of your vehicle
* Flood pattern was designed to provide uniform, even illumination with a full 60x60 degree spread of light—perfect to use as a backup light, for lighting up anything at low speeds, or for trailers and worksites
* Combo pattern combines both the Driving and Flood optics—shines light downrange in a focused, rectangular 40x20 degree pattern; the combo lens features a flood optic on one side and a driving optic on the other
* Spot is an unmodified pattern, shining light directly from the TIR optic—the result is a highly focused 6-degree beam of light, perfect for directing light far into the distance
* When installed as a pair and aimed in accordance with your state's regulations, the Driving White pattern meets SAE J581 standard as a Driving/Auxiliary High Beam Light, and the Fog pattern meets SAE J583 standard as a Foglamp, for legal on-road use

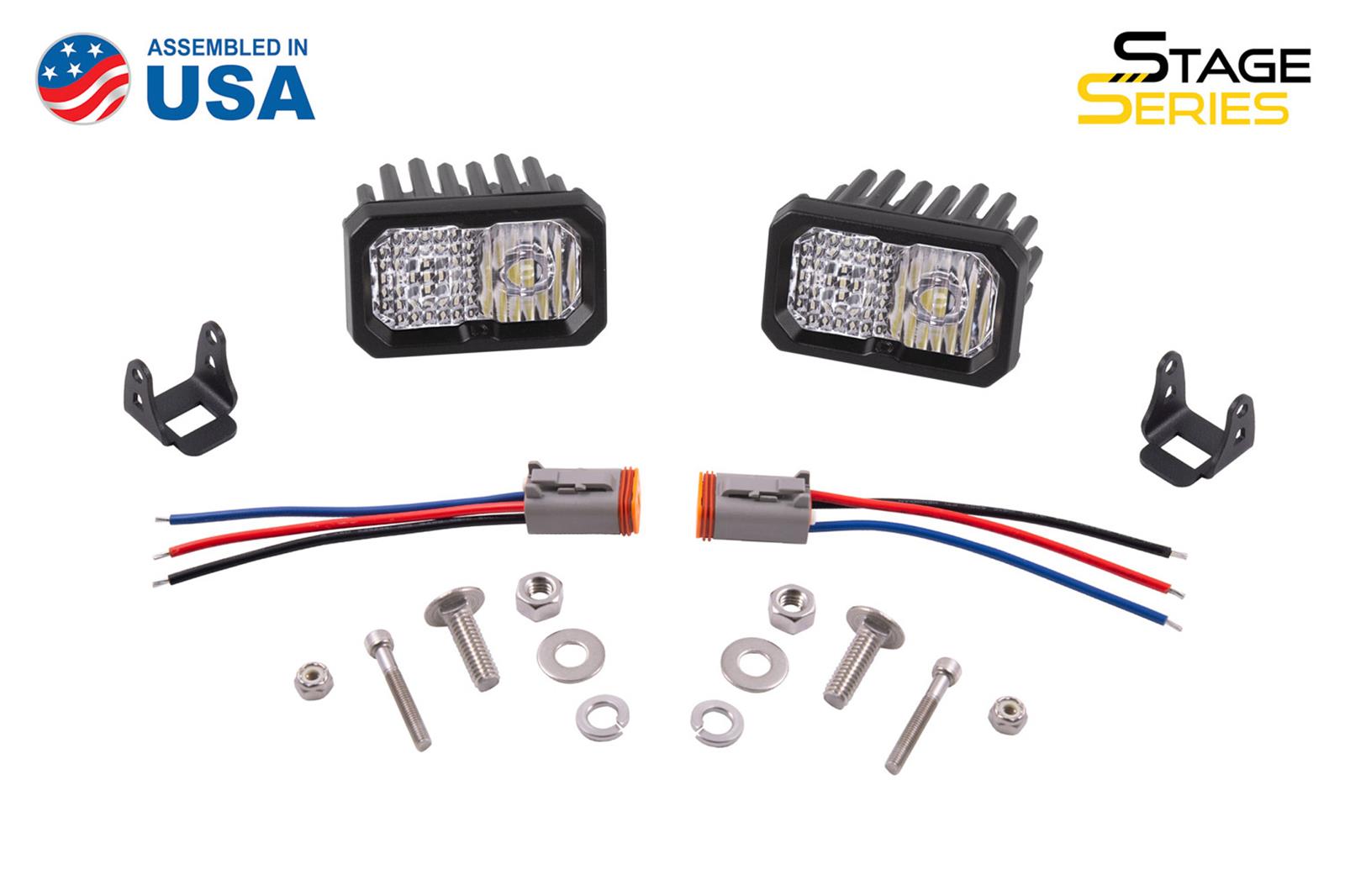

* Custom-molded DT type Deutsch-style connector on the back and comes with a 6 in. pigtail with bare leads—for installation, you can wire yourself, use an off-the-shelf Deutsch DT sized wire harness, or select an optional Diode Dynamics wire harness (sold separately)
* Proven reliability—Stage Series 2 LED lighting has been extensively tested for long-term operation from -40 to 185 degrees F, along with vibration, moisture intrusion, and corrosion testing
Part Type
Light Bars, Light Pods and Fog Lights
Specifications
- Product Attributes - Brand
- Diode Dynamics
- Product Attributes - Manufacturer's Part Number
- DD6387P
- Product Attributes - Part Type
- Light Bars, Light Pods and Fog Lights
- Product Attributes - Product Line
- Diode Dynamics Stage Series 2 Light Pods
- Product Attributes - UPC
- 00691026125640
- Product Attributes - Light Type
- Light pod
- Product Attributes - Bulb Type
- LED
- Product Attributes - Light Pod Type
- Rectangular
- Product Attributes - Optics Style
- Driving/Fog
- Product Attributes - Light Pod Size
- 2 in. x 3 in.
- Product Attributes - Watts
- 7.7/0.7 watts
- Product Attributes - Amp Draw
- 0.60 amps
- Product Attributes - Maximum Voltage
- 16 V
- Product Attributes - Lumens
- 871
- Product Attributes - Beam Distance
- 175.00 m
- Product Attributes - Beam Pattern
- 40/20 degree
- Product Attributes - Number of LEDs
- 2
- Product Attributes - Bulb Color
- White
- Product Attributes - Lens Color
- Clear
- Product Attributes - Housing Color
- Matte black
- Product Attributes - Housing Material
- Aluminum
- Product Attributes - Light Cover Included
- No
- Product Attributes - Hardware Included
- Yes
- Product Attributes - Relay Included
- No
- Product Attributes - Wiring Harness Included
- No
- Product Attributes - Quantity
- Sold as a pair.
- Product Attributes - Notes
- Has white backlighting.
Reference Information
| Brand Name/s | Diode Dynamics |
|---|---|
| StreetFX SKU | dioDD6387P |
| SFX Item ID | 4779097 |
| Supplier Item Code | 4779097 |
| Manufacturer SKU | DD6387P |
| Manufacturer UPC | 691026125640 |
| Alternative References | DOD-DD6387P, SSC2 |
