FeaturesHigh-performance OEM-grade replacementCustom-engineered optic provides extremely wide intense light outputDistinctive integrated amber backlightRoad-legal fog light (SAE F3 compliant)Plug and play main beam no modification neededEngineered and assembled in USAOverviewIntroducing the Elite Series Fog Lamps: the first OE-style fog lights that were designed for true performance. With a custom-engineered patent-pending optic multi-die automotive emitters and high-power full-copper circuit boards the Elite Series fog light delivers up to 5 times more output than halogen lamps. With a plug-and-play installation this is one of the easiest and most effective upgrades you can make to improve your visibility in inclement weather.Output that Outperforms. The Elite Series Fog Lamp optic produces a light pattern that is wider than any other aftermarket fog lamp on the market with an 80-degree spread of highly intense light. Even with this extremely wide band of light the pattern is extremely smooth throughout with an extremely sharp cutoff to avoid glare to other drivers including a BMW-style color flicker at the very edge of the pattern. Diode Dynamics engineers accomplished all this while still meeting SAE F3 fog light standards for legal on-road use. Please check your local laws and regulations for aiming installation and applicability.Backlight Functionality. All Elite Series Fog Lamps come standard with an integrated amber accent light. This backlight feature fully illuminates the main lens with amber LEDs. This feature can be wired to any constant 12-volt source for your desired vehicle function using the included tap connector. It will shut off automatically if the main beam is activated. Check local laws and regulations for acceptable use.

Additional Information

Introducing the Elite Series Fog Lamps: the first OE-style fog lights that were designed for true performance. Featuring a custom-engineered patent-pending optic multi-die automotive emitters and high-power full-copper circuit boards.

Part Type

Fog Light Assembly

Features and Benefits

• Custom-engineered optic provides extremely wide intense light output
• Distinctive amber backlight
• High-performance OEM-grade replacement
• Plug and play main beam no modification needed
• Road-legal fog light (SAE F3 compliant)

Product Details

Product Downloads

#	Document Type	Download
1.	Installation Instructions

Installation guides, warranty details, and other supporting documents are provided by the supplier. In some cases, these files may originate from regions outside your locale, meaning instructions, warranty procedures, and images may not fully align with your specific vehicle or region (e.g., LHD vs. RHD differences, return policies, etc.). If you need clarification, please contact a StreetFX support agent.

• Custom-engineered optic provides extremely wide intense light output
• Distinctive amber backlight
• High-performance OEM-grade replacement
• Plug and play main beam no modification needed
• Road-legal fog light (SAE F3 compliant)

Diode Dynamics Elite Series fog lamps are direct replacements for your vehicle's fog lamp housings. Factory fog lights are built to meet minimum output requirements. The Elite Series are the first OE-style fog lights that were designed for true performance. With a custom-engineered patent-pending optic, multi-die automotive emitters, and high-power full-copper circuit boards, each Elite Series fog light delivers up to 5x more output than halogen lamps. With a plug-and-play installation, this is one of the easiest and most effective upgrades you can make to improve your visibility in inclement weather.

Elite Series fog lamps are built around a highly-engineered single-piece PMMA lens. This optic was carefully designed using advanced optical simulation software to produce a light pattern that's wider than any other aftermarket fog lamp on the market, with an 80-degree spread of highly intense light. Even with this wide band of light, the pattern is extremely smooth throughout, with a sharp cutoff to avoid glare to other drivers--including a BMW-style "color flicker" at the very edge of the pattern. Diode Dynamics engineers accomplished all this while still meeting SAE F3 fog light standards for legal on-road use.

These fog lamps are available in a cool white or selective yellow output color. The white is a 6000K color temperature, which is a true cool white output. This will perfectly match other LEDs on your vehicle, such as DRLs or running lights. The white option also offers a premium BMW-style color band at the very top of the beam pattern. The selective yellow option is 3000K in color temperature, which is great for high contrast in inclement weather or in providing a distinctive look on the road. The yellow lamp consists of a yellow multi-die LED emitter paired with a yellow-tinted lens, to provide unmatched output and optical efficiency, even with the intense yellow output.

Elite Series fog lamps come standard with an integrated amber accent light. This backlight feature fully illuminates the main lens with amber LEDs, intended to match other position, side marker, or corner lights on your vehicle. This feature can be wired to any constant 12 V source for your desired vehicle function, using the included tap connector. It will shut off automatically if the main beam is activated. Check local laws and regulations for acceptable use.

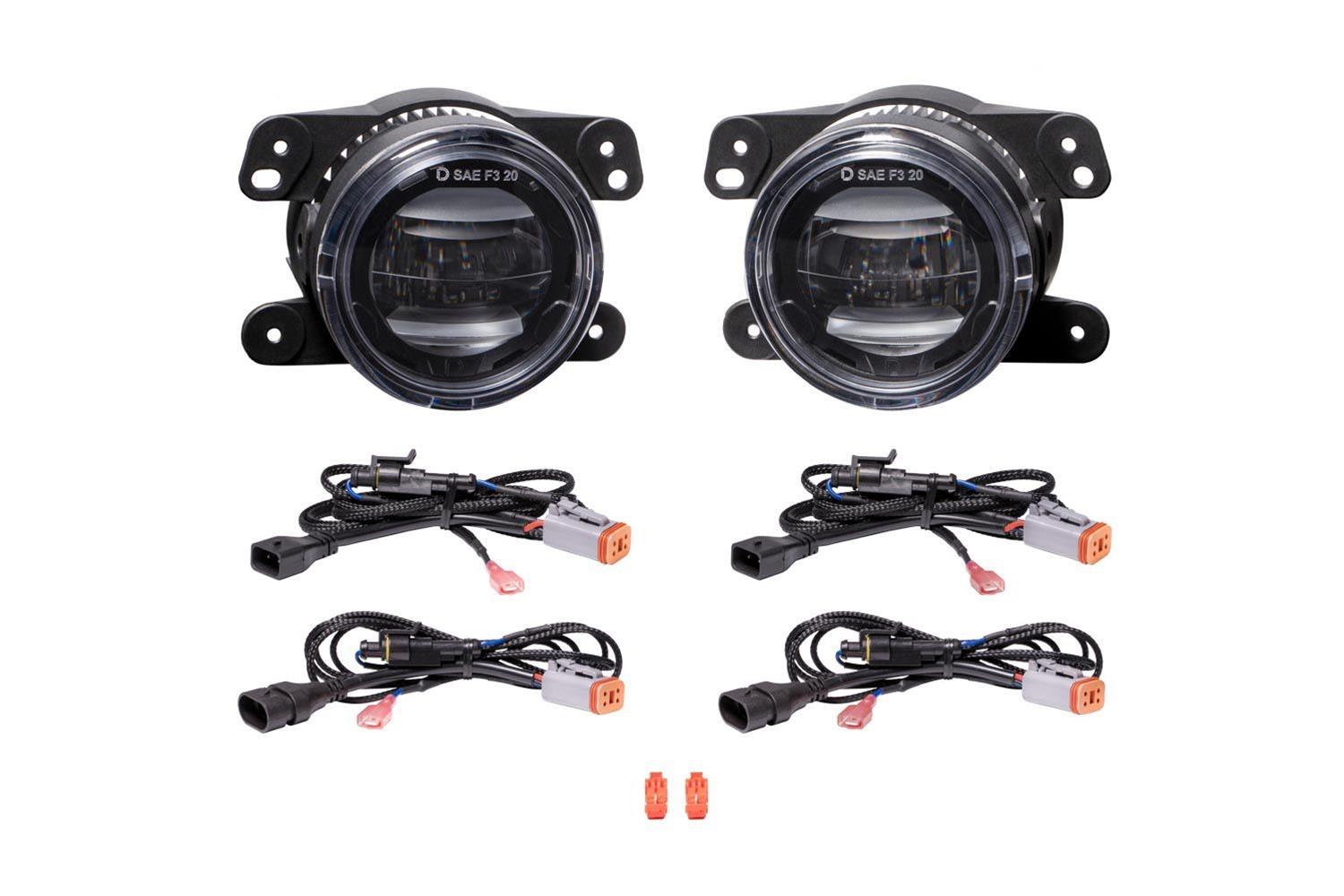

The fog lamps can be installed on most vehicles in minutes. Simply remove your factory fog light assemblies, and the Elite Series replacements will bolt right in their place, using sturdy glass fiber-reinforced brackets. With built-in adjustment, the lamps can be aimed after installation. To wire them up, a pair of waterproof plug-and-play adapters are included to connect the lights to your factory bulb sockets. Order the models recommended for your vehicle.

Please note that this information serves as a fitment guide only. For specific fitment questions or clarifications, please contact us, as manufacturers may introduce variations and modifications during model year or regional revisions. While we strive to provide accurate data, fitment details may vary by region; therefore, compatibility outside the listed region and submodel variant cannot be guaranteed.

Detailed Compatibility

This may not be an exhaustive list of compatible vehicles. Please reach out to one of our representatives if you are unsure or do not see your vehicle here.
