Diode Dynamics 21-Up Ford Bronco Stage Series Fog Pocket Kit - Yellow Max
Diode Dynamics 21-Up Ford Bronco Stage Series Fog Pocket Kit - Yellow Max
A$2,858.41
Available from MFR.
This item is available from the manufacturer's distribution centre. The dispatch timeframe shown is an estimate based on historical order processing and release times for this part. This item is not held in our own warehouse, and actual dispatch timing may vary depending on manufacturer workload and logistics at the time of ordering.
We accept
Description
Features Bolt-on fitment compatible with Ford Bronco 2021+ with steel bumper. Adds SAE-compliant fog lights and powerful offroad lighting. Harnesses included for independent control of road-legal and offroad lighting. Backlight feature provides amber accent light. Highly durable powdercoated stainless steel bracket. Engineered and assembled in USA. Overview. The Stage Series Fog Pocket Kit compatible with Ford Bronco 2021+ from Diode Dynamics allows you to mount two SS3 LED Pods and four SSC2 LED pods in the factory bumper openings. This kit adds some serious functionality to your Bronco with both road-legal fog lights and powerful offroad lighting. This kit includes application-specific brackets that were CAD-designed to install using factory mounting points. No cutting or drilling required! Lighting for Every Situation. This kit includes two SS3 LED Pods in the fog beam pattern and four SSC2 LED pods in the combo beam pattern. This combination gives you different options whether you are on or offroad. All options use high-intensity LED emitters and TIR optics for unmatched focus and overall output. Separate Switches. With the included harnesses the two SS3 pods and four SSC2 pods in this kit can be controlled independently allowing you to switch between road-legal fog lights and offroad lights. This kit allows the SS3 fog pods to operate in the same way factory fog lights do automatically turning on when they are switched on and when your headlights are turned on. The off-road lights in this kit can be controlled either through factory aux switches or the included 3-way toggle switch. SAE Compliant. When installed as a pair and aimed in accordance with your state's regulations the Fog pattern meets SAE J583 standard as a Foglamp for legal on-road use.
Product Overview
Features
Bolt-on fitment compatible with Ford Bronco 2021+ with steel bumper.
Adds SAE-compliant fog lights and powerful offroad lighting.
Harnesses included for independent control of road-legal and offroad lighting.

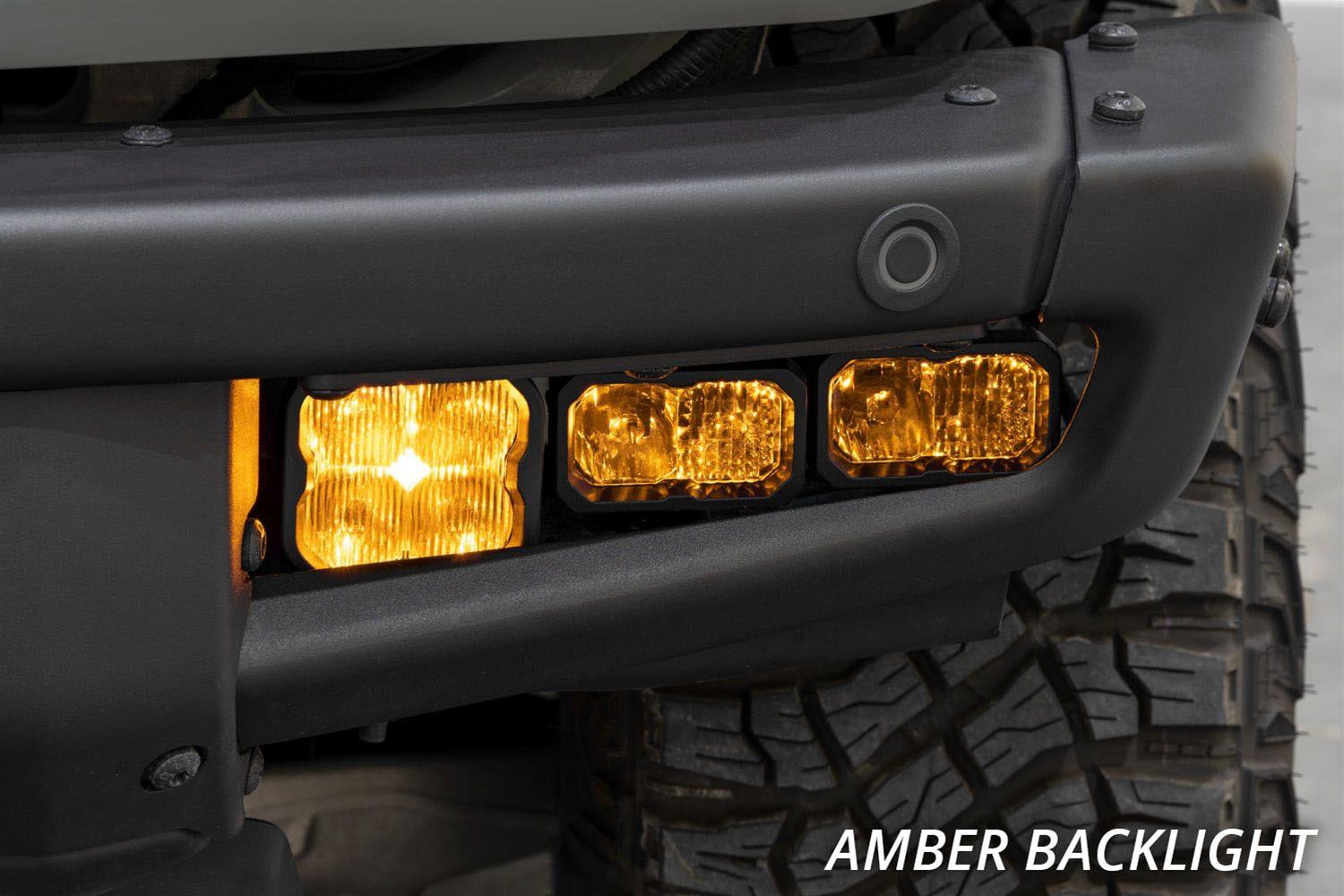

Backlight feature provides amber accent light.
Highly durable powdercoated stainless steel bracket.
Engineered and assembled in USA.

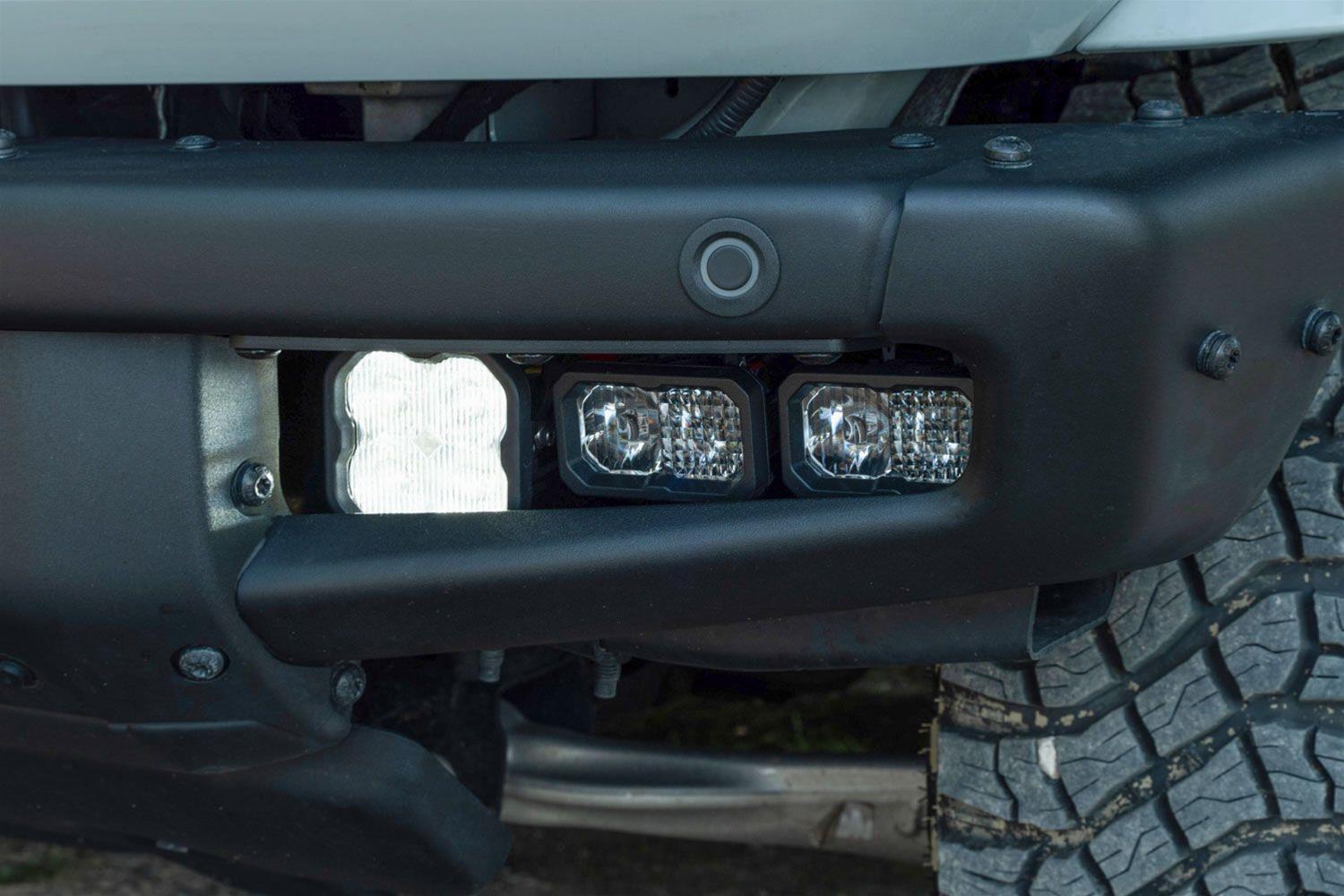

Overview. The Stage Series Fog Pocket Kit compatible with Ford Bronco 2021+ from Diode Dynamics allows you to mount two SS3 LED Pods and four SSC2 LED pods in the factory bumper openings. This kit adds some serious functionality to your Bronco with both road-legal fog lights and powerful offroad lighting. This kit includes application-specific brackets that were CAD-designed to install using factory mounting points. No cutting or drilling required!
Lighting for Every Situation. This kit includes two SS3 LED Pods in the fog beam pattern and four SSC2 LED pods in the combo beam pattern. This combination gives you different options whether you are on or offroad. All options use high-intensity LED emitters and TIR optics for unmatched focus and overall output.

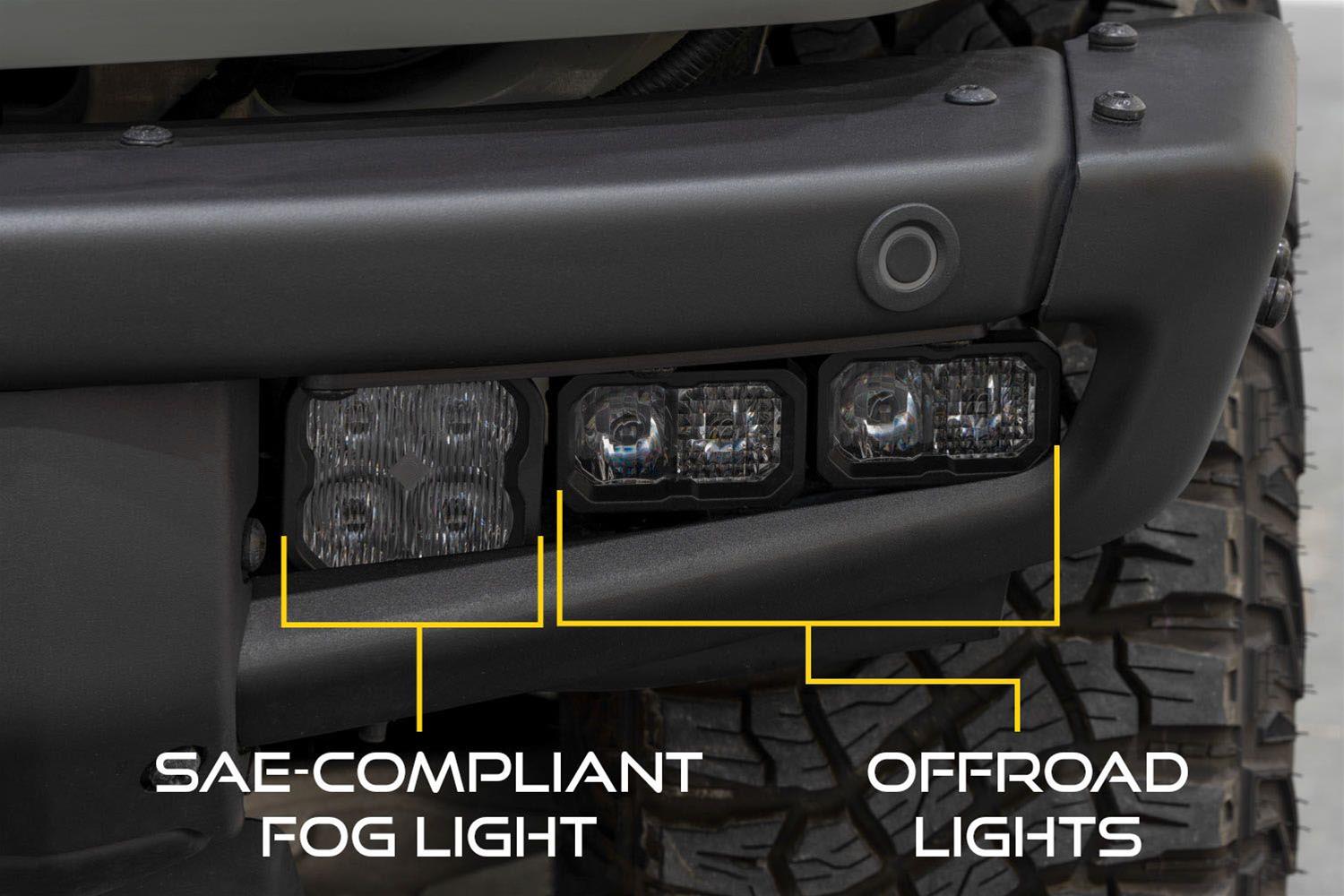

Separate Switches. With the included harnesses the two SS3 pods and four SSC2 pods in this kit can be controlled independently allowing you to switch between road-legal fog lights and offroad lights. This kit allows the SS3 fog pods to operate in the same way factory fog lights do automatically turning on when they are switched on and when your headlights are turned on. The off-road lights in this kit can be controlled either through factory aux switches or the included 3-way toggle switch.
SAE Compliant. When installed as a pair and aimed in accordance with your state's regulations the Fog pattern meets SAE J583 standard as a Foglamp for legal on-road use.
Features and Benefits
- Advanced TIR optics provide high efficiency and focus
- High-intensity automotive-type LEDs
- Pin-fin heatsink design
- Integrated Deutsch-style connector
- Durable powdercoated aluminum construction
Product Details
| 812: | No |
|---|---|
| Add-On: | N/A |
| Bracket Color: | Black |
| Bulb Quantity: | 0 |
| Bulbs Included: | 0 |
| Color Temp: | 3000K |
| Compliance Rating: | SAE J583 Foglamp Beam Pattern |
| DOT Approved: | Yes |
| Description: | Pod light featuring advanced TIR optics for high efficiency and focus. |
| Fog Light Lens Color: | Yellow |
| Grade Type: | Performance |
| Housing Material: | Aluminum |
| Input Power (watts): | SSC2: 25.6 SS3: 38.5 |
| Intensity (lux): | SSC2: 27 000 cd SS3: 12 500 cd |
| Intrusion Rating: | IP69K Waterproof High Pressure |
| Lens Material: | Polycarbonate |
| Light Housing Color: | Black |
| Light Shape: | Rectangular |
| Measured Output (lumens): | SSC2: 1 988 lm SS3: 3 500 lm |
| Mounting Hardware Included: | Yes |
| Operating Temperature: | -40C to 85C (-40F to 185F) |
| Operating Voltag: | 9-16V |
| Operating Voltage: | 9-16V |
| Part Number: | dioDD7183 |
| Prop 65 Yes/No: | Yes |
| Street Legal: | Yes |
| Terminal Type: | Pin |
| Voltage: | 9-16V |
| Wattage: | 38.5 |
Part Type
Fog Light Kit
Features
- Advanced TIR optics provide high efficiency and focus
- Durable powdercoated aluminum construction
- High-intensity automotive-type LEDs
- Integrated Deutsch-style connector
- Pin-fin heatsink design
Specifications
- Product Attributes - Brand
- Diode Dynamics
- Product Attributes - Manufacturer's Part Number
- DD7183
- Product Attributes - Part Type
- Light Bars, Light Pods and Fog Lights
- Product Attributes - UPC
- 00691025930832
Reference Information
| Brand Name/s | Diode Dynamics |
|---|---|
| StreetFX SKU | dioDD7183 |
| SFX Item ID | 4186973 |
| Supplier Item Code | 4186973 |
| Manufacturer SKU | DD7183 |
| Manufacturer UPC | 691025930832 |
| Alternative References | DODDD7183, 21-Up |
