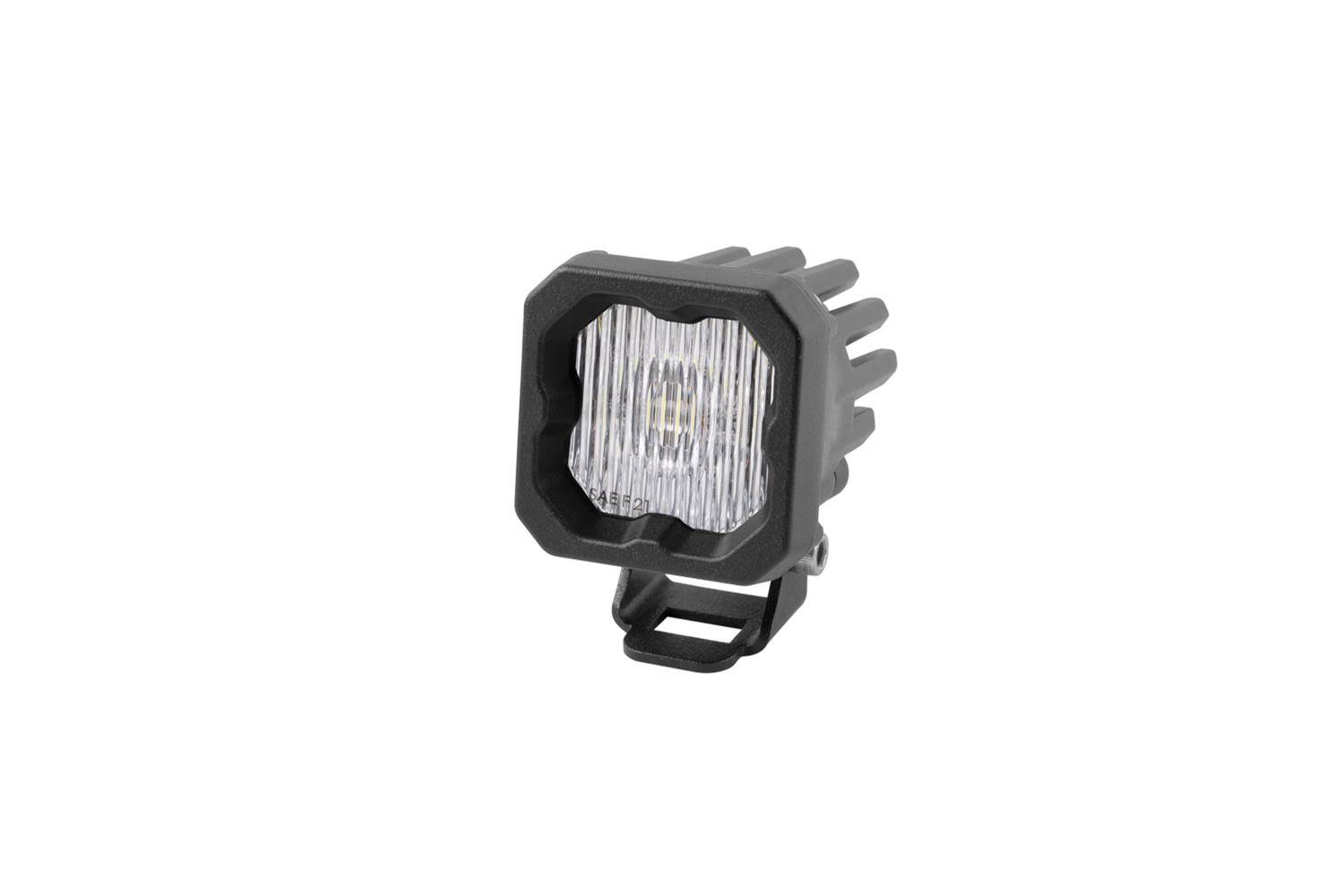

Diode Dynamics Stage Series C1 LED Pod - White SAE Fog Standard ABL Each
Diode Dynamics Stage Series C1 LED Pod - White SAE Fog Standard ABL Each
A$268.21
Available from MFR.
This item is available from the manufacturer's distribution centre. The dispatch timeframe shown is an estimate based on historical order processing and release times for this part. This item is not held in our own warehouse, and actual dispatch timing may vary depending on manufacturer workload and logistics at the time of ordering.
We accept
Description
IMPORTANT NOTICE: Note for Australian & European MarketsThis product is designed and tested for the US domestic market, and certain features may not be compatible with or compliant to regulations in other countries. For example, some lighting products may need modification to meet transportation standards or may not comply with local laws. References to SAE and DOT refer to US standards & requirements and may not be directly comparable to Australian requirements. For vehicles outside North America, lights may require modification by an auto electrician. Wiring, lamp colour, beam pattern, connectors, or relays may differ from those used in some North American models. Please review all images and descriptions carefully to ensure this product suits your requirements. Returns are not accepted for special-order products.(keyword: led)Images are supplied by the manufacturer and may be generic. While all efforts are made to provide accurate pictures, there may be differences in the actual product, such as colour, quantity, version, or included components. Please carefully review the description and specifications for details on inclusions or any variations. Some items may be sold individually or in sets, and images may occasionally depict additional products or quantities not included in your purchase. For assistance or clarification, please contact customer support.Reference Information Reference Data (Provide these details to our support team) Brand Name/s Diode Dynamics, Diode Dynamics Llc StreetFX SKU dioDD6847S SFX Item ID 4186878 Accounting SKU dio-DD6847S Manufacturer SKU DD6847S Manufacturer UPC 691026130231 Alternative References DOD-DD6847S, DODDD6847S
Mod TIR Pod Light

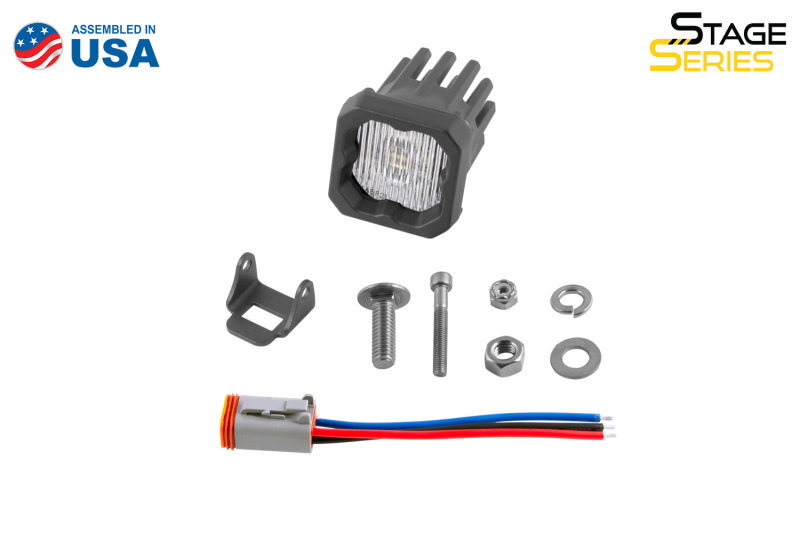

FeaturesUltra-compact single-LED form factorSAE-compliant road-legal outputSingle automotive-grade Osram HX Boost 20-watt LEDBacklighting available in white and amberIntegrated Deutsch-style connectorDesigned torture-tested and assembled in USAOverviewIntroducing the Stage Series C1 LED Pod! Featuring custom-engineered TIR optics combined with a single high-power LED chip these pods have been designed for maximum performance and light output in our most compact versatile package yet. The SSC1 can be mounted virtually anywhere on your car truck motorcycle or UTV including spots where larger LED pods won't fit.Focused. Traditional optics like reflectors or simple lenses lose light internally and to glare so not all of the light shines on target. Instead the custom-engineered TIR optic in the Stage Series C1 collects all of the light from the LED and directs it only where you need it drastically reducing glare and improving total efficiency.Simple connections. All Stage Series C1 LED pods feature a custom-molded DT type Deutsch-style connector on the back and come with a 6-inch pigtail with bare leads.Backlight Functionality The Stage Series C1 LED Pod includes a distinctive backlight feature as well. The SSC1's backlight fully illuminates the TIR optic providing a more unique and modern look than the small indicator LEDs found in other products.Proven Reliability. Stage Series LED lighting has been extensively tested for long-term operation from -40 to 185 degrees F along with vibration moisture intrusion and corrosion testing. All of these tests are completed to SAE standards just like factory components. They've also been put to the test on-road by racers and enthusiasts alike.
Additional Information
Featuring custom-engineered TIR optics combined with a single high-power LED chip these pods have been designed for maximum performance and light output in our most compact versatile package yet.
Part Type
Auxiliary Light
Features and Benefits
- Durable powdercoated aluminum construction
- High-intensity automotive-type LEDs
- Integrated Deutsch-style connector
- Modern TIR optics for the highest intensity on the market
- Pin-fin heatsink design
Product Details
| Base Color: | Black |
| Base Material: | Steel |
| Beam Angle: | Fog 98°x9° |
| Bolt Grade: | High |
| Bolt Thread Type: | Medium |
| Color Temp: | 6000K |
| Compliance Rating: | SAE J583 Foglamp Beam Pattern |
| Description: | Pod light featuring modern TIR optics for the highest intensity on the market. |
| Drilling Required: | No |
| Grade Type: | Performance |
| Input Power (watts): | Main Beam: 19.2 Backlight: .3 |
| Intensity (lux): | 6 000 cd |
| Intrusion Rating: | IP69K Waterproof High Pressure |
| Light Beam Pattern: | Fog |
| Mounting Hardware Included: | Yes |
| Operating Temperature: | -40C to 85C (-40F to 185F) |
| Operating Voltag: | 9-16V |
| Part Number: | dioDD6847S |
| Push or Twist Type: | Push Type |
| Raw Output (lumens): | 1 980 |
| Sheen Level: | Matte |
| Universal Or Specific Fit: | Specific |
| Voltage: | 9-16V |
| Wattage: | 19 |
Product Overview
Product Downloads
| # | Document Type | Download |
|---|---|---|
| 1. | Installation Instructions |
|
Installation guides, warranty details, and other supporting documents are provided by the supplier. In some cases, these files may originate from regions outside your locale, meaning instructions, warranty procedures, and images may not fully align with your specific vehicle or region (e.g., LHD vs. RHD differences, return policies, etc.). If you need clarification, please contact a StreetFX support agent.
Product Overview
FeaturesUltra-compact single-LED form factorSAE-compliant road-legal outputSingle automotive-grade Osram HX Boost 20-watt LEDBacklighting available in white and amberIntegrated Deutsch-style connectorDesigned torture-tested and assembled in USAOverviewIntroducing the Stage Series C1 LED Pod! Featuring custom-engineered TIR optics combined with a single high-power LED chip these pods have been designed for maximum performance and light output in our most compact versatile package yet. The SSC1 can be mounted virtually anywhere on your car truck motorcycle or UTV including spots where larger LED pods won't fit.Focused. Traditional optics like reflectors or simple lenses lose light internally and to glare so not all of the light shines on target. Instead the custom-engineered TIR optic in the Stage Series C1 collects all of the light from the LED and directs it only where you need it drastically reducing glare and improving total efficiency.Simple connections. All Stage Series C1 LED pods feature a custom-molded DT type Deutsch-style connector on the back and come with a 6-inch pigtail with bare leads.Backlight Functionality The Stage Series C1 LED Pod includes a distinctive backlight feature as well. The SSC1's backlight fully illuminates the TIR optic providing a more unique and modern look than the small indicator LEDs found in other products.Proven Reliability. Stage Series LED lighting has been extensively tested for long-term operation from -40 to 185 degrees F along with vibration moisture intrusion and corrosion testing. All of these tests are completed to SAE standards just like factory components. They've also been put to the test on-road by racers and enthusiasts alike.
Features and Benefits
- Modern TIR optics for the highest intensity on the market
- High-intensity automotive-type LEDs
- Pin-fin heatsink design
- Integrated Deutsch-style connector
- Durable powdercoated aluminum construction
Product Details
| Add-On: | N/A |
|---|---|
| Base Color: | Black |
| Base Material: | Steel |
| Beam Angle: | Fog 98°x9° |
| Bolt Grade: | High |
| Bolt Thread Type: | Medium |
| Color Temp: | 6000K |
| Compliance Rating: | SAE J583 Foglamp Beam Pattern |
| Description: | Pod light featuring modern TIR optics for the highest intensity on the market. |
| Drilling Required: | No |
| Grade Type: | Performance |
| Input Power (watts): | Main Beam: 19.2 Backlight: .3 |
| Intensity (lux): | 6 000 cd |
| Intrusion Rating: | IP69K Waterproof High Pressure |
| Light Beam Pattern: | Fog |
| Mounting Hardware Included: | Yes |
| Operating Temperature: | -40C to 85C (-40F to 185F) |
| Operating Voltag: | 9-16V |
| Part Number: | dioDD6847S |
| Prop 65 Yes/No: | Yes |
| Push or Twist Type: | Push Type |
| Raw Output (lumens): | 1 980 |
| Sheen Level: | Matte |
| Universal Or Specific Fit: | Specific |
| Voltage: | 9-16V |
| Wattage: | 19 |
Part Type
Auxiliary Light
Features
- Durable powdercoated aluminum construction
- High-intensity automotive-type LEDs
- Integrated Deutsch-style connector
- Modern TIR optics for the highest intensity on the market
- Pin-fin heatsink design
Specifications
LED Light, Stage Series C1 LED Pod White SAE/DOT Fog Standard ABL (one)
| Product Attributes | |
|---|---|
| Brand | Diode Dynamics |
| Manufacturer's Part Number | DD6847S |
| Part Type | Light Bars, Light Pods and Fog Lights |
| UPC | 00691026130231 |
Product Details
| Add-On: | N/A |
|---|---|
| Base Color: | Black |
| Base Material: | Steel |
| Beam Angle: | Fog 98°x9° |
| Bolt Grade: | High |
| Bolt Thread Type: | Medium |
| Color Temp: | 6000K |
| Compliance Rating: | SAE J583 Foglamp Beam Pattern |
| Description: | Pod light featuring modern TIR optics for the highest intensity on the market. |
| Drilling Required: | No |
| Grade Type: | Performance |
| Input Power (watts): | Main Beam: 19.2 Backlight: .3 |
| Intensity (lux): | 6 000 cd |
| Intrusion Rating: | IP69K Waterproof High Pressure |
| Light Beam Pattern: | Fog |
| Mounting Hardware Included: | Yes |
| Operating Temperature: | -40C to 85C (-40F to 185F) |
| Operating Voltag: | 9-16V |
| Part Number: | dioDD6847S |
| Prop 65 Yes/No: | Yes |
| Push or Twist Type: | Push Type |
| Raw Output (lumens): | 1 980 |
| Sheen Level: | Matte |
| Universal Or Specific Fit: | Specific |
| Voltage: | 9-16V |
| Wattage: | 19 |
Reference Information
| Brand Name/s | Diode Dynamics |
|---|---|
| StreetFX SKU | dioDD6847S |
| SFX Item ID | 4186878 |
| Supplier Item Code | 4186878 |
| Manufacturer SKU | DD6847S |
| Manufacturer UPC | 691026130231 |
| Alternative References | DODDD6847S |
