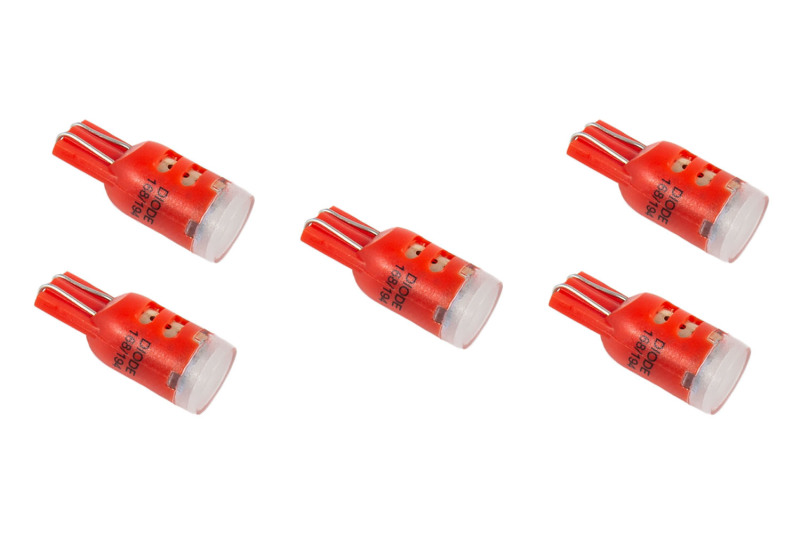

Diode Dynamics 194 LED Bulb HP5 - Red (five)
Diode Dynamics 194 LED Bulb HP5 - Red (five)
A$121.87
Available from MFR.
This item is available from the manufacturer's distribution centre. The dispatch timeframe shown is an estimate based on historical order processing and release times for this part. This item is not held in our own warehouse, and actual dispatch timing may vary depending on manufacturer workload and logistics at the time of ordering.
We accept
Description

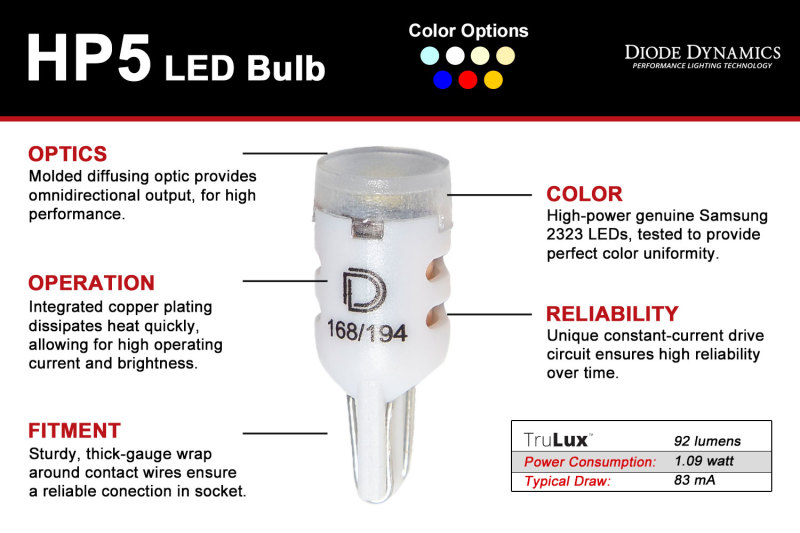

194 HP5 LED Features Diffused lens design for even spread Proven performance highly reliable Increased output with LED Appearance Plug and play simple installation Overview Design. The 194 HP5 LED bulb is a high-power LED in a small package. With copper inserts for heat dissipation the total output far exceeds the original bulb with a single diffused optic to spread light evenly. With its dual-lead contacts it will fit snugly in the socket as a direct plug-and-play replacement. Reliability. Unlike other bulbs on the market this bulb is built with constant-current circuitry along with transient suppression. That means this bulb will last for years not months with no flickering or failure. And like every Diode Dynamics product it's backed by an industry-leading three-year replacement warranty. Brightness. At 92 lumens the HP5 will provide about triple the total light compared to your original 5W 194 or 168 sized bulb. This is quite a lot of light especially if you have multiple bulbs installed. If you're not looking for something this bright we recommend its little brother the HP3. Colors. In addition to vibrant colors of blue red amber and green the 194 HP5 is available in a number of white color options. These include a cool white 6000K warm white 3000K a 5000K or pure white and a 4000K or natural white. Whether you want a modern cool white appearance or a traditional warm white color with more output we have the color to fit your need!
Product Overview
194 HP5 LED Features Diffused lens design for even spread Proven performance highly reliable Increased output with LED Appearance Plug and play simple installation Overview Design. The 194 HP5 LED bulb is a high-power LED in a small package. With copper inserts for heat dissipation the total output far exceeds the original bulb with a single diffused optic to spread light evenly. With its dual-lead contacts it will fit snugly in the socket as a direct plug-and-play replacement. Reliability. Unlike other bulbs on the market this bulb is built with constant-current circuitry along with transient suppression. That means this bulb will last for years not months with no flickering or failure. And like every Diode Dynamics product it's backed by an industry-leading three-year replacement warranty. Brightness. At 92 lumens the HP5 will provide about triple the total light compared to your original 5W 194 or 168 sized bulb. This is quite a lot of light especially if you have multiple bulbs installed. If you're not looking for something this bright we recommend its little brother the HP3. Colors. In addition to vibrant colors of blue red amber and green the 194 HP5 is available in a number of white color options. These include a cool white 6000K warm white 3000K a 5000K or pure white and a 4000K or natural white. Whether you want a modern cool white appearance or a traditional warm white color with more output we have the color to fit your need!
Features and Benefits
- Direct replacement for your factory bulb
- Molded construction with sturdy double terminals
- Increased output with LED Appearance
- Plug and play simple installation
Product Details
| Add-On: | N/A |
|---|---|
| Average Rated Life: | Information Not Available |
| Bulb Base Type: | 194 |
| Bulb Color: | Red |
| Bulb Finish: | Clear |
| Bulb Material: | Plastic |
| Bulb Technology: | LED |
| Bulb Type: | LED |
| Color Rendering Index (CRI): | Information Not Available |
| DOT Approved: | Yes |
| Description: | Direct replacement for your factory bulb. |
| Filament Quantity: | 1 |
| Filament Type: | LED |
| Part Number: | dioDD0030F |
| Prop 65 Yes/No: | Yes |
| Secondary Filament Type: | No Secondary Filament |
| Secondary Voltage: | No Secondary Voltage |
| Street Legal: | Yes |
| Voltage: | 9-16V |
Part Type
Multi-Purpose Light Bulb
Features
- Direct replacement for your factory bulb
- Increased output with LED Appearance
- Molded construction with sturdy double terminals
- Plug and play simple installation
Specifications
- Product Attributes - Brand
- Diode Dynamics
- Product Attributes - Manufacturer's Part Number
- DD0030F
- Product Attributes - Part Type
- Light Bulbs
- Product Attributes - Product Line
- Diode Dynamics HP5 LED Bulbs
- Product Attributes - UPC
- 00691026121352
- Product Attributes - Bulb Style
- 194
- Product Attributes - Bulb Type
- LED
- Product Attributes - Bulb Color
- Red
- Product Attributes - Street Legal
- Yes
- Product Attributes - Low Beam Wattage
- 1.1 watts
- Product Attributes - Quantity
- Sold as a set of 5.
Reference Information
| Brand Name/s | Diode Dynamics |
|---|---|
| StreetFX SKU | dioDD0030F |
| SFX Item ID | 4186299 |
| Supplier Item Code | 4186299 |
| Manufacturer SKU | DD0030F |
| Manufacturer UPC | 691026121352 |
| Alternative References | DODDD0030F, HP5 |
