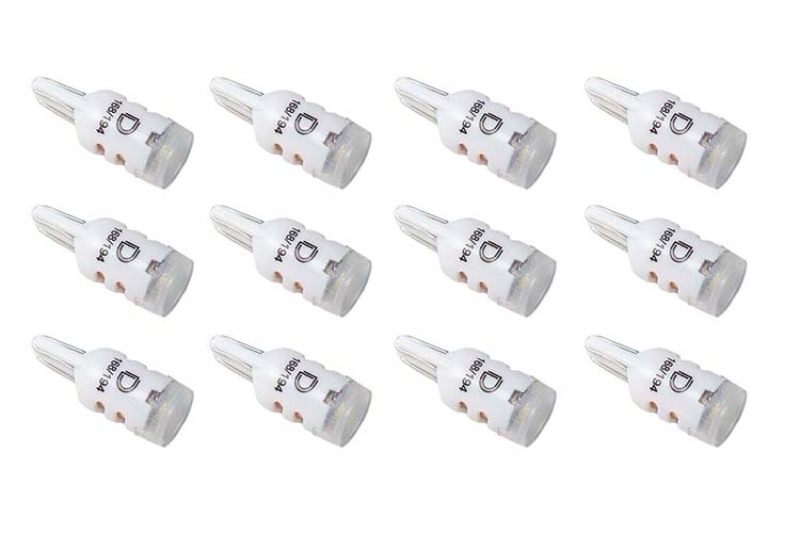

194 HP5 LED Features Diffused lens design for even spread Proven performance highly reliable Increased output with LED Appearance Plug and play simple installation Overview Design. The 194 HP5 LED bulb is a high-power LED in a small package. With copper inserts for heat dissipation the total output far exceeds the original bulb with a single diffused optic to spread light evenly. With its dual-lead contacts it will fit snugly in the socket as a direct plug-and-play replacement. Reliability. Unlike other bulbs on the market this bulb is built with constant-current circuitry along with transient suppression. That means this bulb will last for years not months with no flickering or failure. And like every Diode Dynamics product it's backed by an industry-leading three-year replacement warranty. Brightness. At 92 lumens the HP5 will provide about triple the total light compared to your original 5W 194 or 168 sized bulb. This is quite a lot of light especially if you have multiple bulbs installed. If you're not looking for something this bright we recommend its little brother the HP3. Colors. In addition to vibrant colors of blue red amber and green the 194 HP5 is available in a number of white color options. These include a cool white 6000K warm white 3000K a 5000K or pure white and a 4000K or natural white. Whether you want a modern cool white appearance or a traditional warm white color with more output we have the color to fit your need!

Additional Information

The 194 HP5 LED bulb is a high-power LED in a small package. With copper inserts for heat dissipation the total output far exceeds the original bulb with a single diffused optic to spread light evenly.

Part Type

Multi-Purpose Light Bulb

Features and Benefits

• Direct replacement for your factory bulb
• Increased output with LED Appearance
• Molded construction with sturdy double terminals
• Plug and play simple installation

Product Details

Product Downloads

#	Document Type	Download
1.	Installation Instructions

Installation guides, warranty details, and other supporting documents are provided by the supplier. In some cases, these files may originate from regions outside your locale, meaning instructions, warranty procedures, and images may not fully align with your specific vehicle or region (e.g., LHD vs. RHD differences, return policies, etc.). If you need clarification, please contact a StreetFX support agent.

• Direct replacement for your factory bulb
• Increased output with LED Appearance
• Molded construction with sturdy double terminals
• Plug and play simple installation

Diode Dynamics HP5 LED bulbs are high-power LEDs in a small package with copper inserts for heat dissipation and total output far exceeding the original bulb. They feature a single diffused optic to spread light evenly, and their dual-lead contacts allow them to fit snugly in the socket. In addition to vibrant colors of blue, red, amber, and green—they're also available in a number of white color options. Every pair of Diode Dynamics HP5 LED bulbs offer the vibrant colors, modern cool white, or traditional warm white with exceptionally more output to fit your need!

Features and specs:
• White color options: 3,000K (warm white); 4,000K (natural white); 5,000K (pure white); 6,000K (cool white)
• Applications include map lights, dome lights, side markers, license plates, doors, trunks, and more
• Constant-current circuitry and transient suppression for no flickering/failure reliability
• 92 lumens brightness (nearly triple the factory output of 5 watt 194- or 168-sized bulbs)
• Diffused lens design provides even spread of bright light no matter the mounting orientation
• Simple plug-and-play installation
• Omnidirectional (270 degrees)
• 1.09 watts of power consumption
• 9 to 16 V (typical draw of 0.083 amps at 13.2 V)
• -40 to 185 degrees F (-40 to 85 degrees C) operating temperature

Please note that this information serves as a fitment guide only. For specific fitment questions or clarifications, please contact us, as manufacturers may introduce variations and modifications during model year or regional revisions. While we strive to provide accurate data, fitment details may vary by region; therefore, compatibility outside the listed region and submodel variant cannot be guaranteed.

Detailed Compatibility

This may not be an exhaustive list of compatible vehicles. Please reach out to one of our representatives if you are unsure or do not see your vehicle here.
