DEI EXO Series Sleeve 3/8in ID x 3ft - Black
DEI EXO Series Sleeve 3/8in ID x 3ft - Black
A$83.01
Available from MFR.
This item is available from the manufacturer's distribution centre. The dispatch timeframe shown is an estimate based on historical order processing and release times for this part. This item is not held in our own warehouse, and actual dispatch timing may vary depending on manufacturer workload and logistics at the time of ordering.
We accept
Description

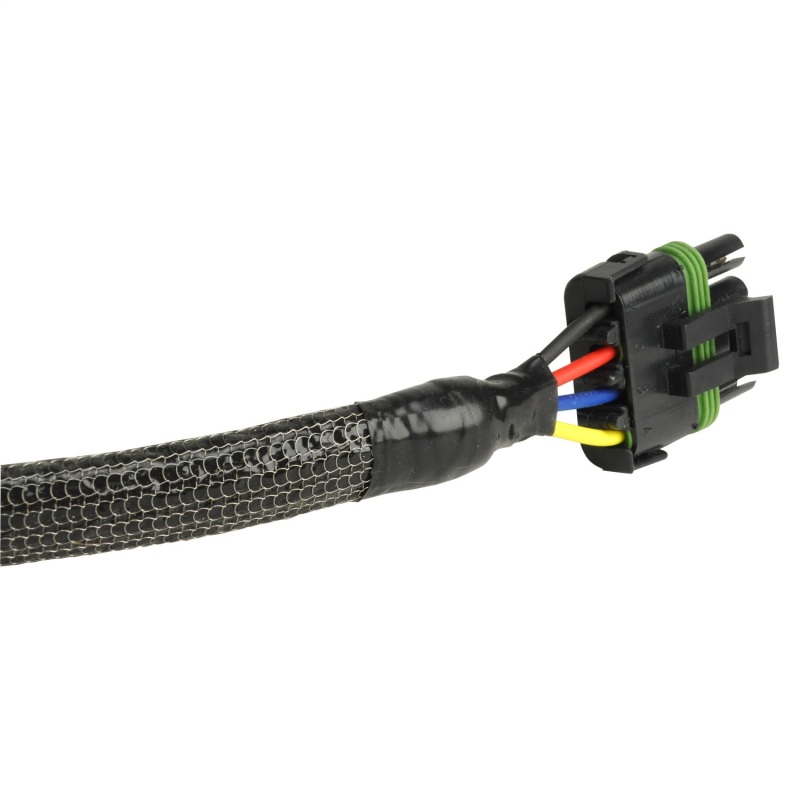

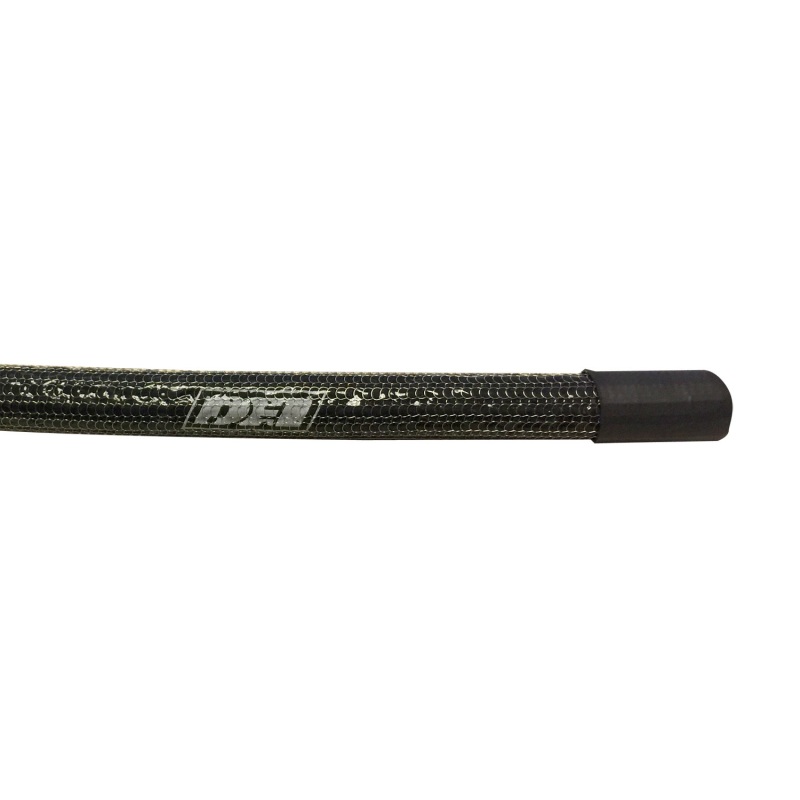

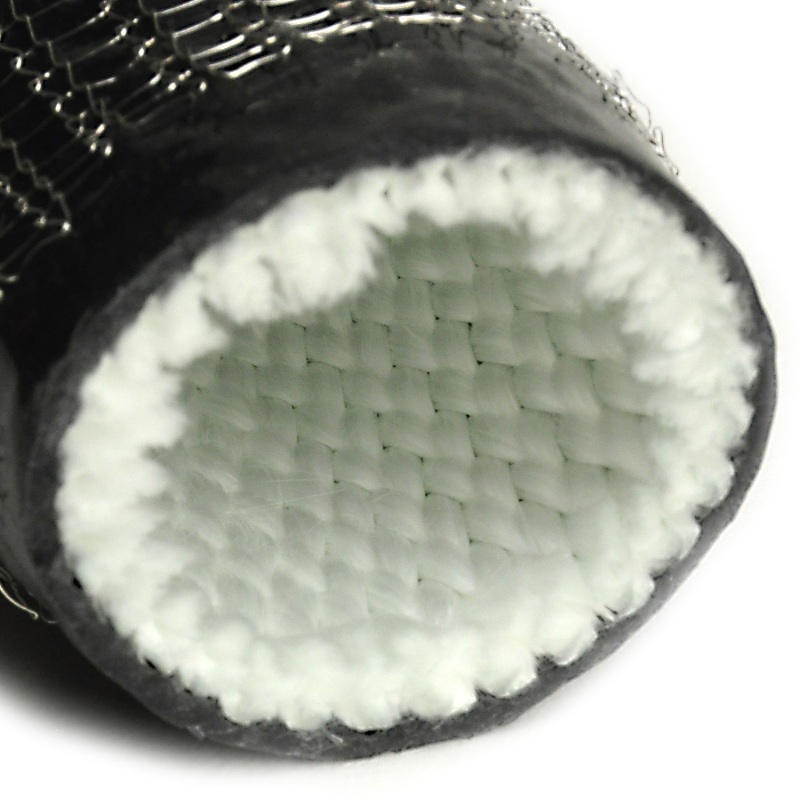

A high temperature resistant braided glass material, woven into a sleeve and heavily coated with 100% silicone rubber with 304 stainless mesh outer covering, EXO Sleeve provides the ultimate in heat insulation and protection from direct heat up to 500°F. Silicone glass sleeve (DEI Fire Sleeve) surrounded by 304 stainless mesh outer coating Allows direct contact to heat source Highly abrasion resistant Provides air flow around sleeve Perfect for insulating wiring, hoses, oil / brake / transmission lines & more Size: 0.375 (3/8) inch x 36 inches Fitment Chart AN Conversion Chart AN Size Metal Tube O.D. Thread Size 2 1/8 in. 5/16 24 SAE 3 3/16 in. 3/8 24 SAE 4 1/4 in. 7/16 20 SAE 5 5/16 in. 3/8 18 SAE 6 3/8 in. 9/16 18 SAE 8 1/2 in. 3/4 16 SAE 10 5/8 in. 7/8 14 SAE 12 3/4 in. 1-1/16 12 SAE 16 1 in. 1-5/16 12 SAE 20 1-1/4 in. 1-5/8 12 SAE 24 1-1/2 in. 1-7/8 12 SAE 28 1-3/4 in. 2-1/4 12 SAE 32 2 in. 2-1/2 12 SAE Fire Sleeve Application Chart Part# Name Line Size* 10470 3/8 in. Fire Sleeve 3AN4AN6AN 10472 5/8 in. Fire Sleeve 6AN8AN 10474 1 in. Fire Sleeve 10AN12AN16AN**5/8 in. Heater Hose3/4 in. Heater Hose *Braided Kevlar line was used in testing. You may notice a slight difference in size if you have Braided Stainless Steel lines. **Tight fit: If you have fittings on your line, you may need to order one size up. You can achieve between 1/16 in. and 1/8 in. stretch out of our material. This may help on installs with fittings already on the lines.
Application Summary
Constructed from a high temperature resistant braided glass material; woven into a sleeve and heavily coated with 100% silicone rubber with 304 stainless mesh outer covering; EXO Sleeve provides the ultimate in heat insulation and protection from direct h
Part Type
Exhaust Heat Shield
Features
- Use For Bundling And Protecting Hoses/Electrical Wiring etc.
Specifications
- Product Attributes - Brand
- Design Engineering DEI
- Product Attributes - Manufacturer's Part Number
- 10872
- Product Attributes - Part Type
- Heat Sleeves
- Product Attributes - Product Line
- DEI EXO Sleeves
- Product Attributes - UPC
- 607078108722
- Product Attributes - Length (in.)
- 36.000 in.
- Product Attributes - Length (ft.)
- 3.00 ft.
- Product Attributes - Diameter (in.)
- 0.375 in.
- Product Attributes - Maximum Ambient Temperature (degrees F)
- 500 degrees F
- Product Attributes - Installation
- Slip-on
- Product Attributes - Heat Protection Color
- Black
- Product Attributes - Quantity
- Sold individually.
- Product Attributes - Notes
- EXO Sleeve direct heat rating is 500 degrees F.
Reference Information
| Brand Name/s | Dei |
|---|---|
| StreetFX SKU | dei10872 |
| SFX Item ID | 4329169 |
| Supplier Item Code | 4329169 |
| Manufacturer SKU | 10872 |
| Manufacturer UPC | 607078108722 |
| Alternative References | dei-010872, 3/8in, 3ft |
Brochures
Compatibility
Constructed from a high temperature resistant braided glass material; woven into a sleeve and heavily coated with 100% silicone rubber with 304 stainless mesh outer covering; EXO Sleeve provides the ultimate in heat insulation and protection from direct h
