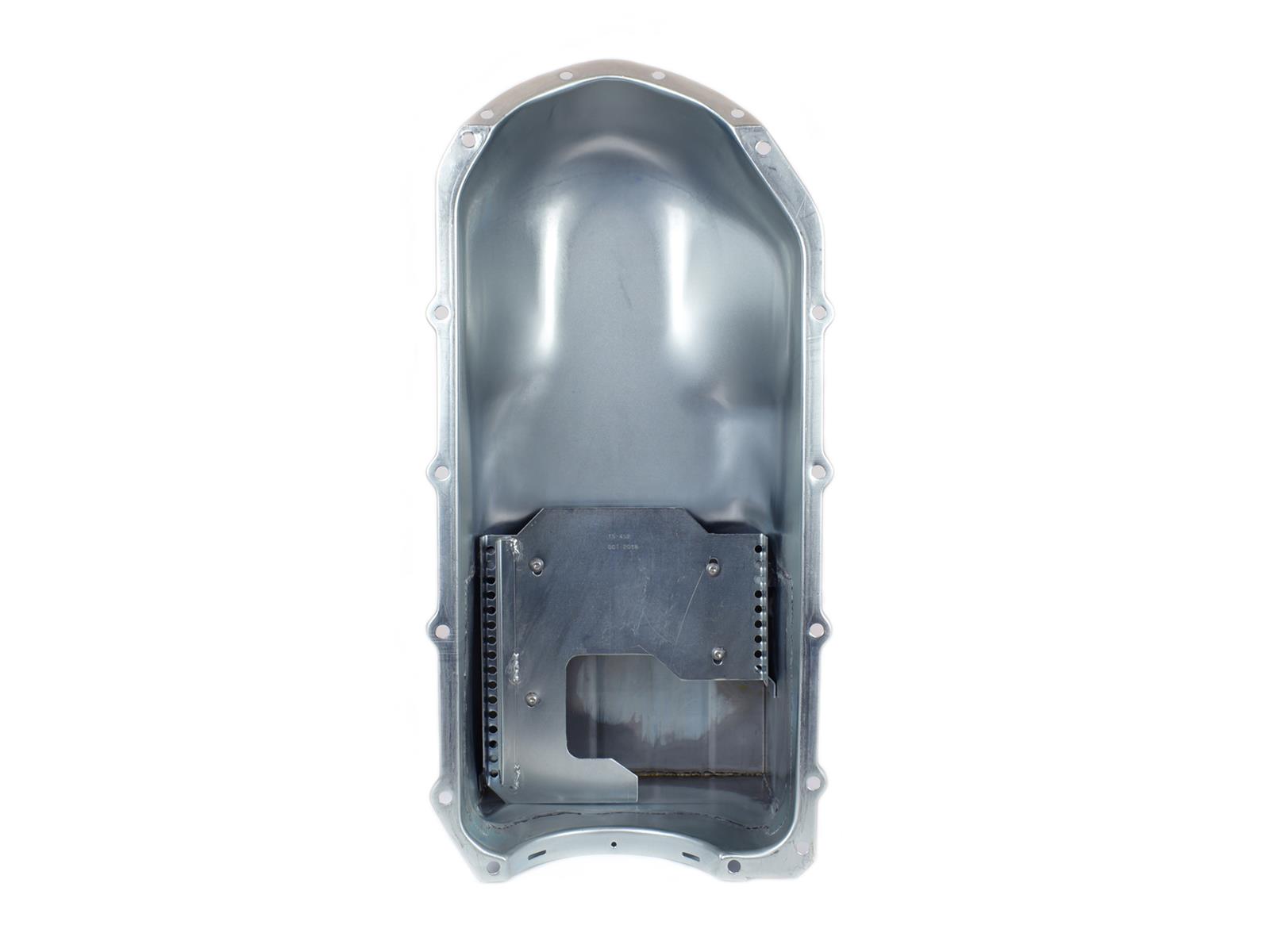

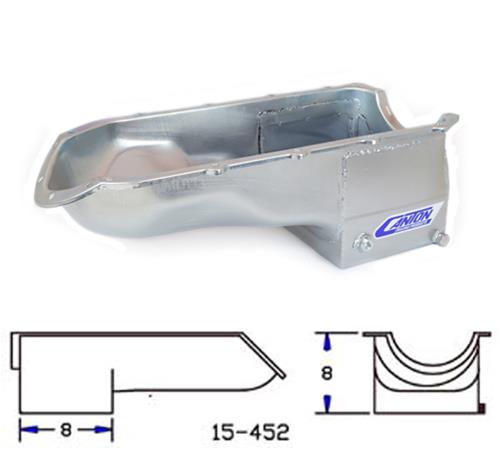

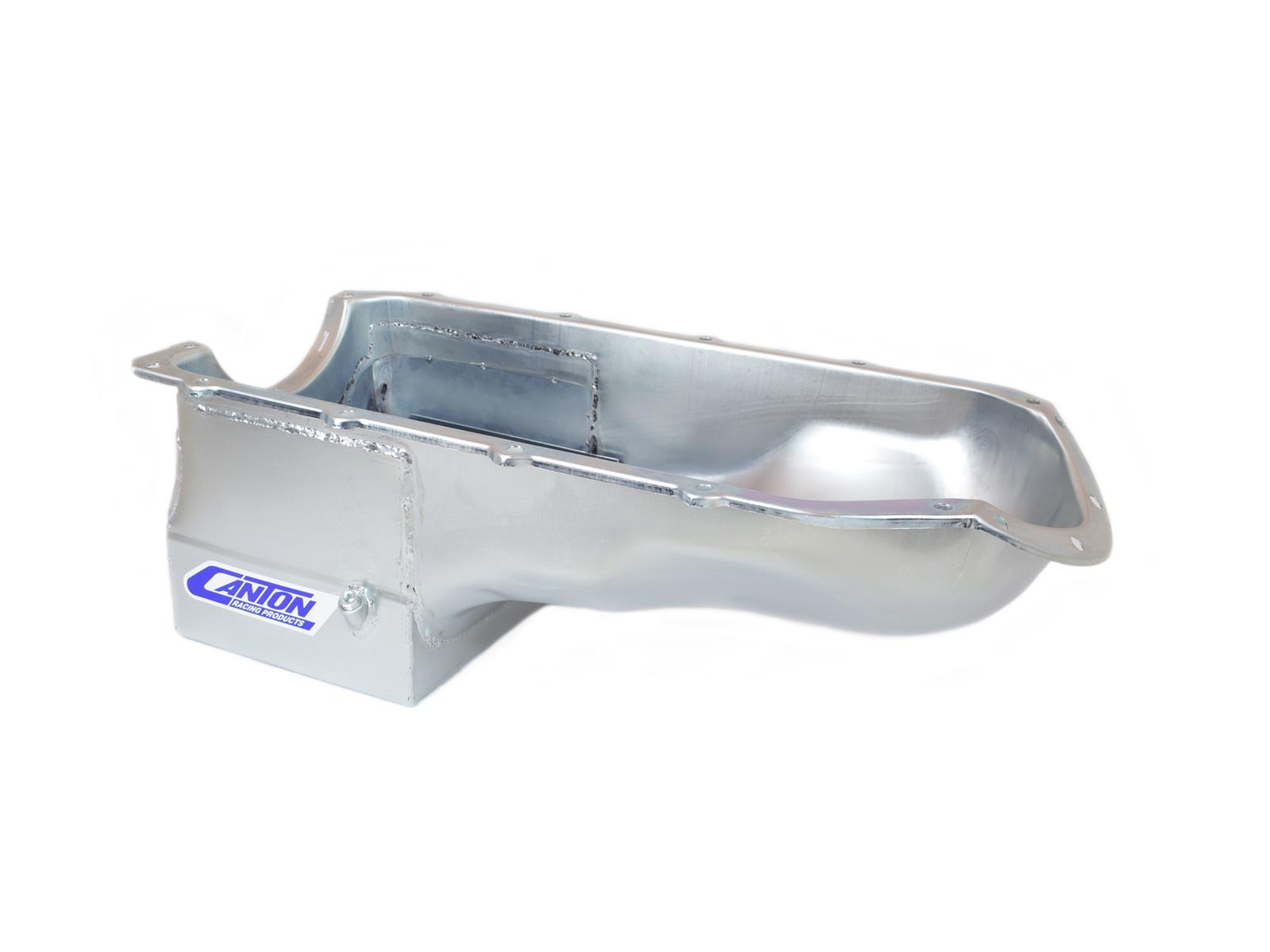

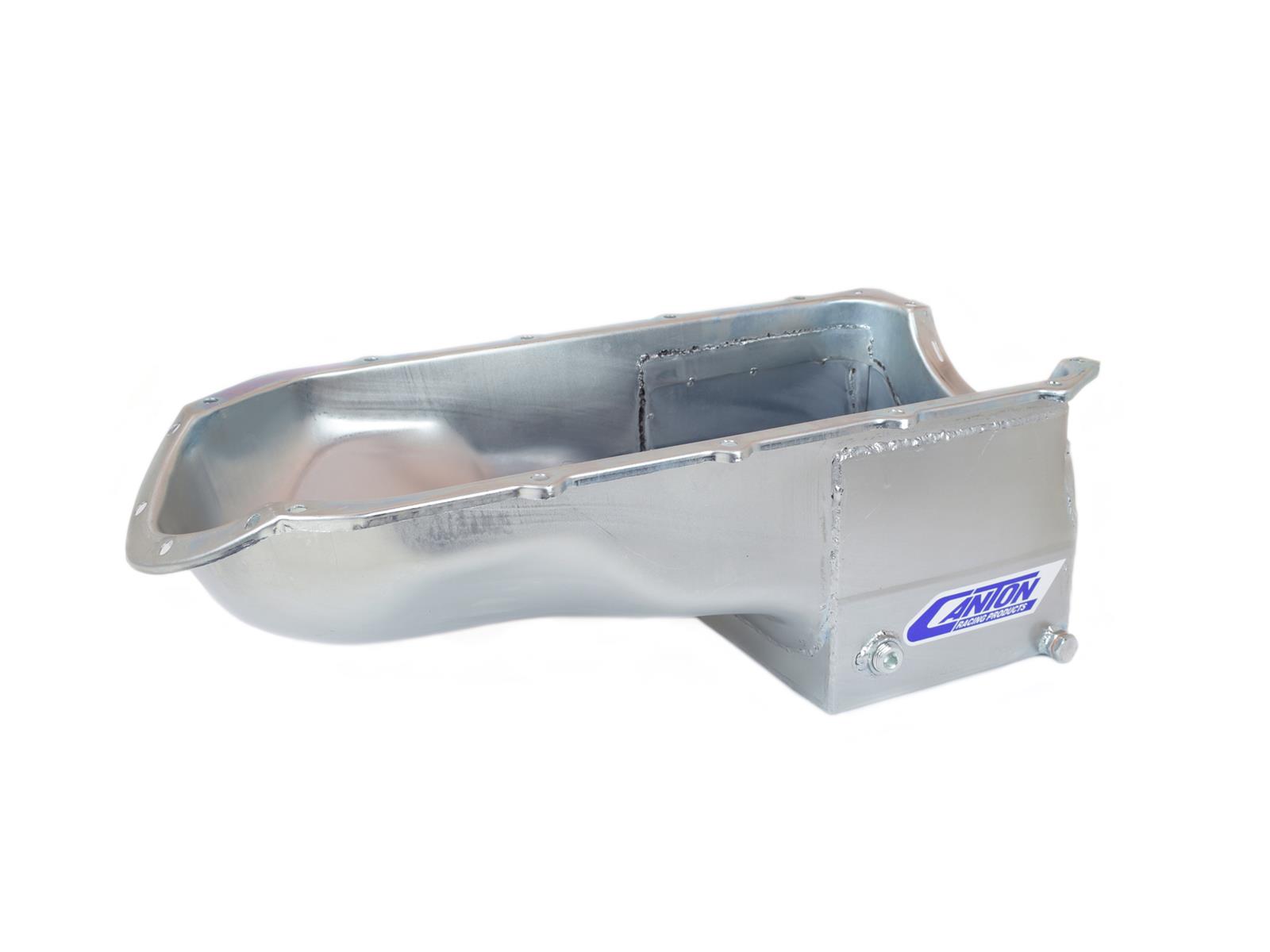

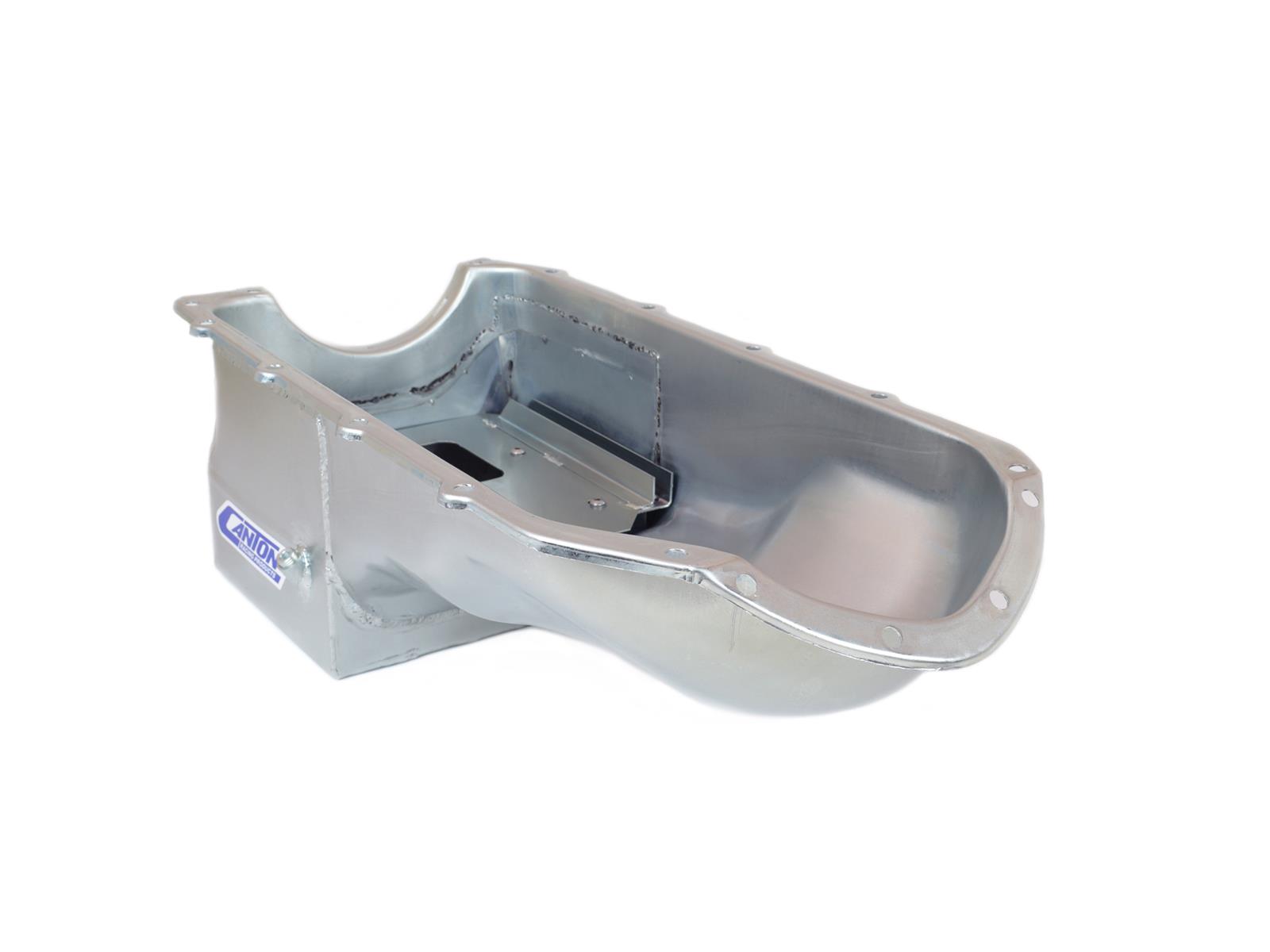

Canton Racing Road Race Series Wet Sump Oil Pans 15-452 Pan, Street/Strip, Steel, 5 qt., Rear Sump, Pontiac V8, Each
Canton Racing Road Race Series Wet Sump Oil Pans 15-452 Pan, Street/Strip, Steel, 5 qt., Rear Sump, Pontiac V8, Each
A$1,145.43
LOW STOCK! Est Ship 4-7 days.
HURRY! LOW STOCK. This item is in limited stock at one of our distribution centres. The ETA is the approximate time required to prepare your order for dispatch.
We accept
Description
No starvation! Canton Racing road race oil pans feature their competition baffling system of trap door baffles and/or slosh baffles. These systems flow oil to the pickup compartment and then keep it from flowing or sloshing away from the pickup during turns, acceleration, and braking. Their wide, low-profile sumps deliver maximum oil capacity and ground clearance. Many pans also include provisions for an optional pan mounted dipstick and a magnetic drain plug. Feed your engine with Canton Racing road race oil pans.
Part Type
Pontiac GTO R/R Oil Pan
Specifications
- Product Attributes - Brand
- Canton Racing Products
- Product Attributes - Manufacturer's Part Number
- 15-452
- Product Attributes - Part Type
- Oil Pans
- Product Attributes - Product Line
- Canton Racing Road Race Series Wet Sump Oil Pans
- Product Attributes - UPC
- 887753712615
- Product Attributes - Sump Style
- Wet
- Product Attributes - Oil Pan Style
- Road Race
- Product Attributes - Sump Location
- Rear
- Product Attributes - Dipstick Location
- Driver side
- Product Attributes - Oil Pan Capacity
- 5.00 quarts
- Product Attributes - Stroker Clearanced
- Yes
- Product Attributes - Maximum Stroke with OE Rod
- 4.500 in.
- Product Attributes - Dipstick Provision
- Yes
- Product Attributes - Dipstick Included
- No
- Product Attributes - Oil Pan Depth (in.)
- 8.000
- Product Attributes - Oil Pan Material
- Steel
- Product Attributes - Oil Pan Color
- Silver
- Product Attributes - Baffled
- Yes
- Product Attributes - Kicked Out
- No
- Product Attributes - Windage Tray Included
- No
- Product Attributes - Pickup Included
- No
- Product Attributes - Oil Pump Included
- No
- Product Attributes - Oil Pump Driveshaft Included
- No
- Product Attributes - Crank Scraper Included
- No
- Product Attributes - Drain Plug Thread Size
- 1/2 in.-20
- Product Attributes - Gaskets Included
- No
- Product Attributes - Hardware Included
- No
- Product Attributes - Quantity
- Sold individually.
- Product Attributes - Notes
- System capacity is 6 quarts, which is oil pan capacity plus filter. Pan mounted dipstick. Baffle is removable.
Reference Information
| Brand Name/s | Canton Racing Products |
|---|---|
| StreetFX SKU | ctr15-452 |
| SFX Item ID | 5052713 |
| Supplier Item Code | 5052713 |
| Manufacturer SKU | 15-452 |
| Manufacturer UPC | 887753712615 |
| Alternative References | CAN15-452, V8 |
