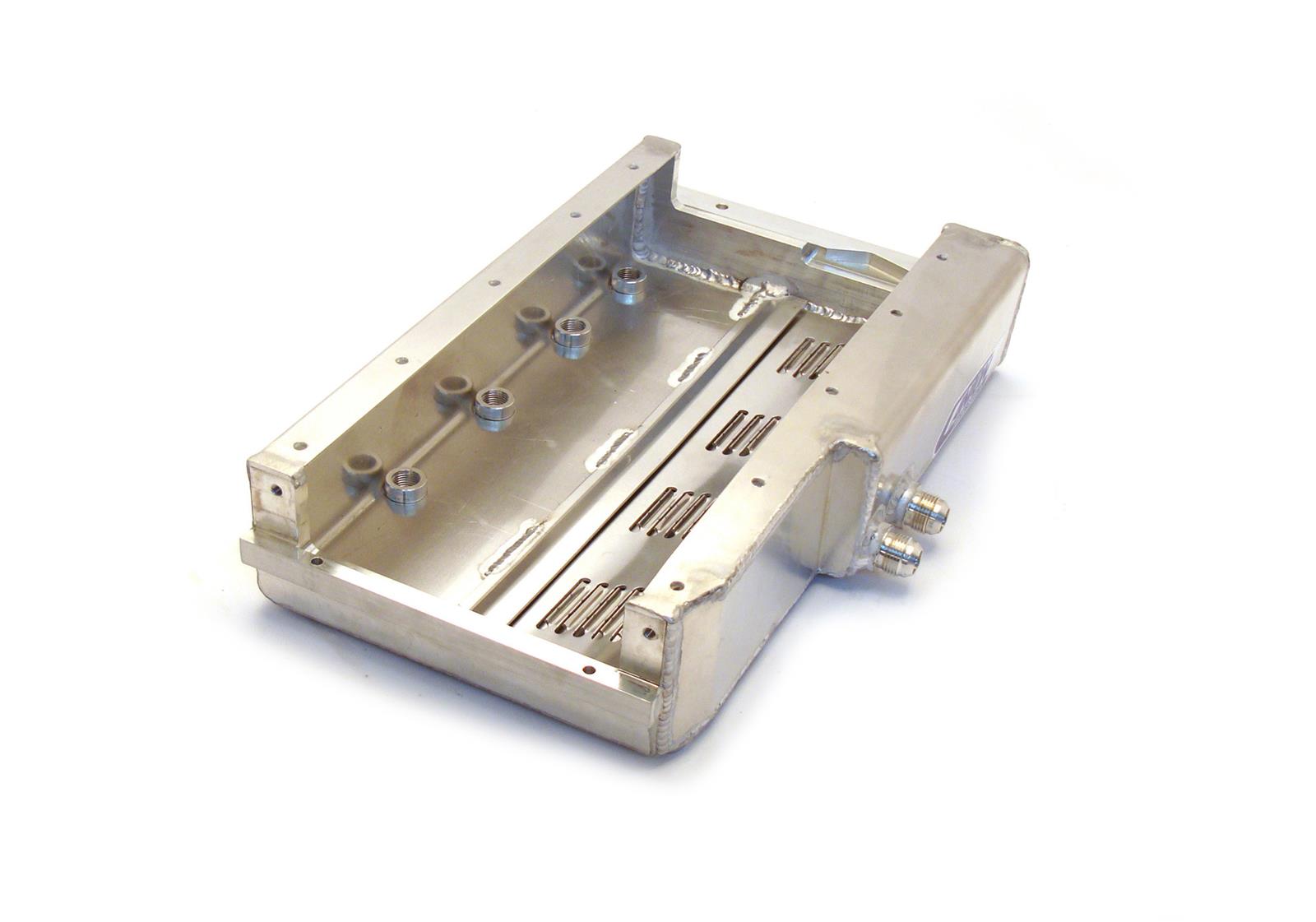

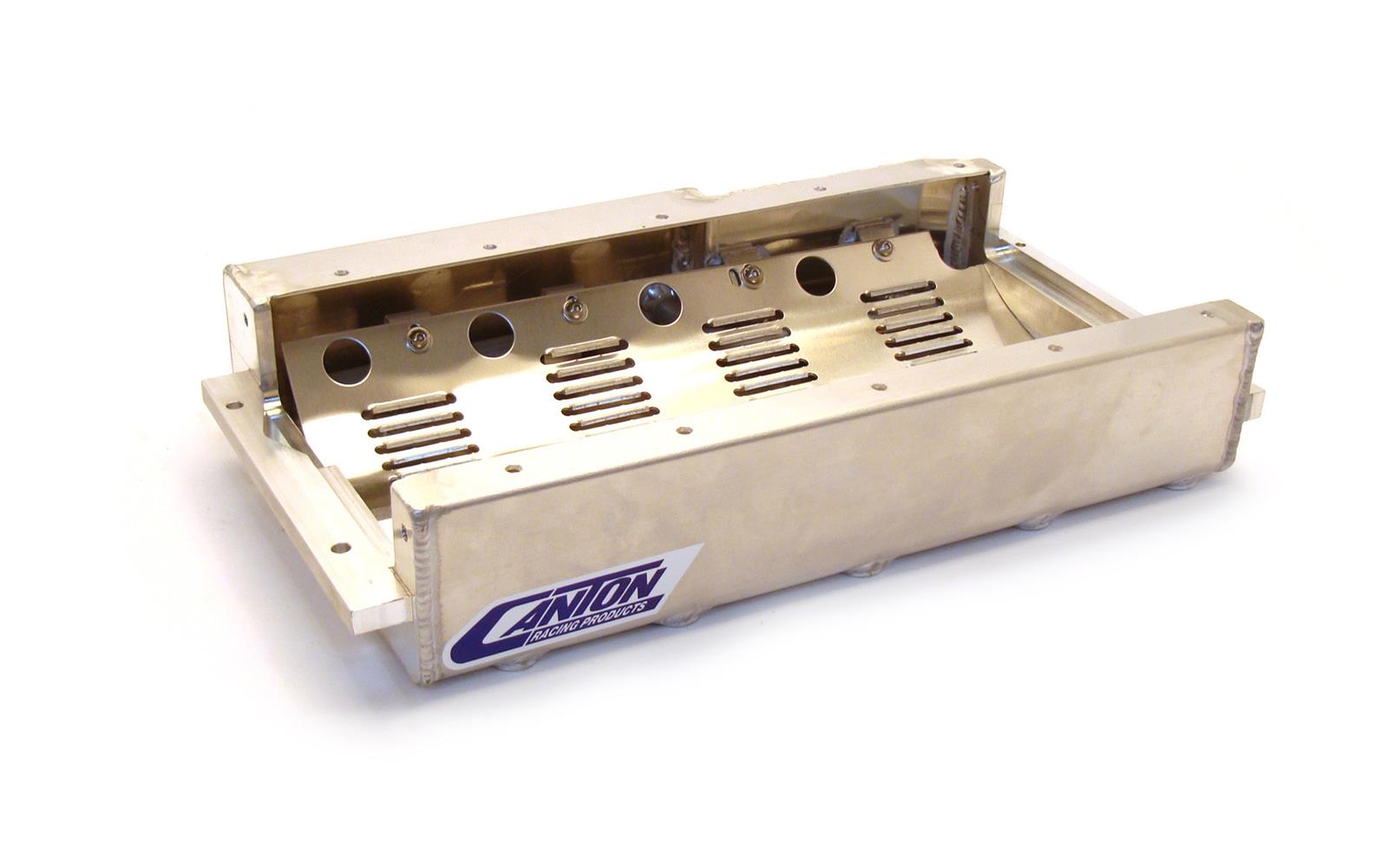

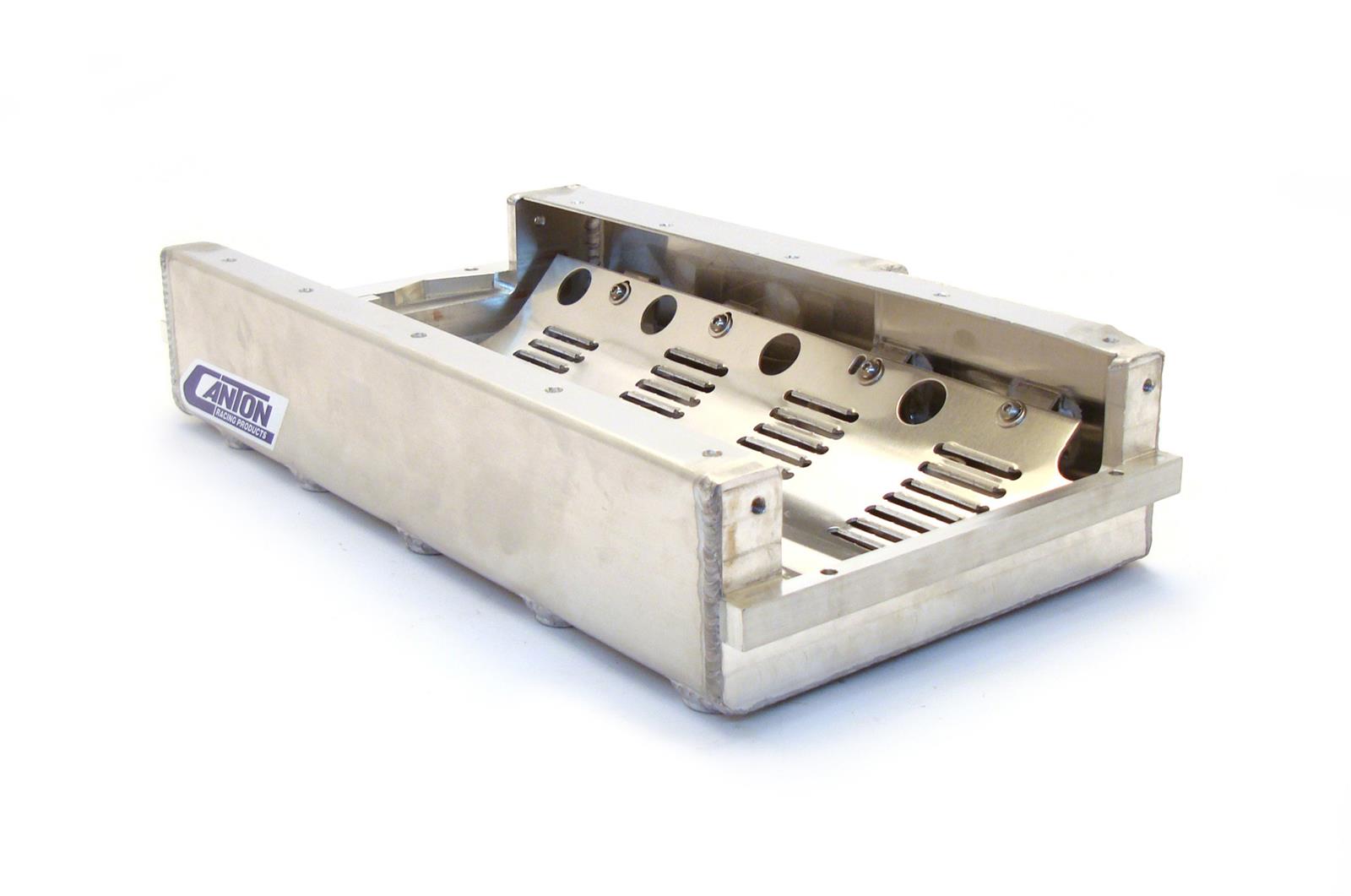

Canton Racing Dart LS Next Dry Sump Oil Pans 12-280A Pan, Sump, Aluminum, Natural, Full Sump, Block, Each
Canton Racing Dart LS Next Dry Sump Oil Pans 12-280A Pan, Sump, Aluminum, Natural, Full Sump, Block, Each
A$3,044.50
BACKORDER
This item will be special ordered in for you. Contact us prior to purchase if you require an ETA.
We accept
Description
Canton Racing Dart LS NEXT dry sump oil pans are specifically designed to take the changes that Dart has made to the LS block and maximize their effectiveness. The billet end caps offer a precise fit to the unique pan rail of the Dart LS NEXT block. The Pro-style oil recovery pouch is designed to maximize the horsepower that Dart freed up in the bottom-end. These oil pans feature two -12 AN pickups exiting on the passenger side, a magnetic drain plug, and a built-in louvered windage tray.
Part Type
Oil Pans
Specifications
- Product Attributes - Brand
- Canton Racing Products
- Product Attributes - Manufacturer's Part Number
- 12-280A
- Product Attributes - Part Type
- Oil Pans
- Product Attributes - Product Line
- Canton Racing Dart LS Next Dry Sump Oil Pans
- Product Attributes - UPC
- 887753711465
- Product Attributes - Sump Style
- Dry
- Product Attributes - Oil Pan Style
- Road Race
- Product Attributes - Rear Main Seal Style
- 1-piece
- Product Attributes - Sump Location
- Full
- Product Attributes - Stroker Clearanced
- No
- Product Attributes - Maximum Stroke with OE Rod
- 4.250 in.
- Product Attributes - Dipstick Provision
- No
- Product Attributes - Dipstick Included
- No
- Product Attributes - Oil Pan Depth (in.)
- 4.000
- Product Attributes - Oil Pan Material
- Aluminum
- Product Attributes - Oil Pan Color
- Silver
- Product Attributes - Baffled
- No
- Product Attributes - Kicked Out
- No
- Product Attributes - Windage Tray Included
- Yes
- Product Attributes - Pickup Included
- No
- Product Attributes - Oil Pump Included
- No
- Product Attributes - Oil Pump Driveshaft Included
- No
- Product Attributes - Crank Scraper Included
- No
- Product Attributes - Drain Plug Thread Size
- 1/2 in.-20
- Product Attributes - Gaskets Included
- No
- Product Attributes - Hardware Included
- No
- Product Attributes - Quantity
- Sold individually.
- Product Attributes - Notes
- Stock LS starter required. Designed for use with Dart LS Next engine blocks only. Two -12 AN pickups exiting on the passenger side.
Reference Information
| Brand Name/s | Canton Racing Products |
|---|---|
| StreetFX SKU | ctr12-280A |
| SFX Item ID | 5052860 |
| Supplier Item Code | 5052860 |
| Manufacturer SKU | 12-280A |
| Manufacturer UPC | 887753711465 |
