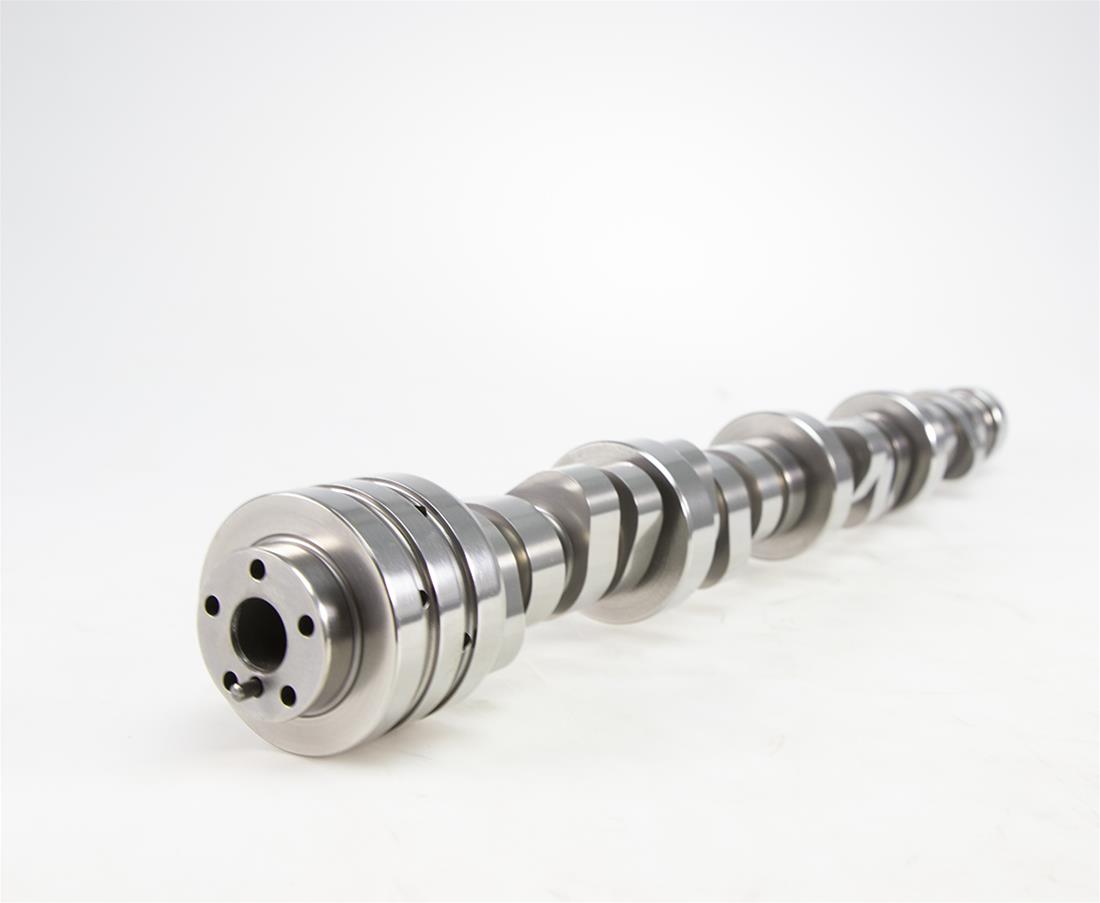

COMP Cams Camshaft 2006+ Dodge 5.7/6.4L Hemi w/VVT
COMP Cams Camshaft 2006+ Dodge 5.7/6.4L Hemi w/VVT
A$1,351.40
LOW STOCK! Est Ship 3-5 days.
HURRY! LOW STOCK. This item is in limited stock at one of our distribution centres. The ETA is the approximate time required to prepare your order for dispatch.
We accept
Description
The Gen III Hemi market is rapidly expanding, and the HRT Camshaft Series uses the newest and most advanced lobe designs from COMP Cams in order to produce some of the highest average power and torque camshafts available for these engines. The “Low Shock Technology” features lobe profiles designed to maximize horsepower while improving stability at higher RPM. These profiles are also easier on the valve springs, enhancing durability and reducing load loss. The new HRT Camshafts receive the Micro Surface Enhancement (MSE) finishing process as a standard feature, which increases strength and performance by reducing surface peak roughness and provides a 250% improvement in the effective load bearing area, allowing for much higher loads. Organized into stages, these new options range from mild to wild! All HRT Stage 1 Camshafts are No Springs Required, which keeps cost down while still providing awesome horsepower increases over stock. Stages 2 and 3 applications work with COMP Cams Beehive and Conical Valve Springs, but COMP Cams is also introducing new HEMI Valve Spring Kits, engineered to produce the most power and RPM of any current options.
Product Overview
The Gen III Hemi market is rapidly expanding, and the HRT Camshaft Series uses the newest and most advanced lobe designs from COMP Cams in order to produce some of the highest average power and torque camshafts available for these engines. The “Low Shock Technology” features lobe profiles designed to maximize horsepower while improving stability at higher RPM. These profiles are also easier on the valve springs, enhancing durability and reducing load loss. The new HRT Camshafts receive the Micro Surface Enhancement (MSE) finishing process as a standard feature, which increases strength and performance by reducing surface peak roughness and provides a 250% improvement in the effective load bearing area, allowing for much higher loads. Organized into stages, these new options range from mild to wild! All HRT Stage 1 Camshafts are No Springs Required, which keeps cost down while still providing awesome horsepower increases over stock. Stages 2 and 3 applications work with COMP Cams Beehive and Conical Valve Springs, but COMP Cams is also introducing new HEMI Valve Spring Kits, engineered to produce the most power and RPM of any current options.
Product Details
| Advertised Exhaust Duration: | 278 |
|---|---|
| Advertised Intake Duration: | 275 |
| Assembly Lubricant Included: | No |
| Basic Operating RPM Range: | 2000-7200 |
| C.A.R.B. E.O. Number: | N/A |
| C.A.R.B. Exempt for California Certified Vehicles Manufactured Before 1965?: | Yes, but must meet tailpipe emission standards for year of vehicle. |
| C.A.R.B. Exempt for Federally Certified Vehicles Manufactured Before 1967?: | Yes, but must meet tailpipe emission standards for year of vehicle. |
| C.A.R.B. Exempt for Foreign Vehicles Manufactured Before 1967?: | Yes, but must meet tailpipe emission standards for year of vehicle. |
| C.A.R.B. Exempt for On-Road Vehicles?: | No |
| C.A.R.B. Exempt for Racing and Off-Road Only Vehicles?: | Yes, but must be a race/competition only vehicle. |
| C.A.R.B. Exemption Reason: | N/A |
| California Proposition 65: | WARNING: Cancer and Reproductive Harm P65Warnings.ca.gov |
| Cam Type: | Hydraulic Roller |
| Camshaft Gear Attachment: | 1-Bolt |
| Camshaft Material: | Billet Steel |
| Camshaft Series: | HRT |
| Description: | HRT Stage 2 Camshaft for '11+ 6.4L HEMI |
| Engine Family: | Dodge 5.7L and 6.4L HEMI w/ VVT (2009+) |
| Estimated Horsepower Gain with Kit: | 85 |
| Exhaust Duration at .050 inch Lift: | 230 |
| Exhaust Valve Lift: | 0.604 |
| Gaskets Included: | No |
| Grind Number: | LST275HR15 |
| Intake Duration at .050 Inch Lift: | 222 |
| Intake Valve Lift: | 0.599 |
| Lifter Style: | Hydraulic Roller |
| Lifters Included: | No |
| Lobe Separation: | 115 |
| Locks Included: | Yes |
| MK-Kit Upgrade: | MK201-304-17 |
| Part Number: | cca201-304-17 |
| Pushrods Included: | Yes |
| Recommended Upgraded Stock Rocker Arms: | N/A |
| Retainers Included: | Yes |
| Stage: | 2 |
| Timing Set Included: | No |
| Title: | HRT Stage 2 Camshaft for '11+ 6.4L HEMI |
| Usage: | Performance |
| Valve Seals Included: | Yes |
| Valve Spring Seats Included: | Yes |
| Valve Springs Included: | Yes |
Application Summary
Dodge 5.7/6.4L HEMI Engines w/ VVT
Part Type
Engine Camshaft
Specifications
- Product Attributes - Brand
- COMP Cams
- Product Attributes - Manufacturer's Part Number
- 201-304-17
- Product Attributes - Part Type
- Camshaft Kits
- Product Attributes - Product Line
- COMP Cams HRT Stage 2 Camshafts
- Product Attributes - UPC
- 036584405344
- Product Attributes - Cam Style
- Hydraulic roller, OE roller
- Product Attributes - Basic Operating RPM Range
- 2,000-7,200
- Product Attributes - Camshaft Use
- Off-Road/Street/Towing
- Product Attributes - Intake Duration at 050 inch Lift
- 222
- Product Attributes - Exhaust Duration at 050 inch Lift
- 230
- Product Attributes - Duration at 050 inch Lift
- 222 int./230 exh.
- Product Attributes - Advertised Intake Duration
- 275
- Product Attributes - Advertised Exhaust Duration
- 278
- Product Attributes - Intake Valve Lift with Factory Rocker Arm Ratio
- 0.599 in.
- Product Attributes - Exhaust Valve Lift with Factory Rocker Arm Ratio
- 0.604 in.
- Product Attributes - Valve Lift with Factory Rocker Arm Ratio
- 0.599 int./0.604 exh.
- Product Attributes - Lobe Separation (degrees)
- 115
- Product Attributes - Camshaft Gear Attachment
- 1-bolt
- Product Attributes - Computer-Controlled Compatible
- No
- Product Attributes - Lifters Included
- No
- Product Attributes - Lifter Style
- Hydraulic roller
- Product Attributes - Valve Springs Included
- No
- Product Attributes - Retainers Included
- Yes
- Product Attributes - Locks Included
- Yes
- Product Attributes - Valve Stem Seals Included
- No
- Product Attributes - Timing Chain and Gears Included
- No
- Product Attributes - Assembly Lubricant Included
- No
- Product Attributes - Pushrods Included
- No
- Product Attributes - Rocker Arms Included
- No
- Product Attributes - Gaskets Included
- No
- Product Attributes - Valve Springs Required
- No
- Product Attributes - Quantity
- Sold individually.
Reference Information
| Brand Name/s | Comp Cams |
|---|---|
| StreetFX SKU | cca201-304-17 |
| SFX Item ID | 4118085 |
| Supplier Item Code | 4118085 |
| Manufacturer SKU | 201-304-17 |
| Manufacturer UPC | 36584405344 |
| Alternative References | 53022372aa;, CPC201-304-17, 5.7/6.4L |
