MLS Gaskets are comprised of multiple embossed layers of both AMP (Advanced Multi-Polymer Coating) and uncoated stainless steel

Additional Information

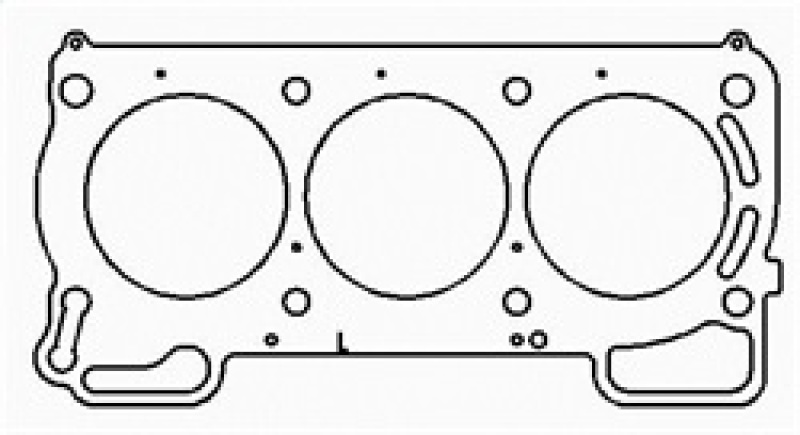

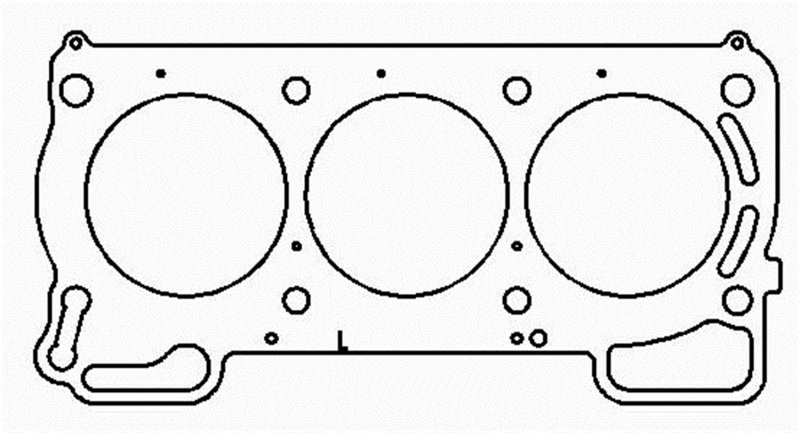

Subaru EZ30D mk I .051in. MLS Cylinder Head Gasket; 90mm Bore; LHS

Part Type

Engine Cylinder Head Gasket

Features and Benefits

• Conforms load distribution across the sealing area
• Embossed Outer Layers Coated w/Viton
• Requires less clamp load creating less bore distortion
• The center or shim layer is an uncoated stainless steel layer which can be varied to accommodate multiple thickness requirements
• The embossed outer layers of the gaskets meet the demands of a variety of harsh sealing environments, load conditions, and surface finishes

Product Details

These additional application notes are supplied by the manufacturer and collated from multiple year ranges. Not all of these notes may apply to every year or every variant. Please contact a StreetFX agent for clarification if required.

Product Downloads

#	Document Type	Download
1.	Installation Instructions

Installation guides, warranty details, and other supporting documents are provided by the supplier. In some cases, these files may originate from regions outside your locale, meaning instructions, warranty procedures, and images may not fully align with your specific vehicle or region (e.g., LHD vs. RHD differences, return policies, etc.). If you need clarification, please contact a StreetFX support agent.

• Conforms load distribution across the sealing area
• Embossed Outer Layers Coated w/Viton
• Requires less clamp load creating less bore distortion
• The center or shim layer is an uncoated stainless steel layer which can be varied to accommodate multiple thickness requirements
• The embossed outer layers of the gaskets meet the demands of a variety of harsh sealing environments, load conditions, and surface finishes

Cometic MLS head gaskets are constructed from multiple layers of stainless steel for additional strength over traditional gaskets. They contain load-controlled embossments that help conform load distribution across the sealing area, and where applicable, valve pocketing to avoid chamber intrusion. This creates an exceptional seal by requiring less clamp load and resulting in less bore distortion. The stainless-steel outer layers utilize a rubber-binder coating that features high-temperature and chemical-resistant polymers. These gaskets are available for most cylinder heads. As with all Cometic MLS head gaskets, no sealants or re-torque is required when properly installed on prepared surfaces. Get the engine performance you want with an assist from the Cometic MLS head gaskets best suited for your application.

Please note that this information serves as a fitment guide only. For specific fitment questions or clarifications, please contact us, as manufacturers may introduce variations and modifications during model year or regional revisions. While we strive to provide accurate data, fitment details may vary by region; therefore, compatibility outside the listed region and submodel variant cannot be guaranteed.

Detailed Compatibility

This may not be an exhaustive list of compatible vehicles. Please reach out to one of our representatives if you are unsure or do not see your vehicle here.
