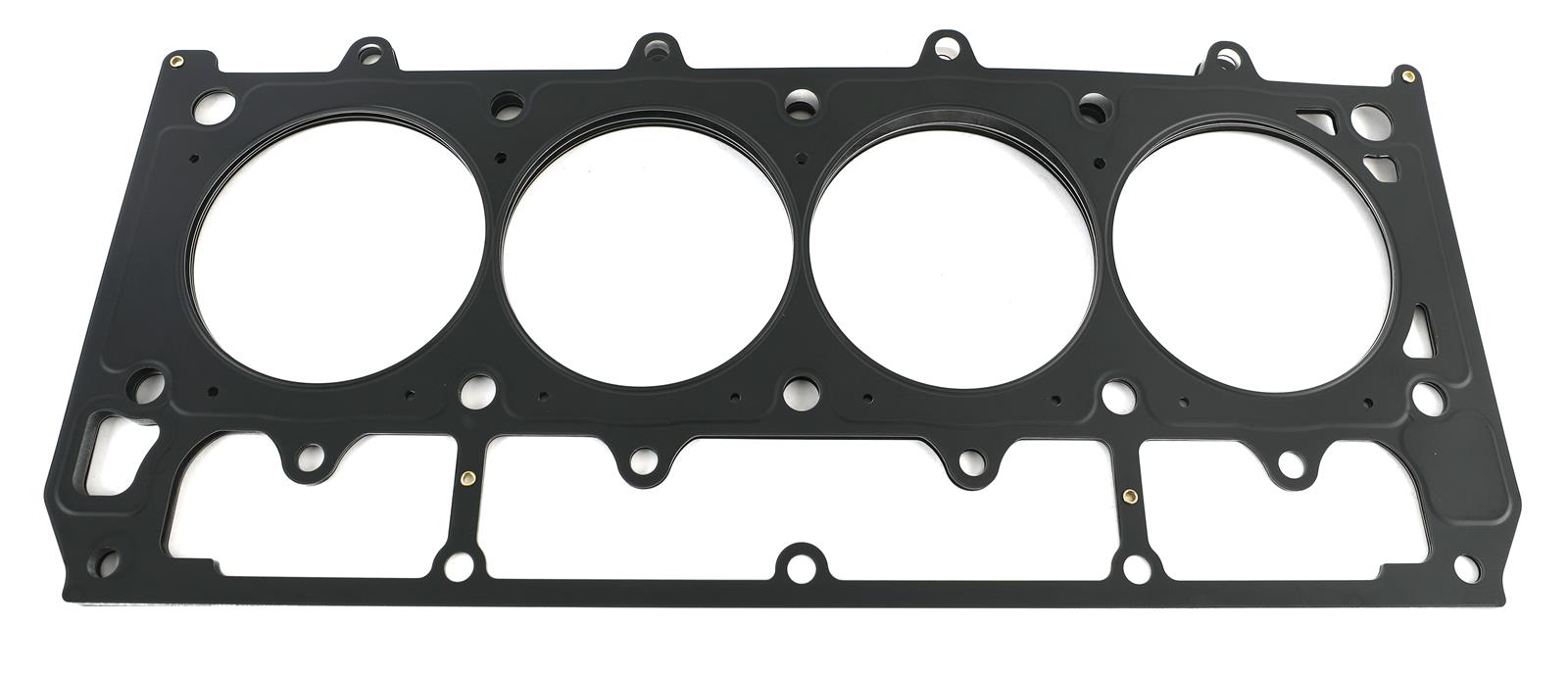

Cometic GM LSX Gen-4 Small Block V8 .044in MLX Cylinder Head Gasket - 4.165in Bore - LHS
Cometic GM LSX Gen-4 Small Block V8 .044in MLX Cylinder Head Gasket - 4.165in Bore - LHS
A$475.46
IN STOCK! Est Ship 4-7 days.
This item is IN STOCK at one of our warehouses or distribution centres, the ETA is the approximate time required to prepare your order for dispatch.
We accept
Description
IMPORTANT NOTICE: Images are supplied by the manufacturer and may be generic. While all efforts are made to provide accurate pictures, there may be differences in the actual product, such as colour, quantity, version, or included components. Please carefully review the description and specifications for details on inclusions or any variations. Some items may be sold individually or in sets, and images may occasionally depict additional products or quantities not included in your purchase. For assistance or clarification, please contact customer support.Reference Information Reference Data (Provide these details to our support team) Brand Name/s Cometic Gasket, Cometic, Cometic Gasket Automotive, Cometic Gasket Marine, Cometic Gasket Powersports, COMETIC GASKETS, Cometic Powersport Gaskets StreetFX SKU cgsC5703-044 SFX Item ID 4170495 Accounting SKU cgs-C5703-044 Manufacturer SKU C5703-044 Manufacturer UPC 191070137267 Alternative References C5703-044, CGT-C5703-044
Cylinder Head Gasket
MLX Gaskets utilize an integrated "stopper" layer for combustion chamber sealing
Additional Information
GM LSX Gen-4 Small Block V8 .044in. MLX Cylinder Head Gasket; 4.165in. Bore; LHS
Part Type
Engine Cylinder Head Gasket
Features and Benefits
- Embossed Outer Layers Coated w/Viton
- Improved clamp load around the cylinder without increasing bore distortion
Product Details
| Description: | GM LSX Gen-4 Small Block V8 Cylinder Head Gasket |
| Engine Make/Size: | GM LSX Small Block |
| Part Number: | cgsC5703-044 |
| Position: | Left |
| Title: | Cometic Gasket Automotive GM LSX Gen-4 Small Block V8 .044 in MLX Cylinder Head Gasket, 4.165 in Bore, LHS |
Product Overview
Comprised of multiple embossed layers of stainless steel with the outer layers utilizing a Viton rubber coating. Compressed operating thickness is 0.036". World Products Man-o-War Block. Cometic MLS (Multi-Layer Steel) Head Gaskets provide maximum sealing performance for todays high output engines and require no sealants. MLS gaskets are ideal for both aluminum heads to aluminum blocks and aluminum heads to cast iron blocks. They can withstand the shearing force created by the two materials. MLS gaskets have increased strength because they are comprised of multiple layers of stainless steel; which also creates the ability to rebound and resist corrosion. The outer layers are embossed and coated on both sides with Viton (a flour elastomer rubber based material that is heat resistant to 250 C/ 482 F). Viton is designed to meet the demands of a variety of harsh sealing environments, load conditions, and surface finishes. The center or shim layer is uncoated stainless steel, which can be varied to accommodate multiple thickness requirements.
Product Downloads
| # | Document Type | Download |
|---|---|---|
| 1. | Installation Instructions |
|
Installation guides, warranty details, and other supporting documents are provided by the supplier. In some cases, these files may originate from regions outside your locale, meaning instructions, warranty procedures, and images may not fully align with your specific vehicle or region (e.g., LHD vs. RHD differences, return policies, etc.). If you need clarification, please contact a StreetFX support agent.
Product Overview
Comprised of multiple embossed layers of stainless steel with the outer layers utilizing a Viton rubber coating. Compressed operating thickness is 0.036". World Products Man-o-War Block. Cometic MLS (Multi-Layer Steel) Head Gaskets provide maximum sealing performance for todays high output engines and require no sealants. MLS gaskets are ideal for both aluminum heads to aluminum blocks and aluminum heads to cast iron blocks. They can withstand the shearing force created by the two materials. MLS gaskets have increased strength because they are comprised of multiple layers of stainless steel; which also creates the ability to rebound and resist corrosion. The outer layers are embossed and coated on both sides with Viton (a flour elastomer rubber based material that is heat resistant to 250 C/ 482 F). Viton is designed to meet the demands of a variety of harsh sealing environments, load conditions, and surface finishes. The center or shim layer is uncoated stainless steel, which can be varied to accommodate multiple thickness requirements.
Features and Benefits
- Embossed Outer Layers Coated w/Viton
Product Details
| Description: | GM LSX Gen-4 Small Block V8 Cylinder Head Gasket |
|---|---|
| Engine Make/Size: | GM LSX Small Block |
| Part Number: | cgsC5703-044 |
| Position: | Left |
| Prop 65 (C, R or CR): | CR |
| Prop 65 - Short Label: | Prop_65.jpg |
| Prop 65 Warning Label: | Prop_65.jpg |
| Prop 65 Yes/No: | Yes |
| Title: | Cometic Gasket Automotive GM LSX Gen-4 Small Block V8 .044 in MLX Cylinder Head Gasket, 4.165 in Bore, LHS |
| WARNING CA Proposition 65 Message: | The state of California has determined that certain chemicals used in the manufacture of this product have been known to cause cancer and birth defects. For more information; visit www.p65Warnings.ca.gov |
| WARNING CA Proposition 65: | Yes |
Part Type
Engine Cylinder Head Gasket
Features
- Embossed Outer Layers Coated w/Viton
- Improved clamp load around the cylinder without increasing bore distortion
Specifications
Head Gasket, MLX, 4.165 in. Bore, 0.044 in. Compressed Thickness, Chevy, LSX Race, Driver Side, Each
The leak stops here! Cometic MLX head gaskets feature a unique integrated "stopper" layer for optimum combustion chamber sealing and improved clamp load around the cylinder without increasing bore distortion. The MLX head gaskets, like their MLS counterparts, are multi-layer stainless steel for increased strength—and require no sealants or re-torquing. Dozens of models are available; order the MLX head gaskets designed to maximize your engine's power and performance.
| Product Attributes | |
|---|---|
| Brand | Cometic |
| Manufacturer's Part Number | C5703-044 |
| Part Type | Head Gaskets |
| Product Line | Cometic MLX Head Gaskets |
| UPC | 00191070137267 |
| Bore (in.) | 4.165 in. |
| Bore (mm) | 105.791mm |
| Gasket Material | Multi-layer stainless steel |
| Compressed Thickness (in.) | 0.044 in. |
| Compressed Volume (cc) | 9.753cc |
| Lock Wire | No |
| Quantity | Sold individually. |
| Notes | Designed to fit LSX race engines with 18 bolt head. Driver side head gasket. |
Product Details
| Description: | GM LSX Gen-4 Small Block V8 Cylinder Head Gasket |
|---|---|
| Engine Make/Size: | GM LSX Small Block |
| Part Number: | cgsC5703-044 |
| Position: | Left |
| Prop 65 (C, R or CR): | CR |
| Prop 65 - Short Label: | Prop_65.jpg |
| Prop 65 Warning Label: | Prop_65.jpg |
| Prop 65 Yes/No: | Yes |
| Title: | Cometic Gasket Automotive GM LSX Gen-4 Small Block V8 .044 in MLX Cylinder Head Gasket, 4.165 in Bore, LHS |
| WARNING CA Proposition 65 Message: | The state of California has determined that certain chemicals used in the manufacture of this product have been known to cause cancer and birth defects. For more information; visit www.p65Warnings.ca.gov |
| WARNING CA Proposition 65: | Yes |
Reference Information
| Brand Name/s | Cometic Gasket |
|---|---|
| StreetFX SKU | cgsC5703-044 |
| SFX Item ID | 4170495 |
| Supplier Item Code | 4170495 |
| Manufacturer SKU | C5703-044 |
| Manufacturer UPC | 191070137267 |
| Alternative References | CGT-C5703-044, Gen-4, .044in, 4.165in |
Brochures
Compatibility
No specific fitment data available for this part. For clarification, please contact us.
Detailed Compatibility
| Application Data | |
|---|---|
| Make | CHEVROLET |
| Beginning Year | 2008 |
| Ending Year | 2018 |
| Engine Type | V8 |
| Engine Family | Chevy small block Gen III/IV (LS-based engines) |
| Engine Size | 6.2L/376 |
This may not be an exhaustive list of compatible vehicles. Please reach out to one of our representatives if you are unsure or do not see your vehicle here.
