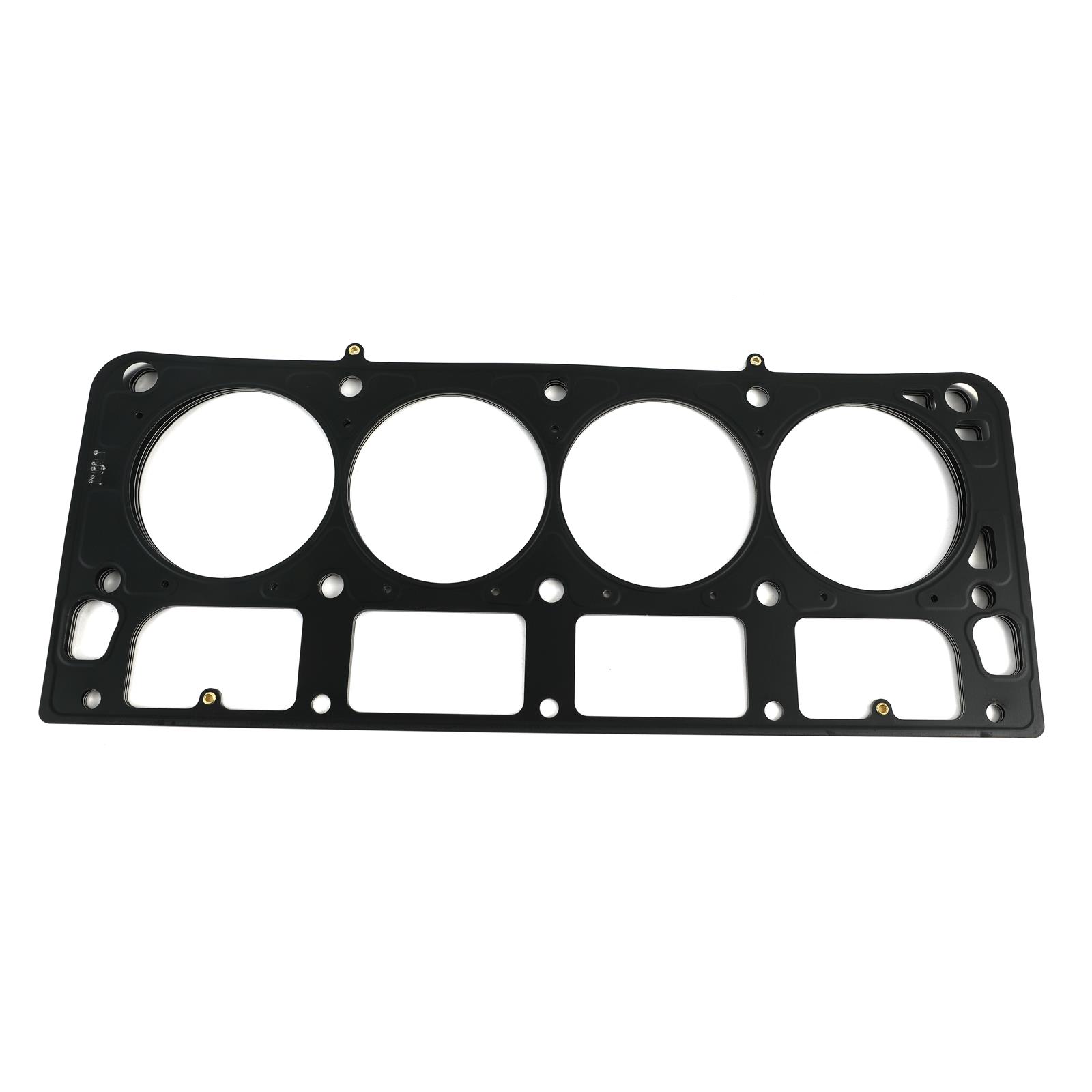

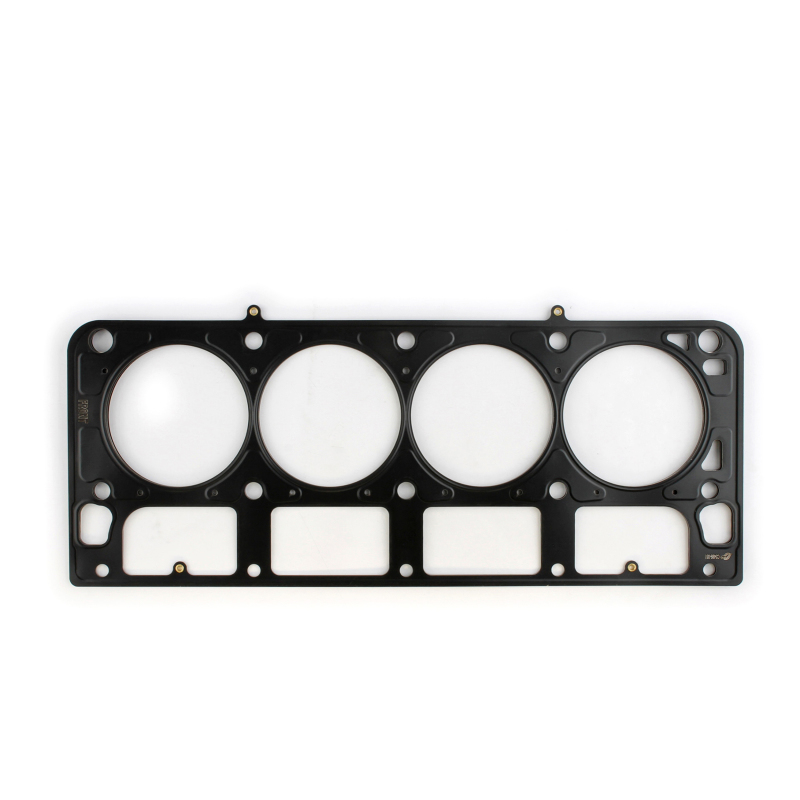

Cometic GM LS1 SB 4.100in Bore .066in MLS-5 Head Gasket
Cometic GM LS1 SB 4.100in Bore .066in MLS-5 Head Gasket
A$332.78
IN STOCK! Est Ship 4-7 days.
This item is IN STOCK at one of our warehouses or distribution centres, the ETA is the approximate time required to prepare your order for dispatch.
We accept
Description
MLS Gaskets are comprised of multiple embossed layers of both AMP (Advanced Multi-Polymer Coating) and uncoated stainless steel
Product Overview
Comprised of multiple embossed layers of stainless steel with the outer layers utilizing a Viton rubber coating. Compressed operating thickness is 0.036". World Products Man-o-War Block. Cometic MLS (Multi-Layer Steel) Head Gaskets provide maximum sealing performance for todays high output engines and require no sealants. MLS gaskets are ideal for both aluminum heads to aluminum blocks and aluminum heads to cast iron blocks. They can withstand the shearing force created by the two materials. MLS gaskets have increased strength because they are comprised of multiple layers of stainless steel; which also creates the ability to rebound and resist corrosion. The outer layers are embossed and coated on both sides with Viton (a flour elastomer rubber based material that is heat resistant to 250 C/ 482 F). Viton is designed to meet the demands of a variety of harsh sealing environments, load conditions, and surface finishes. The center or shim layer is uncoated stainless steel, which can be varied to accommodate multiple thickness requirements.
Features and Benefits
- Coated On Both Sides w/Viton
Product Details
| Description: | Cylinder Head Gasket |
|---|---|
| Engine Make/Size: | GM Gen III/IV LS Series |
| Part Number: | cgsC5489-066 |
| Prop 65 (C, R or CR): | CR |
| Prop 65 - Short Label: | Prop_65.jpg |
| Prop 65 Yes/No: | Yes |
| Title: | Cometic Gasket GM LS1/LS2/LS3/LS6 Gen-3/4 Small Block V8 Cylinder Head Gasket |
| WARNING CA Proposition 65 Message: | The state of California has determined that certain chemicals used in the manufacture of this product have been known to cause cancer and birth defects. For more information; visit www.p65Warnings.ca.gov |
| WARNING CA Proposition 65: | Yes |
Part Type
Engine Cylinder Head Gasket
Features
- Coated On Both Sides w/Viton
- Conforms load distribution across the sealing area
- Requires less clamp load creating less bore distortion
- The center or shim layer is an uncoated stainless steel layer which can be varied to accommodate multiple thickness requirements
- The embossed outer layers of the gaskets meet the demands of a variety of harsh sealing environments, load conditions, and surface finishes
Specifications
- Product Attributes - Brand
- Cometic
- Product Attributes - Manufacturer's Part Number
- C5489-066
- Product Attributes - Part Type
- Head Gaskets
- Product Attributes - Product Line
- Cometic MLS Head Gaskets
- Product Attributes - UPC
- 00191070058951
- Product Attributes - Bore (in.)
- 4.100 in.
- Product Attributes - Bore (mm)
- 104.140mm
- Product Attributes - Gasket Material
- Multi-layer stainless steel
- Product Attributes - Compressed Thickness (in.)
- 0.066 in.
- Product Attributes - Compressed Volume (cc)
- 14.279cc
- Product Attributes - Lock Wire
- No
- Product Attributes - Quantity
- Sold individually.
Reference Information
| Brand Name/s | Cometic Gasket |
|---|---|
| StreetFX SKU | cgsC5489-066 |
| SFX Item ID | 4159592 |
| Supplier Item Code | 4159592 |
| Manufacturer SKU | C5489-066 |
| Manufacturer UPC | 191070058951 |
| Alternative References | CGT-C5489-066, LS1, 4.100in, .066in, MLS-5 |
