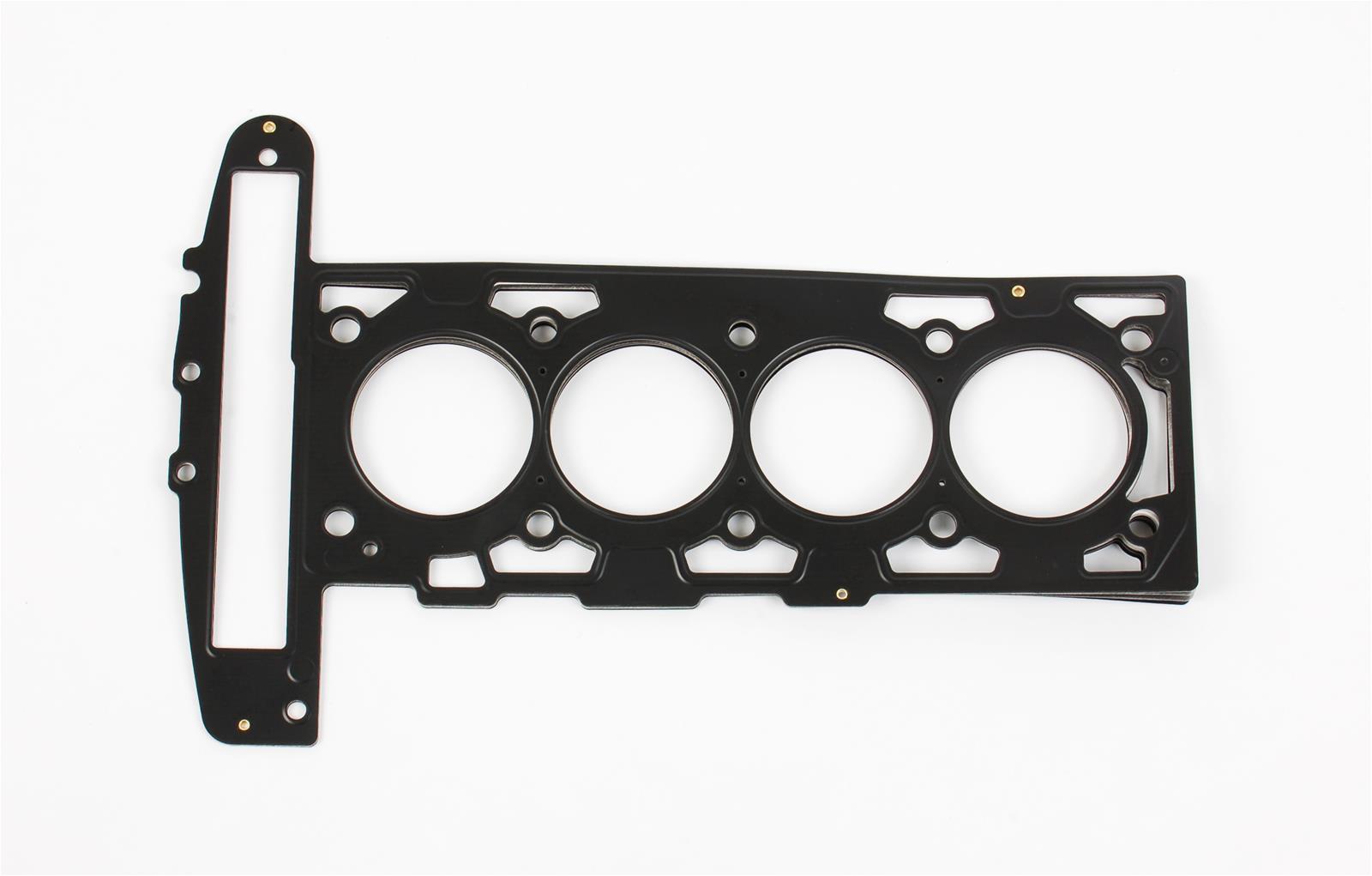

Cometic GM Ecotec LSJ 2.0L 4-Cyl .040in 87mm Bore MLX Cylinder Head Gasket
Cometic GM Ecotec LSJ 2.0L 4-Cyl .040in 87mm Bore MLX Cylinder Head Gasket
A$513.09
LAST ONE! Est Ship 4-7 days.
LAST ONE! This is the last unit at our distribution centre. Contact us if you need more. The ETA is the approximate time required to prepare your order for dispatch.
We accept
Description
IMPORTANT NOTICE: Images are supplied by the manufacturer and may be generic. While all efforts are made to provide accurate pictures, there may be differences in the actual product, such as colour, quantity, version, or included components. Please carefully review the description and specifications for details on inclusions or any variations. Some items may be sold individually or in sets, and images may occasionally depict additional products or quantities not included in your purchase. For assistance or clarification, please contact customer support.Reference Information Reference Data (Provide these details to our support team) Brand Name/s Cometic Gasket, Cometic, Cometic Gasket Automotive, Cometic Gasket Marine, Cometic Gasket Powersports, COMETIC GASKETS, Cometic Powersport Gaskets StreetFX SKU cgsC5032-040 SFX Item ID 4163099 Accounting SKU cgs-C5032-040 Manufacturer SKU C5032-040 Manufacturer UPC 191070080389 Alternative References C5032-040, CGT-C5032-040
Cylinder Head Gasket
Today's lightweight engines are producing more horsepower, higher cylinder pressures, clamp loads and extreme temperatures. Our commitment is to provide innovative, quality gaskets while maximizing your engine's power and performance. Cometic's gaskets are proudly made in the USA with materials manufactured on American soil. We are constantly updating and adding models to our ever growing library of gaskets for Powersports, Street Bikes, Snowmobiles, Harley-Davidson and V-Twin applications.
Additional Information
GM LSJ Gen-1 ECOTEC .040in. MLX Cylinder Head Gasket; 87mm Bore
Application Summary
GM LSJ Ecotec
Part Type
Engine Cylinder Head Gasket
Features and Benefits
- Creates The Ability To Rebound And Resist Corrosion
- Improved clamp load around the cylinder without increasing bore distortion
Product Details
| Bore Diameter: | 87mm |
| Description: | GM LSJ Gen-1 ECOTEC Cylinder Head Gasket |
| Engine Make/Size: | GM Ecotec LSJ 2.0L |
| OEM Part Number: | 55352039 |
| Part Number: | cgsC5032-040 |
| Thickness: | .040in |
| Title: | Cometic Gasket GM LSJ Gen-1 ECOTEC Cylinder Head Gasket |
Product Overview
Cometic Head Gaskets are developed with the performance enthusiast in mind. With so many individual requirements for each motor Cometic offers a number of options to suit your specific motor and needs.
*MLS*
The Cometic MLS gasket is comprised of three layers of Stainless Steel. Cometic uses Stainless steel for increased strength, it's ability to rebound and corrosion resistance. The outer layers of the gasket are embossed and coated on both sides with a flouroelastomer rubber based material (Viton) designed to meet the demands of a variety of harsh sealing environments, load conditions and surface finishes. The Viton coating is heat resistant to 2500C or 4820F.
The center or shim layer of the gasket is comprised of an uncoated Stainless Steel layer, which can be varied to accommodate multiple thickness requirements. The MLS gasket is ideal for both aluminum heads to cast iron blocks and aluminum heads to aluminum blocks.
The composition of MLS will also withstand the shearing forces created by aluminum heads on cast iron blocks. No re-torque is necessary. By design the MLS gasket promotes an even torque load across the sealing surface allowing for measurable reduced bore distortion.
*CFM-20*
A perforated steel core with an elastomer surface is ideal for head gaskets allowing heat to be drawn evenly across the gasket surface while providing maximum sealing characteristics when exposed to coolants and oils.
*COPPER*
| Additional Application Notes | |
|---|---|
| • Material: MLX Compressed Thickness: .040 Bore Size (MM): 87 Bore Shape: Round 0.040 in. Multi-Layer Stainless Steel; 87 mm. Gasket Bore; Each # of layers: 4 | |
| • 0.040 in. Multi-Layer Stainless Steel; 87 mm. Gasket Bore; Each | |
These additional application notes are supplied by the manufacturer and collated from multiple year ranges. Not all of these notes may apply to every year or every variant. Please contact a StreetFX agent for clarification if required.
Product Downloads
| # | Document Type | Download |
|---|---|---|
| 1. | Installation Instructions |
|
Installation guides, warranty details, and other supporting documents are provided by the supplier. In some cases, these files may originate from regions outside your locale, meaning instructions, warranty procedures, and images may not fully align with your specific vehicle or region (e.g., LHD vs. RHD differences, return policies, etc.). If you need clarification, please contact a StreetFX support agent.
Product Overview
Cometic Head Gaskets are developed with the performance enthusiast in mind. With so many individual requirements for each motor Cometic offers a number of options to suit your specific motor and needs.
*MLS*
The Cometic MLS gasket is comprised of three layers of Stainless Steel. Cometic uses Stainless steel for increased strength, it’s ability to rebound and corrosion resistance. The outer layers of the gasket are embossed and coated on both sides with a flouroelastomer rubber based material (Viton) designed to meet the demands of a variety of harsh sealing environments, load conditions and surface finishes. The Viton coating is heat resistant to 2500C or 4820F.
The center or shim layer of the gasket is comprised of an uncoated Stainless Steel layer, which can be varied to accommodate multiple thickness requirements. The MLS gasket is ideal for both aluminum heads to cast iron blocks and aluminum heads to aluminum blocks.
The composition of MLS will also withstand the shearing forces created by aluminum heads on cast iron blocks. No re-torque is necessary. By design the MLS gasket promotes an even torque load across the sealing surface allowing for measurable reduced bore distortion.
*CFM-20*
A perforated steel core with an elastomer surface is ideal for head gaskets allowing heat to be drawn evenly across the gasket surface while providing maximum sealing characteristics when exposed to coolants and oils.
*COPPER*
Features and Benefits
- Creates The Ability To Rebound And Resist Corrosion
Product Details
| Bore Diameter: | 87mm |
|---|---|
| Description: | GM LSJ Gen-1 ECOTEC Cylinder Head Gasket |
| Engine Make/Size: | GM Ecotec LSJ 2.0L |
| OEM Part Number: | 55352039 |
| Part Number: | cgsC5032-040 |
| Position: | N/A |
| Prop 65 (C, R or CR): | CR |
| Prop 65 - Short Label: | Prop_65.jpg |
| Prop 65 Warning Label: | Prop_65.jpg |
| Prop 65 Yes/No: | Yes |
| Thickness: | .040in |
| Title: | Cometic Gasket GM LSJ Gen-1 ECOTEC Cylinder Head Gasket |
| WARNING CA Proposition 65 Message: | The state of California has determined that certain chemicals used in the manufacture of this product have been known to cause cancer and birth defects. For more information; visit www.p65Warnings.ca.gov |
| WARNING CA Proposition 65: | Yes |
Application Summary
GM LSJ Ecotec
Part Type
Engine Cylinder Head Gasket
Features
- Creates The Ability To Rebound And Resist Corrosion
- Improved clamp load around the cylinder without increasing bore distortion
Specifications
.040" MLX HEAD GASKET - LSJ
The leak stops here! Cometic MLX head gaskets feature a unique integrated "stopper" layer for optimum combustion chamber sealing and improved clamp load around the cylinder without increasing bore distortion. The MLX head gaskets, like their MLS counterparts, are multi-layer stainless steel for increased strength—and require no sealants or re-torquing. Dozens of models are available; order the MLX head gaskets designed to maximize your engine's power and performance.
| Product Attributes | |
|---|---|
| Brand | Cometic |
| Manufacturer's Part Number | C5032-040 |
| Part Type | Head Gaskets |
| Product Line | Cometic MLX Head Gaskets |
| UPC | 191070080389 |
| Bore (in.) | 3.445 in. |
| Bore (mm) | 87.000mm |
| Gasket Material | Multi-layer stainless steel |
| Compressed Thickness (in.) | 0.040 in. |
| Compressed Volume (cc) | 6.110cc |
| Lock Wire | No |
| Quantity | Sold individually. |
Product Details
| Bore Diameter: | 87mm |
|---|---|
| Description: | GM LSJ Gen-1 ECOTEC Cylinder Head Gasket |
| Engine Make/Size: | GM Ecotec LSJ 2.0L |
| OEM Part Number: | 55352039 |
| Part Number: | cgsC5032-040 |
| Position: | N/A |
| Prop 65 (C, R or CR): | CR |
| Prop 65 - Short Label: | Prop_65.jpg |
| Prop 65 Warning Label: | Prop_65.jpg |
| Prop 65 Yes/No: | Yes |
| Thickness: | .040in |
| Title: | Cometic Gasket GM LSJ Gen-1 ECOTEC Cylinder Head Gasket |
| WARNING CA Proposition 65 Message: | The state of California has determined that certain chemicals used in the manufacture of this product have been known to cause cancer and birth defects. For more information; visit www.p65Warnings.ca.gov |
| WARNING CA Proposition 65: | Yes |
Reference Information
| Brand Name/s | Cometic Gasket |
|---|---|
| StreetFX SKU | cgsC5032-040 |
| SFX Item ID | 4163099 |
| Supplier Item Code | 4163099 |
| Manufacturer SKU | C5032-040 |
| Manufacturer UPC | 191070080389 |
| Alternative References | CGT-C5032-040, 2.0L, 4-Cyl, .040in, 87mm |
Brochures
Compatibility
| Cometic GM Ecotec LSJ 2.0L 4-Cyl .040in 87mm Bore MLX Cylinder Head Gasket | ||||
|---|---|---|---|---|
| Year Range | Make | Model | Submodels | Region |
| 2005-2007 | Chevrolet | Cobalt | SS | US |
| 2004-2007 | Saturn | Ion | Red Line | US |
| 2007 | Saturn | Sky | Red Line | US |
Please note that this information serves as a fitment guide only. For specific fitment questions or clarifications, please contact us, as manufacturers may introduce variations and modifications during model year or regional revisions. While we strive to provide accurate data, fitment details may vary by region; therefore, compatibility outside the listed region and submodel variant cannot be guaranteed.
