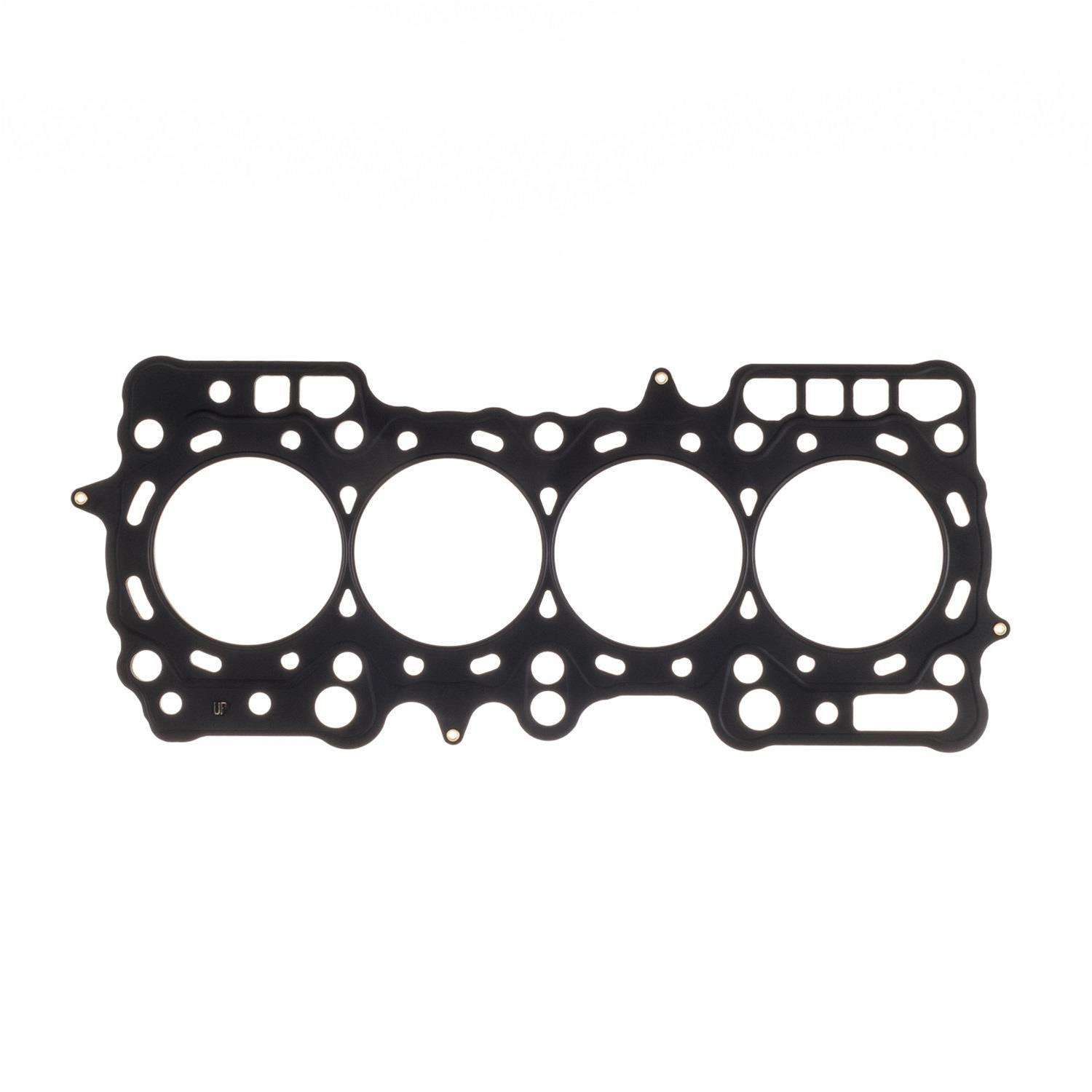

Cometic 92-96 Honda Prelude H23A1 88mm .060 inch MLS Cylinder Head Gasket
Cometic 92-96 Honda Prelude H23A1 88mm .060 inch MLS Cylinder Head Gasket
A$238.11
Special Order. Contact for ETA.
This item is out of stock in our warehouse and partner distribution centres. In some cases, this may be due to not having live inventory feeds available for all suppliers. Please contact us before ordering if you need to meet a specific deadline.
We accept
Description
IMPORTANT NOTICE: Images are supplied by the manufacturer and may be generic. While all efforts are made to provide accurate pictures, there may be differences in the actual product, such as colour, quantity, version, or included components. Please carefully review the description and specifications for details on inclusions or any variations. Some items may be sold individually or in sets, and images may occasionally depict additional products or quantities not included in your purchase. For assistance or clarification, please contact customer support.Reference Information Reference Data (Provide these details to our support team) Brand Name/s Cometic Gasket, Cometic, Cometic Gasket Automotive, Cometic Gasket Marine, Cometic Gasket Powersports, COMETIC GASKETS, Cometic Powersport Gaskets StreetFX SKU cgsC4554-060 SFX Item ID 4163342 Accounting SKU cgs-C4554-060 Manufacturer SKU C4554-060 Manufacturer UPC 191070471064 Alternative References C4554-060, CGT-C4554-060
Cylinder Head Gasket
MLS Gaskets are comprised of multiple embossed layers of both AMP (Advanced Multi-Polymer Coating) and uncoated stainless steel
Additional Information
Honda H23A1 .060in. MLS Cylinder Head Gasket; 88mm Bore
Part Type
Engine Cylinder Head Gasket
Features and Benefits
- Conforms load distribution across the sealing area
- Embossed Outer Layers Coated w/Viton
- Requires less clamp load creating less bore distortion
- The center or shim layer is an uncoated stainless steel layer which can be varied to accommodate multiple thickness requirements
- The embossed outer layers of the gaskets meet the demands of a variety of harsh sealing environments, load conditions, and surface finishes
Product Details
| Description: | Honda H23A1 Cylinder Head Gasket |
| Engine Make/Size: | Honda H22A4/H22A7 2.2L |
| OEM Part Number: | 12251-P14-A02 |
| Part Number: | cgsC4554-060 |
| Title: | Cometic Gasket Automotive Honda H23A1 .060 in MLS Cylinder Head Gasket, 88mm Bore |
Product Overview
Comprised of multiple embossed layers of stainless steel with the outer layers utilizing a Viton rubber coating. Compressed operating thickness is 0.036". World Products Man-o-War Block. Cometic MLS (Multi-Layer Steel) Head Gaskets provide maximum sealing performance for todays high output engines and require no sealants. MLS gaskets are ideal for both aluminum heads to aluminum blocks and aluminum heads to cast iron blocks. They can withstand the shearing force created by the two materials. MLS gaskets have increased strength because they are comprised of multiple layers of stainless steel; which also creates the ability to rebound and resist corrosion. The outer layers are embossed and coated on both sides with Viton (a flour elastomer rubber based material that is heat resistant to 250 C/ 482 F). Viton is designed to meet the demands of a variety of harsh sealing environments, load conditions, and surface finishes. The center or shim layer is uncoated stainless steel, which can be varied to accommodate multiple thickness requirements.
| Additional Application Notes | |
|---|---|
| • Material: MLS Compressed Thickness: .060 Bore Size (MM): 88 Bore Shape: Round # of layers: 5 | |
| • 0.060in. Multi-Layer Steel; 88mm Bore | |
These additional application notes are supplied by the manufacturer and collated from multiple year ranges. Not all of these notes may apply to every year or every variant. Please contact a StreetFX agent for clarification if required.
Product Downloads
| # | Document Type | Download |
|---|---|---|
| 1. | Installation Instructions |
|
Installation guides, warranty details, and other supporting documents are provided by the supplier. In some cases, these files may originate from regions outside your locale, meaning instructions, warranty procedures, and images may not fully align with your specific vehicle or region (e.g., LHD vs. RHD differences, return policies, etc.). If you need clarification, please contact a StreetFX support agent.
Product Overview
Comprised of multiple embossed layers of stainless steel with the outer layers utilizing a Viton rubber coating. Compressed operating thickness is 0.036". World Products Man-o-War Block. Cometic MLS (Multi-Layer Steel) Head Gaskets provide maximum sealing performance for todays high output engines and require no sealants. MLS gaskets are ideal for both aluminum heads to aluminum blocks and aluminum heads to cast iron blocks. They can withstand the shearing force created by the two materials. MLS gaskets have increased strength because they are comprised of multiple layers of stainless steel; which also creates the ability to rebound and resist corrosion. The outer layers are embossed and coated on both sides with Viton (a flour elastomer rubber based material that is heat resistant to 250 C/ 482 F). Viton is designed to meet the demands of a variety of harsh sealing environments, load conditions, and surface finishes. The center or shim layer is uncoated stainless steel, which can be varied to accommodate multiple thickness requirements.
Features and Benefits
- Embossed Outer Layers Coated w/Viton
Product Details
| Description: | Honda H23A1 Cylinder Head Gasket |
|---|---|
| Engine Make/Size: | Honda H22A4/H22A7 2.2L |
| OEM Part Number: | 12251-P14-A02 |
| Part Number: | cgsC4554-060 |
| Position: | N/A |
| Prop 65 (C, R or CR): | CR |
| Prop 65 - Short Label: | Prop_65.jpg |
| Prop 65 Warning Label: | Prop_65.jpg |
| Prop 65 Yes/No: | Yes |
| Title: | Cometic Gasket Automotive Honda H23A1 .060 in MLS Cylinder Head Gasket, 88mm Bore |
| WARNING CA Proposition 65 Message: | The state of California has determined that certain chemicals used in the manufacture of this product have been known to cause cancer and birth defects. For more information; visit www.p65Warnings.ca.gov |
| WARNING CA Proposition 65: | Yes |
Part Type
Engine Cylinder Head Gasket
Features
- Conforms load distribution across the sealing area
- Embossed Outer Layers Coated w/Viton
- Requires less clamp load creating less bore distortion
- The center or shim layer is an uncoated stainless steel layer which can be varied to accommodate multiple thickness requirements
- The embossed outer layers of the gaskets meet the demands of a variety of harsh sealing environments, load conditions, and surface finishes
Specifications
.060" MLS HEAD GASKET
| Product Attributes | |
|---|---|
| Brand | Cometic |
| Manufacturer's Part Number | C4554-060 |
| Part Type | Head Gaskets |
| UPC | 191070471064 |
Product Details
| Description: | Honda H23A1 Cylinder Head Gasket |
|---|---|
| Engine Make/Size: | Honda H22A4/H22A7 2.2L |
| OEM Part Number: | 12251-P14-A02 |
| Part Number: | cgsC4554-060 |
| Position: | N/A |
| Prop 65 (C, R or CR): | CR |
| Prop 65 - Short Label: | Prop_65.jpg |
| Prop 65 Warning Label: | Prop_65.jpg |
| Prop 65 Yes/No: | Yes |
| Title: | Cometic Gasket Automotive Honda H23A1 .060 in MLS Cylinder Head Gasket, 88mm Bore |
| WARNING CA Proposition 65 Message: | The state of California has determined that certain chemicals used in the manufacture of this product have been known to cause cancer and birth defects. For more information; visit www.p65Warnings.ca.gov |
| WARNING CA Proposition 65: | Yes |
Reference Information
| Brand Name/s | Cometic Gasket |
|---|---|
| StreetFX SKU | cgsC4554-060 |
| SFX Item ID | 4163342 |
| Supplier Item Code | 4163342 |
| Manufacturer SKU | C4554-060 |
| Manufacturer UPC | 191070471064 |
| Alternative References | CGT-C4554-060, H23A1, 88mm |
Brochures
Compatibility
| Cometic 92-96 Honda Prelude H23A1 88mm .060 inch MLS Cylinder Head Gasket | ||||
|---|---|---|---|---|
| Year Range | Make | Model | Submodels | Region |
| 1992-1996 | Honda | Prelude | Si, Si 4WS, SE | US |
| 2008-2015 | Mitsubishi | Lancer | Evolution MR, Evolution GSR, Ralliart, Evolution MR Touring, Evolution Final Edition | US |
Please note that this information serves as a fitment guide only. For specific fitment questions or clarifications, please contact us, as manufacturers may introduce variations and modifications during model year or regional revisions. While we strive to provide accurate data, fitment details may vary by region; therefore, compatibility outside the listed region and submodel variant cannot be guaranteed.
