COMP Cams Camshaft LS1 XR269HR-14
COMP Cams Camshaft LS1 XR269HR-14
A$2,862.07
LAST ONE! Est Ship 4-7 days.
LAST ONE! This is the last unit at our distribution centre. Contact us if you need more. The ETA is the approximate time required to prepare your order for dispatch.
We accept
Description

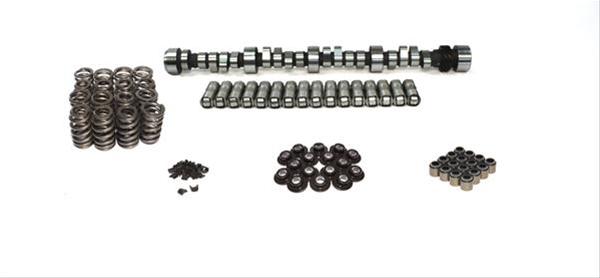

K-KIT - Complete Kit Includes: Camshaft, Lifters, Valve Springs, Retainers, Valve Locks, Valve Stem Seals, Timing Chain Set, Assembly Lube (in flat tappet applications), Decals and Instructions.
Product Overview
COMP Cams offers complete component-matched valve train kits that deliver unbeatable performance, durability and ease of installation.
All cam kits are fully tested and manufactured to the strictest standards. Each kit’s components were specifically chosen as the best performance match for that particular camshaft so that you can reap the benefits of a perfectly matched “Power Engineered System.â€
*K-Kit - Complete Kit Includes*
* Camshaft
* Lifters

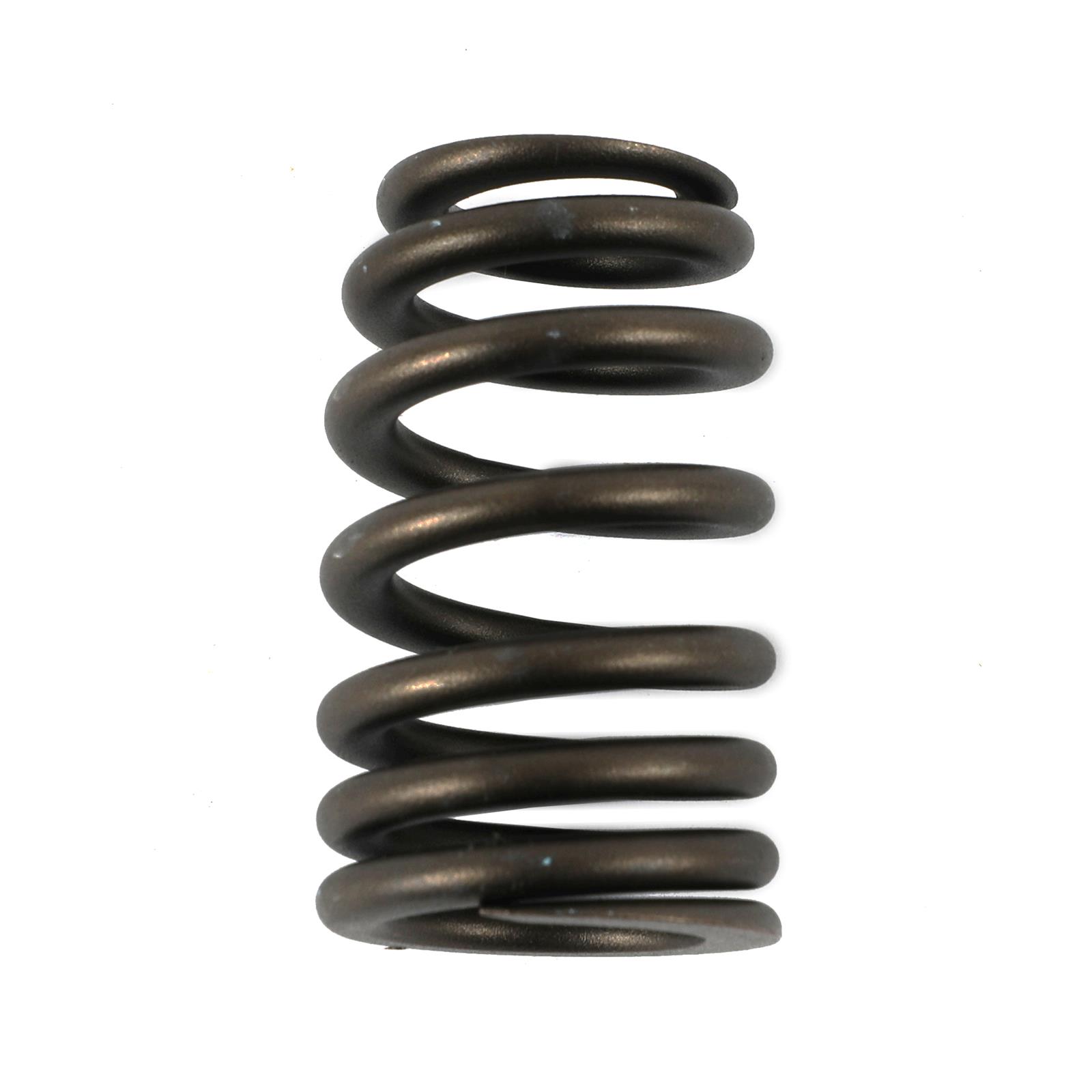

* Valve Springs
* Retainers
* Valve Locks
* Valve Stem Seals
* Timing Chain Set
* Assembly Lube
* Decals
* Instructions
Product Details
| Amazon ASIN: | B005H89TMU |
|---|---|
| Assembly Lubricant Included: | No |
| C.A.R.B. E.O. Number: | N/A |
| C.A.R.B. Exempt for California Certified Vehicles Manufactured Before 1965?: | Yes, but must meet tailpipe emission standards for year of vehicle. |
| C.A.R.B. Exempt for Federally Certified Vehicles Manufactured Before 1967?: | Yes, but must meet tailpipe emission standards for year of vehicle. |
| C.A.R.B. Exempt for Foreign Vehicles Manufactured Before 1967?: | Yes, but must meet tailpipe emission standards for year of vehicle. |
| C.A.R.B. Exempt for On-Road Vehicles?: | No |
| C.A.R.B. Exempt for Racing and Off-Road Only Vehicles?: | Yes, but must be a race/competition only vehicle. |
| C.A.R.B. Exemption Reason: | N/A |
| California Proposition 65: | WARNING: Cancer and Reproductive Harm P65Warnings.ca.gov |
| Description: | XFI RPM 216/220 Hydraulic Roller Cam K-Kit for GM LS GEN III/IV |
| Exhaust Duration @ .050 in.: | 220 |
| Exhaust Duration: | 273 |
| Exhaust Valve Lift(in): | 0.532 |
| Gaskets Included: | No |
| Intake Duration @ .050 in.: | 216 |
| Intake Duration: | 269 |
| Intake Valve Lift(in): | 0.525 |
| Kit Type: | K-Kit - Complete Kit |
| Lifter Type: | Hydraulic Roller |
| Lifters Included: | Yes |
| MSE Process Video Link: | https://www.youtube.com/watch?v=hTyIQxrPCCI |
| Part Number: | ccaK54-414-11 |
| RPM Range: | 1300-6300 |
| Title: | XFI RPM 216/220 Hydraulic Roller Cam K-Kit for GM LS GEN III/IV |
| Usage: | Street/Performance |
| Valve Springs Included: | Yes |
Application Summary
Fits 4.8, 5.3, 5.7, 6.0, 6.2 and 7.0 Liter LS1, LS2, LS3, LS4, LS6, LS7 plus SUV and Truck Engines (Grinds are specific to displacement and cylinder head design)
Part Type
Engine Camshaft Kit
Specifications
- Product Attributes - Brand
- COMP Cams
- Product Attributes - Manufacturer's Part Number
- K54-414-11
- Product Attributes - Part Type
- Camshaft Kits
- Product Attributes - Product Line
- COMP Cams XFI RPM Cam and Lifter Kits
- Product Attributes - UPC
- 036584199816
- Product Attributes - Cam Style
- Hydraulic roller, OE roller
- Product Attributes - Basic Operating RPM Range
- 1,300-6,300
- Product Attributes - Camshaft Use
- Street/Strip
- Product Attributes - Camshaft Manufacturers Description
- Great mid-range with superior top end power. Requires programmer.
- Product Attributes - Intake Duration at 050 inch Lift
- 216
- Product Attributes - Exhaust Duration at 050 inch Lift
- 220
- Product Attributes - Duration at 050 inch Lift
- 216 int./220 exh.
- Product Attributes - Advertised Intake Duration
- 269
- Product Attributes - Advertised Exhaust Duration
- 273
- Product Attributes - Advertised Duration
- 269 int./273 exh.
- Product Attributes - Intake Valve Lift with Factory Rocker Arm Ratio
- 0.525 in.
- Product Attributes - Exhaust Valve Lift with Factory Rocker Arm Ratio
- 0.532 in.
- Product Attributes - Valve Lift with Factory Rocker Arm Ratio
- 0.525 int./0.532 exh.
- Product Attributes - Lobe Separation (degrees)
- 114
- Product Attributes - Camshaft Gear Attachment
- 3-bolt
- Product Attributes - Grind Number
- XR269HR
- Product Attributes - Computer-Controlled Compatible
- Yes
- Product Attributes - Lifters Included
- Yes
- Product Attributes - Lifter Style
- Hydraulic roller
- Product Attributes - Valve Springs Included
- Yes
- Product Attributes - Outside Diameter of Outer Spring (in.)
- 1.055 in.
- Product Attributes - Retainers Included
- Yes
- Product Attributes - Locks Included
- Yes
- Product Attributes - Valve Stem Seals Included
- Yes
- Product Attributes - Timing Chain and Gears Included
- No
- Product Attributes - Assembly Lubricant Included
- Yes
- Product Attributes - Pushrods Included
- No
- Product Attributes - Rocker Arms Included
- No
- Product Attributes - Gaskets Included
- No
- Product Attributes - Valve Springs Required
- Yes
- Product Attributes - Quantity
- Sold as a kit.
Reference Information
| Brand Name/s | Comp Cams |
|---|---|
| StreetFX SKU | ccaK54-414-11 |
| SFX Item ID | 4124118 |
| Supplier Item Code | 4124118 |
| Manufacturer SKU | K54-414-11 |
| Manufacturer UPC | 36584199816 |
| Alternative References | ls1, ls2, ls3, ls4, ls6, ls7 |
Brochures
Compatibility
Fits 4.8, 5.3, 5.7, 6.0, 6.2 and 7.0 Liter LS1, LS2, LS3, LS4, LS6, LS7 plus SUV and Truck Engines (Grinds are specific to displacement and cylinder head design)
