COMP Cams Camshaft Kit CB 308R
COMP Cams Camshaft Kit CB 308R
A$3,451.01
Last Available from MFR.
LAST ONE AVAILABLE from the manufacturer's distribution centre. Once sold, this item may not be immediately available again. The dispatch timeframe shown is an estimate based on historical orders for this part and is dependent on the manufacturer releasing the final available unit.
We accept
Description

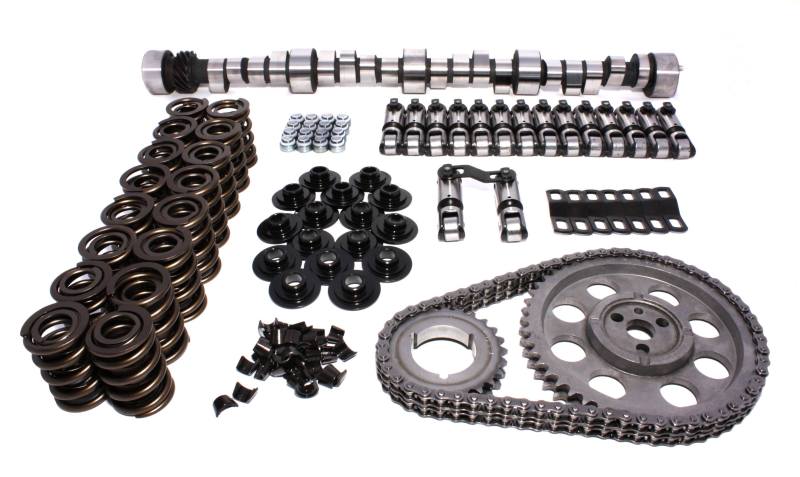

K-KIT - Complete Kit Includes: Camshaft, Lifters, Valve Springs, Retainers, Valve Locks, Valve Stem Seals, Timing Chain Set, Assembly Lube (in flat tappet applications), Decals and Instructions.
Product Overview
COMP Cams offers complete component-matched valve train kits that deliver unbeatable performance, durability and ease of installation.
All cam kits are fully tested and manufactured to the strictest standards. Each kit’s components were specifically chosen as the best performance match for that particular camshaft so that you can reap the benefits of a perfectly matched “Power Engineered System.â€
*K-Kit - Complete Kit Includes*
* Camshaft
* Lifters
* Valve Springs
* Retainers
* Valve Locks
* Valve Stem Seals
* Timing Chain Set
* Assembly Lube
* Decals
* Instructions
Product Details
| Advertised Exhaust Duration: | 308 |
|---|---|
| Advertised Intake Duration: | 308 |
| Amazon ASIN: | B001R98I1G |
| Assembly Lubricant Included: | No |
| Basic Operating RPM Range: | 3,000-7200 |
| C.A.R.B. E.O. Number: | N/A |
| C.A.R.B. Exempt for California Certified Vehicles Manufactured Before 1965?: | Yes, but must meet tailpipe emission standards for year of vehicle. |
| C.A.R.B. Exempt for Federally Certified Vehicles Manufactured Before 1967?: | Yes, but must meet tailpipe emission standards for year of vehicle. |
| C.A.R.B. Exempt for Foreign Vehicles Manufactured Before 1967?: | Yes, but must meet tailpipe emission standards for year of vehicle. |
| C.A.R.B. Exempt for On-Road Vehicles?: | No |
| C.A.R.B. Exempt for Racing and Off-Road Only Vehicles?: | Yes, but must be a race/competition only vehicle. |
| C.A.R.B. Exemption Reason: | N/A |
| California Proposition 65: | WARNING: Cancer and Reproductive Harm P65Warnings.ca.gov |
| Cam Type: | Solid Roller |
| Camshaft Gear Attachment: | 3-Bolt |
| Camshaft Material: | Austempered Ductile Iron |
| Camshaft Series: | Magnum |
| Description: | Magnum 262/262 Solid Roller Cam K-Kit for Chevrolet Big Block 396-454 |
| Engine Family: | Chevrolet 396-454 c.i. 8 Cylinder (1967-1996) |
| Exhaust Duration @ .050 in.: | 264 |
| Exhaust Duration at .050 inch Lift: | 264 |
| Exhaust Duration: | 308 |
| Exhaust Valve Lift(in): | 0.652 |
| Exhaust Valve Lift: | 0.652 |
| Gaskets Included: | No |
| Intake Duration @ .050 in.: | 264 |
| Intake Duration at .050 Inch Lift: | 264 |
| Intake Duration: | 308 |
| Intake Valve Lift(in): | 0.652 |
| Intake Valve Lift: | 0.652 |
| Kit Type: | K-Kit - Complete Kit |
| Lifter Type: | Solid Roller |
| Lifters Included: | Yes |
| Lobe Separation: | 110 |
| Part Number: | ccaK11-693-8 |
| RPM Range: | 3000-9000 |
| Title: | Magnum 262/262 Solid Roller Cam K-Kit for Chevrolet Big Block 396-454 |
| Usage: | Street/Strip |
| Valve Springs Included: | Yes |
Application Summary
Chevrolet GEN IV 396-454 Big Block Engines Originally Equipped with Flat Tappet Camshafts
Part Type
Engine Camshaft Kit
Specifications
- Product Attributes - Brand
- COMP Cams
- Product Attributes - Manufacturer's Part Number
- K11-693-8
- Product Attributes - Part Type
- Camshaft Kits
- Product Attributes - Product Line
- COMP Cams Magnum Solid Roller Cam and Lifter Kits
- Product Attributes - UPC
- 036584460206
- Product Attributes - Cam Style
- Solid roller, Retro-fit
- Product Attributes - Basic Operating RPM Range
- 3,000-7,200
- Product Attributes - Camshaft Use
- Street/Strip
- Product Attributes - Intake Duration at 050 inch Lift
- 262
- Product Attributes - Exhaust Duration at 050 inch Lift
- 262
- Product Attributes - Duration at 050 inch Lift
- 262 int./262 exh.
- Product Attributes - Advertised Intake Duration
- 308
- Product Attributes - Advertised Exhaust Duration
- 308
- Product Attributes - Advertised Duration
- 308 int./308 exh.
- Product Attributes - Intake Valve Lift with Factory Rocker Arm Ratio
- 0.652 in.
- Product Attributes - Exhaust Valve Lift with Factory Rocker Arm Ratio
- 0.652 in.
- Product Attributes - Valve Lift with Factory Rocker Arm Ratio
- 0.652 int./0.652 exh.
- Product Attributes - Lobe Separation (degrees)
- 110
- Product Attributes - Intake Valve Lash
- 0.020 in.
- Product Attributes - Exhaust Valve Lash
- 0.020 in.
- Product Attributes - Grind Number
- CB 308A-R10
- Product Attributes - Computer-Controlled Compatible
- No
- Product Attributes - Lifters Included
- Yes
- Product Attributes - Lifter Style
- Mechanical roller
- Product Attributes - Valve Springs Included
- Yes
- Product Attributes - Outside Diameter of Outer Spring (in.)
- 1.535 in.
- Product Attributes - Retainers Included
- Yes
- Product Attributes - Locks Included
- Yes
- Product Attributes - Valve Stem Seals Included
- Yes
- Product Attributes - Timing Chain and Gears Included
- Yes
- Product Attributes - Timing Chain Style
- Double non-roller
- Product Attributes - Assembly Lubricant Included
- No
- Product Attributes - Pushrods Included
- No
- Product Attributes - Rocker Arms Included
- No
- Product Attributes - Gaskets Included
- No
- Product Attributes - Valve Springs Required
- No
- Product Attributes - Quantity
- Sold as a kit.
- Product Attributes - Notes
- Requires thrust button and wear plate.
Reference Information
| Brand Name/s | Comp Cams |
|---|---|
| StreetFX SKU | ccaK11-693-8 |
| SFX Item ID | 4123688 |
| Supplier Item Code | 4123688 |
| Manufacturer SKU | K11-693-8 |
| Manufacturer UPC | 36584460206 |
| Alternative References | c10, s10, 308R |
Brochures
Compatibility
Chevrolet GEN IV 396-454 Big Block Engines Originally Equipped with Flat Tappet Camshafts
