Description

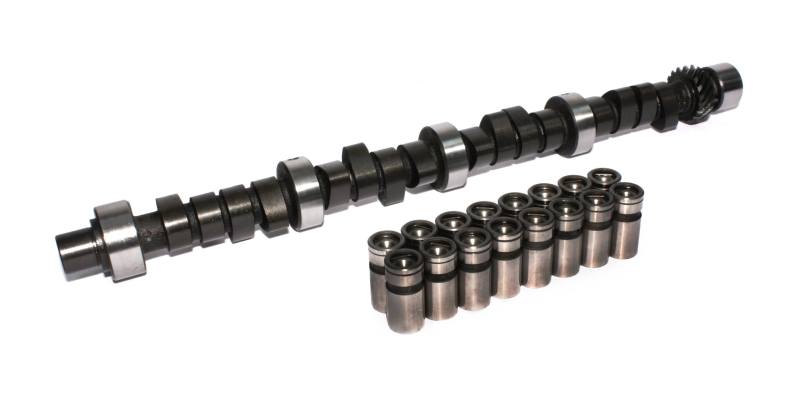

CL-KIT - Cam and Lifter Kit Includes: Camshaft, Lifters, Assembly Lube, Decals and Instructions.
Product Overview
COMP Cams offers complete component-matched valve train kits that deliver unbeatable performance, durability and ease of installation.
All cam kits are fully tested and manufactured to the strictest standards. Each kit’s components were specifically chosen as the best performance match for that particular camshaft so that you can reap the benefits of a perfectly matched “Power Engineered System.â€
*CL-Kit Cam & Lifter Kit Includes*
* Camshaft
* Lifters
* Assembly Lube
* Decals
* Instructions
Product Details
| Advertised Exhaust Duration: | 313 |
|---|---|
| Advertised Intake Duration: | 295 |
| Amazon ASIN: | B002EE16DA |
| Assembly Lubricant Included: | Yes |
| Basic Operating RPM Range: | 2,500-6,400 |
| C.A.R.B. E.O. Number: | N/A |
| C.A.R.B. Exempt for California Certified Vehicles Manufactured Before 1965?: | Yes, but must meet tailpipe emission standards for year of vehicle. |
| C.A.R.B. Exempt for Federally Certified Vehicles Manufactured Before 1967?: | Yes, but must meet tailpipe emission standards for year of vehicle. |
| C.A.R.B. Exempt for Foreign Vehicles Manufactured Before 1967?: | Yes, but must meet tailpipe emission standards for year of vehicle. |
| C.A.R.B. Exempt for On-Road Vehicles?: | No |
| C.A.R.B. Exempt for Racing and Off-Road Only Vehicles?: | Yes, but must be a race/competition only vehicle. |
| C.A.R.B. Exemption Reason: | N/A |
| California Proposition 65: | WARNING: Cancer and Reproductive Harm P65Warnings.ca.gov |
| Cam Type: | Hydraulic Flat Tappet |
| Camshaft Gear Attachment: | 1-Bolt |
| Camshaft Material: | Cast Iron |
| Camshaft Series: | Thumpr |
| Description: | Big Mutha' Thumpr 243/257 Hydraulic Flat Cam and Lifter Kit for Chrysler 273-360 |
| Engine Family: | Chrysler 273-360 c.i. 8 Cylinder (1964-2002) |
| Exhaust Duration @ .050 in.: | 257 |
| Exhaust Duration at .050 inch Lift: | 257 |
| Exhaust Duration: | 313 |
| Exhaust Valve Lift(in): | 0.494 |
| Exhaust Valve Lift: | 0.494 |
| Gaskets Included: | No |
| Intake Duration @ .050 in.: | 243 |
| Intake Duration at .050 Inch Lift: | 243 |
| Intake Duration: | 295 |
| Intake Valve Lift(in): | 0.507 |
| Intake Valve Lift: | 0.507 |
| K-Kit Upgrade: | K20-602-4 |
| Kit Type: | CL-Kit - Cam and Lifter Kit |
| Lifter Type: | Hydraulic Flat Tappet |
| Lifters Included: | Yes |
| Lobe Separation: | 107 |
| Locks Included: | No |
| Part Number: | ccaCL20-602-4 |
| RPM Range: | 2000-9000 |
| Retainers Included: | No |
| Timing Chain and Gears Included: | No |
| Title: | Big Mutha' Thumpr 243/257 Hydraulic Flat Cam and Lifter Kit for Chrysler 273-360 |
| Usage: | Street/Strip |
| Valve Springs Required: | Yes |
| Valve Stem Seals Included: | No |
Application Summary
Fits Chrysler 273, 318, 340 and 360 LA
Part Type
Engine Camshaft and Lifter Kit
Specifications
- Product Attributes - Brand
- COMP Cams
- Product Attributes - Manufacturer's Part Number
- CL20-602-4
- Product Attributes - Part Type
- Camshaft Kits
- Product Attributes - Product Line
- COMP Cams Thumpr Hydraulic Flat Tappet Cam and Lifter Kits
- Product Attributes - UPC
- 036584181330
- Product Attributes - Cam Style
- Hydraulic flat tappet
- Product Attributes - Basic Operating RPM Range
- 2,500-6,400
- Product Attributes - Camshaft Use
- Street/Strip
- Product Attributes - Intake Duration at 050 inch Lift
- 243
- Product Attributes - Exhaust Duration at 050 inch Lift
- 257
- Product Attributes - Duration at 050 inch Lift
- 243 int./257 exh.
- Product Attributes - Advertised Intake Duration
- 295
- Product Attributes - Advertised Exhaust Duration
- 312
- Product Attributes - Advertised Duration
- 291 int./312 exh.
- Product Attributes - Intake Valve Lift with Factory Rocker Arm Ratio
- 0.507 in.
- Product Attributes - Exhaust Valve Lift with Factory Rocker Arm Ratio
- 0.494 in.
- Product Attributes - Valve Lift with Factory Rocker Arm Ratio
- 0.507 int./0.494 exh.
- Product Attributes - Lobe Separation (degrees)
- 107
- Product Attributes - Grind Number
- 295TH7
- Product Attributes - Computer-Controlled Compatible
- No
- Product Attributes - Lifters Included
- Yes
- Product Attributes - Lifter Style
- Hydraulic flat tappet
- Product Attributes - Valve Springs Included
- No
- Product Attributes - Retainers Included
- No
- Product Attributes - Locks Included
- No
- Product Attributes - Valve Stem Seals Included
- No
- Product Attributes - Timing Chain and Gears Included
- No
- Product Attributes - Assembly Lubricant Included
- Yes
- Product Attributes - Pushrods Included
- No
- Product Attributes - Rocker Arms Included
- No
- Product Attributes - Gaskets Included
- No
- Product Attributes - Valve Springs Required
- Yes
- Product Attributes - Quantity
- Sold as a kit.
Reference Information
| Brand Name/s | Comp Cams |
|---|---|
| StreetFX SKU | ccaCL20-602-4 |
| SFX Item ID | 4123137 |
| Supplier Item Code | 4123137 |
| Manufacturer SKU | CL20-602-4 |
| Manufacturer UPC | 36584181330 |
| Alternative References | 295T, H-10 |
Brochures
Compatibility
Fits Chrysler 273, 318, 340 and 360 LA
