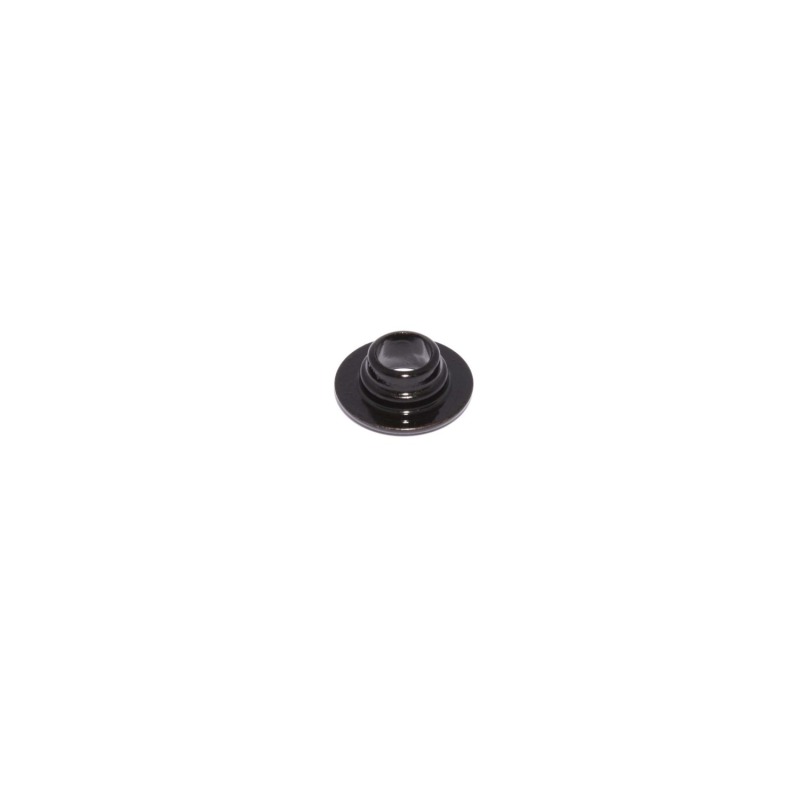

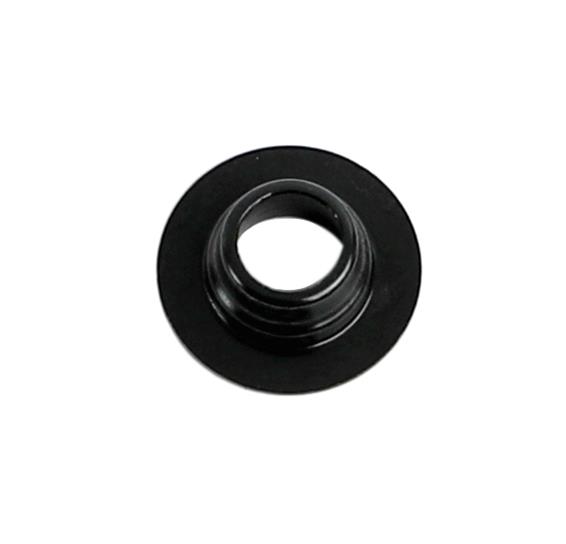

COMP Cams Steel Retainer Ford 4.6L 4V F
COMP Cams Steel Retainer Ford 4.6L 4V F
A$20.96
Available from MFR.
This item is available from the manufacturer's distribution centre. The dispatch timeframe shown is an estimate based on historical order processing and release times for this part. This item is not held in our own warehouse, and actual dispatch timing may vary depending on manufacturer workload and logistics at the time of ordering.
We accept
Description
Valve springs with larger diameters require retainers to handle the higher pressures developed by the springs. COMP Cams Steel Retainers are the perfect solution to this problem. COMP engineers used 3D CAD with FEA to design retainers with a modern and advanced contoured top profiling for lower stress, increased lift and a reduction in mass. The retainers are CNC-machined to exact tolerances using CAD/Cam software. All COMP retainers use only high-grade SAE 4140 chromemoly Steel with no lead,
Product Overview
Valve springs with larger diameters require retainers to handle the higher pressures developed by the springs. COMP Cams steel retainers are precision machined from 4140 chromemoly steel and finished in black oxide. These precision retainers are specifically designed for positive location when combined with COMP Cams high-quality valve springs. For superior strength and ultimate stability, both 7° and 10° retainers and valve locks are available. Refer to the spring application chart on pages 293-303 for correct retainer part numbers for each COMP Cams valve spring.
Product Details
| Amazon ASIN: | B001G9EMJO |
|---|---|
| Angle: | 7° |
| C.A.R.B. E.O. Number: | N/A |
| C.A.R.B. Exempt for California Certified Vehicles Manufactured Before 1965?: | Yes, but must meet tailpipe emission standards for year of vehicle. |
| C.A.R.B. Exempt for Federally Certified Vehicles Manufactured Before 1967?: | Yes, but must meet tailpipe emission standards for year of vehicle. |
| C.A.R.B. Exempt for Foreign Vehicles Manufactured Before 1967?: | Yes, but must meet tailpipe emission standards for year of vehicle. |
| C.A.R.B. Exempt for On-Road Vehicles?: | Yes |
| C.A.R.B. Exempt for Racing and Off-Road Only Vehicles?: | Yes, but must be a race/competition only vehicle. |
| C.A.R.B. Exemption Reason: | No impact on pollution output of vehicle. |
| California Proposition 65: | WARNING: Cancer and Reproductive Harm P65Warnings.ca.gov |
| Compatible Lock: | 7 |
| Description: | Steel Retainer for Ford 4.6 4 Valve w/ 26123 Beehive Springs |
| Diameter 1: | .900" |
| Diameter 2: | .570" |
| Diameter 3: | N/A |
| Diameter 4: | N/A |
| Lock Angle: | 7 |
| Part Number: | cca799-1 |
| Retainer Material: | 4140 Chromemoly Steel |
| Spring Diameter: | .943" |
| Stem Size: | Stock |
| Title: | Steel Retainer for Ford 4.6 4 Valve w/ 26123 Beehive Springs |
| Valve Spring Diameter: | 0.943 |
| Valve Stem Size: | Stock |
Part Type
Engine Valve Spring Retainer
Specifications
- Product Attributes - Brand
- COMP Cams
- Product Attributes - Manufacturer's Part Number
- 799-1
- Product Attributes - Part Type
- Valve Spring Retainers
- Product Attributes - Product Line
- COMP Cams Steel Valve Spring Retainers
- Product Attributes - UPC
- 036584098423
- Product Attributes - Outside Diameter of Outer Spring (in.)
- 0.943 in.
- Product Attributes - Retainer Material
- Steel
- Product Attributes - Lock Style
- 7 degree
- Product Attributes - Valve Spring Style
- Beehive
- Product Attributes - Retainer Style
- Standard
- Product Attributes - Number of Springs Per Valve
- Single
- Product Attributes - Inside Diameter of Inner Spring (in.)
- 0.570 in.
- Product Attributes - Locks Included
- No
- Product Attributes - Quantity
- Sold individually.
- Product Attributes - Notes
- Designed for use with CCA-26123 Beehive springs. Fits Ford 4.6L with 4 valve head.
Reference Information
| Brand Name/s | Comp Cams |
|---|---|
| StreetFX SKU | cca799-1 |
| SFX Item ID | 4121888 |
| Supplier Item Code | 4121888 |
| Manufacturer SKU | 799-1 |
| Manufacturer UPC | 36584098423 |
| Alternative References | gt-350, CPC799-1, 4.6L |
