Description
Upgrading to these 7°
Product Overview

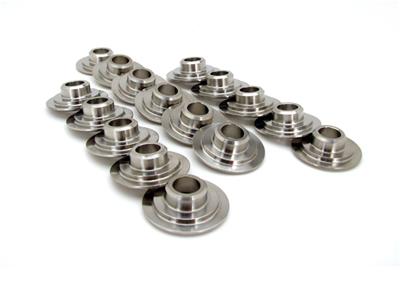

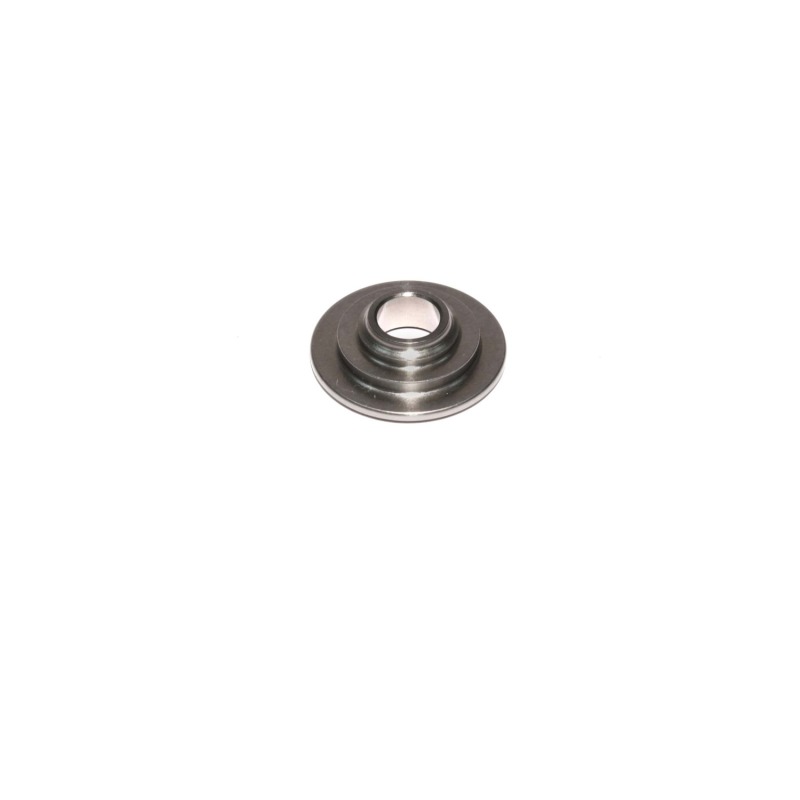

Upgrading to COMP Cams titanium valve spring retainers will often allow you to gain speed and power because titanium retainers are lighter and as strong as than most steel ones. Additionally, our Super Lock titanium design gives you confidence; no longer will you be preoccupied with splitting a retainer and tearing up an engine when turning 10,000 RPM.
COMP Cams titanium retainers are made from the finest 6AL4V alloy for maximum stiffness and minimal warpage. The 6AL4V alloy is heat-treated and processed to a stringent tolerance that makes it extremely strong. Other manufacturers purchase titanium from metal brokers and produce “cheap†retainers, but COMP Cams titanium retainers will not deform. From a standing idle to the most extreme RPM, our titanium retainers perform flawlessly and without compromise.
Product Details
| Amazon ASIN: | B002EE4E6G |
|---|---|
| Angle: | 7° |
| C.A.R.B. E.O. Number: | N/A |
| C.A.R.B. Exempt for California Certified Vehicles Manufactured Before 1965?: | Yes, but must meet tailpipe emission standards for year of vehicle. |
| C.A.R.B. Exempt for Federally Certified Vehicles Manufactured Before 1967?: | Yes, but must meet tailpipe emission standards for year of vehicle. |
| C.A.R.B. Exempt for Foreign Vehicles Manufactured Before 1967?: | Yes, but must meet tailpipe emission standards for year of vehicle. |
| C.A.R.B. Exempt for On-Road Vehicles?: | Yes |
| C.A.R.B. Exempt for Racing and Off-Road Only Vehicles?: | Yes, but must be a race/competition only vehicle. |
| C.A.R.B. Exemption Reason: | No impact on pollution output of vehicle. |
| California Proposition 65: | WARNING: Cancer and Reproductive Harm P65Warnings.ca.gov |
| Compatible Lock: | 623-1 |
| Description: | 7 Degree Titanium Retainer for GM GEN III w/ 8mm Valve w/ 1.430-1.460 OD Spring |
| Diameter 1: | 1.300" |
| Diameter 2: | 1.070" |
| Diameter 3: | .690" |
| Diameter 4: | N/A |
| Lock Angle: | 7 |
| Part Number: | cca776-1 |
| Retainer Material: | Titanium |
| Spring Diameter: | 1.430"-1.460" |
| Stem Size: | 8 mm |
| Title: | 7 Titanium Retainer for GM GEN III w/ 8mm Valve w/ 1.430-1.460 OD Spring |
| Valve Spring Diameter: | 1.430-1.460 |
| Valve Stem Size: | Stock |
Part Type
Engine Valve Spring Retainer
Specifications
- Product Attributes - Brand
- COMP Cams
- Product Attributes - Manufacturer's Part Number
- 776-1
- Product Attributes - Part Type
- Valve Spring Retainers
- Product Attributes - Product Line
- COMP Cams Titanium Valve Spring Retainers
- Product Attributes - UPC
- 036584076094
- Product Attributes - Outside Diameter of Outer Spring (in.)
- 1.460 in.
- Product Attributes - Retainer Material
- Titanium
- Product Attributes - Lock Style
- 7 degree
- Product Attributes - Valve Spring Style
- Standard
- Product Attributes - Retainer Style
- Standard
- Product Attributes - Number of Springs Per Valve
- Dual
- Product Attributes - Outside Diameter of Middle Spring (in.)
- 1.070 in.
- Product Attributes - Inside Diameter of Inner Spring (in.)
- 0.690 in.
- Product Attributes - Locks Included
- No
- Product Attributes - Quantity
- Sold individually.
- Product Attributes - Notes
- Will work with single or dual springs. Designed for use with GM Gen III with 1.430-1.460 inch dia. valve springs.
Reference Information
| Brand Name/s | Comp Cams |
|---|---|
| StreetFX SKU | cca776-1 |
| SFX Item ID | 4121500 |
| Supplier Item Code | 4121500 |
| Manufacturer SKU | 776-1 |
| Manufacturer UPC | 36584076094 |
| Alternative References | LS1 |
