COMP Cams 09-18 Dodge 5.7/6.2/6.4 HEMI 0.63in Lift Conical Valve Spring Kit
COMP Cams 09-18 Dodge 5.7/6.2/6.4 HEMI 0.63in Lift Conical Valve Spring Kit
A$1,144.83
Last Available from MFR.
LAST ONE AVAILABLE from the manufacturer's distribution centre. Once sold, this item may not be immediately available again. The dispatch timeframe shown is an estimate based on historical orders for this part and is dependent on the manufacturer releasing the final available unit.
We accept
Description

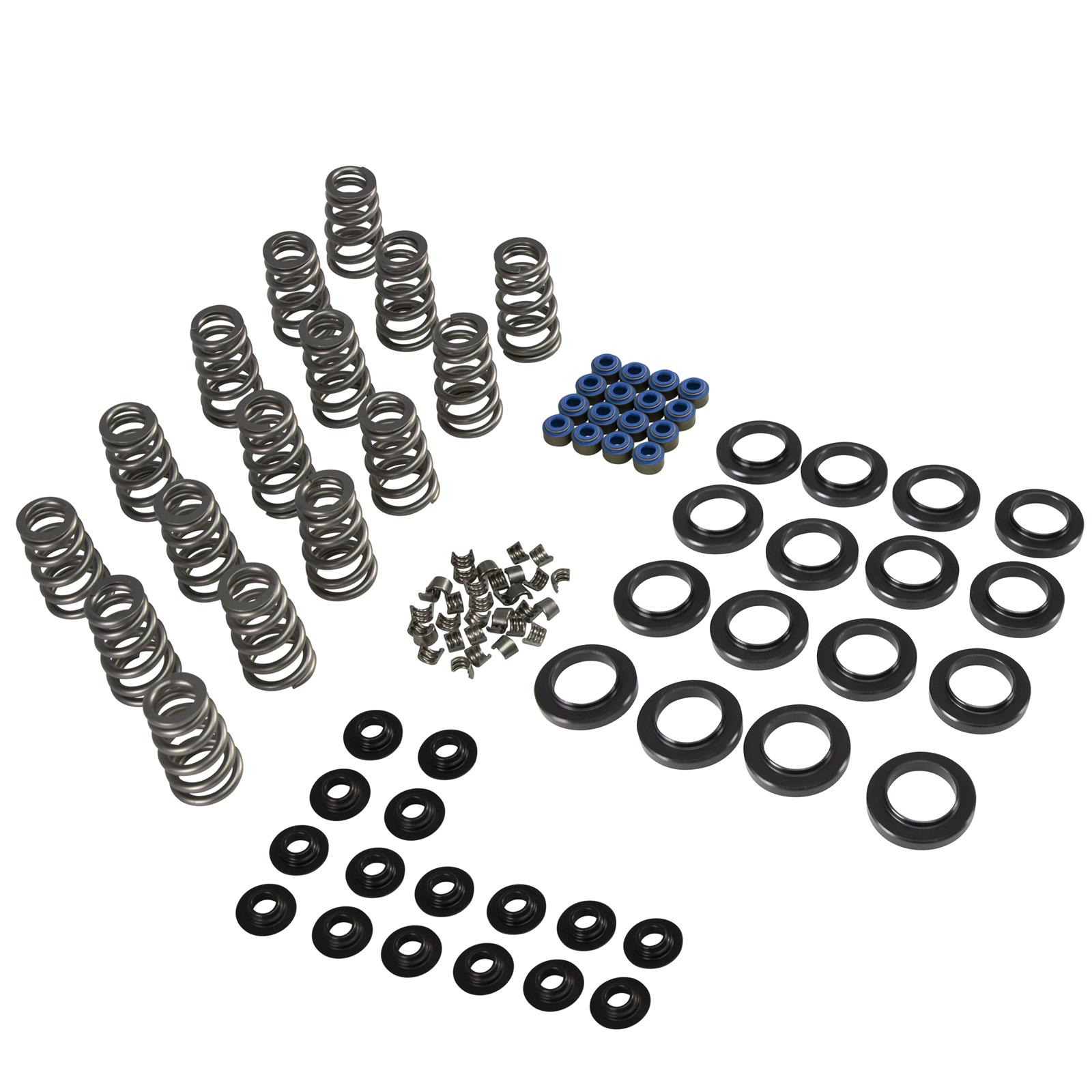

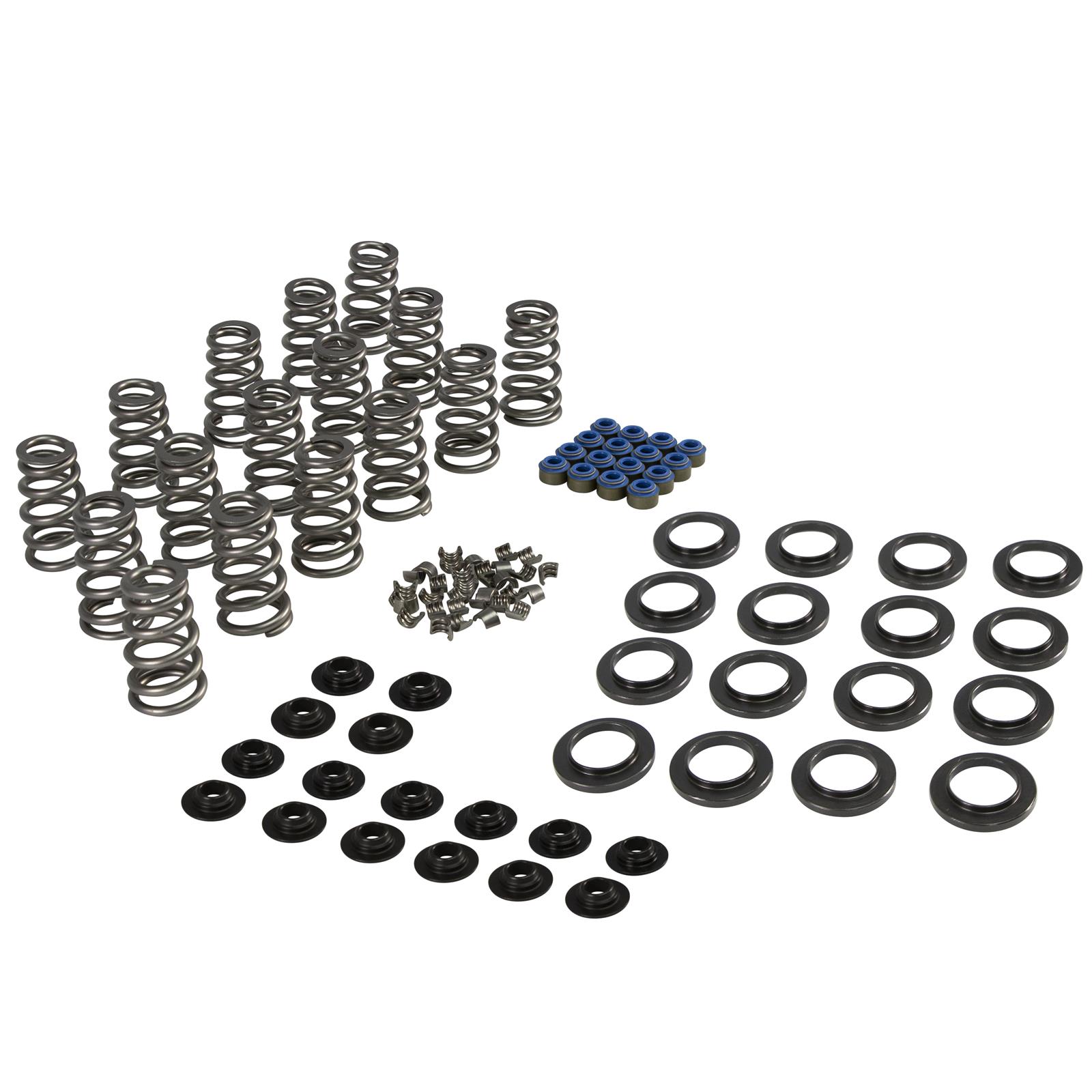

The COMP Cams .630" Lift Conical Valve Spring Kits for Dodge Gen IV HEMIs features: Max Lift: .630" Increased High RPM Stability Excellent spring upgrade for high performance and Race Applications Includes valve springs, locks, Seals, seats, and Chromemoly retainers
Product Overview
Designed for '09-'18 Dodge 5.7L HEMI, this Conical Spring Kit includes steel retainers, valve locks, seals and seats that require no machine work. Capable of 0.630" valve lift, this kit removes the guesswork for your HEMI engine.
Product Details
| California Proposition 65: | WARNING: Cancer and Reproductive Harm P65Warnings.ca.gov |
|---|---|
| Coil Bind Height: | 1.125 |
| Damper: | No |
| Description: | .630" Lift Conical Spring Kit for '09-'18 Dodge 5.7L HEMI |
| Free Length: | 2.110 |
| ID Big End: | 0.918 |
| ID Small End: | 0.662 |
| Included Seats: | 4683 |
| Includes Retainers?: | Yes |
| Includes Seats?: | Yes |
| Includes Shims?: | No |
| Installed Height: | 1.800 |
| Max Lift: | 0.630 |
| Number of Springs: | 16 |
| OD Big End: | 1.286 |
| OD Small End: | 1.030 |
| Open Load: | 399 |
| Part Number: | cca7228CC-KIT |
| Retainer Material: | Chromemoly Steel |
| Seat Pressure: | 136 |
| Spring Rate: | 440 |
| Spring Seat Type: | Chromemoly Steel |
| Spring Style: | Conical |
| Title: | .630" Lift Conical Spring Kit for '09-'18 Dodge 5.7L HEMI |
| Valve Spring Series: | Conical |
Application Summary
09-'18 Dodge 5.7L HEMI
Part Type
Engine Valve Spring Kit
Specifications
- Product Attributes - Brand
- COMP Cams
- Product Attributes - Manufacturer's Part Number
- 7228CC-KIT
- Product Attributes - Part Type
- Valve Springs
- Product Attributes - Product Line
- COMP Cams Valve Springs
- Product Attributes - UPC
- 036584399360
- Product Attributes - Valve Spring Style
- Conical
- Product Attributes - Number of Springs Per Valve
- Single
- Product Attributes - Maximum Valve Lift (in.)
- 0.630 in.
- Product Attributes - Retainers Included
- Yes
- Product Attributes - Retainer Material
- Chromoly steel
- Product Attributes - Outside Diameter of Outer Spring (in.)
- 1.286 in.
- Product Attributes - Coil Bind Height (in.)
- 1.125 in.
- Product Attributes - Damper Spring Included
- No
- Product Attributes - Spring Rate (lbs./in.)
- 440 lbs./in.
- Product Attributes - Inside Diameter of Outer Spring (in.)
- 0.918 in.
- Product Attributes - Inside Diameter of Inner Spring (in.)
- 0.662 in.
- Product Attributes - Locks Included
- Yes
- Product Attributes - Lock Material
- Hardened steel
- Product Attributes - Lock Groove Quantity
- 3-groove
- Product Attributes - Lock Style
- 7 degree
- Product Attributes - Valve Stem Seals Included
- Yes
- Product Attributes - Valve Springs Coated
- No
- Product Attributes - Valve Stem Diameter (in.)
- 0.314 in.
- Product Attributes - Valve Stem Diameter (mm)
- 8.00mm
- Product Attributes - Remanufactured
- No
- Product Attributes - Quantity
- Sold as a set of 16.
- Product Attributes - Installed Height (in.)
- 1.800 in.
- Product Attributes - Seat Pressure at Installed Height (lbs.)
- 136 lbs.
- Product Attributes - Open Pressure (lbs.)
- 399 lbs.
Reference Information
| Brand Name/s | Comp Cams |
|---|---|
| StreetFX SKU | cca7228CC-KIT |
| SFX Item ID | 4118137 |
| Supplier Item Code | 4118137 |
| Manufacturer SKU | 7228CC-KIT |
| Manufacturer UPC | 36584399360 |
| Alternative References | COM7228CC-KIT, CPC7228CC-KIT, 0.63in |
Brochures
Compatibility
09-'18 Dodge 5.7L HEMI
