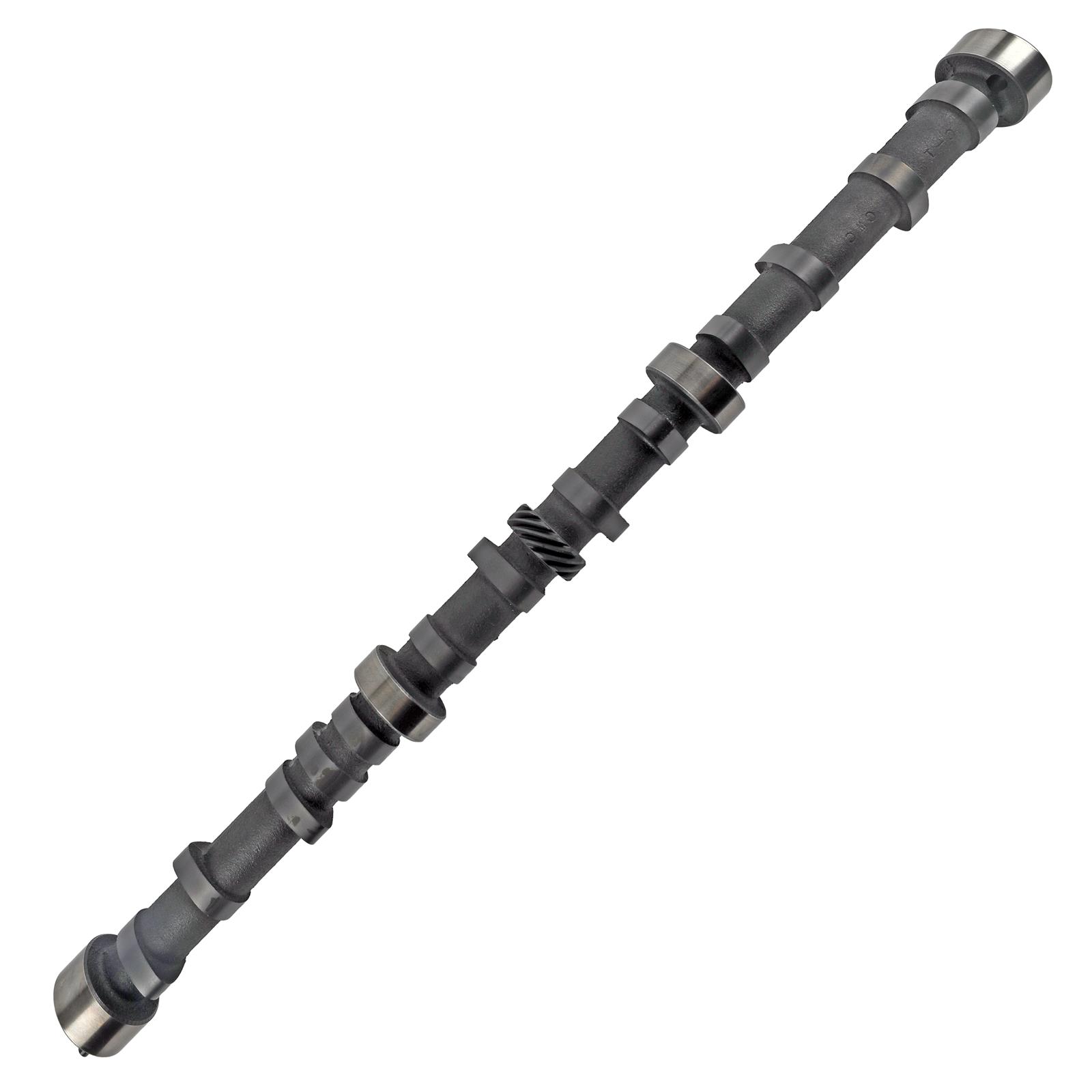

COMP Cams 1964-1998 Jeep 4.0L Xtreme 4x4 197/201 Camshaft X4 242H-8
COMP Cams 1964-1998 Jeep 4.0L Xtreme 4x4 197/201 Camshaft X4 242H-8
Sale ends in Calculating...
A$731.77
A$976.27
Available from MFR.
This item is available from the manufacturer's distribution centre. The dispatch timeframe shown is an estimate based on historical order processing and release times for this part. This item is not held in our own warehouse, and actual dispatch timing may vary depending on manufacturer workload and logistics at the time of ordering.
We accept
Description
The Jeep 4.0L is used for many different tasks, from daily driving to rock crawling and even hill climbs. COMP Cams has released grinds that tailor to some of the most common applications of this proven motor. These camshafts feature new lobe designs specific to the 4.0L that allow for more duration and valve lift within the constraints of the 4.0L design. This results in better torque and mid-range power for both carbureted and EFI applications. With two grinds aimed at builds utilizing aftermarket cylinder heads and one designed for stock heads, you can choose the best cam for your specific setup and usage that provides maximum responsiveness with simple tuning.
Product Overview
The Jeep 4.0L is used for many different tasks, from daily driving to rock crawling and even hill climbs. COMP Cams has released grinds that tailor to some of the most common applications of this proven motor. These camshafts feature new lobe designs specific to the 4.0L that allow for more duration and valve lift within the constraints of the 4.0L design. This results in better torque and mid-range power for both carbureted and EFI applications. With two grinds aimed at builds utilizing aftermarket cylinder heads and one designed for stock heads, you can choose the best cam for your specific setup and usage that provides maximum responsiveness with simple tuning.
Product Details
| Advertised Exhaust Duration: | 246 |
|---|---|
| Advertised Intake Duration: | 242 |
| Assembly Lubricant Included: | Yes |
| Basic Operating RPM Range: | 750-5000 |
| C.A.R.B. E.O. Number: | N/A |
| C.A.R.B. Exempt for California Certified Vehicles Manufactured Before 1965?: | Yes, but must meet tailpipe emission standards for year of vehicle. |
| C.A.R.B. Exempt for Federally Certified Vehicles Manufactured Before 1967?: | Yes, but must meet tailpipe emission standards for year of vehicle. |
| C.A.R.B. Exempt for Foreign Vehicles Manufactured Before 1967?: | Yes, but must meet tailpipe emission standards for year of vehicle. |
| C.A.R.B. Exempt for On-Road Vehicles?: | No |
| C.A.R.B. Exempt for Racing and Off-Road Only Vehicles?: | Yes, but must be a race/competition only vehicle. |
| C.A.R.B. Exemption Reason: | N/A |
| California Proposition 65: | WARNING: Cancer and Reproductive Harm P65Warnings.ca.gov |
| Cam Type: | Hydraulic Flat Tappet |
| Camshaft Gear Attachment: | 1-Bolt |
| Camshaft Material: | Cast Iron |
| Camshaft Series: | Xtreme 4x4 |
| Description: | Xtreme 4x4 242H-8 Hydraulic Flat Camshaft for '64-'98 Jeep 4.0 |
| Engine Family: | Jeep 4.0L / AMC 199-258CI 1964-1998 |
| Exhaust Duration at .050 inch Lift: | 201 |
| Exhaust Valve Lift: | 0.45 |
| Gaskets Included: | No |
| Grind Number: | 242H-8 |
| Intake Duration at .050 Inch Lift: | 197 |
| Intake Valve Lift: | 0.45 |
| Lifter Style: | Hydraulic Flat Tappet |
| Lifters Included: | No |
| Lobe Separation: | 108 |
| Locks Included: | No |
| Part Number: | cca68-501-5 |
| Pushrods Included: | No |
| Recommended Valve Springs: | 983J-KIT |
| Retainers Included: | No |
| Timing Set Included: | No |
| Title: | Xtreme 4x4 242H-8 Hydraulic Flat Camshaft for '64-'98 Jeep 4.0 |
| Usage: | Street & Off Road |
| Valve Seals Included: | No |
| Valve Spring Seats Included: | No |
| Valve Springs Included: | No |
Application Summary
Fits 1964-1998 Jeep 4.0L 6 Cylinder
Part Type
Engine Camshaft
Specifications
- Product Attributes - Brand
- COMP Cams
- Product Attributes - Manufacturer's Part Number
- 68-501-5
- Product Attributes - Part Type
- Camshafts
- Product Attributes - Product Line
- COMP Cams Xtreme 4x4 Camshafts
- Product Attributes - UPC
- 036584408550
- Product Attributes - Cam Style
- Hydraulic flat tappet
- Product Attributes - Camshaft Use
- Off Road 4WD/Street
- Product Attributes - Basic Operating RPM Range
- 750-5,000
- Product Attributes - Intake Duration at 050 inch Lift
- 197
- Product Attributes - Exhaust Duration at 050 inch Lift
- 201
- Product Attributes - Duration at 050 inch Lift
- 197 int./201 exh.
- Product Attributes - Advertised Intake Duration
- 242
- Product Attributes - Advertised Exhaust Duration
- 246
- Product Attributes - Advertised Duration
- 242 int./246 exh.
- Product Attributes - Intake Valve Lift with Factory Rocker Arm Ratio
- 0.450 in.
- Product Attributes - Exhaust Valve Lift with Factory Rocker Arm Ratio
- 0.450 in.
- Product Attributes - Valve Lift with Factory Rocker Arm Ratio
- 0.450 int./0.450 exh.
- Product Attributes - Lobe Separation (degrees)
- 108
- Product Attributes - Remanufactured
- No
- Product Attributes - Computer-Controlled Compatible
- Yes
- Product Attributes - Grind Number
- X4242H-8
- Product Attributes - Valve Springs Required
- No
- Product Attributes - Quantity
- Sold individually.
Reference Information
| Brand Name/s | Comp Cams |
|---|---|
| StreetFX SKU | cca68-501-5 |
| SFX Item ID | 4118098 |
| Supplier Item Code | 4118098 |
| Manufacturer SKU | 68-501-5 |
| Manufacturer UPC | 36584408550 |
| Alternative References | 4.0l, CPC68-501-5, 4x4, 242H-8 |
Brochures
Compatibility
Fits 1964-1998 Jeep 4.0L 6 Cylinder
